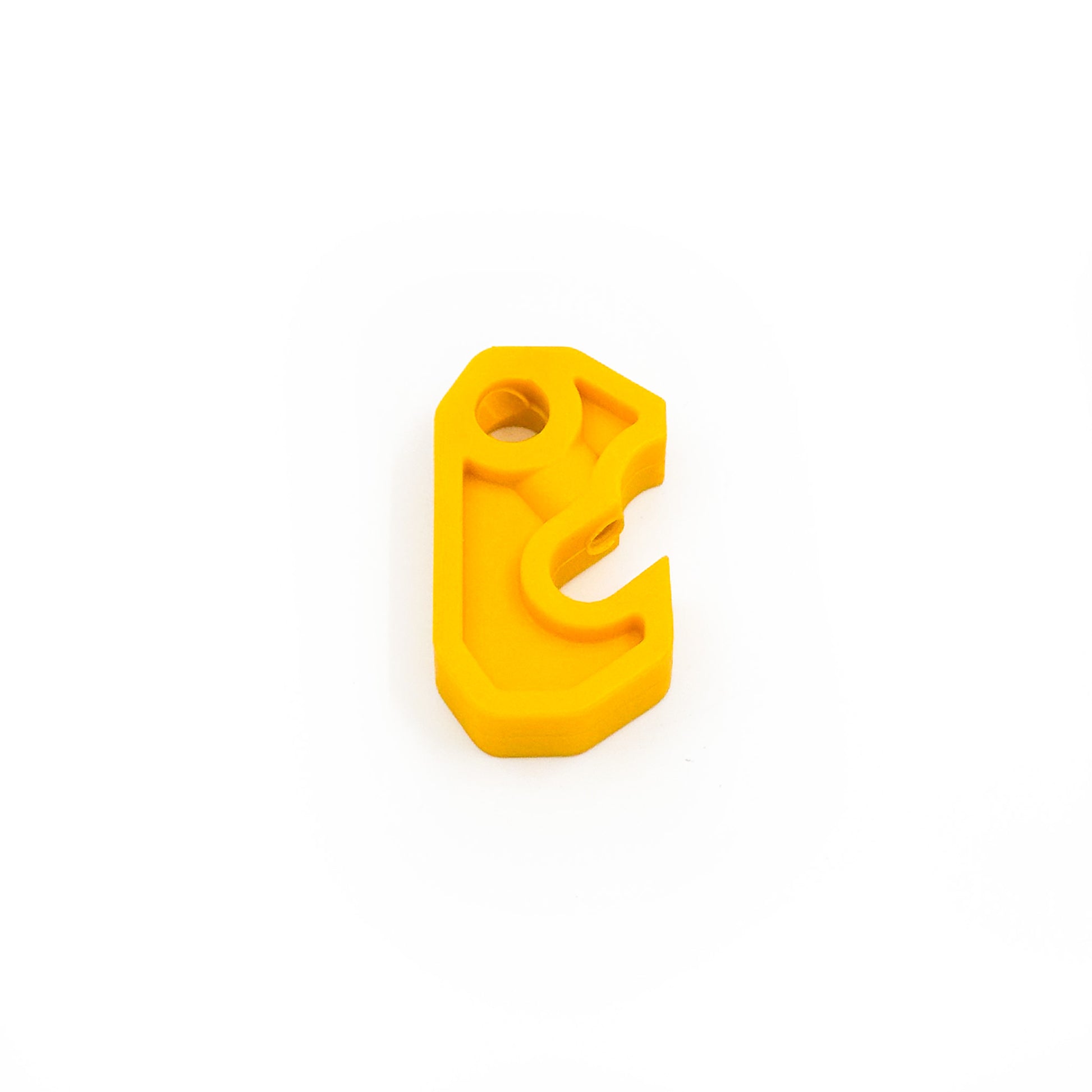

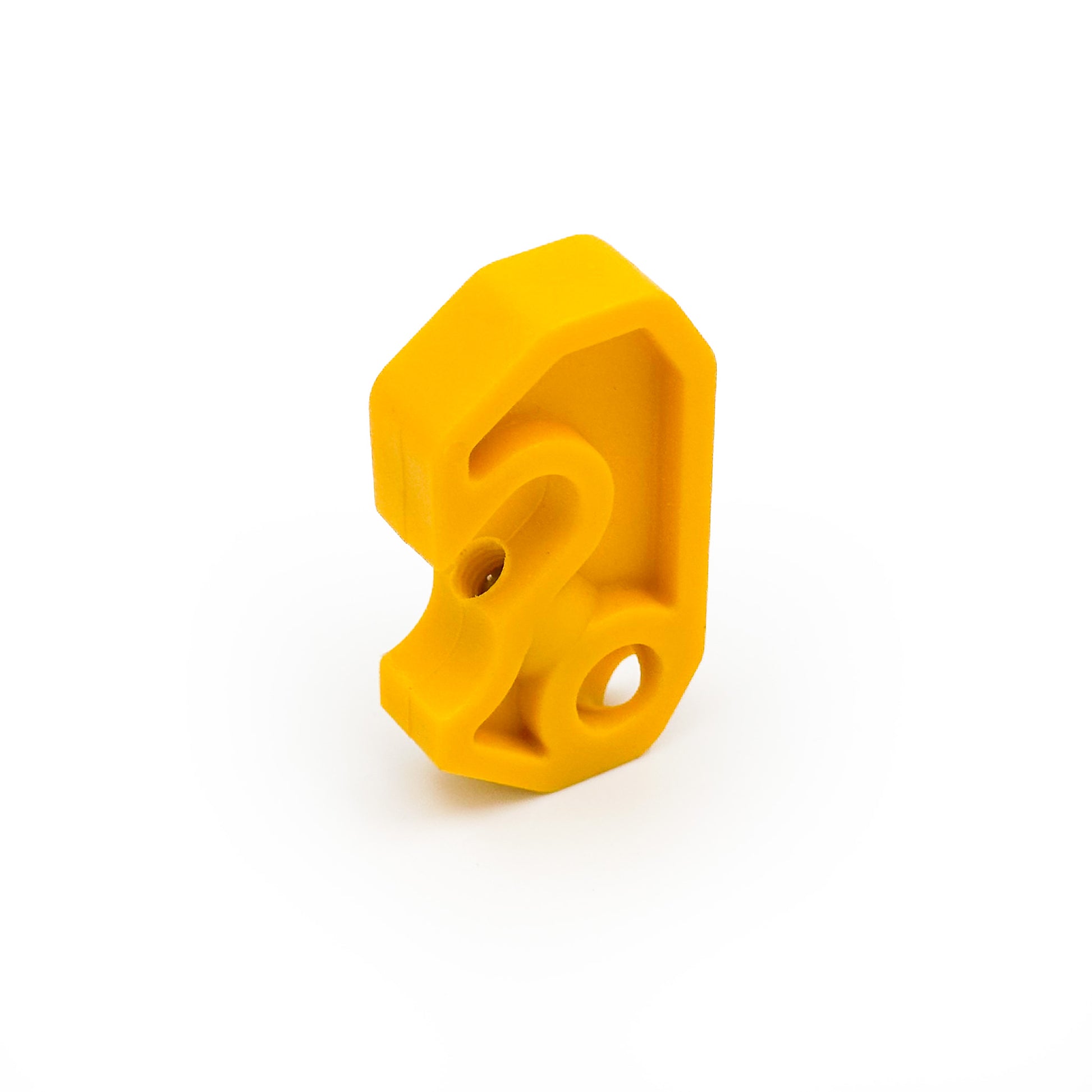

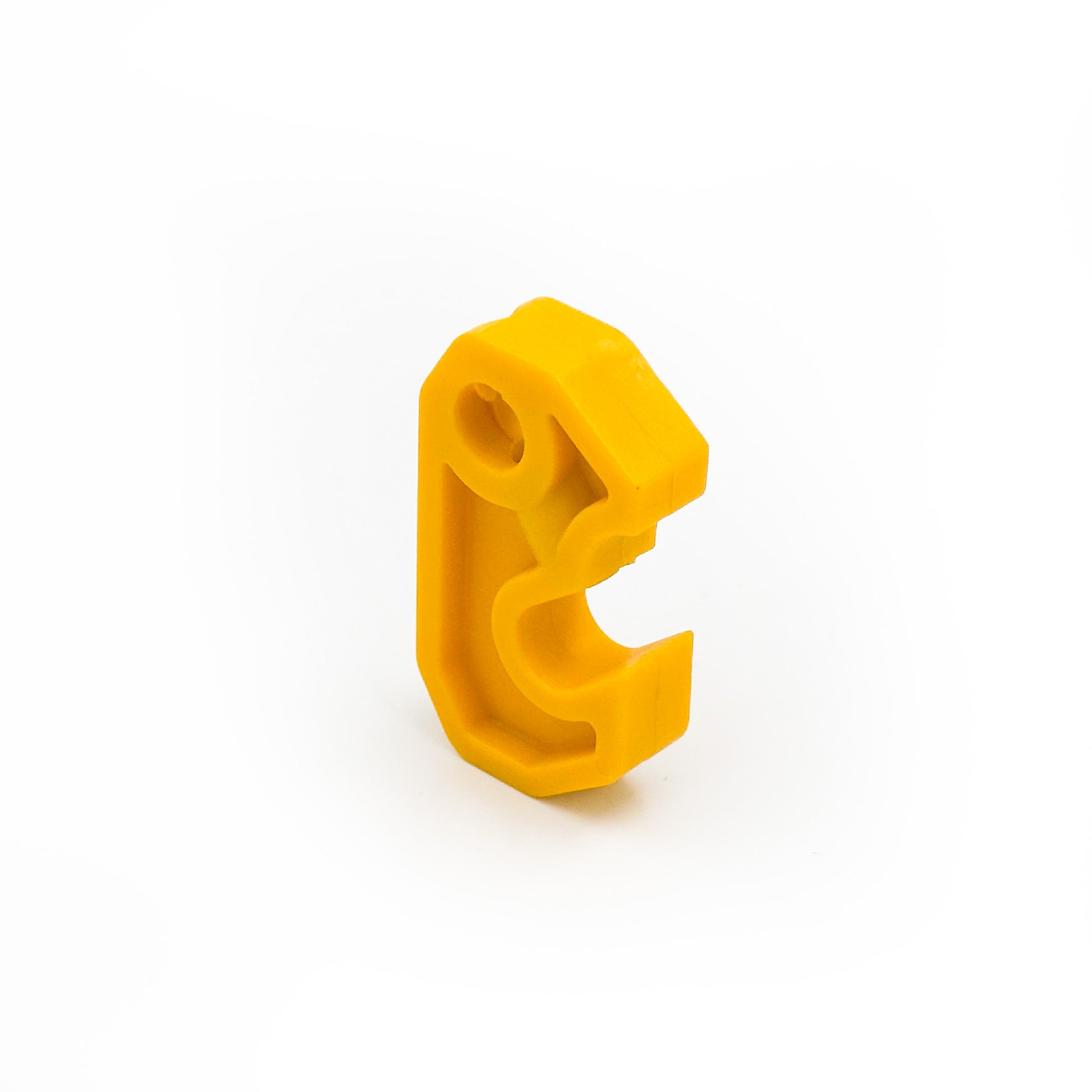

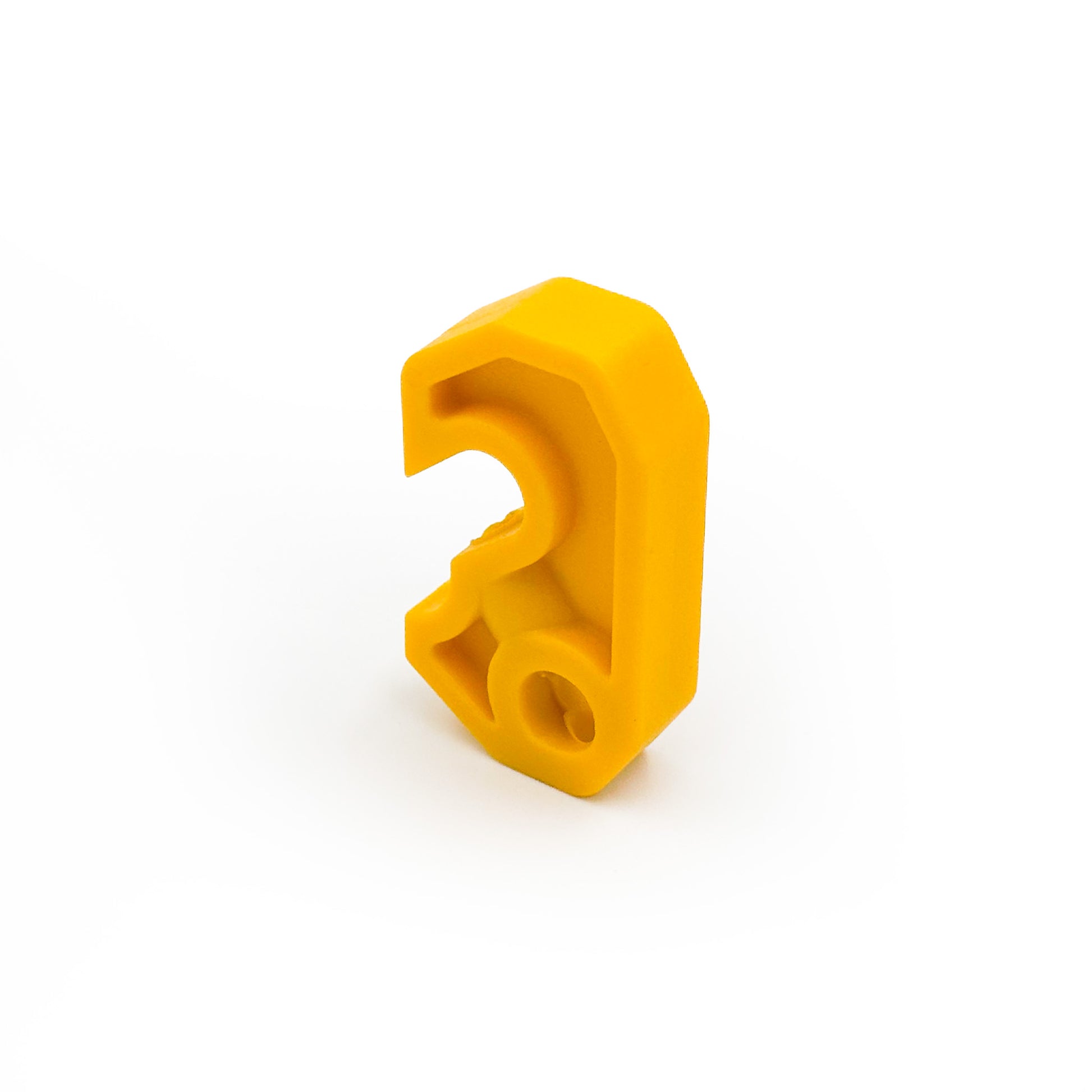

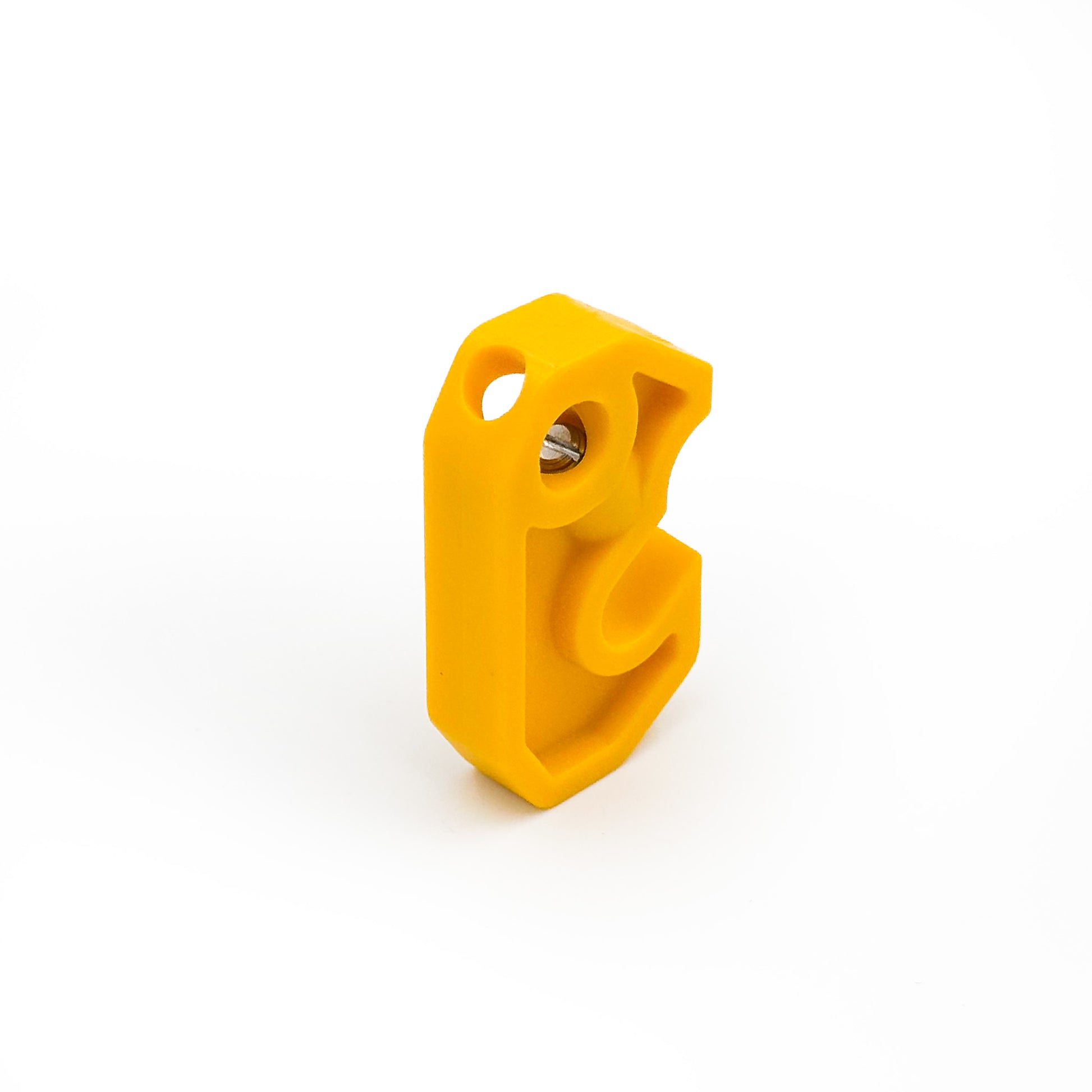

The Universal Lockout Device helps prevent the unintended energisation of energy sources.
-
Part No: UCL-1
-
Application: Clamp the UCL-1 onto the circuit breaker toggle in the OFF position using a small screwdriver and the set screw in the device. Secure the device by placing a padlock through the hole to prevent access to the set screw.
-
Use For: Miniature circuit breakers
-
Material: Nylon plastic with a zinc-plated metal set screw
-
Dimensions: 42mm x 25mm x 10mm
-
Padlock Holes: 1 x 8mm
-
Colour: Yellow
-
Pack Sizes: Hang Pack of 1, Box of 25 Hang Packs, Box of 100 Hang Packs, or Box of 100 Bulk
-
Stock: Available in Buderim, Queensland, Australia
-
Other: Maximum toggle size it can clamp: 8mm
