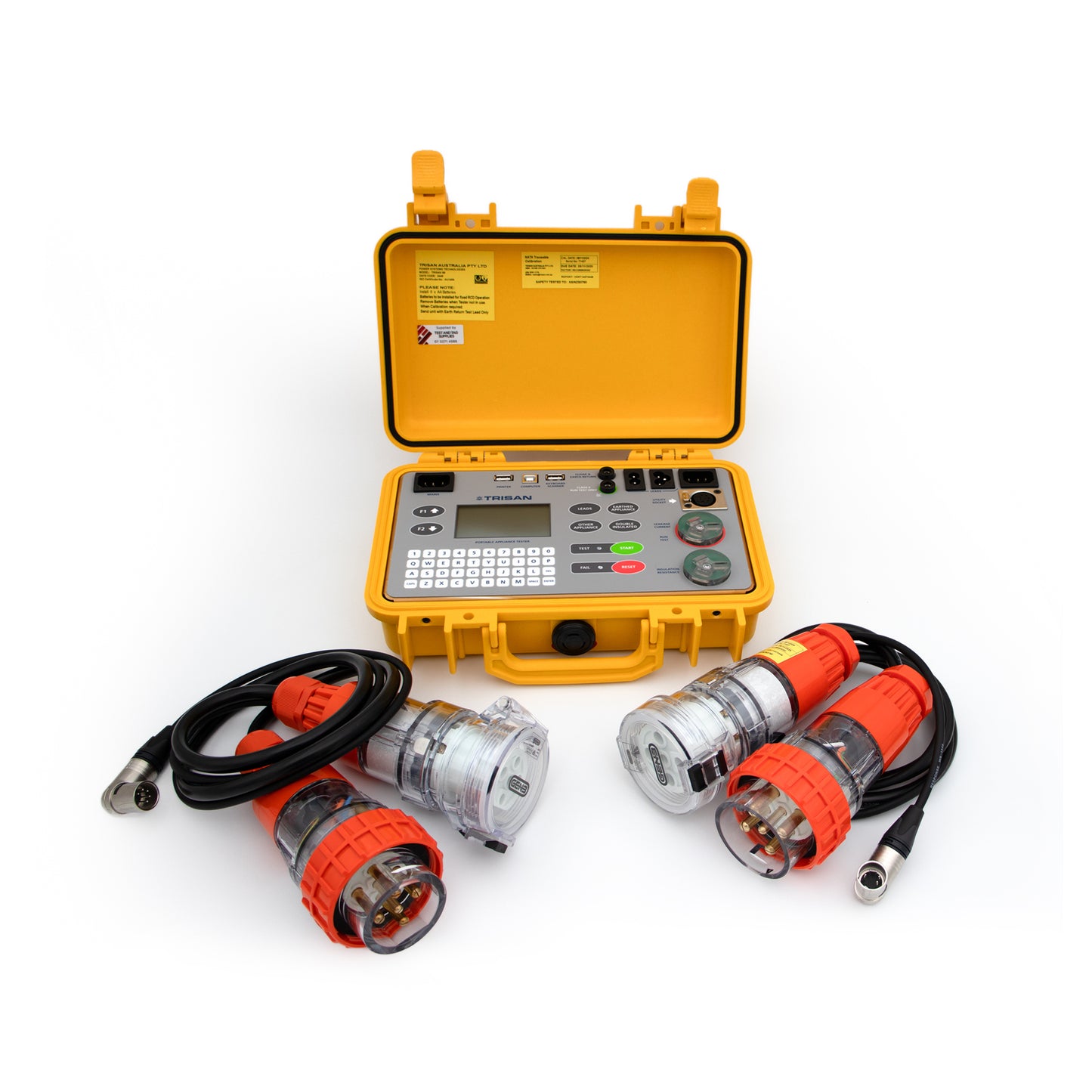

Trisan S8DL 3-Phase Kit
Trisan S8DL 3-Phase Kit
SKU:PKG3P3S8
Couldn't load pickup availability






Overview

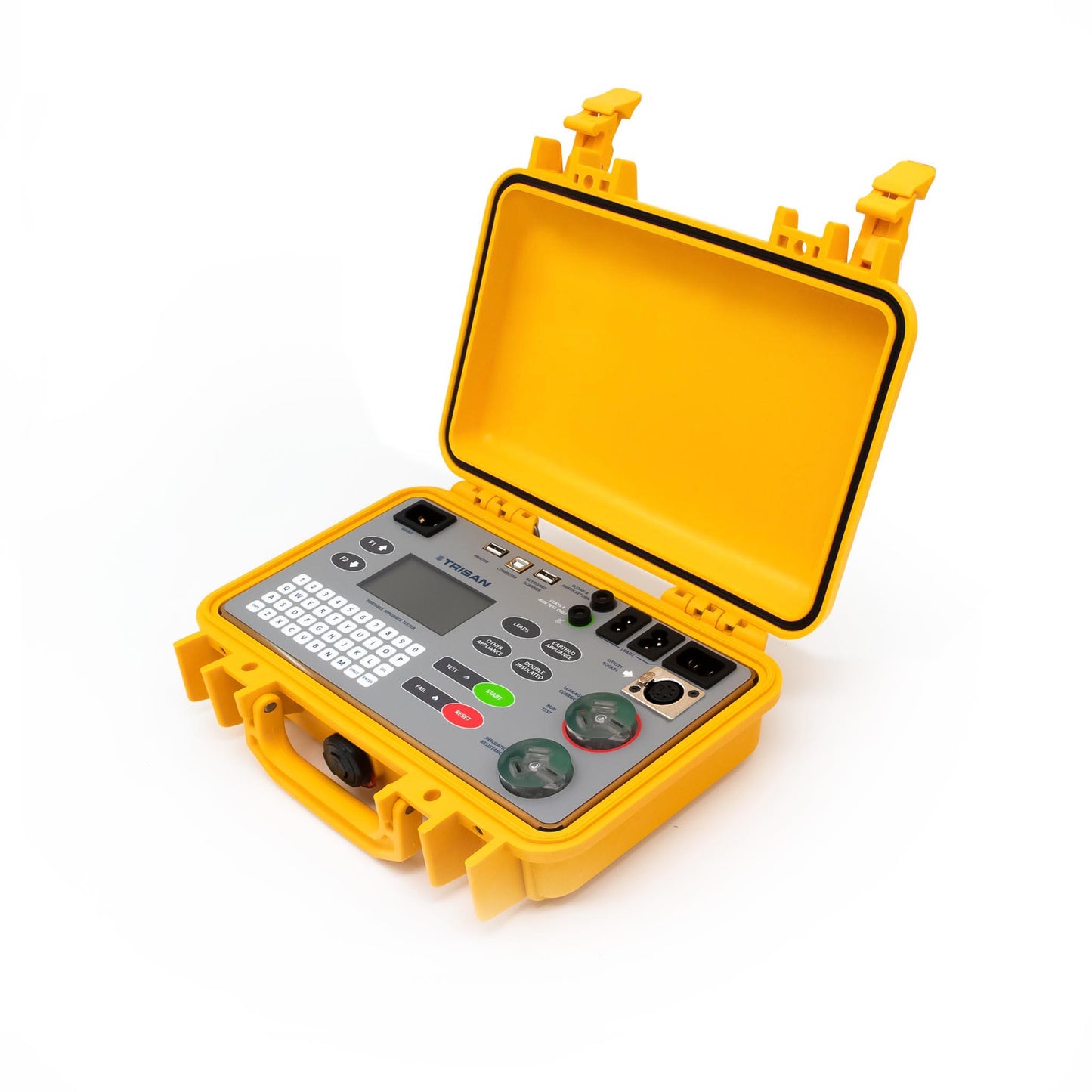

The Trisan S8DL is a high-quality appliance tester offering rapid testing of single-phase appliances and RCDs. This robust and compact unit delivers safe and thorough testing across a range of appliances.
The DL variant includes the ability to record results via the built-in keyboard. Data is saved in a .csv
spreadsheet format, usable in applications like Microsoft Excel (not included).
Applications
Testing portable appliances in the workplace, including single-phase and three-phase equipment.
Records
Client, Site, Location, User, Asset ID, Description, Tag No, Comments, Date, and Test Results.
Standard memory capacity: 2048 records.
3-Phase Testing Specification Summary
- 3-Phase Earth Continuity capability – Yes
- 3-Phase Leakage testing capability – Yes 20A/32A
- 3-Phase Insulation testing capability – Yes (included adaptors 20A/32A)
- 3-Phase Polarity testing capability – No
- Standard Pin Configuration – 5 Pin
- 5-Pin 3-Phase RCD testing capability – Yes (optional adaptors sold separately)
- 4-Pin 3-Phase RCD testing capability – No
Single-Phase
- Earth continuity test
- Insulation test
- Polarity test (extension leads, IEC leads, C6, figure-8)
- Current leakage tests (differential, touch)
- RCD testing (10mA and 30mA)—Fixed (CAT II) and Portable
Three-Phase
- Earth continuity test
- Leakage test for 20A and 32A (differential), five-pin (four-pin options available)

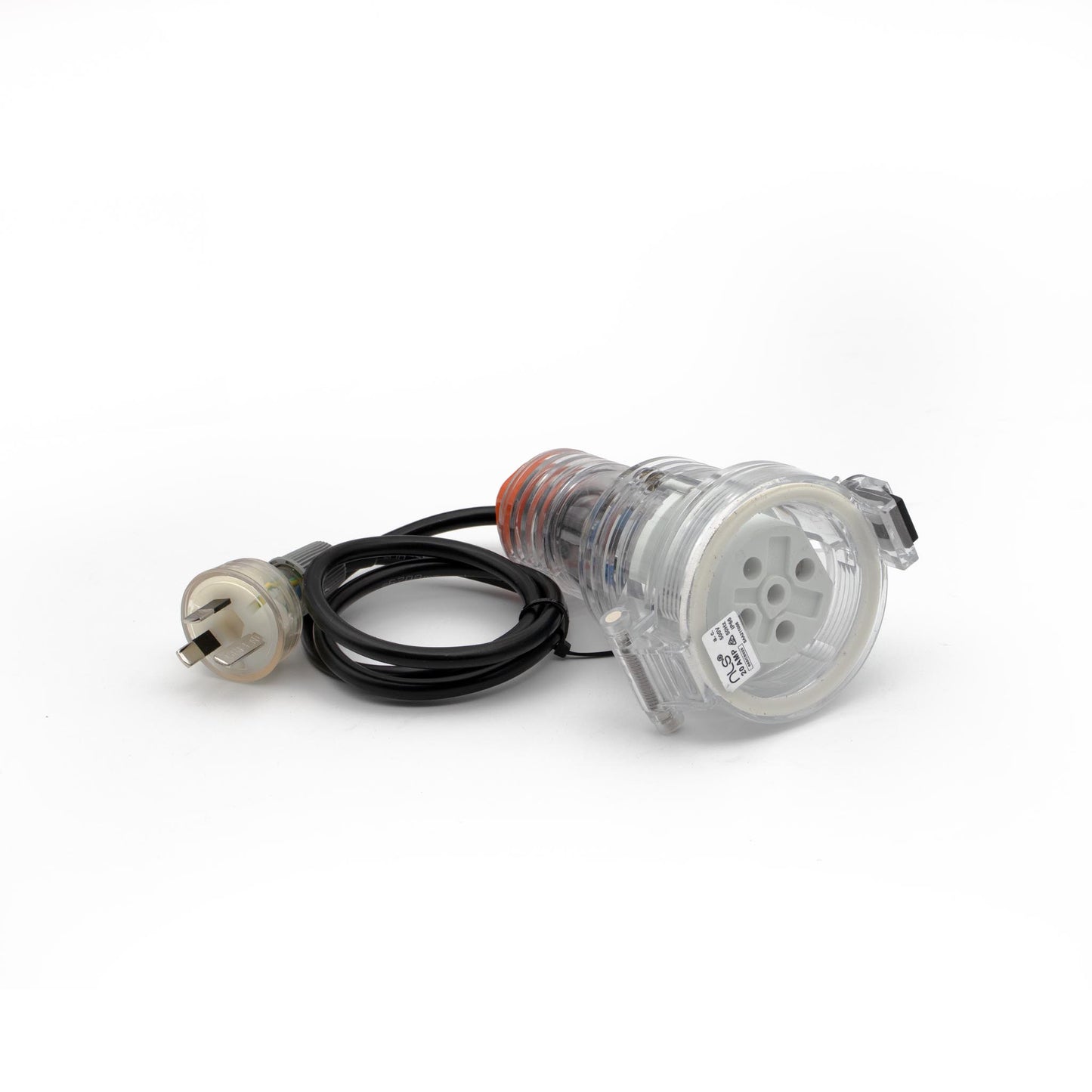

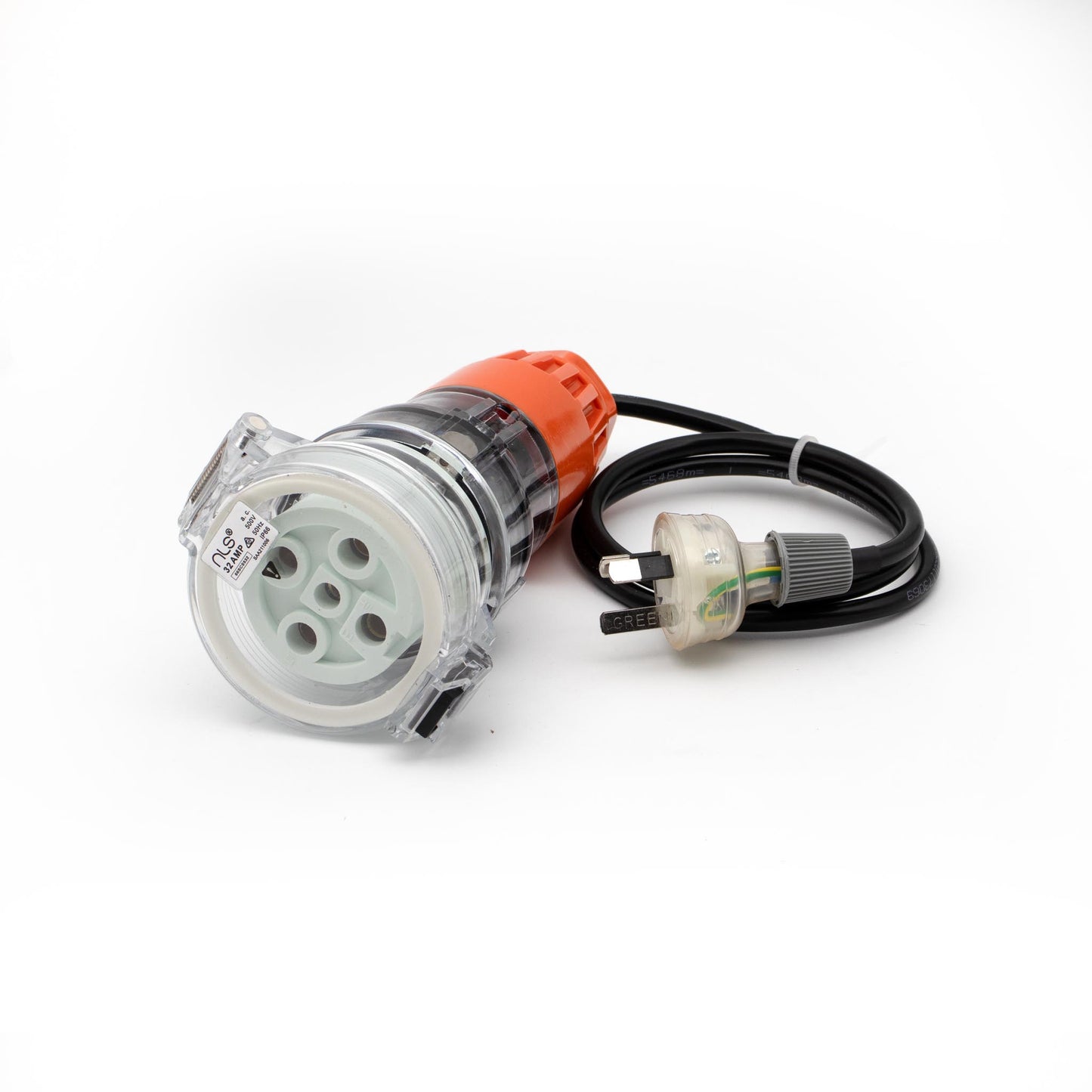

- Includes adaptors for continuity and insulation testing
- Three-phase RCD testing (10mA and 30mA)—Fixed (CAT II)
Standard Warranty
1 year
Estimated supply lead time
This item is manufacturered to order. Please allow 4-6 weeks for supply.
