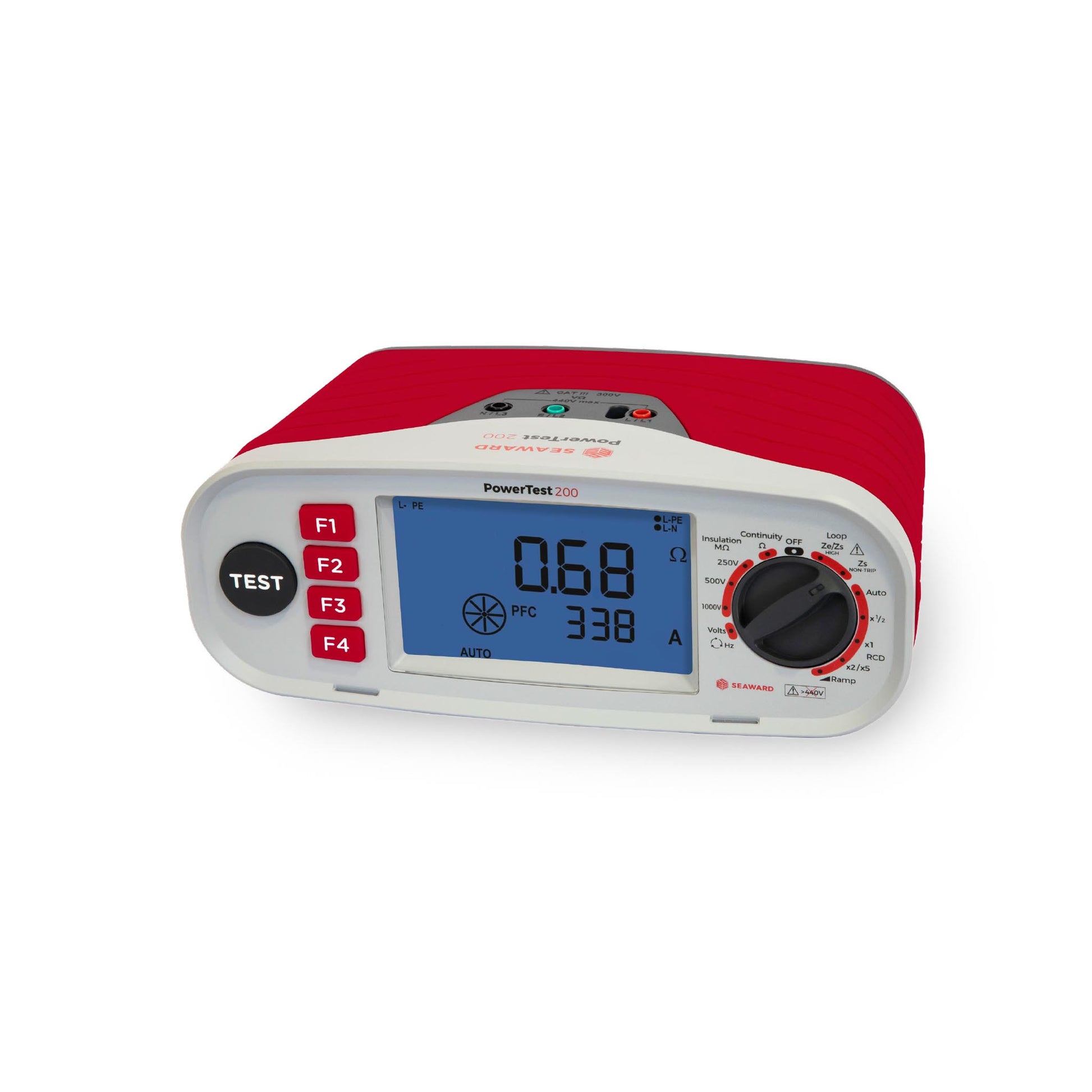

Seaward Powertest 200

The Seaward Powertest 200 is a multifunction installation tester for electricians, offering superb value with six testing functions in one package. The instrument provides a low cost of ownership and includes features often found in equipment costing twice as much.

Click here for a datasheet

• Voltage measurement up to 440V AC
• Insulation testing at 250V, 500V, and 1000V
• RCD testing: trip time and trip current with Auto testing at x1/2, x1, x2, and x5
• RCD AC and DC type testing
• Loop impedance testing with PSC and PFC display
• No-trip loop impedance testing
• Phase rotation testing
• Integrated socket testing
• Easy to handle, compact size
• Large backlit LCD display
• CAT III 300V rating
• Supplied with a standard AU single-phase plug and a 3-phase/switchboard lead set with probes/crocodile clips

Voltage

• Range: 0V to 440V
• Accuracy: ±5% ±2 digits from 0 to 100Hz
• Resolution: 1V

Continuity

• Range: 0.01Ω to 200Ω
• Accuracy: ±2% ±5 digits
• Resolution:
  • 0.01Ω to 1.99Ω
  • 2.0Ω to 19.9Ω
  • 20Ω to 200Ω
• Test Voltage: >4V DC, >25V DC (Open Circuit)
• Test Current: >200mA
• Compliance: IEC 61557-4, IEC 61557-10

Insulation

• Test Voltage: 250V/500V/1000V
• Range: 0.05MΩ to 200MΩ
• Accuracy: ±5% ±5 digits
• Resolution:
  • 0.01MΩ to 1.99MΩ
  • 2.0MΩ to 19.9MΩ
  • 20MΩ to 200MΩ
• Test Current: 1mA
• Compliance: IEC 61557-2, IEC 61557-10

RCD Trip Time Test

• Range: 0ms to 2000ms
• Accuracy: ±5% ±2 digits
• Test Currents:
  • 10mA/30mA/100mA (1/2, 1x, 2x, 5x)
  • 300mA/500mA (1/2, 1x)
• Compliance: IEC 61557-6, IEC 61557-10

RCD Trip Current / Ramp Test

• Test Current: ±5%
• Step Duration: 300ms
• Compliance: IEC 61557-6, IEC 61557-10

Non-Trip Loop Impedance

• Range: 0.01Ω to 2000Ω
• Typical Accuracy: ±5% ±12 digits (to 1.99Ω), ±5 digits (to 2000Ω)
• Resolution:
  • 0.01Ω to 1.99Ω
  • 2.0Ω to 19.9Ω
  • 20Ω to 2000Ω
• Test Current: <15mA RMS

General Specification

• Category of Tester: 300V Category III
• Battery Requirements: 6 x MN1500 (LR6) (AA) 1.5V
• Weight (approx.): 836g
• Dimensions (approx.): 260 x 55 x 105mm

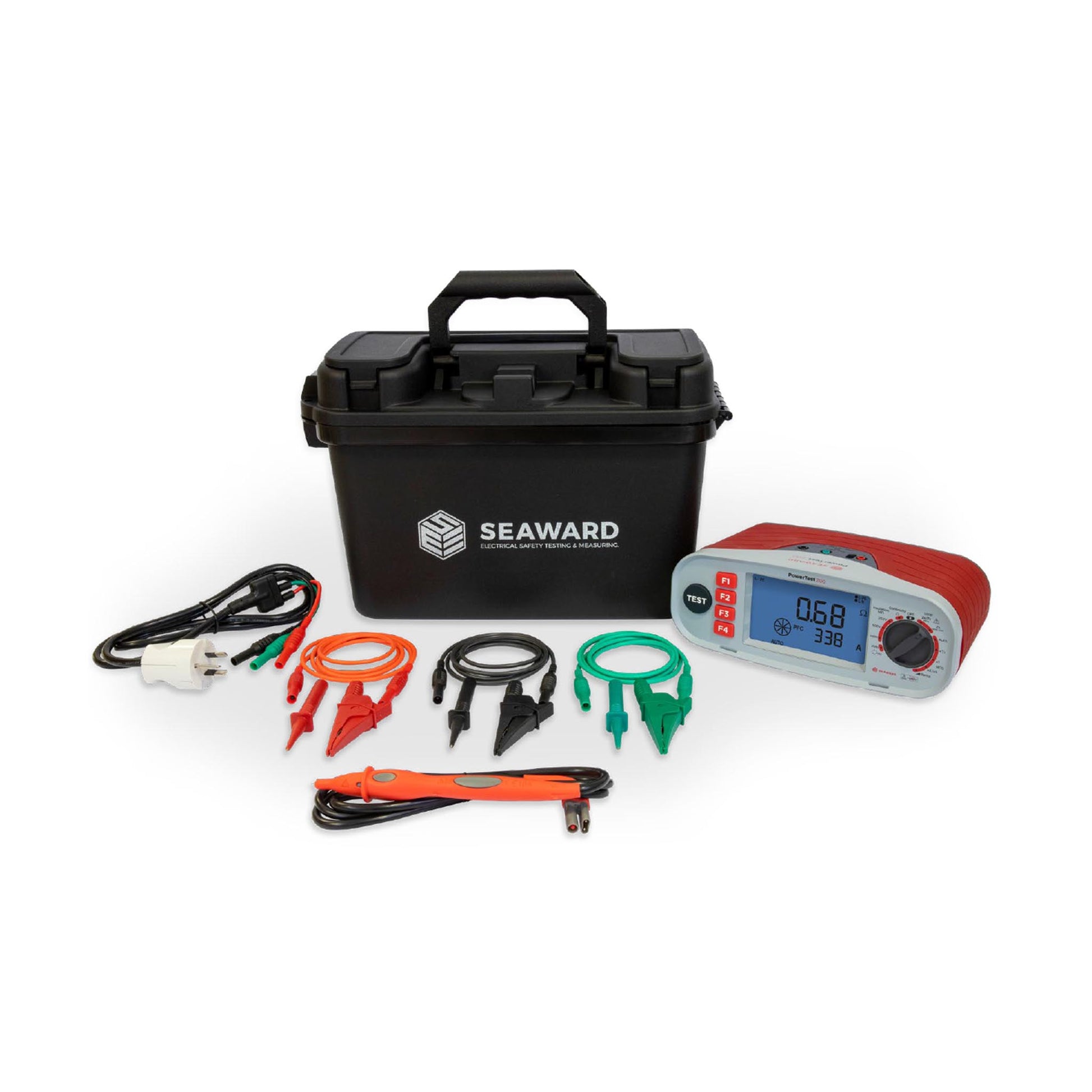

The Powertest 200 is supplied with the following accessories as standard:

• Padded neck strap
• Professional carry case
• Mains lead
• 1.2m black test lead
• 1.2m red test lead
• 1.2m green test lead
• Black crocodile clip
• Red crocodile clip
• Green crocodile clip
• Remote probe with test buttons
• 6 x MN1500 (LR6) (AA) 1.5V batteries
• Spare 1.6A 1000V HRC FF fuse
• User manual
