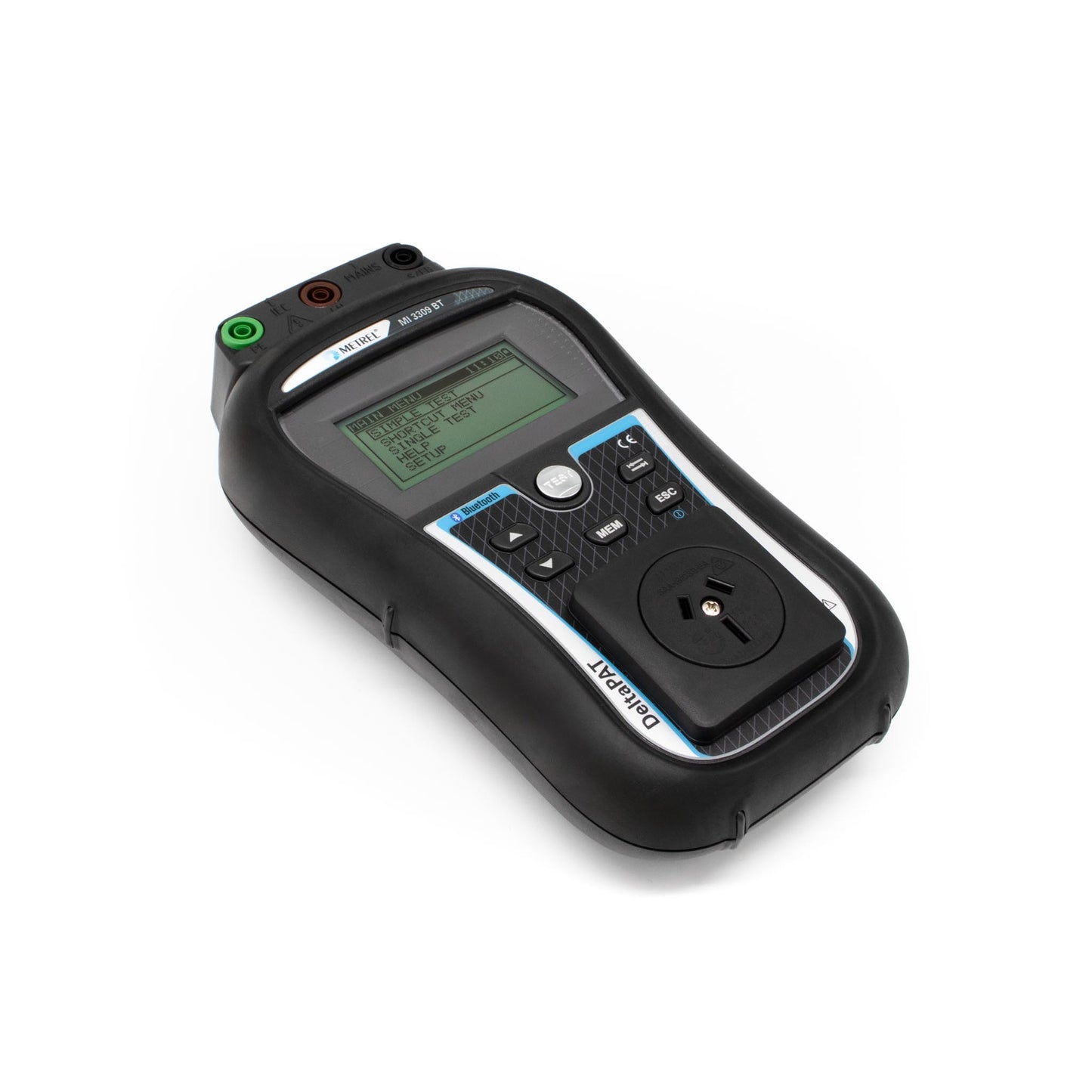

Metrel Delta 3309BT 3-Phase Kit

The Metrel 3309BT is a highly popular appliance tester due to its excellent capabilities combined with extensive upgrade options. This package combines the popular tester with accessories that provide 3-phase testing of equipment and leads. Select pre-programmed tests from the Simple Test menu to perform test sequences on single-phase Class 1, Class 2, and extension leads. The Metrel 3309 features integrated basic recording capabilities, allowing the storage of 1,500 results prior to downloading to the included PC software. Recording capability can be enhanced with optional Android tablet software (not included).

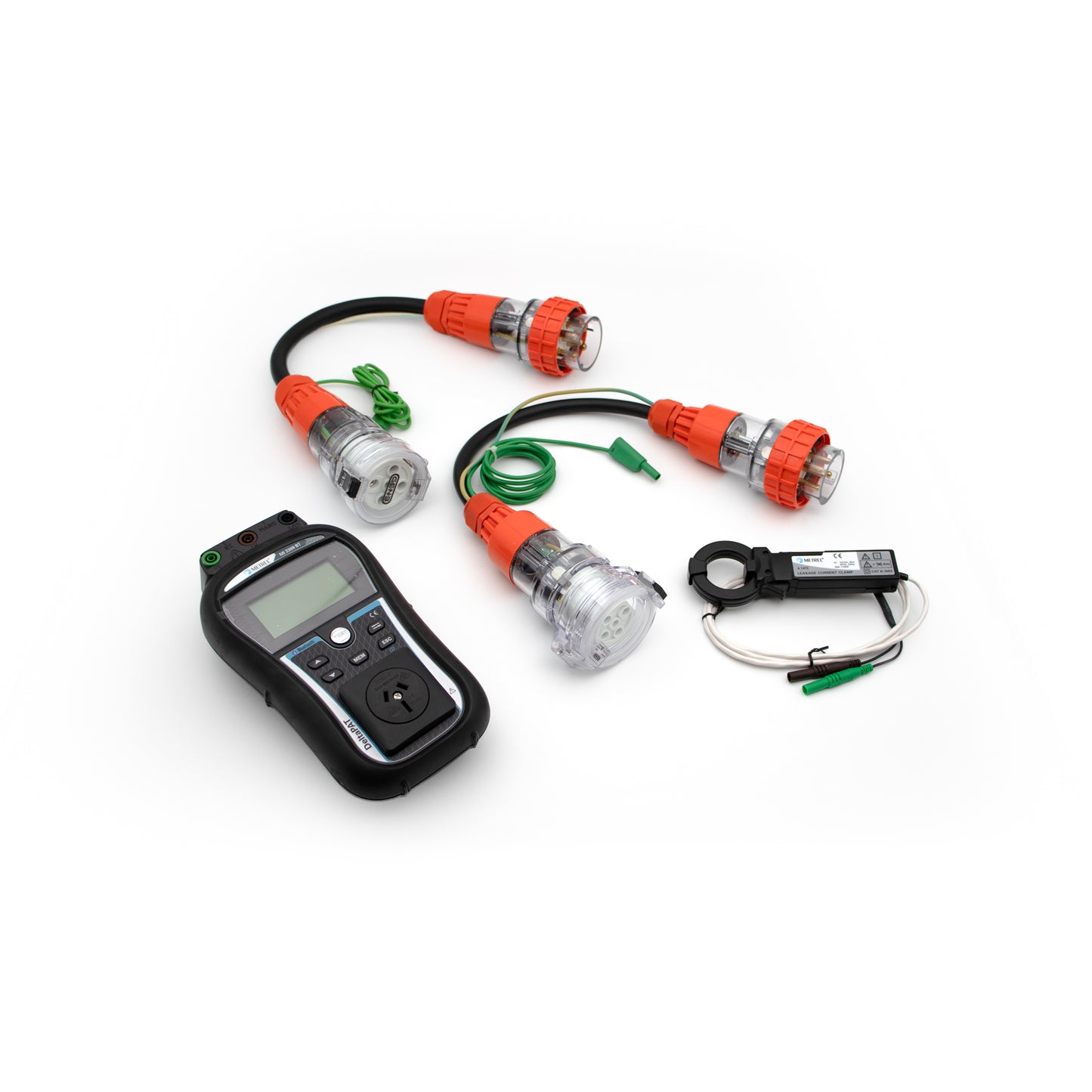

In this pack, 3-phase equipment can be tested using test sequences in combination with the current clamp and adaptor leads. Point-to-point accessories allow testing of earth continuity and insulation, while the included adaptors enable testing for current leakage in accordance with AS/NZS 3760 for both appliances and extension leads. The standard leads supplied allow connection to 20A and 32A 5-pin sockets. 4-pin adaptors are available on request.

Optional RCD testing adaptors are also available, providing 20A 5-pin and 32A 5-pin connections (CAT II only).

Note: For the testing of 3-phase appliances, we strongly recommend technicians attend a test-and-tag course covering the methods and principles of 3-phase differential testing or have suitable knowledge, skills, and experience to be deemed competent.

Testing portable appliances in the workplace, including single-phase and 3-phase equipment.

3-Phase Earth Continuity capability – Yes

3-Phase Leakage testing capability – Yes 20A/32A

3-Phase Insulation testing capability – Yes (Point-to-point method)

3-Phase Polarity testing capability – No

Standard Pin Configuration – 5 Pin

5-Pin 3-Phase RCD testing capability – Yes (optional adaptors sold separately)

4-Pin 3-Phase RCD testing capability – No

Single Phase

• Earth continuity test
• Insulation tests
• Polarity test (extension leads and IEC leads)
• Current leakage (Differential, Touch, and Substitute)
• RCD testing (10mA and 30mA) – Fixed (CAT II) and Portable
• Power and Voltage

Three Phase

• Earth continuity test (Point-to-Point)
• Insulation tests (Point-to-Point)
• Current leakage (20A and 32A – Differential or PE Current) 5-pin (4-pin options available on request)
• Three-phase RCD tests (see options):
  • RCD testing (10mA and 30mA) – Fixed (CAT II) with optional adaptor(s).
  • Please note that appliance testers are CAT II rated and are only suited to testing fixed RCDs from GPOs in a CAT II environment.

• Retail box and packaging
• 1 x Earth test lead
• 6 x AA NiMH batteries
• Mains lead
• IEC lead
• Manual
• USB cable
• RS232 cable
• Calibration certificate

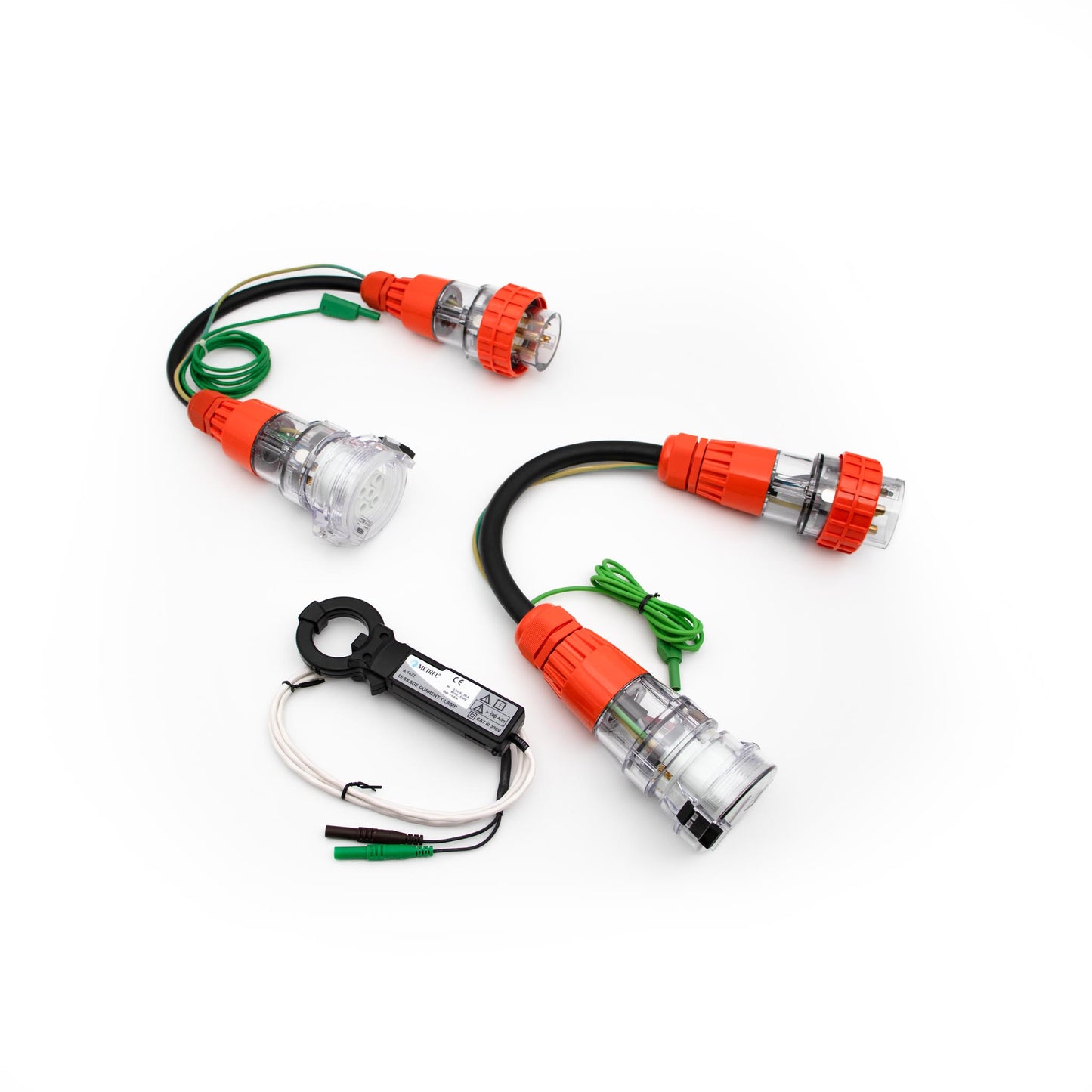

• Current leakage clamp

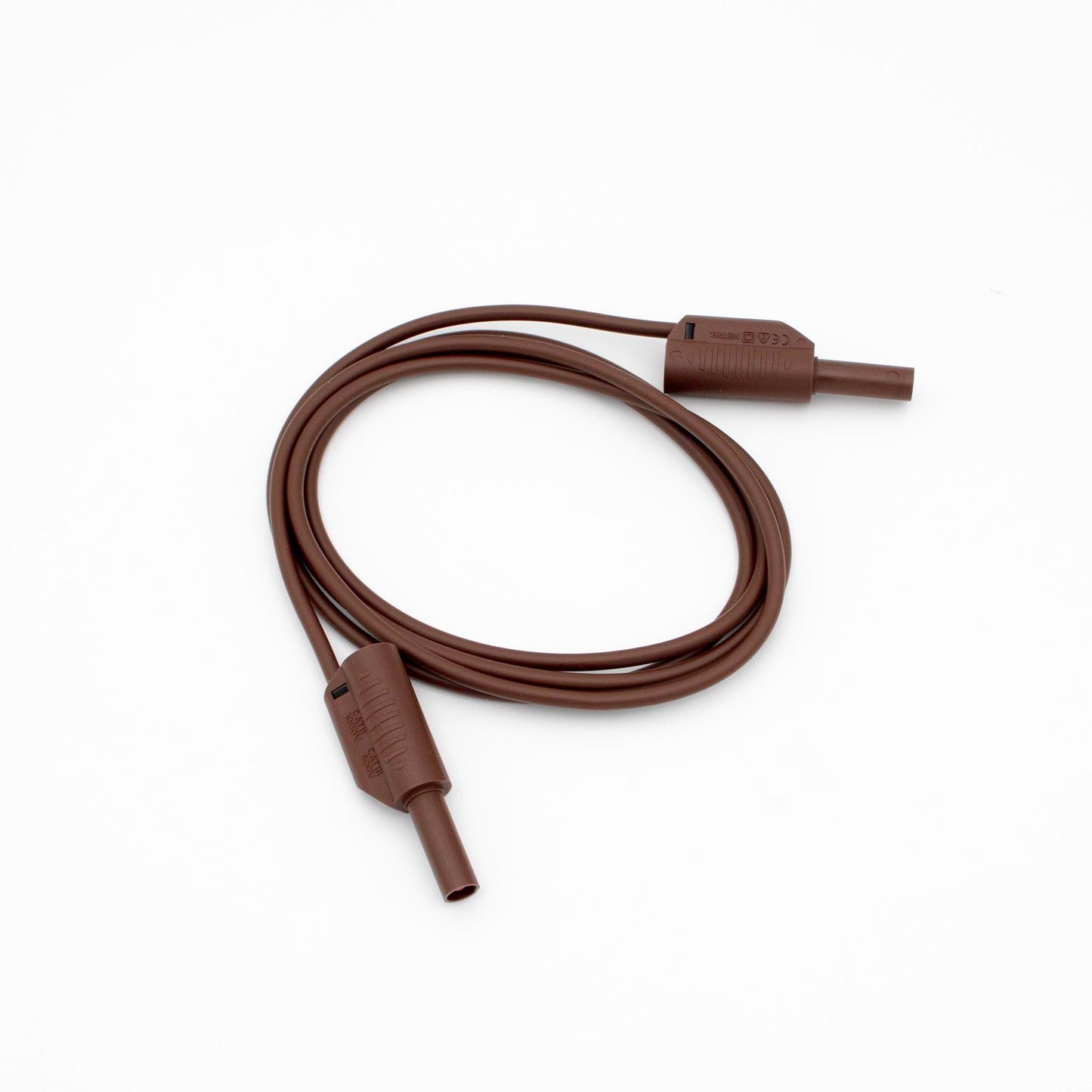

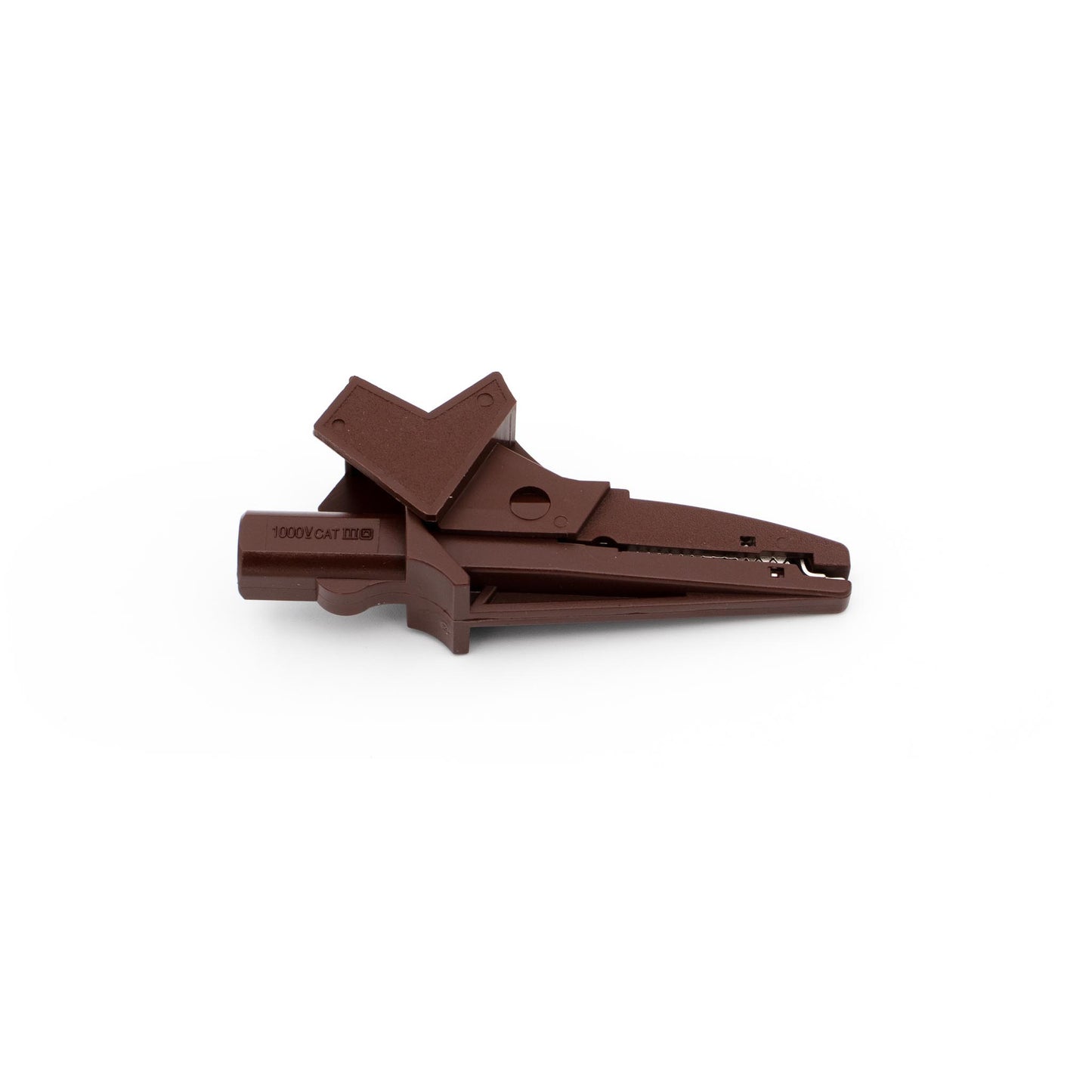

• Brown test lead a croc clip for point to point testing

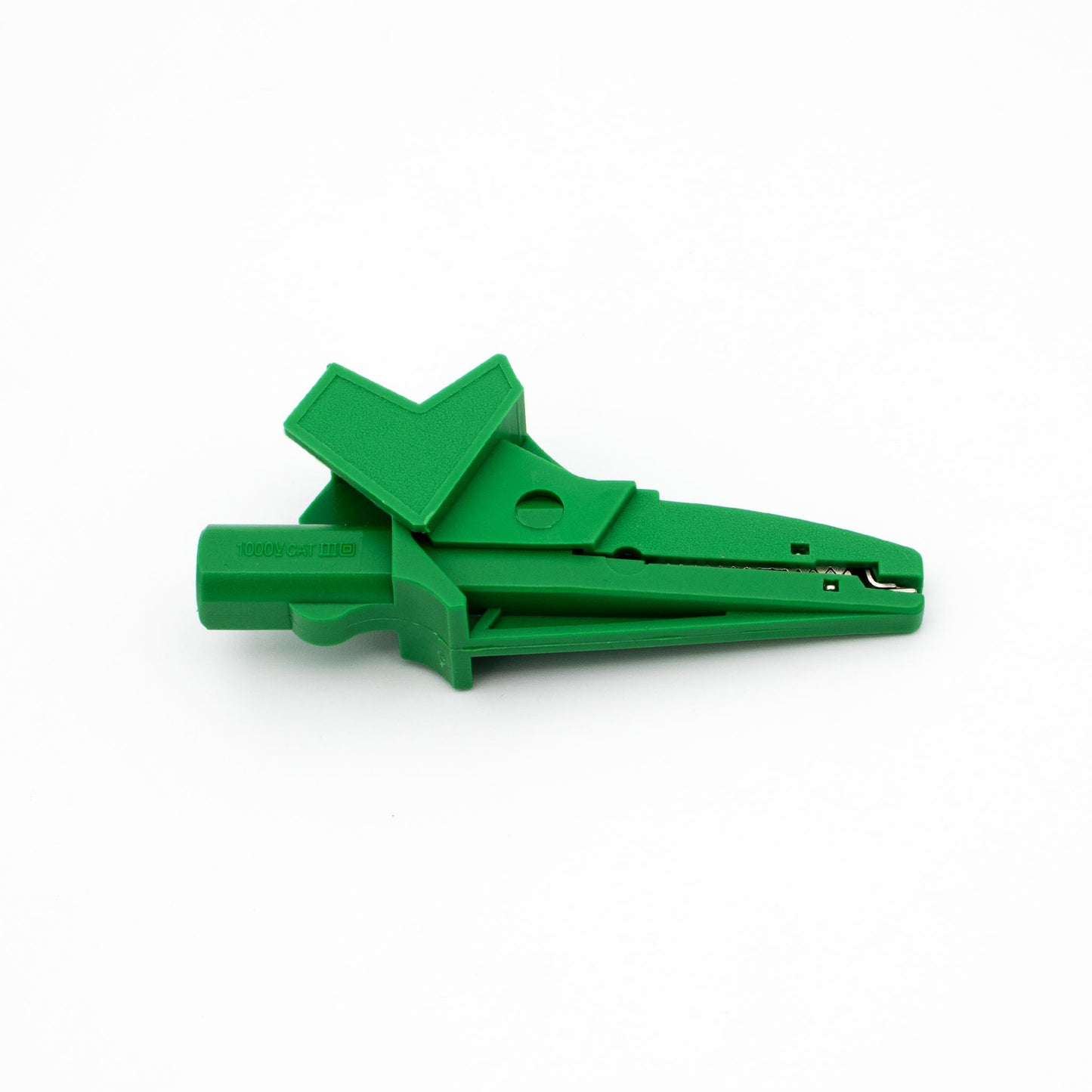

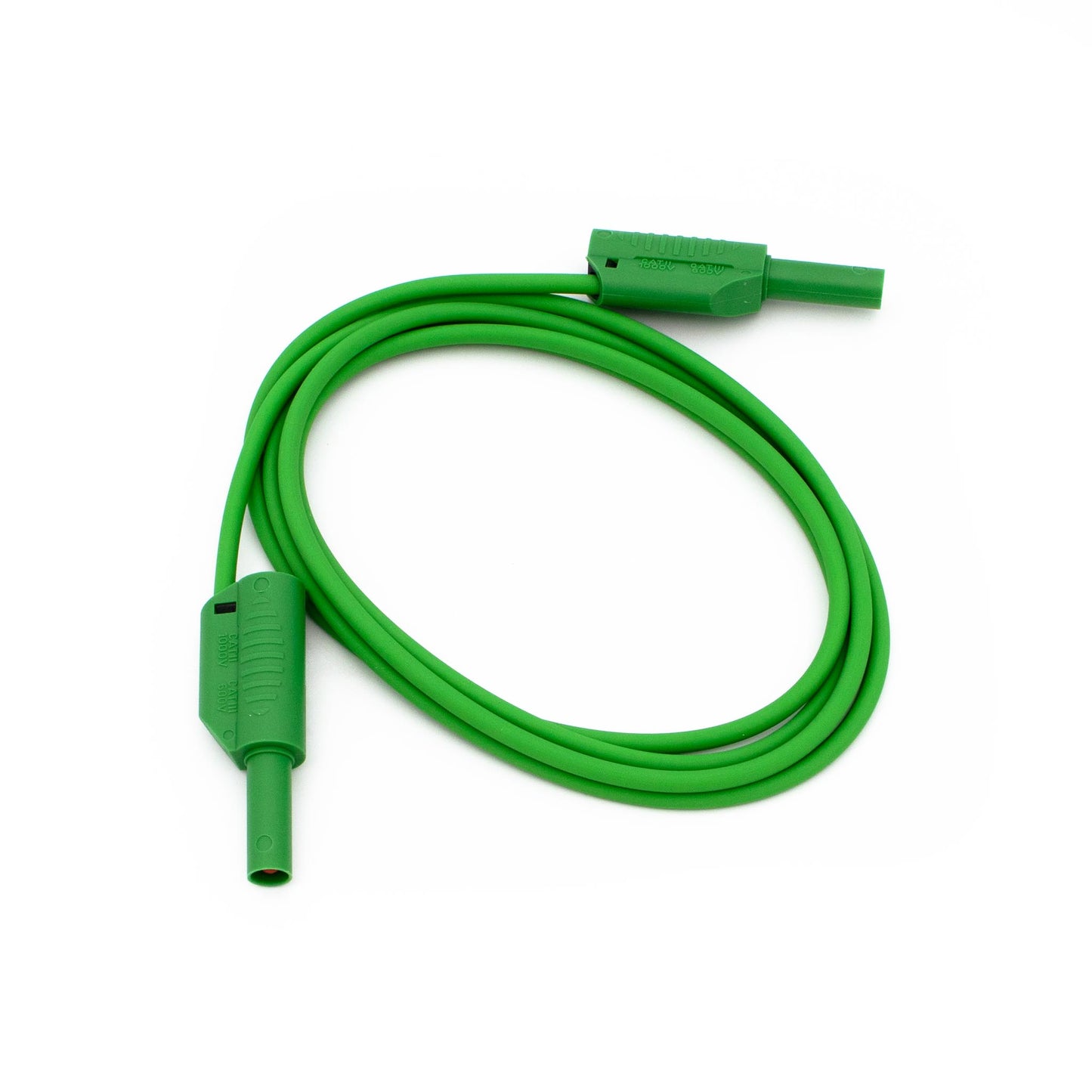

• Green test lead a croc clip for point to point testing
• 20A exposed earth adaptor lead
• 32A exposed earth adaptor lead


2 years
