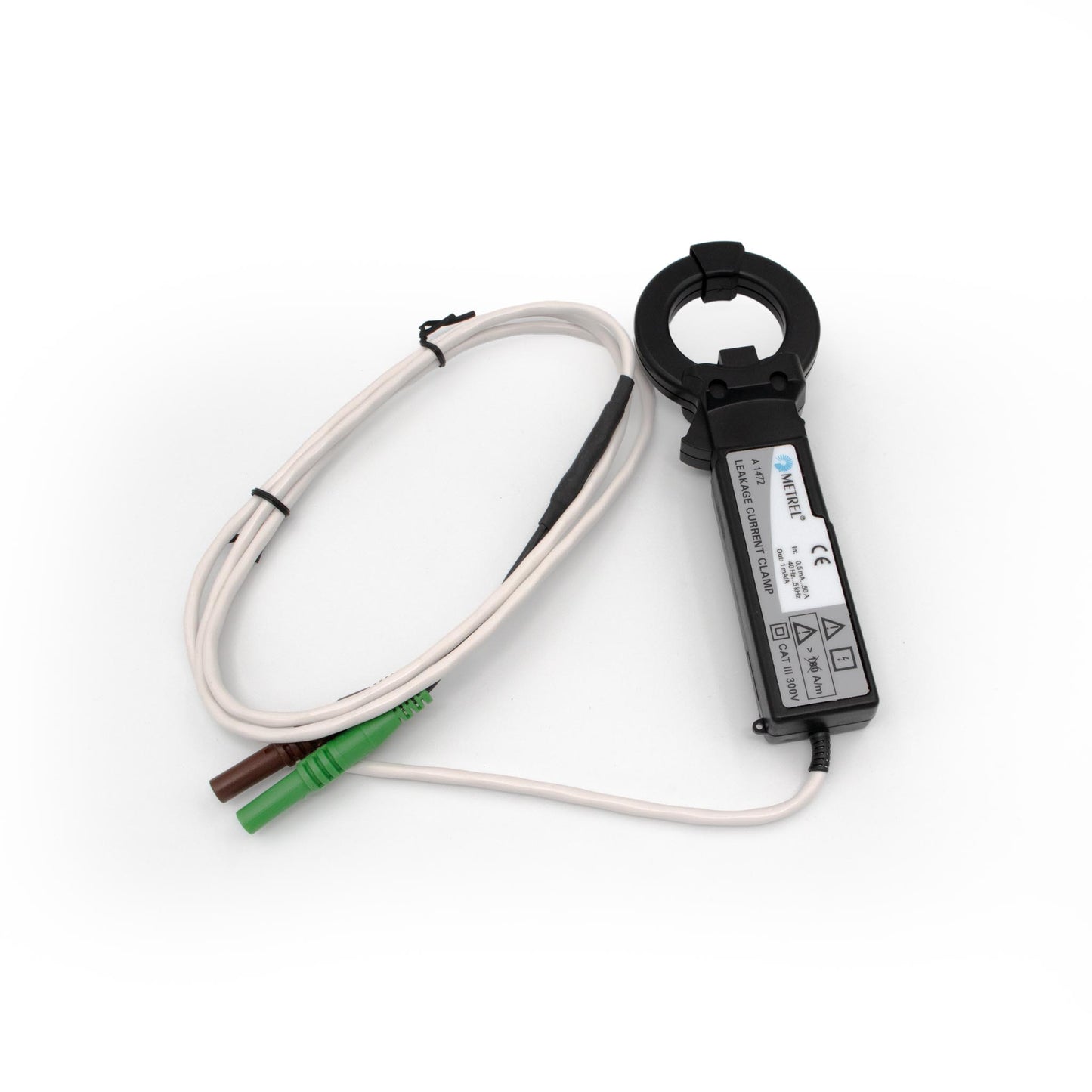

Metrel A 1472 ACA Leakage Clamp - 3309BT Compatible

The Metrel ACA Leakage Clamp A1472 is a high-quality current leakage clamp designed for use with the Metrel 3309BT*. This clamp provides a reliable means of conducting current leakage testing, including earth conductor measurements and differential leakage measurements. It is commonly used alongside line separator leads to facilitate 3-phase leakage measurements on the Metrel 3309BT.

• Model: A1472 / A-1472
• Safety Rating: CAT III 300V
• Input Range: 0.5mA - 50A
• Output: 1mA/A
• Current Ratio: 1000:1
• Output Terminals: 4mm
• Jaw Opening: 40mm
• Dimensions: 177mm x 53mm x 23mm
• Weight: 160g
• Safety Standards: EN/IEC 61010-1, 61010-2-32

*Note: Only compatible with Bluetooth model variants.

• Instruction Manual
• Certificate of Conformity

• 1 Year
