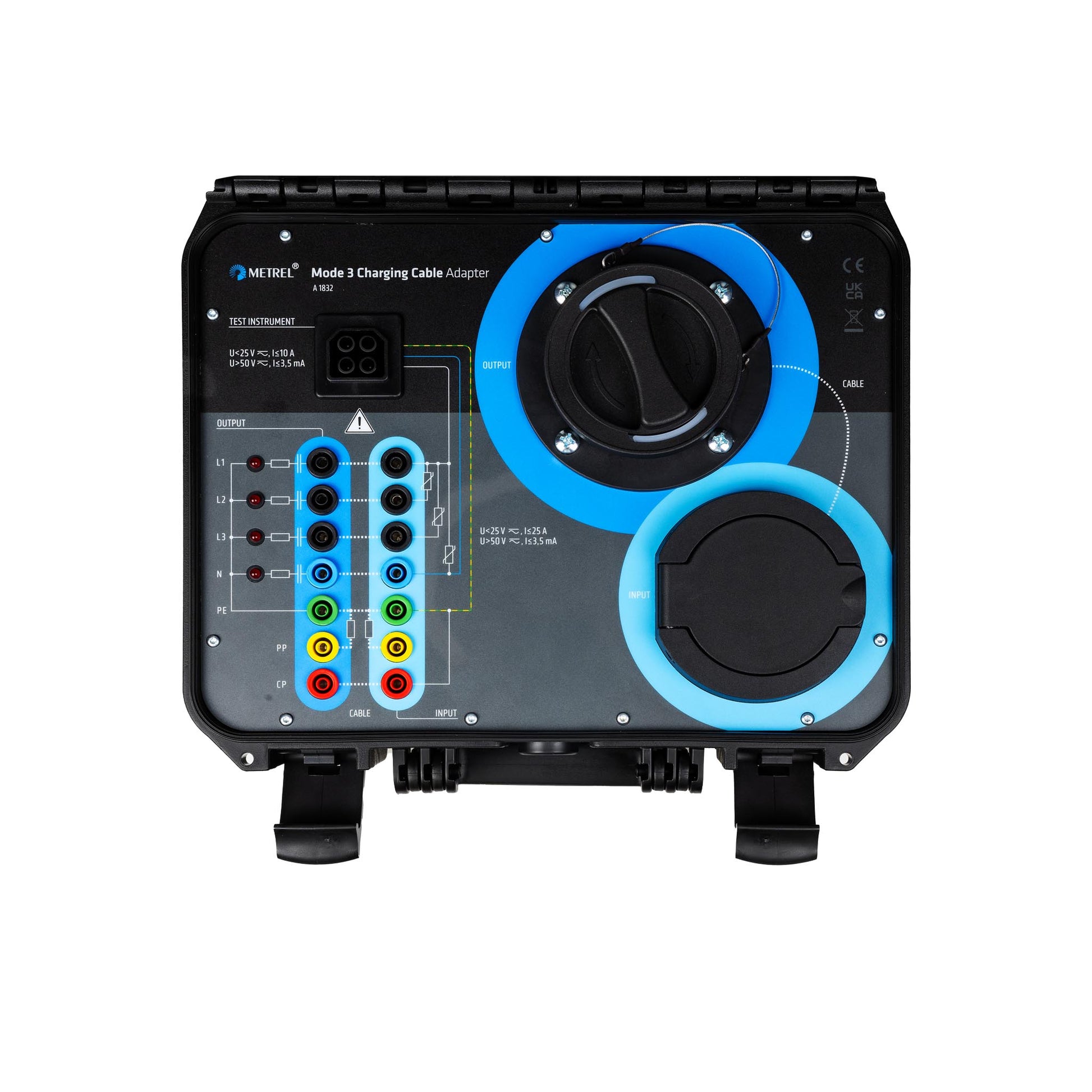

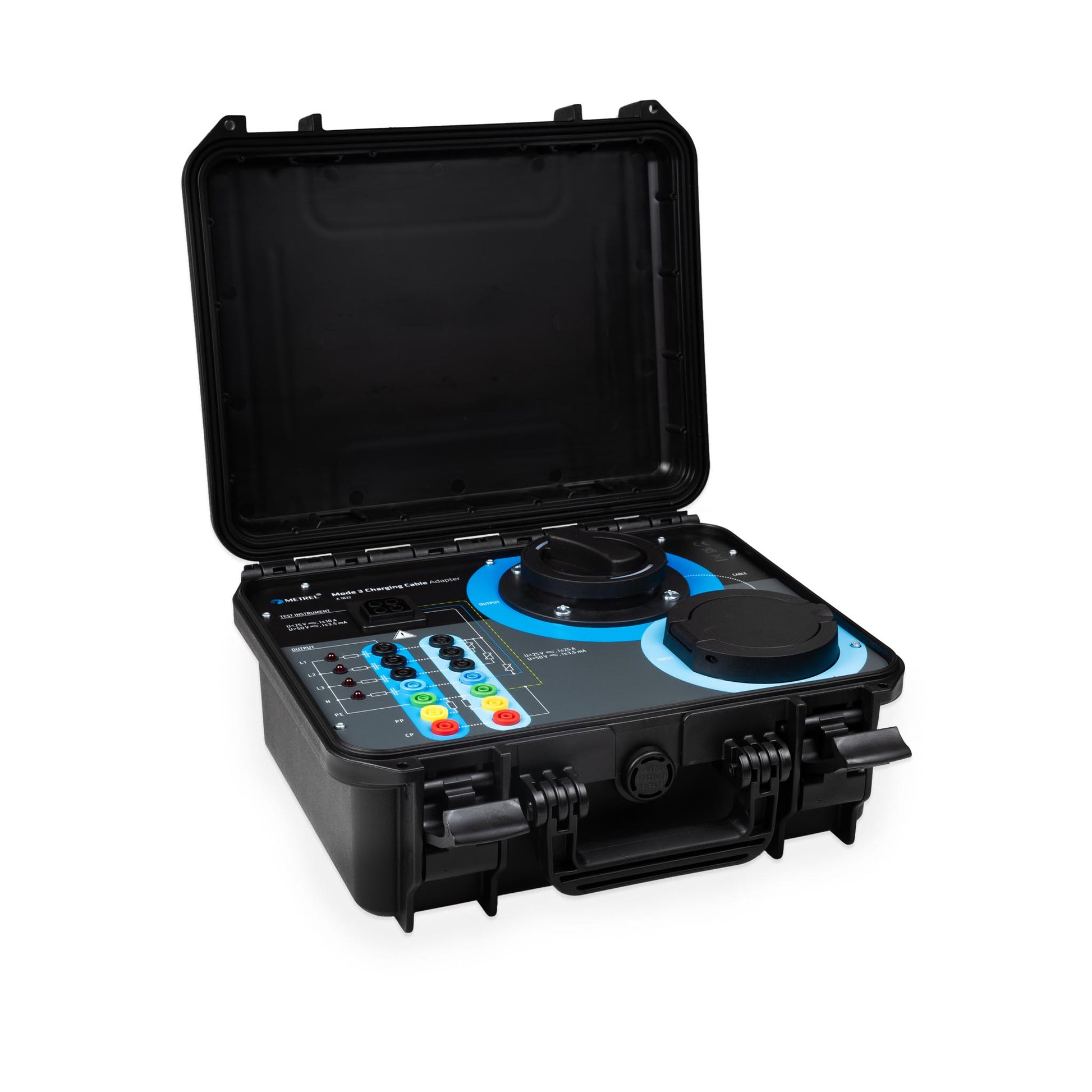

Metrel A 1832 Type 2 Mode 3 EVSE Charging Cable Adaptor

The Metrel A 1832 Mode 3 Charging Cable Adapter is designed for electrical safety testing of Mode 3 EV charging cables with Type 2 connectors. Used together with supported Metrel or third-party testers such as the Metrel Alpha EE MI3340 or the Omega MI3365XA, it provides a safe and convenient way to connect the charging cable to your test instrument.

When the A 1832 is paired with Metrel testers that support AUTOSEQUENCES® – such as the Alpha EE MI3340 and Omega MI3365 – the charging cable can be comprehensively and functionally tested at the push of a button. Test results can then be processed into professional reports using Metrel ES Manager (MESM) software.

• Continuity testing of all conductors in Mode 3 Type 2 charging cables:
  • L1 > L1
  • L2 > L2
  • L3 > L3
  • N > N
  • PE > PE
  • CP > CP
• Measurement of PP resistor resistance (input and output)
• Fast continuity check of L1, L2, L3 and N conductors with front-panel LEDs (using a sub-leakage or similar low-current test)
• Insulation resistance testing of phase conductors to earth (with a suitable tester)
• Automated EV CABLES AUTO SEQUENCE® testing (with supported Metrel instruments)
• Creation of professional test reports through MESM PC software

• Charging cable connector: Type 2 (Mode 3)
• Maximum test current: 10 A on test connector / 25 A on banana sockets
• Measuring category: 50 V, no CAT; maximum transient overvoltage 1100 V
• Protection classification: Double insulation
• Altitude: up to 2000 m
• Pollution degree: 2
• Degree of protection: IP40
• Dimensions (W × H × L): 30 cm × 15 cm × 34 cm
• Weight: approx. 3.16 kg
• Operating temperature range: 0 °C to +40 °C
• Maximum relative humidity: 95 % RH (0 °C to 40 °C), non-condensing
• Operating environment: Outdoor use
• Storage temperature range: −10 °C to +70 °C
• Storage humidity: up to 90 % RH (−10 °C to +40 °C)
• Safety standards: EN 61010-1, EN 61010-2-030, EN 61010-031

• Metrel Alpha EE MI3340 (supports EV CABLES AUTO SEQUENCE® testing)
• Metrel Omega MI3365 (supports EV CABLES AUTO SEQUENCE® testing)
• Other compatible Metrel and third-party test instruments for manual continuity and insulation testing

• A 1832 Mode 3 Charging Cable Adapter main unit
• Operating instructions (supplied with the adapter)

The A 1832 Mode 3 Charging Cable Adapter is covered by Metrel’s standard manufacturer warranty against defects in materials and workmanship. The warranty does not cover damage caused by misuse, incorrect application, unauthorised modifications, or mechanical abuse. For warranty or service enquiries, customers should contact their authorised Metrel distributor or service centre.
