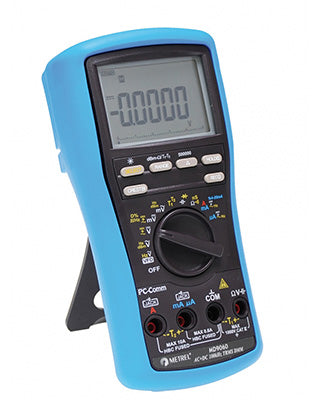

Metrel MD 9060 Professional High Resolution Multimeter with VFD
Metrel MD 9060 Professional High Resolution Multimeter with VFD
SKU:METM9060
Couldn't load pickup availability
Overview
The Metrel MD 9060 is among the most accurate multimeters available, featuring a broad bandwidth and exceptional resolution. Equipped with a built-in Variable Frequency Drive (VFD) feature, this instrument measures true values based on frequency. It includes a large dual-line LCD display with 500,000 counts, fast data acquisition, and transfer via an optical interface. With CAT IV / 1000 V rating, TRMS current and voltage measurement, conductance measurement, and intuitive one-handed operation, the MD 9060 is tailored for demanding measurement tasks in industrial environments, laboratories, and everyday repair and maintenance applications.
Applications
- High-level industrial testing
- High-level electronic fault finding
- Field servicing
- Heavy-duty electrical testing
Measurement Capabilities
- TRMS AC and DC voltage measurement
- TRMS AC and DC current measurement
- Capacitance measurement
- Resistance measurement
- Diode test
- Mains supply frequency measurement
- Frequency of digital signals measurement
- Continuity test (acoustic signalling)
- Conductance measurement
- Temperature measurement
Features and Specifications
- TRMS AC and AC+DC Voltage (20 Hz ~ 40 kHz): 500.00 mV to 1000.0 V (Accuracy: ±(0.45% of reading + 40 digits) to ±(4.0% of reading + 40 digits))
- DC Voltage: 500.00 mV to 1000.0 V (Accuracy: ±(0.02% of reading + 2 digits) to ±(0.15% of reading + 2 digits))
- AC Voltage (20 Hz ~ 100 kHz): 500.00 mV to 1000.0 V (Accuracy: ±(0.3% of reading + 20 digits) to ±(4.0% of reading + 40 digits))
- DC Current: 500.00 μA to 10.000 A (Accuracy: ±(0.15% of reading + 20 digits) to ±(0.5% of reading + 20 digits))
- TRMS AC and AC+DC Current (40 Hz ~ 100 kHz): 600.0 μA to 10.00 A (Accuracy: ±(0.5% of reading + 50 digits) to ±(5.0% of reading + 50 digits))
- Diode Test: 2.0000 V ±(1.0% of reading + 1 digit)
- Resistance: 500.00 Ω to 50.000 MΩ (Accuracy: ±(0.07% of reading + 10 digits) to ±(2.0% of reading + 6 digits))
- Conductance: 99.99 nS ±(2.0% of reading + 10 digits)
- Capacitance: 50.00 nF to 25.00 mF (Accuracy: ±(0.8% of reading + 3 digits) to ±(6.5% of reading + 5 digits))
- Temperature: -50.0 °C to 1000.0 °C ±(0.3% of reading + 1.5 °C) and -58.0 °F to 1832.0 °F ±(0.3% of reading + 3.0 °F)
- Variable Frequency Drive: AC 5 Hz to 440 Hz (Accuracy: ±(2.0% of reading + 50 digits) to ±(6.0% of reading + 80 digits))
- Frequency of Digital Equipment: 5.000 Hz to 1.0000 MHz ±(0.002% of reading + 4 digits)
- Power Supply: 9V Battery
- Safety Rating: CAT IV / 1000 V
- Dimensions: 208 x 103 x 64.5 mm
- Weight: 635 g
Included Accessories
- Standard manufacturer warranty: 1 year
- Digital Multimeter MD 9060 with rubber holster
- Test leads with probes (2 pcs)
- Thermocouple probe, type K
- 9 V battery
- Instruction manual
Additional Features
- TRMS: Provides accurate readings on both sinusoidal and non-sinusoidal signals
- VFD: Measures true values in accordance with frequency
- Auto-ranging: Switch easily between auto and manual ranging
- Temperature measurement: Measures T1, T2, and T1 + T2 in Celsius and Fahrenheit
- Lead alert: Notifies of incorrect lead connections
- Relative zero mode: Compares differences between signals or removes background noise
- MAX/MIN/AVG: Records maximum, minimum, and average values
- Data Hold: Freezes the display for later viewing
- Peak Hold: Captures instantaneous peak readings
- PC Link: Download test results to a computer via optional PC software
- Safety: CAT IV / 1000 V overvoltage protection
- Backlight: Large, bright dual LCD display with backlight for visibility in low-light conditions
