Metrel Delta 3309BT APAT Pro Print Pack 3 Phase Kit
Metrel Delta 3309BT APAT Pro Print Pack 3 Phase Kit
SKU:PKG3APAT
Couldn't load pickup availability





















Overview
The Metrel 3309BT APAT Pro Print Pack is one of the leading appliance tester recording packages in Australia. The compact and elegant design offers a powerful recording system with exceptional portability. The Metrel Android APAT application provides database facilities via Bluetooth, storing all results in a structured format ready for download to a Windows PC for PDF reporting via cable or Wi-Fi. The Metrel-programmed Zebra ZQ521 printer prints test tags following each test while being small enough to be carried or used on a belt clip. The printer features a Li-Ion battery for excellent battery life and a lightweight design.
Android APAT Software Features
- Controls the PAT tester from the tablet device.
- Tablet provides scanning of previously tested items utilising QR codes.
- Allows the previous tests to be viewed when scanning the existing tag.
- Delivers a choice of pre-programmed tests or user-custom tests from the tablet.
- Stores pictures or other attachments against any given asset.
- Provides a user-programmable logo to appear on the test tag – change logos at the touch of a button.
- Search through existing test results and easily see what needs to be retested.
- Pre-enter appliances ready for testing, complete with incremental ID numbers.
- Allows tests to be permanently stored on the tablet with download to PC for reporting.
- Android device provides barcode scanning and keyboard data entry.
- Prints FAIL tags in the event of a failed result.
- Prints standard tags on PASS results featuring QR codes.
- Barcode scanning using the mobile device’s onboard camera.
3-Phase Testing Features
In this pack, 3-phase equipment can additionally be tested using test sequences combined with the current clamp and adaptor leads. Point-to-point accessories allow testing of earth continuity and insulation, while the included adaptors provide testing for current leakage in accordance with AS/NZ3760 for both appliances and extension leads. The standard leads supplied allow connection to 20A and 32A 5-pin sockets. Four-pin adaptors are available on request.
Optional RCD Testing Adaptors
Optional RCD testing adaptors are available, providing 20A 5-pin and 32A 5-pin connections (CATII only).
Note: For the testing of 3-phase appliances, we strongly recommend technicians attend a test and tag course covering the methods and principles of 3-phase differential testing, or have suitable knowledge, skills, and experience to be deemed competent.
Applications
Testing portable appliances in the workplace, including single and 3-phase equipment.
3-Phase Testing Specification Summary
Tests
Single Phase
- Earth continuity test
- Insulation tests
- Polarity test (extension leads + IEC leads)
- Current leakage (Differential, Touch, and Substitute)
- RCD Testing (10mA and 30mA) – Fixed (CATII) and Portable
- Power and Voltage
Three Phase
- Earth continuity test (Point-to-Point)
- Insulation tests (Point-to-Point)
- Current leakage 20A and 32A (Differential or PE Current) 5-pin (4-pin options available on request).
- Three Phase RCD Tests:
- RCD Testing (10mA and 30mA) – Fixed (CATII) with optional adaptor(s).
- Please note that appliance testers are CATII rated and are only suited to testing fixed RCDs from GPOs in a CATII environment.

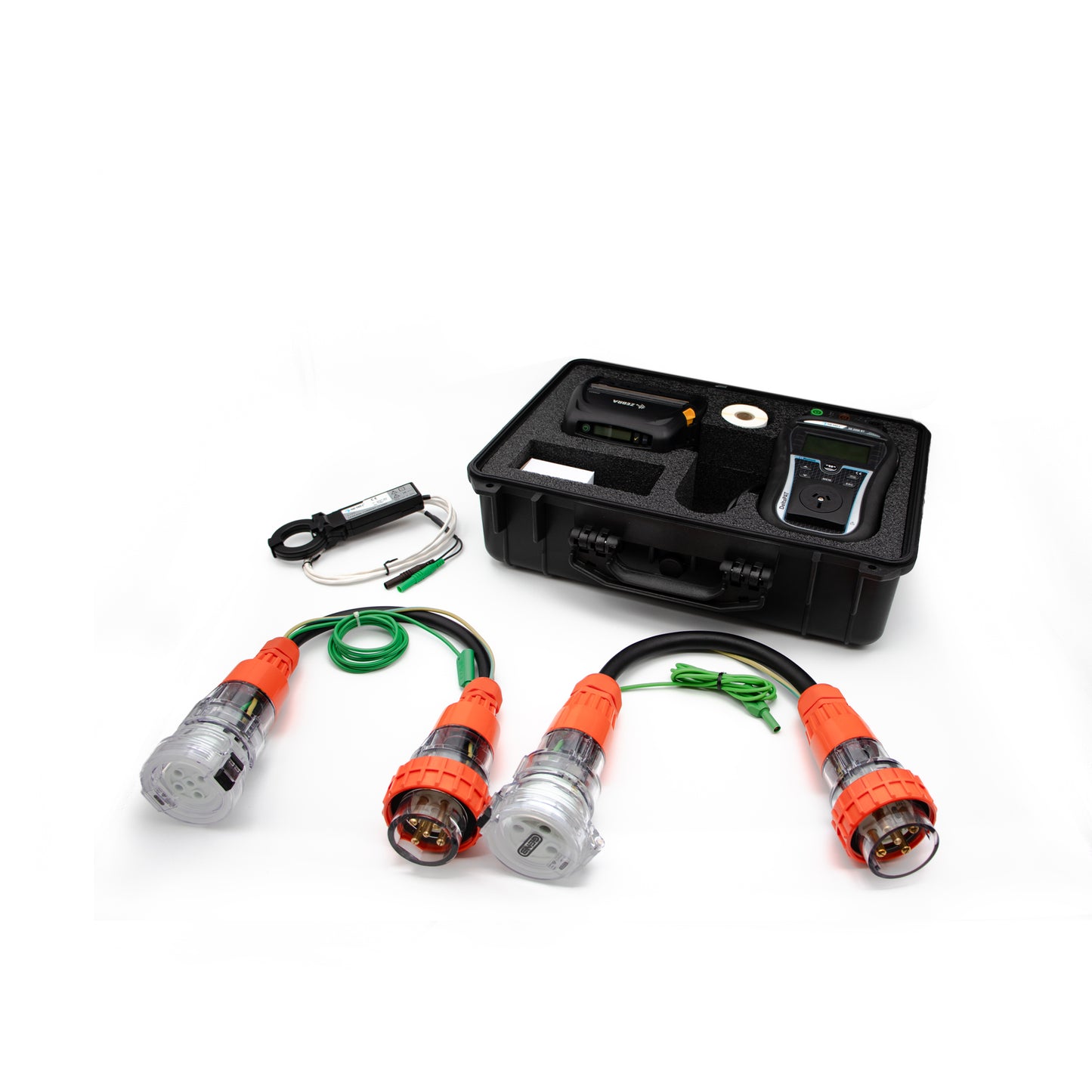

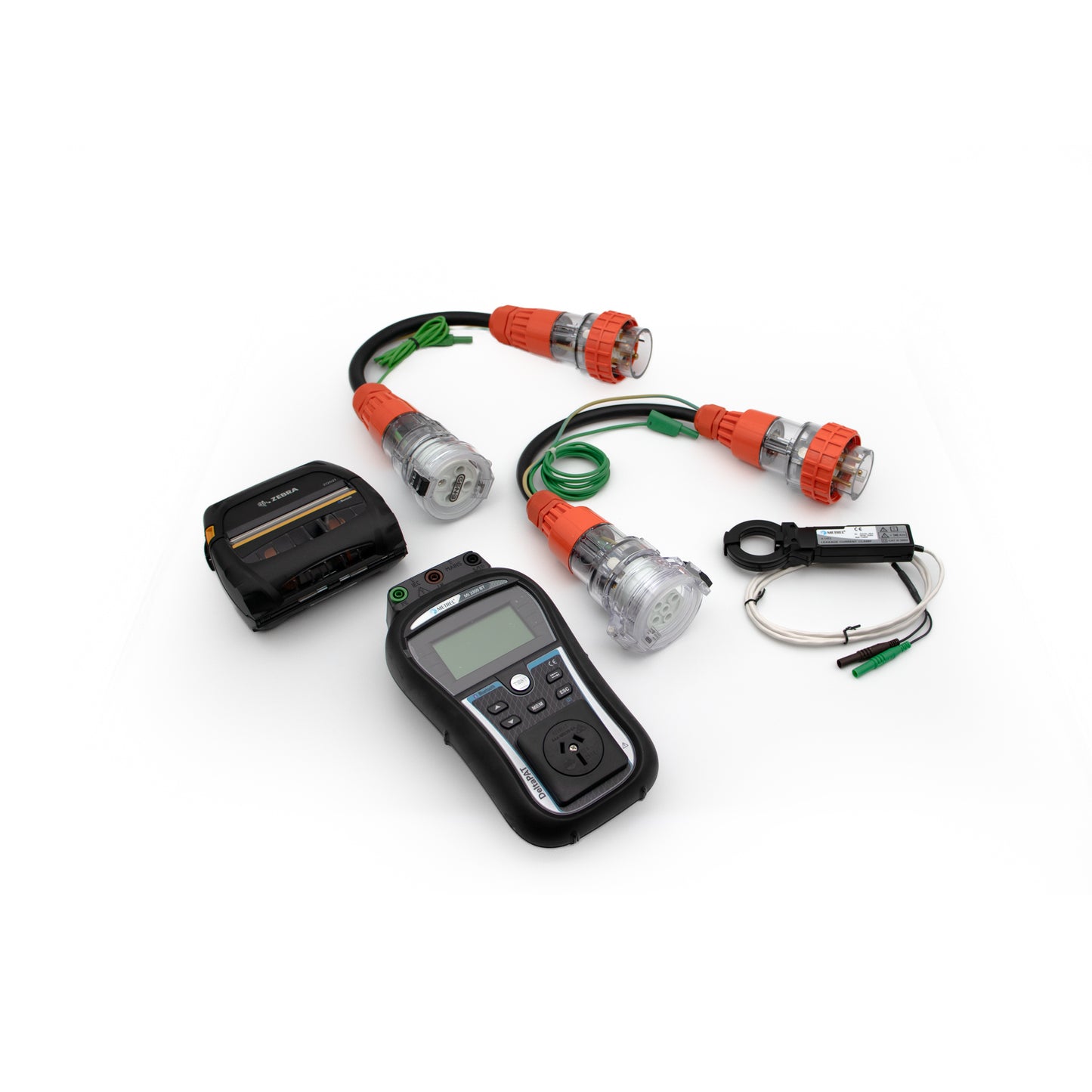

Included Accessories
- 1 x Metrel 3309
- 1 x Earth Test Lead
- 6 x AA NiMH Batteries
- Mains Lead
- 2 x IEC Leads
- Manual
- USB Cable
- RS232 Cable
- Calibration Certificate
- Hard Case
- Custom Foam
- Metrel-programmed ZQ521 Zebra Mobile Printer
- 1 x Current Leakage Clamp
- 1 x 20A Exposed Earth Adaptor Lead
- 1 x 32A Exposed Earth Adaptor Lead

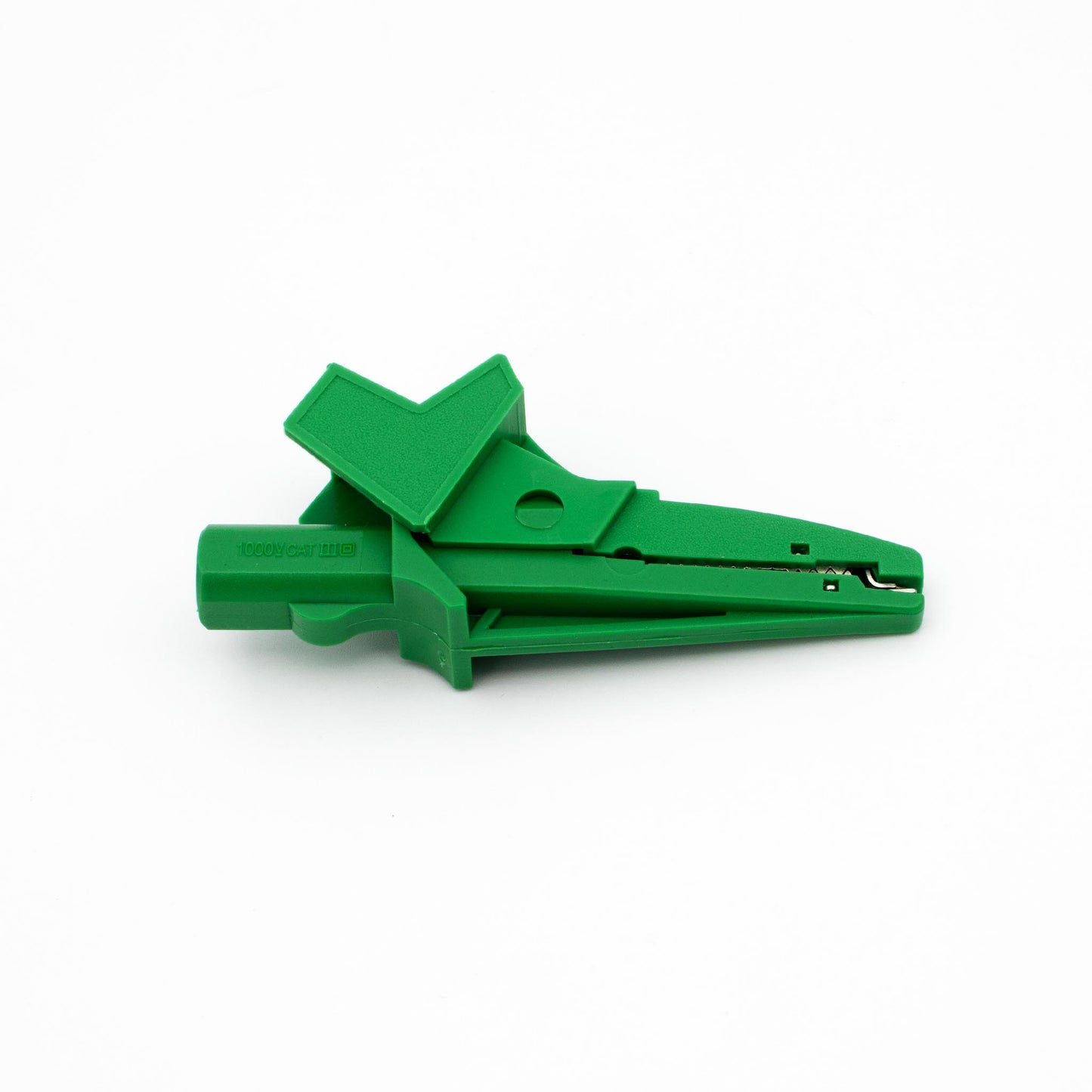

- 1 x Green Crocodile Clip and Lead
- 1 x Brown Crocodile Clip and Lead
Standard Warranty: 2 Years
