Metrel Delta 3309BT APAT Pro Print Pack

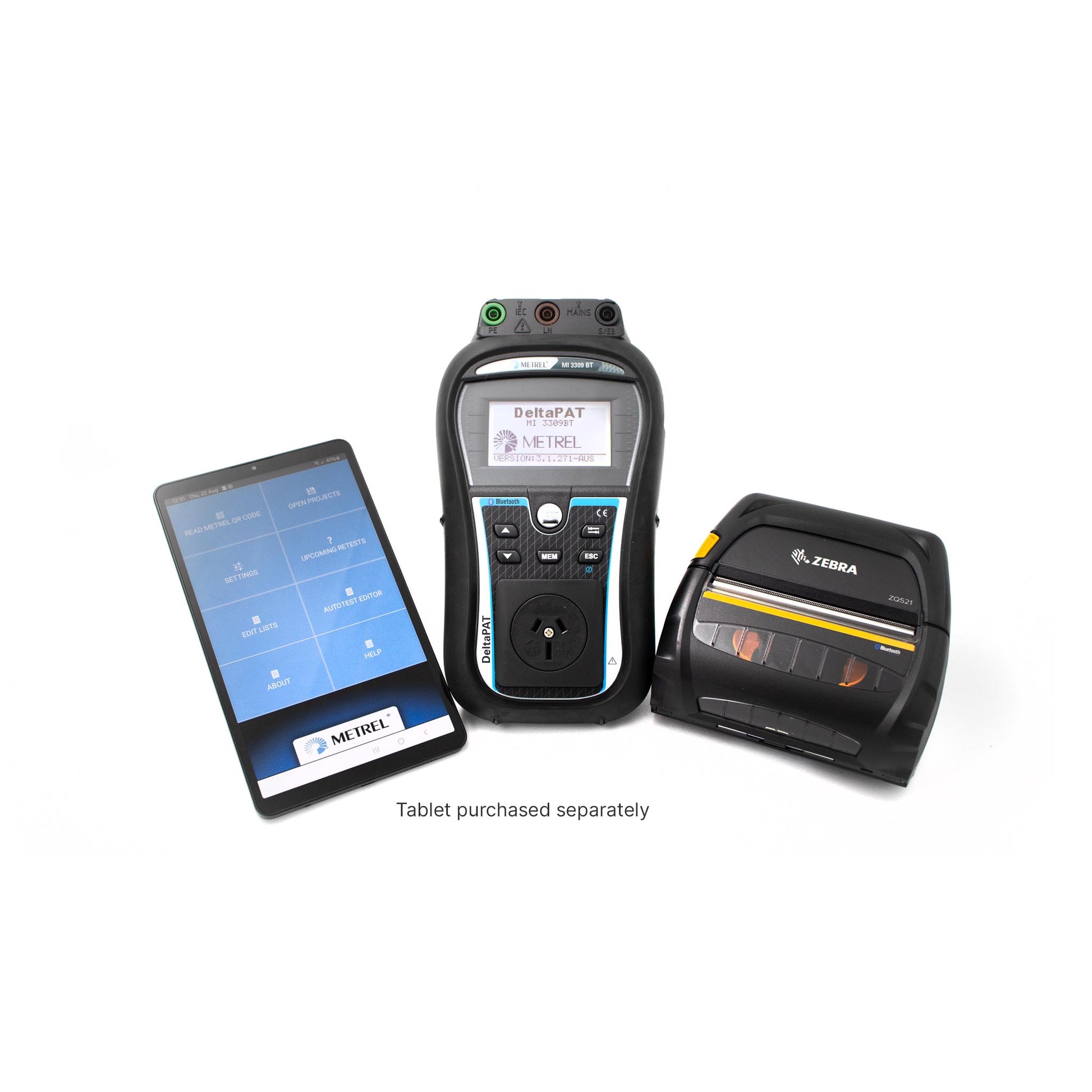

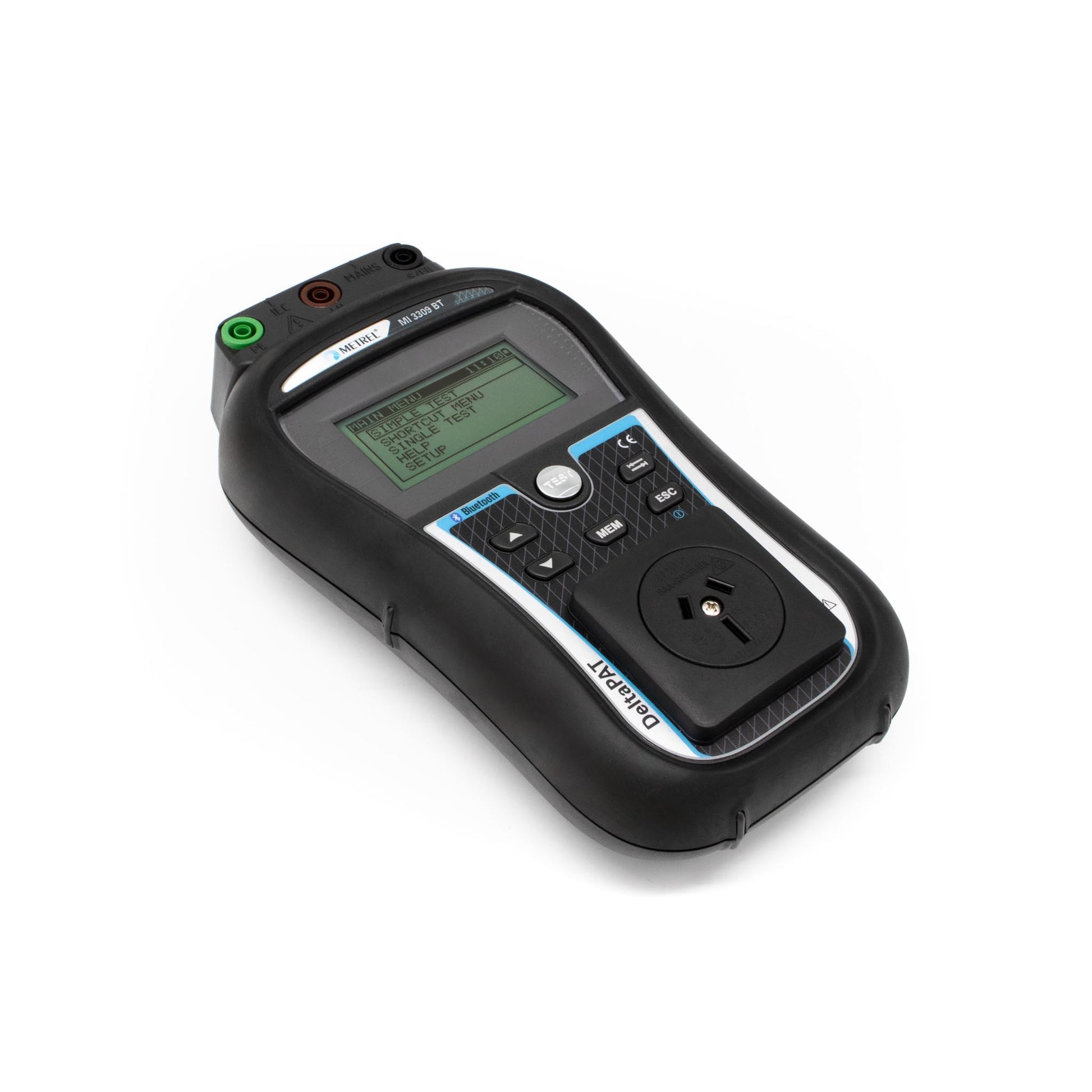

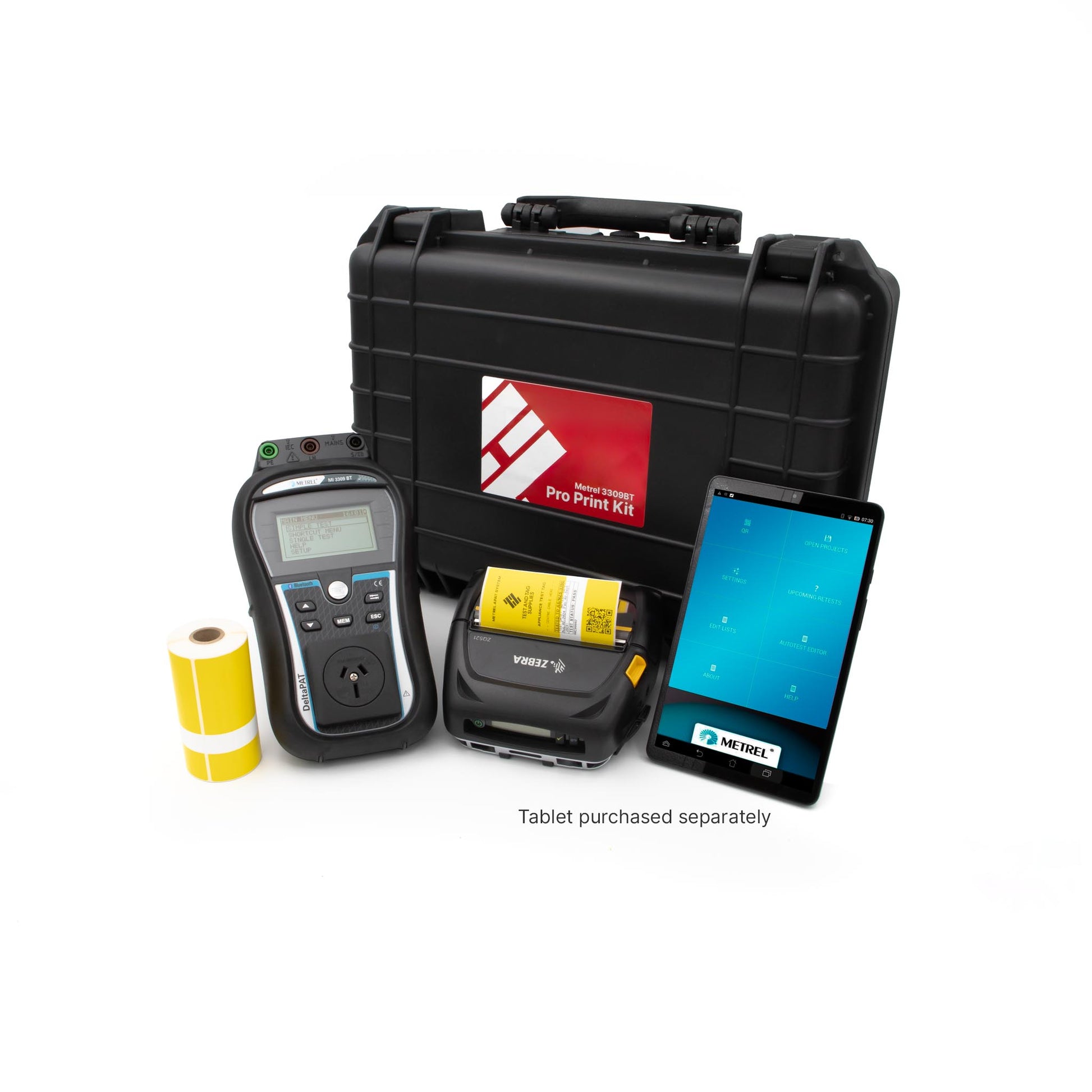

This highly portable Metrel appliance testing package combines affordability with the features of more expensive systems, making it an excellent choice for efficient appliance testing. It integrates the Metrel 3309BT appliance tester with a dedicated Metrel/Zebra Li-Ion belt clip printer and the Android APAT application, delivering exceptional portability and functionality.

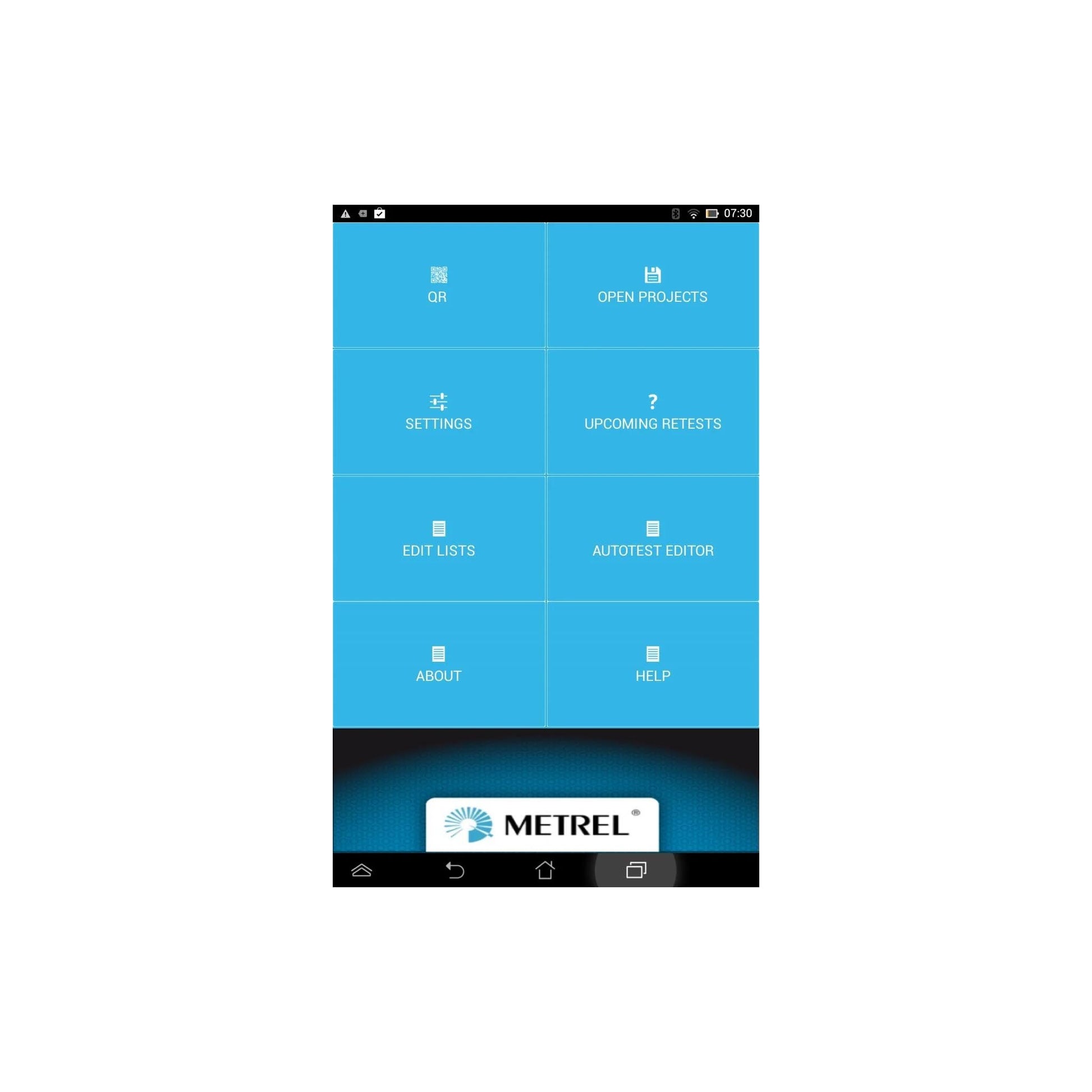

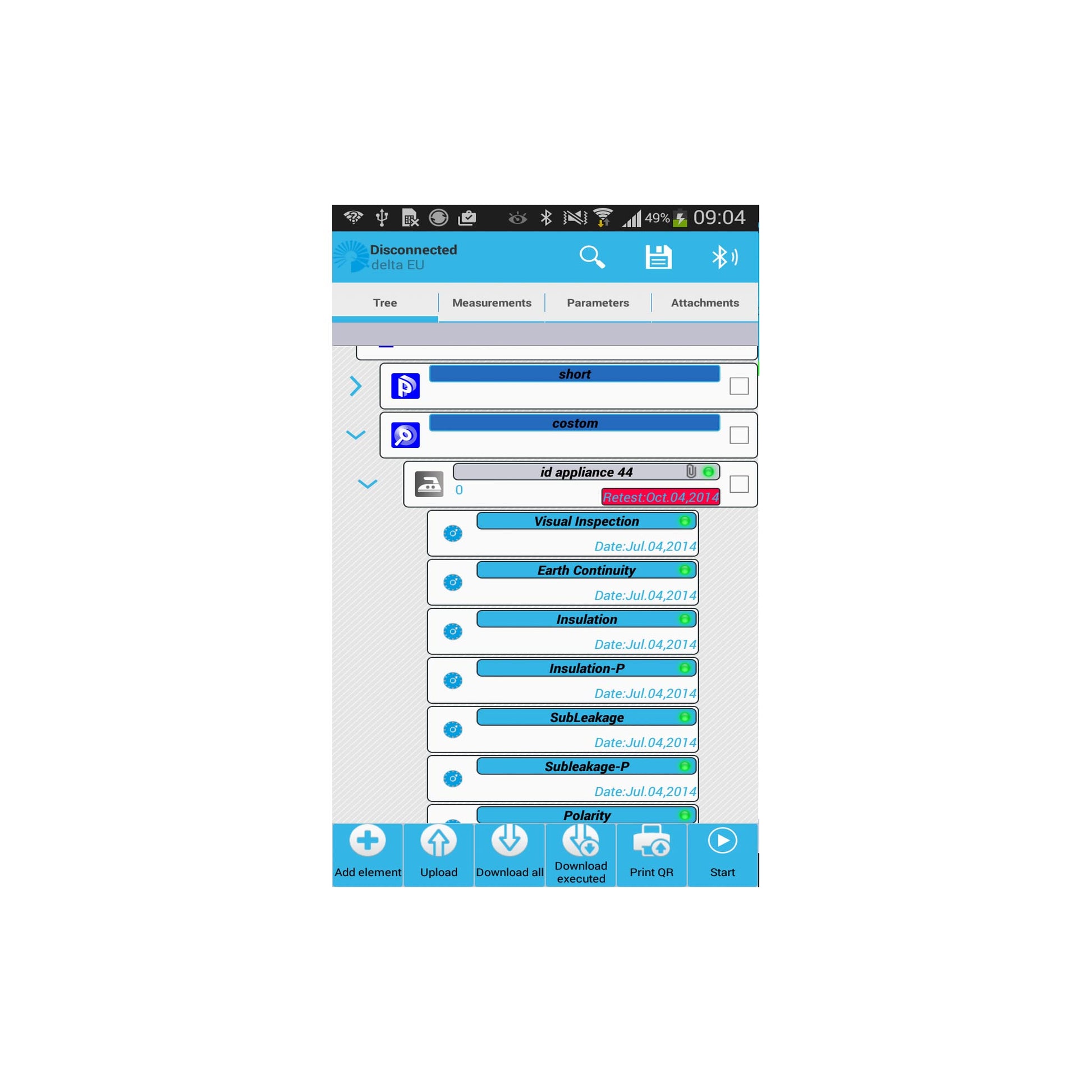

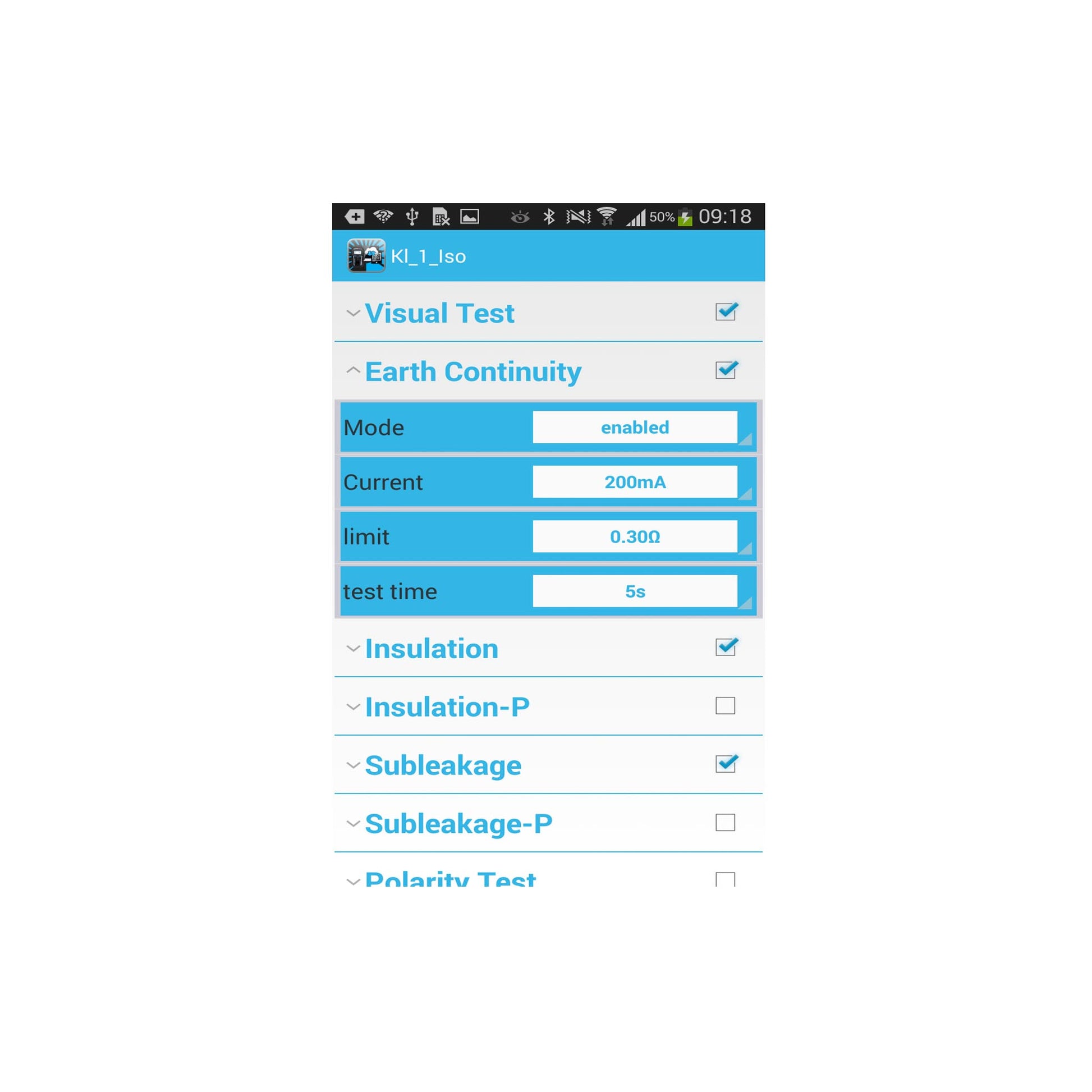

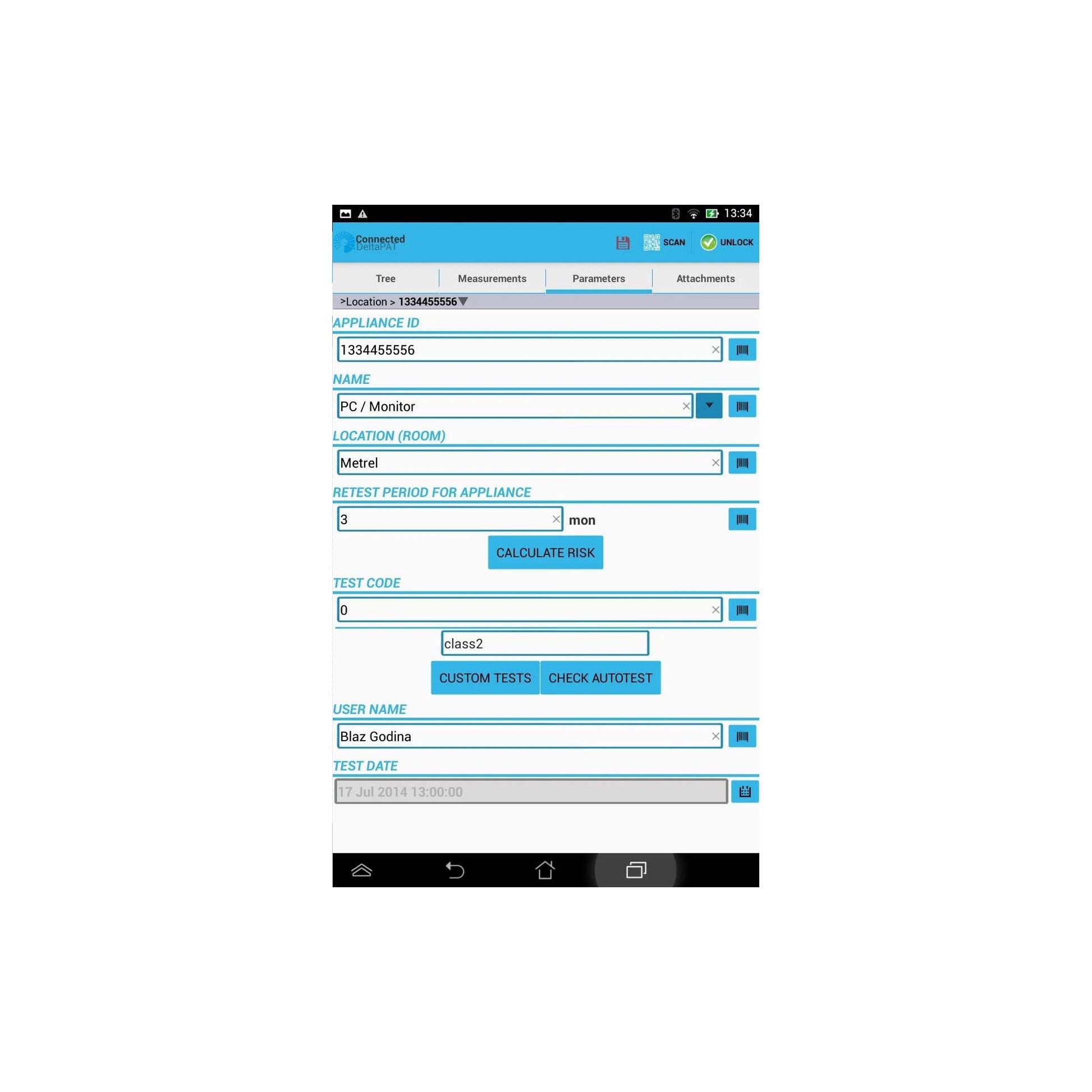

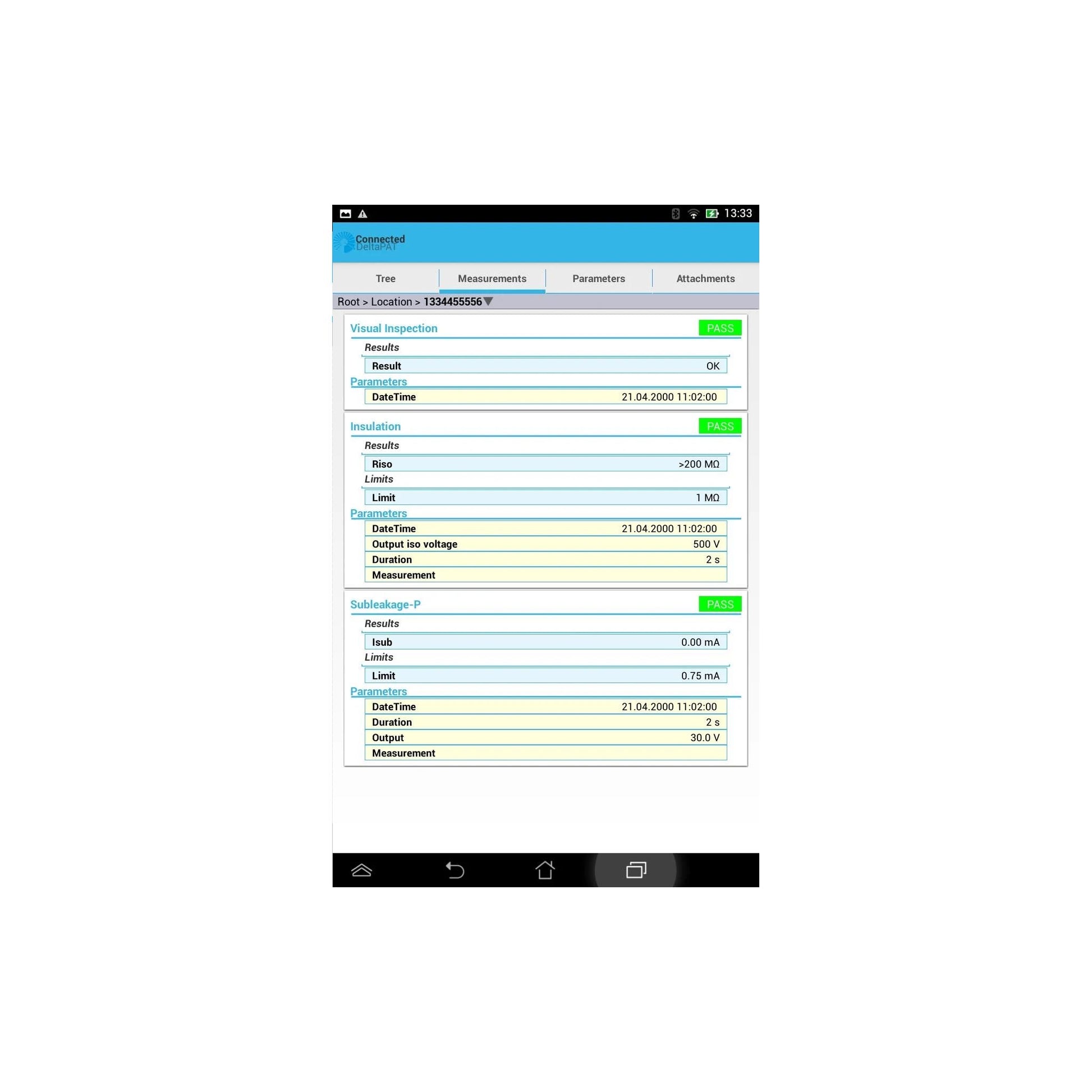

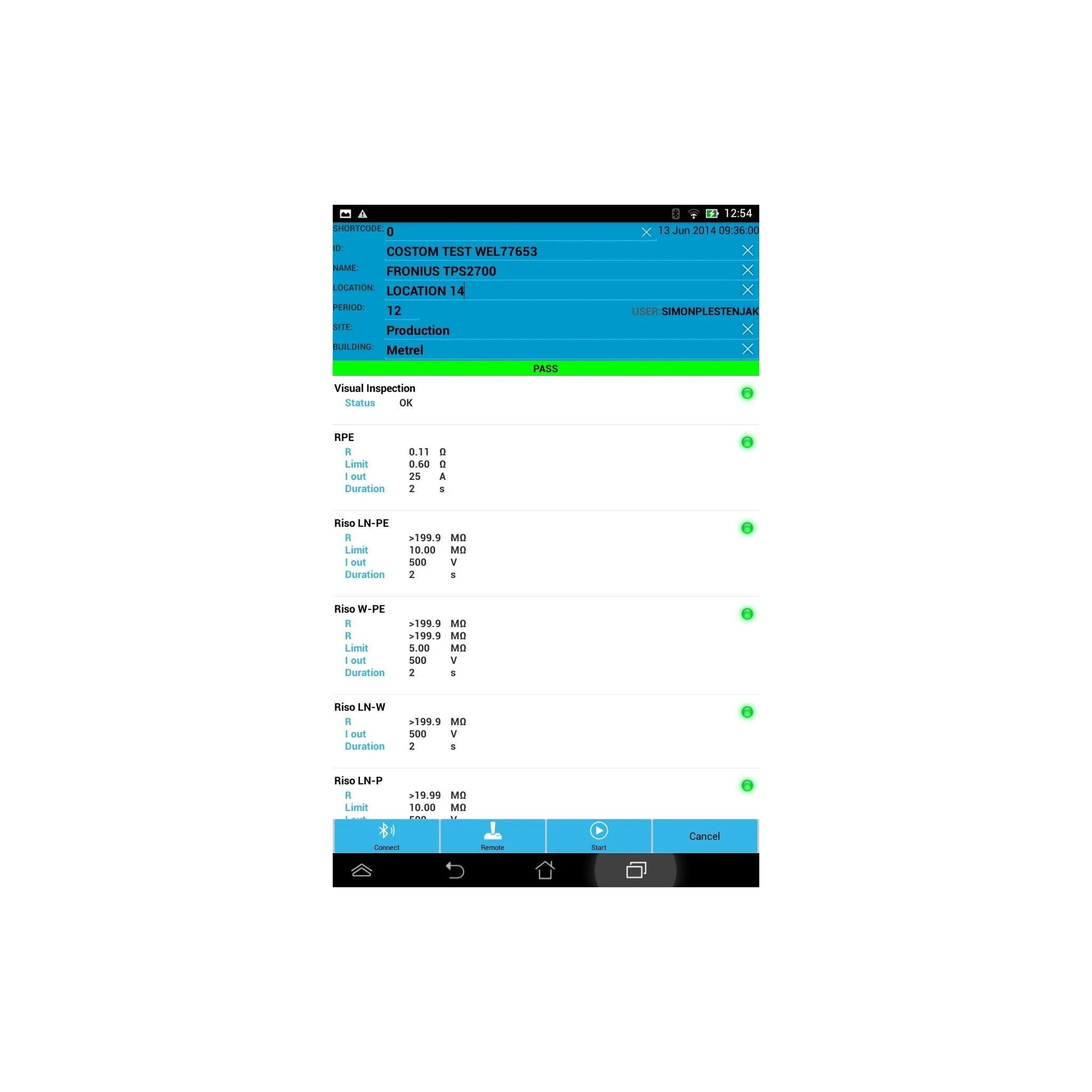

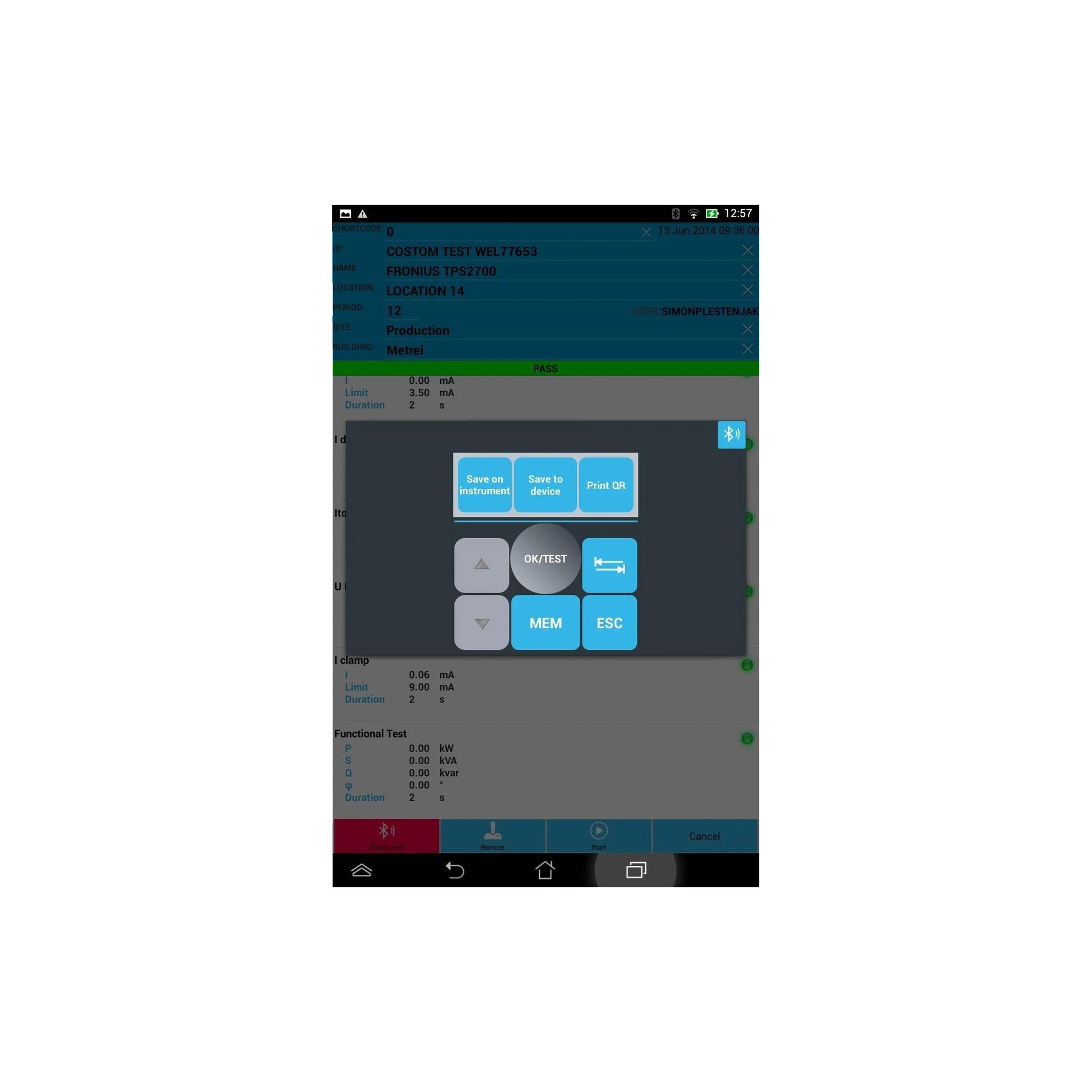

In conjunction with a compatible Android device (sold separately), APAT Android application enhances the testing experience by enabling users to control the PAT tester directly from an Android compatible device. It allows for scanning previously tested items using QR codes, facilitating easy access to existing test results and appliance data. Users can choose between short-code tests and user-programmed tests, as well as store images or other attachments linked to specific assets. The application also offers a user-programmable logo that can be changed at the touch of a button and enables users to search through test results to easily identify which items have or have not yet been retested. Additionally, users can create several ‘blank’ appliances ready for testing with incremental ID numbers. The capability to store tests on an Android compatible device significantly increases memory storage, allowing for tests to be stored either on the Android device or exported to PC software for reporting and archiving via popular file sharing protocols or email.

Testing appliances and leads in accordance with AS/NZS 3760:2022.

• Earth Continuity – Yes (200mA)
• Insulation Resistance – Yes (250V/500V)
• Current Leakage – Yes
• Max Current Leakage – 16A
• Outlet Socket – 15A
• Polarity – Yes
• Portable RCD – Yes
• Fixed RCD (CATII*) – Yes
• Values Display – Yes
• Battery Type – NiMh
• Rechargeable – Yes
• Programmable Sequences – Yes
• Recording – Yes
• Records Descriptions – Yes
• Data Entry - Via App**
• Recall by ID# - Via App**
• Printer Option – Mains/Battery**
• Communications – USB/BT/RS232
• 3 Phase Leakage Option** – Yes
• Weight – 1.2 kg

*CATII - RCD testing from outlet sockets only

**Accessories purchased separately

Includes printer – Yes

Printer Power – Battery

Records descriptions - Yes

Non-electrical Test Recording – No (Visual only possible)

Barcode scanning – QR/2D

Recalls by ID#/Scan - Yes Via App*

Custom logo – Yes

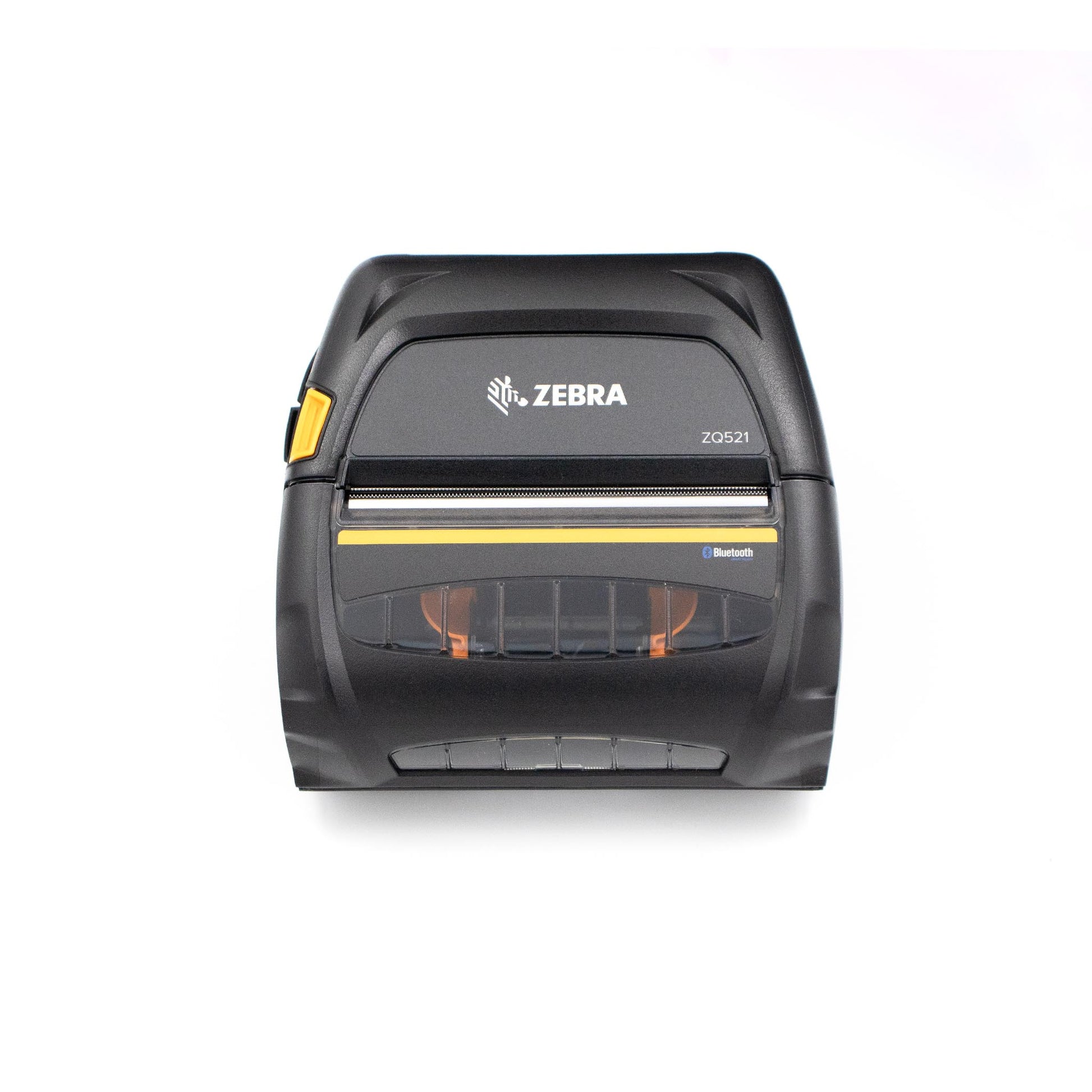

Printer – Direct Thermal

Printer Comms – BT

Case – Hard

Subscription for tester use – No

Subscription required for reporting – No

System weight - –7kg

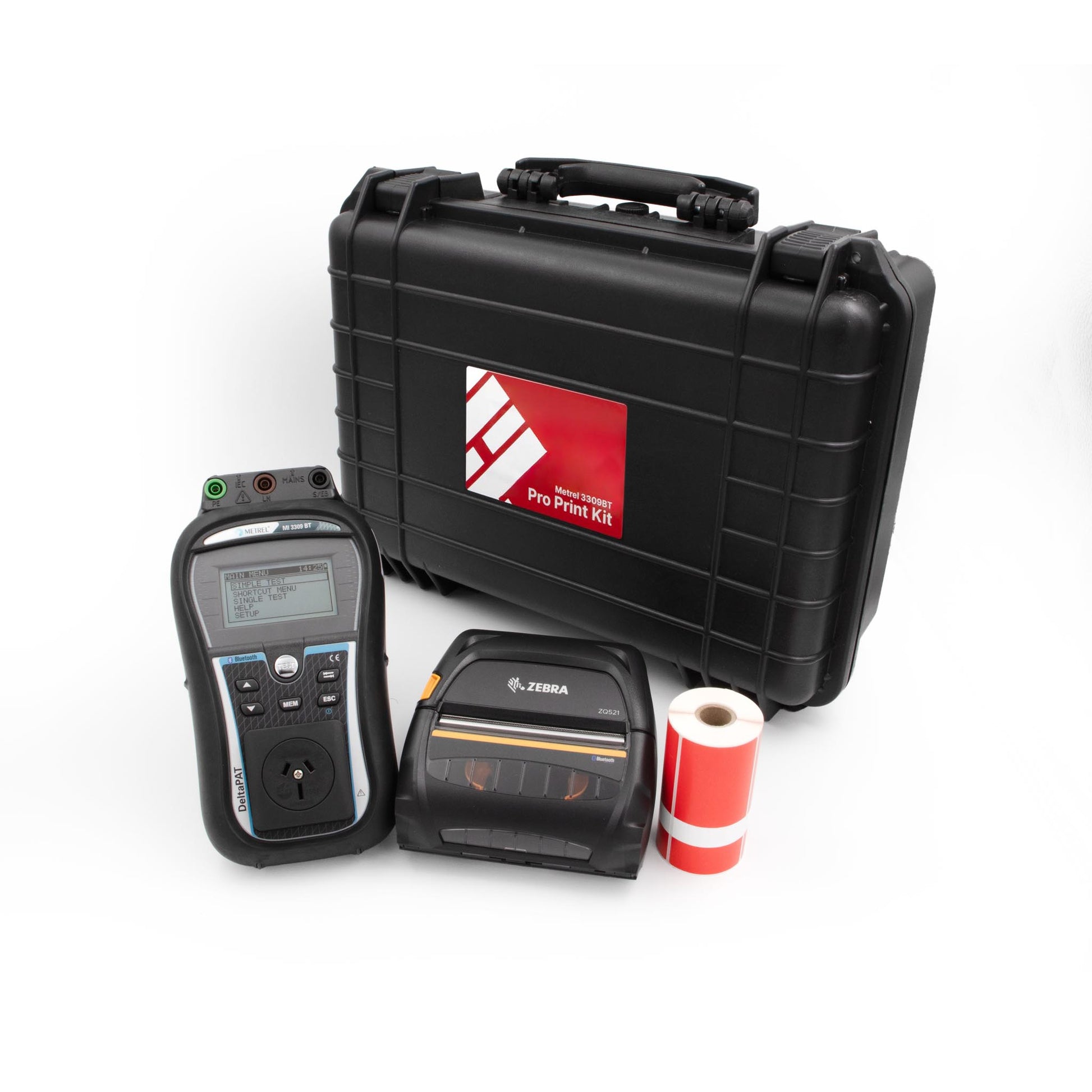

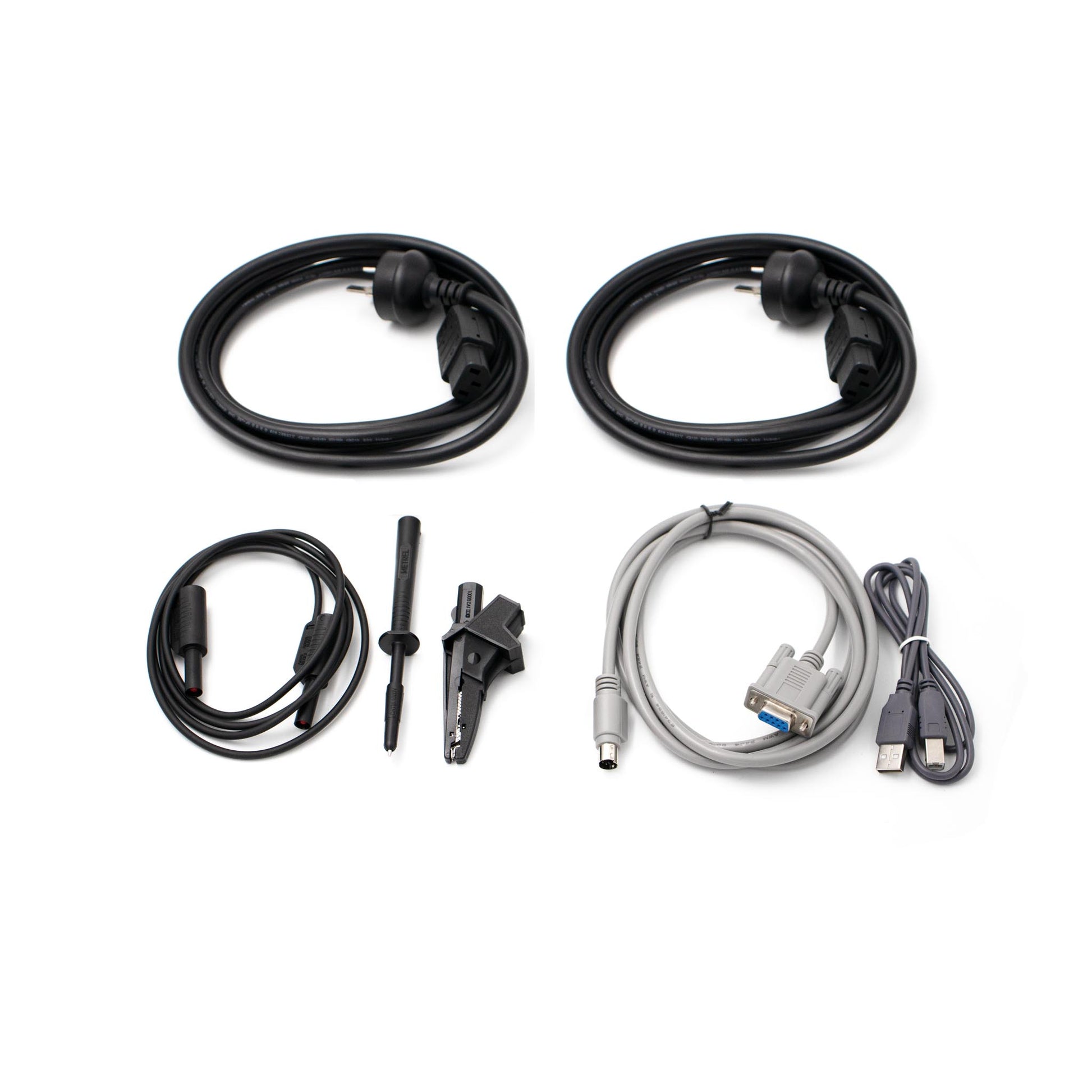

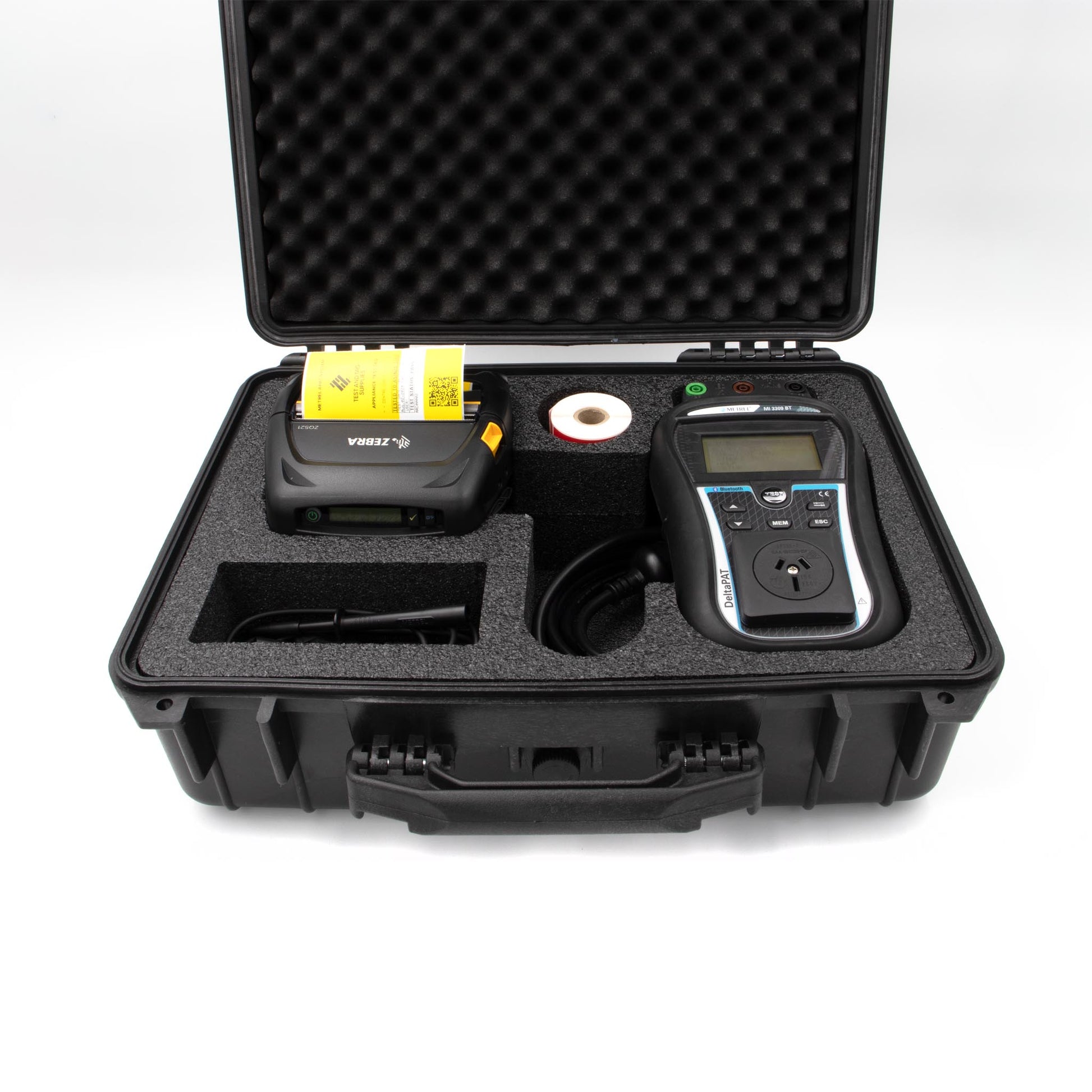

Li-Ion Tag Printer, Earth Test Lead, Military Case, Custom Foam, Probe, Crocodile Clip, 6 x AA NimH batteries, 2 x IEC lead, Charger, Manual, USB cable, RS232 Cable, Certificate of Calibration, USB Cable, Android Application Unlock code, 250 White Test Tags.

Standard Warranty: 1 Year
