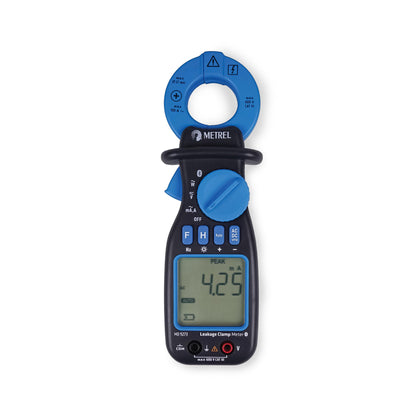

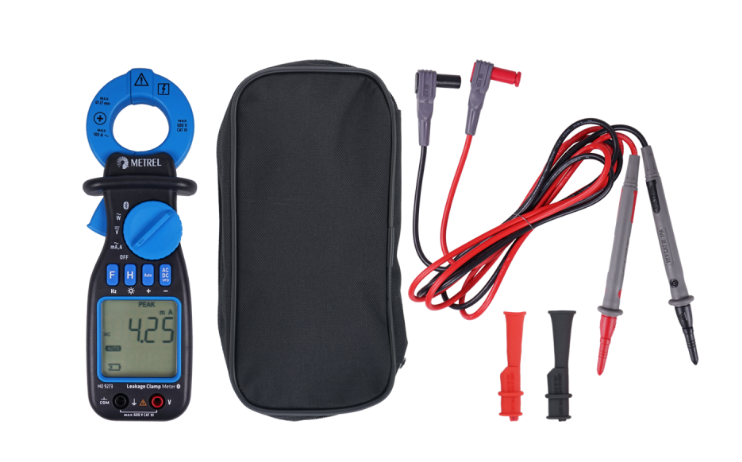

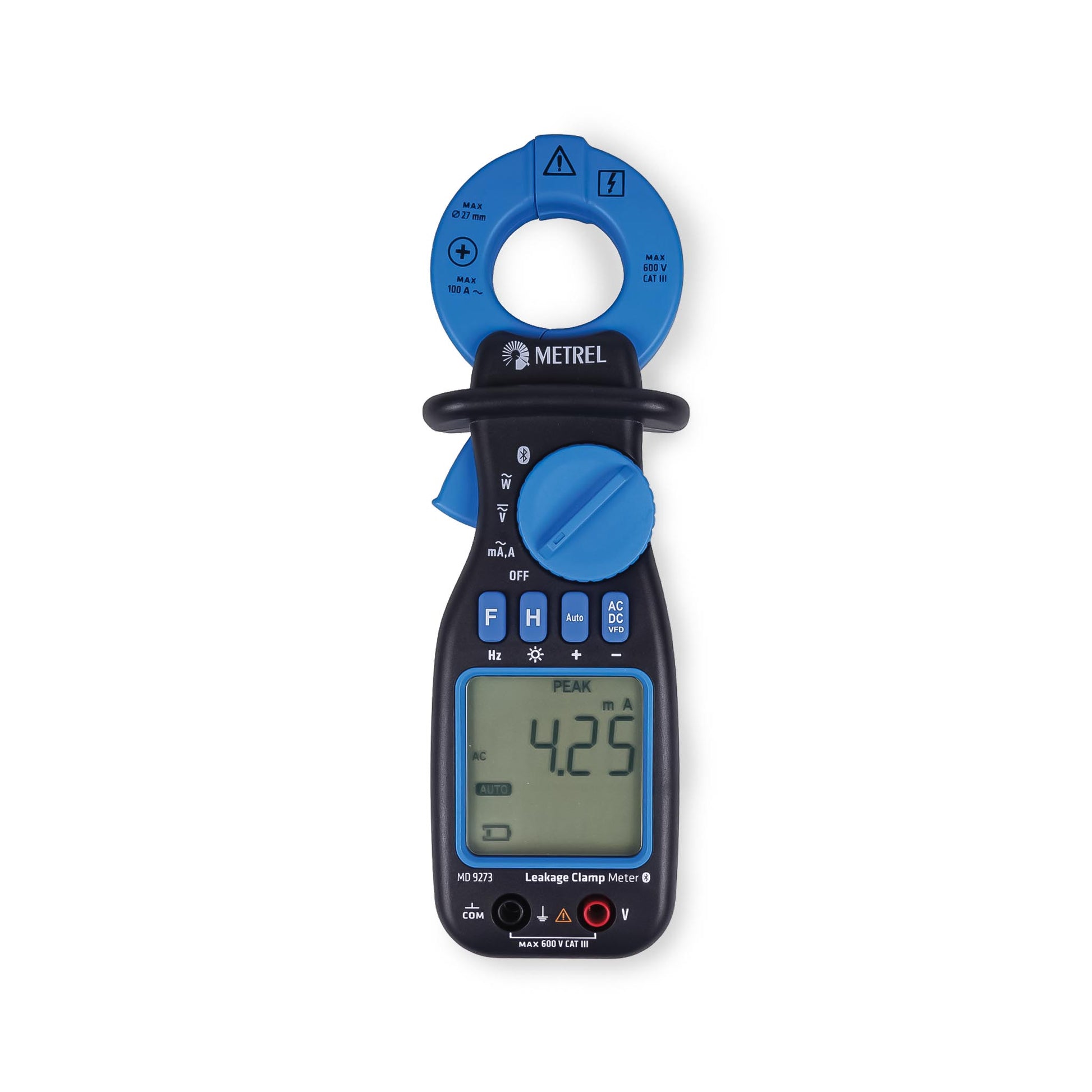

MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions 28mm Jaw CAT IV 300V CATIII 600V

MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions 28mm Jaw CAT IV 300V CATIII 600V

SKU:META9273

Regular price $738.00 Ex GST
Regular price $0.00 Ex GST Sale price $738.00 Ex GST
Sale Sold out

Overview

The Metrel MD9273 100A AC TRMS Leakage Clamp is a high-quality general-purpose clamp meter with a 28mm jaw designed for a variety of applications. This new Bluetooth variant allows connection to the Instaltest XC (MI3152) or Instaltest XD (MI3155). Combined together they provide a solution for measuring from a safe distance. The XC or XD can record inrush current from the MD9273 and display data in a table or graph form. They can also be used to generate a 128 Hz signal that the MD 9273 can filter and follow for cable tracing. When acting as a remote clamp, the MD 9273 can send data on current, voltage, power and harmonics. Used independently of other test equipment it provides a robust and professional instrument with advanced functions such as a VFD (Variable Frequency Drive) filter. As a leakage clamp it can read the TRMS AC leakage current of a system, detecting losses.

Applications

  • Basic power quality analysis
  • Troubleshooting in installations
  • Troubleshooting of devices and machines
  • Electric vehicles troubleshooting
  • General purpose
  • Cable tracing

Measures

  • TRMS AC and DC voltage measurement
  • TRMS AC current measurement
  • Frequency measurement
  • VFD frequency and voltage measurement
  • Harmonics measurement
  • Power parameters measurement

Features and Specifications

  • Bluetooth connection to the MI3155 Instaltest XD, MI3152 Instaltest XD and MI3325
  • TRMS AC voltage measurement
  • TRMS AC current measurement
  • Frequency measurement
  • Power parameters measurement
  • AC Current: 40.00mA, 400.0mA, 4000mA, 40.00A, 150.0A
  • AC Voltage: 40.0V, 400.0V, 600.0V
  • Crest Factor: 1.00 to 9.99
  • Peak Value: 40.00 to 100.0A, 40.00 to 600.0V
  • Power Factor: 0.00 to 1.00
  • Phase: -180.0 degrees to +180.0 degrees
  • Apparent Power: 0 to 99.99kVA
  • Active Power: 10.00 to 999.9kW
  • Reactive Power: 10.00 to 999.9kVAr
  • Shielded Jaw for use in noisy environments
  • Intelligent Loss Analysis: Complex algorithms detect loss and allow determination of possible reasons
  • Harmonics measurement: Current or voltage harmonic components and percentage value up to the 19th
  • Jaw Size: 28mm
  • MAX/MIN/Hold Mode
  • Peak Value
  • Large LCD display
  • Power: 2 x 1.5V AAA battery
  • Overvoltage Category: CAT IV 300V, CAT III 600V
