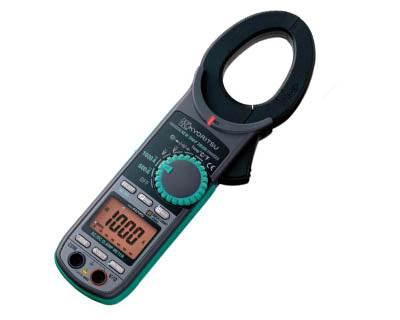

Kyoritsu 2056R CAT IV 600V AC/DC Clamp Meter

The Kyoritsu CAT IV 600V 2056R AC/DC Clamp Meter is a highly versatile True RMS clamp meter designed for professional use. With a wide range of functions, this meter is an essential tool for electrical contractors, offering reliability and accuracy.

• Core tool for electrical contractors

• AC Current
• DC Current
• AC Voltage
• DC Voltage
• Resistance
• Continuity Buzzer
• Frequency
• Capacitance
• Temperature (Optional probe required)

AC Current Measurements

• Range: 0 - 600/100A
• Accuracy: ±2% + ±5 digits at 50/60Hz; ±3.5% + ±5 digits at 40-500Hz

DC Current Measurements

• Range: 0 - 600A/1000A
• Accuracy: ±1.5% + ±5 digits

AC Voltage Measurement

• Range: 6/60/600V (Autoranging)
• Accuracy: ±1.5% + ±5 digits; ±3.5% + ±5 digits at 40-400Hz

DC Voltage Measurement

• Range: 6/60/600V (Autoranging)
• Accuracy: ±1.0% + ±3 digits

Resistance/Diode Check

• Range: 600/6k/600k/6M/60MΩ (Auto ranging)
• Accuracy: ±1.0% + ±5 digits (600-6MΩ); ±5% + ±8 digits (60MΩ)

Continuity Buzzer

• Buzzer sounds at 100Ω

Frequency/Duty

• Range: 10/100/1K/10kHz (Auto ranging) / 0.1-99.9%

Capacitance Tests

• Range: 40nF/4µF/40µF (Auto ranging)
• Accuracy: ±2.5% + ±20 digits

Temperature

• Optional probe required, model 8216
• Range:
  • -50~0ºC (±5ºC + ±3 digits)
  • -50~1500ºC (±3ºC + ±2 digits)
  • -150ºC~700ºC (±2ºC + ±2 digits)

• Display: Max. 6039 Counts
• Conductor Size: Ø40mm
• Withstand Voltage: 6880V AC for 5 seconds
• Power Supply: Requires R03(1.5V)(AAA) × 2
• Dimensions: 243(L) × 77(W) × 36(D)mm
• Weight: 300g

• IEC 61010-1 CAT IV 600V
• IEC 61010-031
• IEC 61010-2-032
• IEC 61326

• 7066 (Test Lead)
• 9094 (Carrying Case)
• Instruction Manual
• Certificate of Conformity

• 8216 Temperature Probe

1 Year
