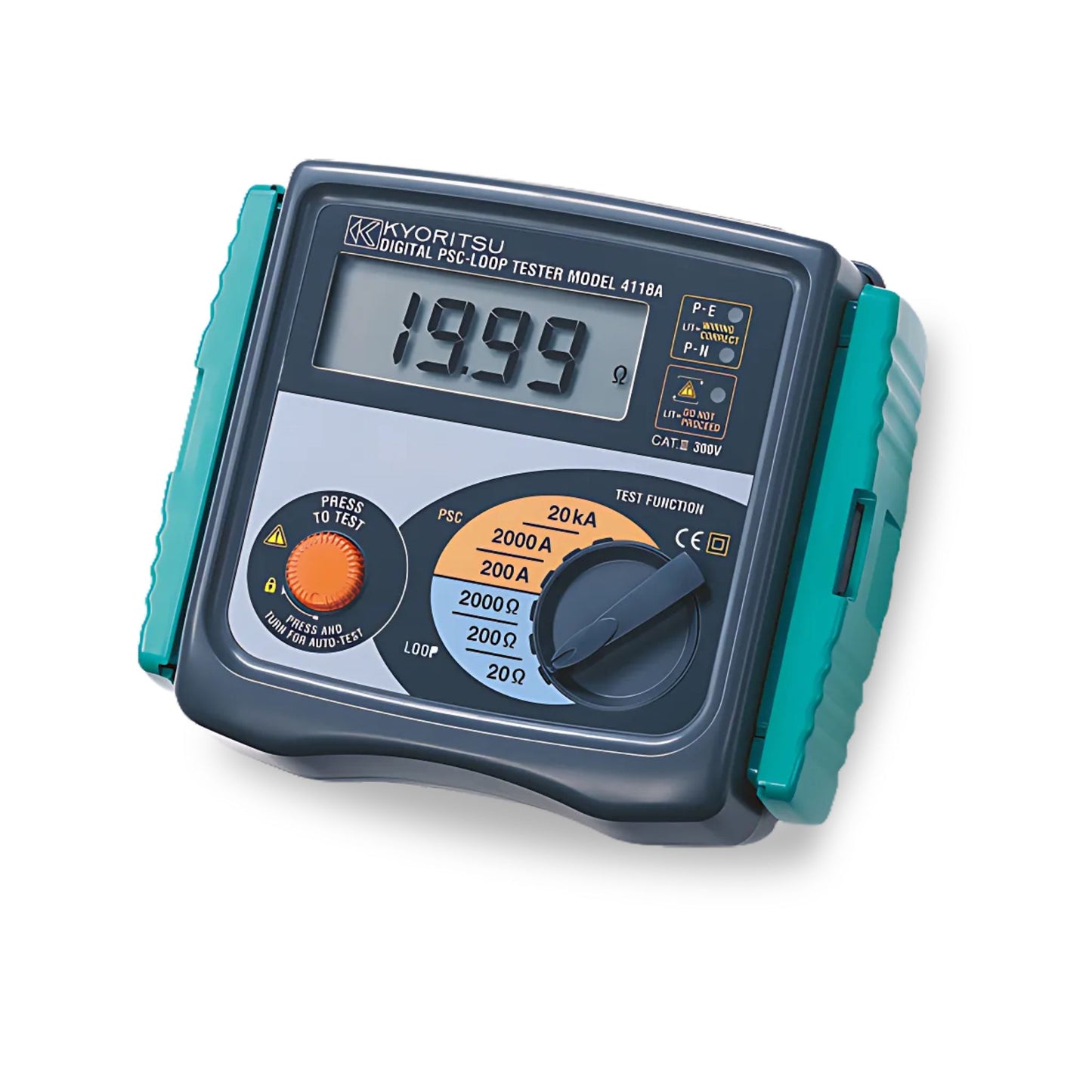

Kyoritsu 4118A Loop Impedance Meter

The Kyoritsu 4118A Loop Impedance Meter is a custom microprocessor-controlled tester designed for precise loop impedance measurements. Manufactured by Kyoritsu, this device ensures the reliability and safety of electrical circuits.

In scenarios where the loop resistance of an earth circuit is too high, circuit breakers or earth leakage devices may become inoperative during an overload or short circuit. To prevent such incidents, it is crucial to measure the earth circuit resistance to ensure it is sufficiently low.

• Loop Impedance:
  • 20Ω - 25A
  • 200Ω - 2.3A
  • 2000Ω - 15mA

Loop Impedance Measurements

• Range: 20Ω, 200Ω, 2000Ω
• Accuracy: ±2% rdg + 4 dgt

AC Test Current

• 20Ω: 25A
• 200Ω: 2.3A
• 2000Ω: 15mA

AC Test Period

• 20Ω: 20ms
• 200Ω: 40ms
• 2000Ω: 280ms

PSC Ranges

• 200A - (2.3A, 40ms)
• 2000A - (25A, 20ms)
• 20kA - (25A, 20ms)

PSC Accuracy

Consider the accuracy of loop impedance

Voltage

Operating Voltage: General

• IEC61010-1 CAT III 300V
• IEC61557-1,-3
• IEC61010-2-031 (Pollution Degree 2)

IEC60529 - IP54

185(L) × 167(W) × 89(D)mm

Approximately 560g

• Moulded plug test leads
• Pouch for test leads
• Shoulder strap
• 7121 (Distribution board test leads)
• Instruction manual

1 Year
