Kyoritsu 3132A Insulation and Continuity

The Kyoritsu 3132A is a trusted analogue insulation and continuity tester, widely used across Australia for its reliability, simplicity, and rugged design — all hallmarks of Kyoritsu's instruments for decades.

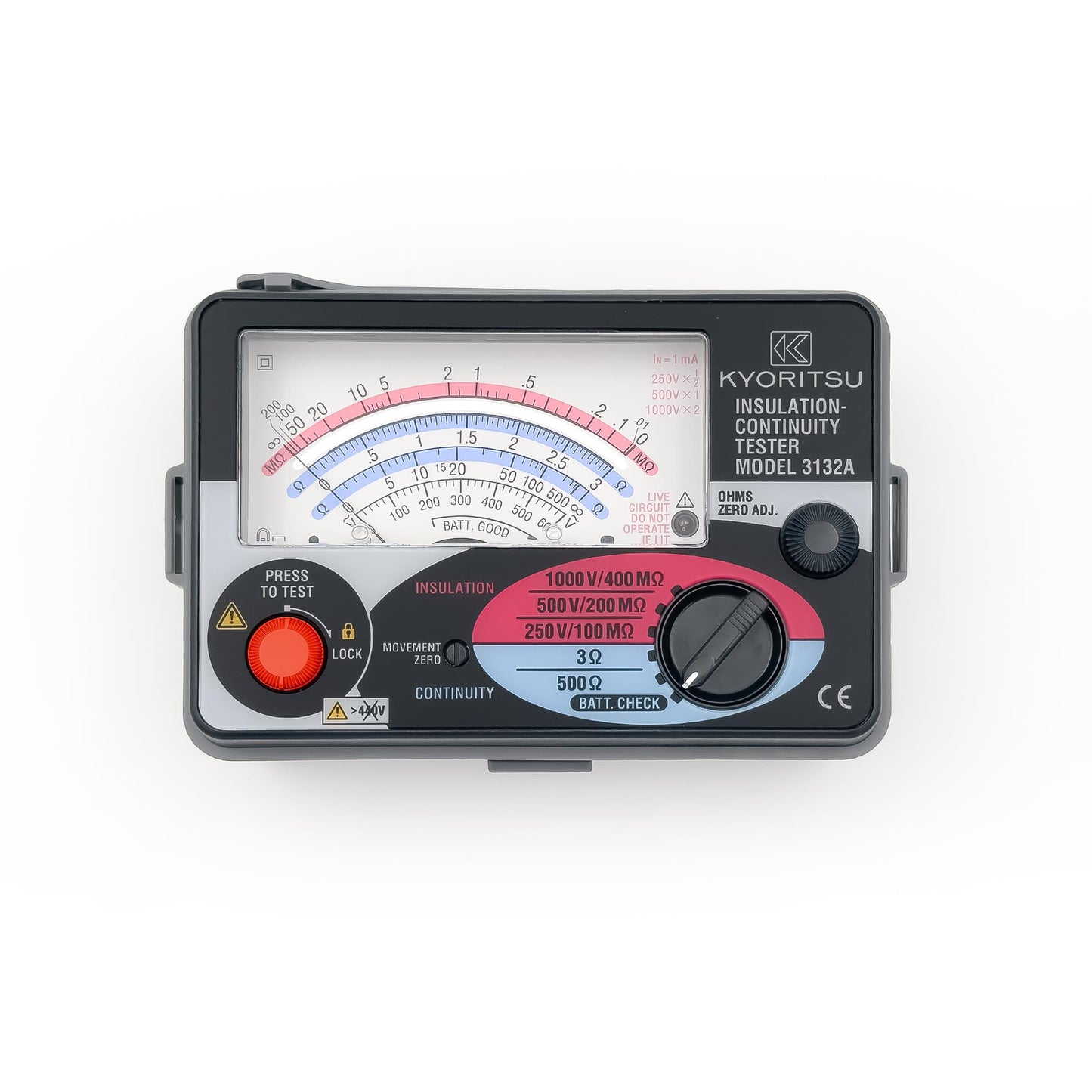

This battery-powered tester features straightforward dial selection and clearly marked scales for:

• Insulation Resistance Testing at 250V, 500V, and 1000V ranges
• Continuity Testing with automatic polarity reversal
• AC Voltage Check to identify live circuits

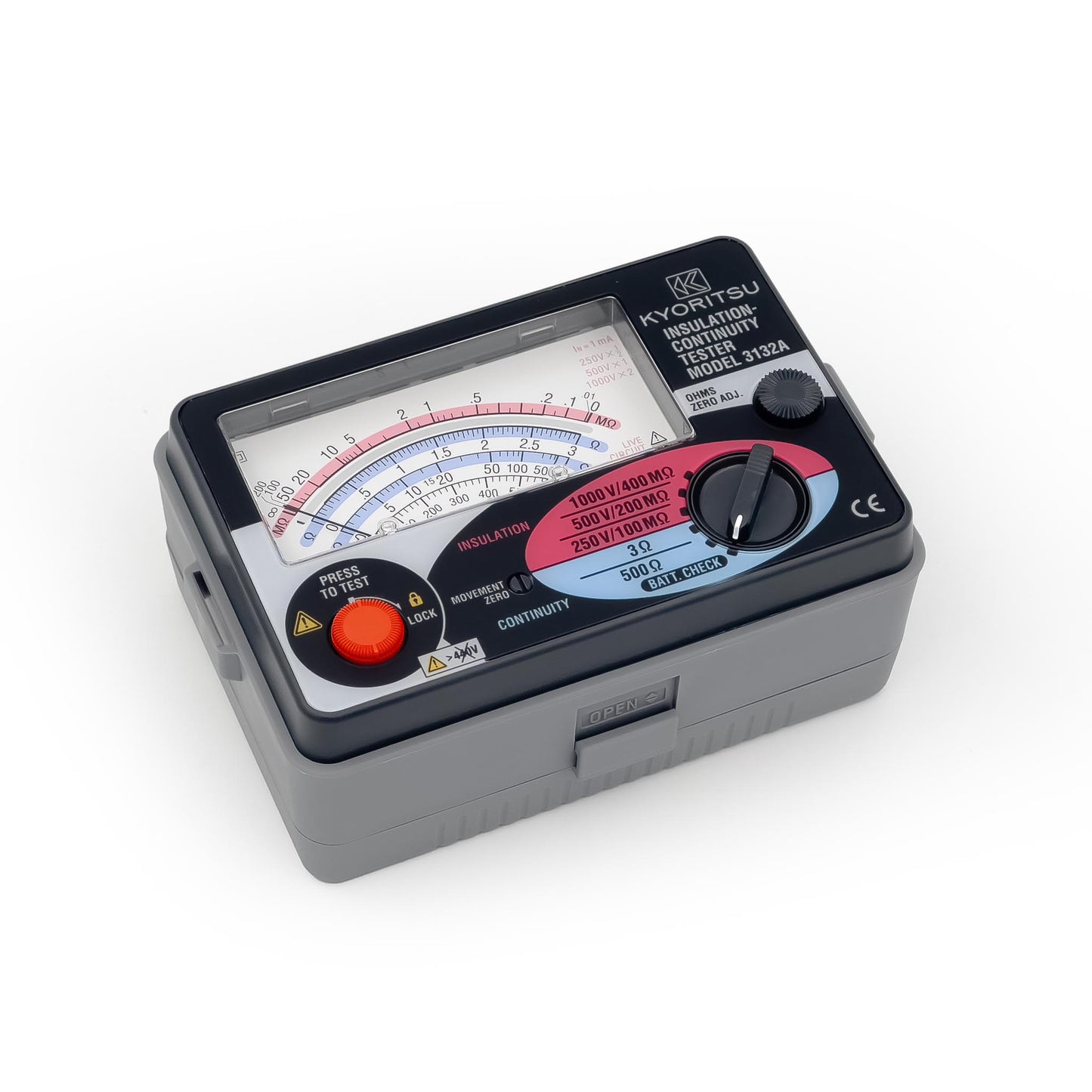

The 3132A offers fast, accurate readings with a moving coil analogue display, ideal for technicians who prefer a hands-on approach without digital distractions. Its durable casing and carry strap make it ideal for fieldwork, while the lockable test button and zero-adjustment dial ensure convenience and precision.

A dependable choice for electricians and service technicians needing consistent, no-fuss insulation and continuity testing.

Genuine Australian stock imported by Australia's only authorised Kyoritsu distributor - Eaton Australia.

Suitable for insulation and continuity testing on installations or equipment.

Tests:

• Insulation resistance
• Continuity
• Voltage AC Warning

Insulation Measurements:

• Measuring Range: 0MΩ-100MΩ (250V), 0-200MΩ (500V), 0-400MΩ (1000V)
• Guaranteed Ranges: 0.1MΩ-10MΩ (250V), 0.2-20MΩ (500V), 0.4-40MΩ (1000V)
• Accuracy at Guaranteed Measuring Range: ±5%
• Accuracy at other measuring ranges: ±0.7% of scale length
• Scale Multiplier: x1/2, x1, x2
• Short Circuit Current: 1.3mA DC approx.

Continuity Measurements:

• Ranges: 3Ω, 500Ω
• Measuring Range: 0-3Ω, 0-500Ω
• Accuracy: ±1.5% of scale length
• Voltage: 4.1V DC
• Zero Adjustment
• Output Short Circuit Current: >200mA

AC Voltage:

• AC Voltage Range: 0-600V ACV
• Accuracy: ±5% of scale length
• Input Impedance: 1.2MΩ

General Features:

• Taut band movement
• Voltage warning light (live circuit lit from AC)
• Battery check

• Safety Rating CAT III 600V
• Fuse protection

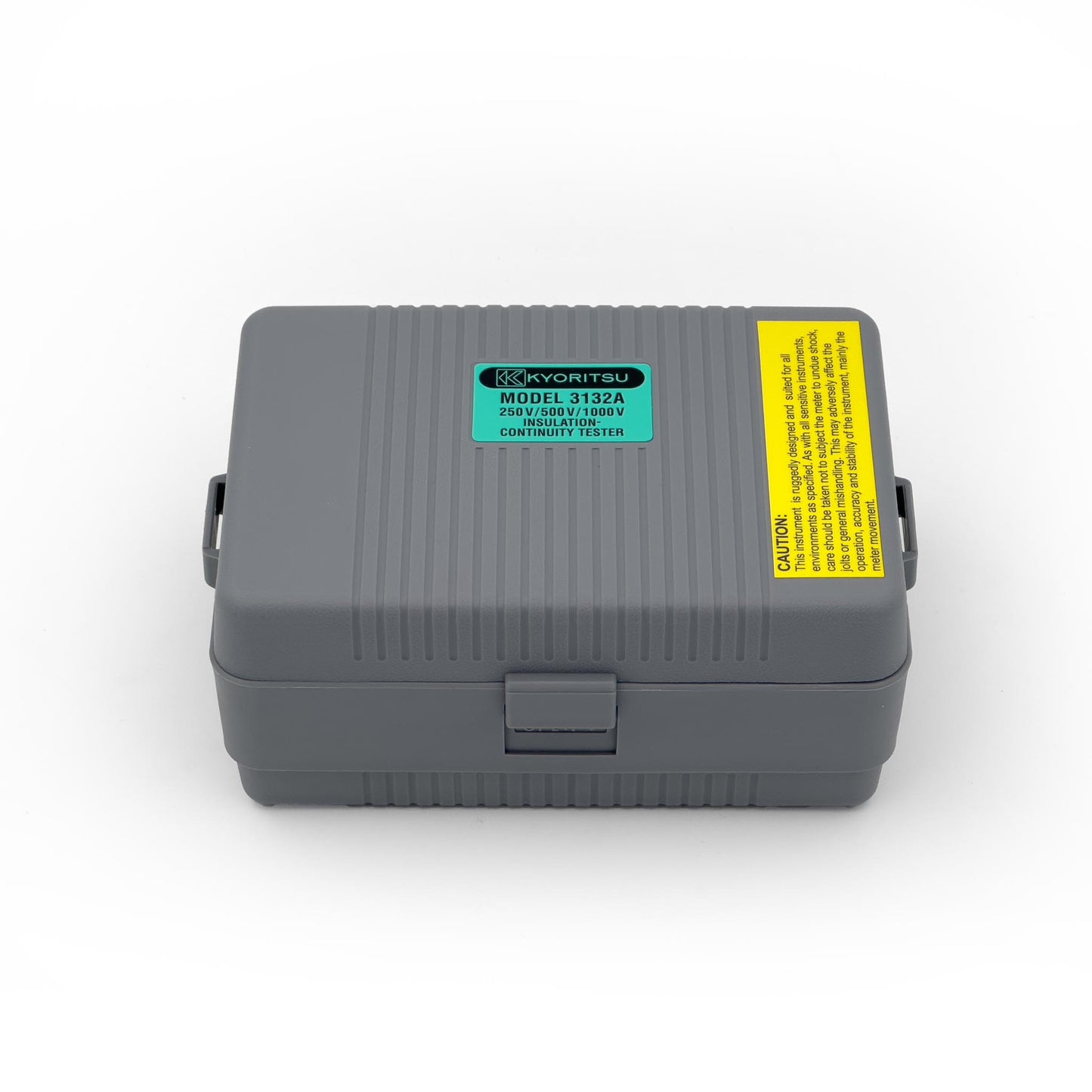

• Fascia cover

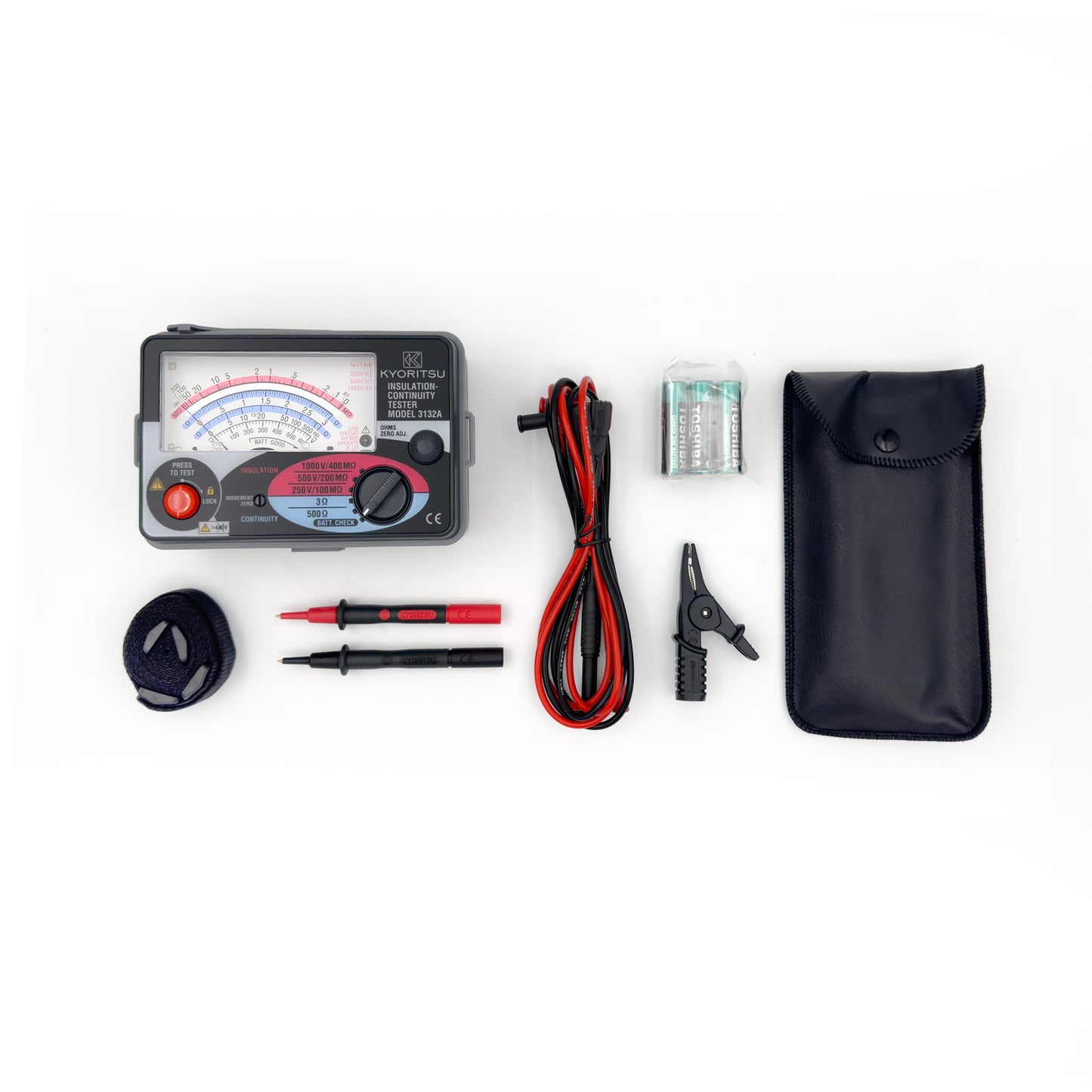

• Insulation and continuity meter

• Manual
• 2 x test leads
• 2 x test probes
• 1 x strap
• 1 x lead satchel
• 1 x crocodile clip
• Manufacturer certificate of conformity of accuracy and production to ISO9001

Standards:

IEC61010

1 Year
