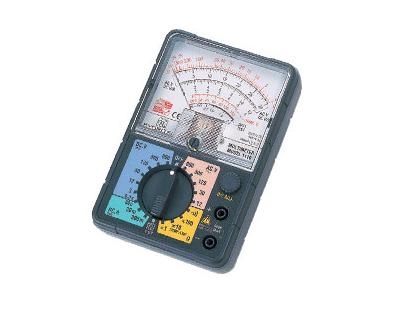

Kyoritsu 1110 Analogue Multimeter

The Kyoritsu 1110 Analogue Multimeter is a reliable device from a world-class manufacturer, designed for general-purpose testing.

Perfect for a variety of testing applications, including:

• DC Voltage
• AC Voltage
• DC Current
• Resistance
• Continuity Testing
• Battery Testing
• Temperature Measurement
• LED Testing

• DC Voltage:
  • 0.3V (16.7kΩ/V) ±3% of FS
  • 3V / 12V / 30V / 120V / 300V / 600V (20kΩ/V) ±3% of FS
• AC Voltage:
  • 12V (9kΩ/V) ±4% of FS
  • 30V / 120V / 300V / 600V (9kΩ/V) ±3% of FS
• DC Current: 60µA / 30mA / 300mA ±3% of FS
• Resistance: 3kΩ / 30kΩ / 300kΩ ±3% of scale length
• Continuity Buzzer: Buzzer sounds below 100Ω
• Battery Test: 1.5V (0.7~2V) ±3% of FS (10Ω load)
• Temperature Measurement:
  • -20°C to +150°C
  • ±3% of scale length (0°C~+100°C)
  • ±4% of scale length (other ranges)
  • (Requires temperature probe 7060)
• LED Testing: 10mA approximately at 0Ω (at 3V battery voltage)

• High Sensitivity: DC 20kΩ/V
• Polarity Selector Switch: Easily switch between positive and negative readings
• Durable Design: 1m drop-proof heavy-duty designed taut-band movement
• Voltage Measurement: Can measure line voltage up to AC 600V (Voltage to ground max AC 300V)
• Functionality: Includes continuity buzzer, battery check, LED check, and temperature measurement functions
• Robust Case: Skeleton-type robust and clear case with a carrying handle included
• Max Circuit Voltage: 600V AC/DC (between line/neutral), 300V AC/DC (against earth)
• Withstand Voltage: 3700V AC for 1 minute

• Power Source: R6P (AA) (1.5V) × 2
• Dimensions: 94(L) × 140(W) × 39(D) mm
• Weight: Approximately 280g

• IEC61010-1 CAT.III 300V Pollution Degree 2
• CAT.II 600V Pollution Degree 2
• IEC61010-2-031
• IEC61326-1

• Test leads
• Fuse
• Batteries
• Carry case
• Manual

1 Year
