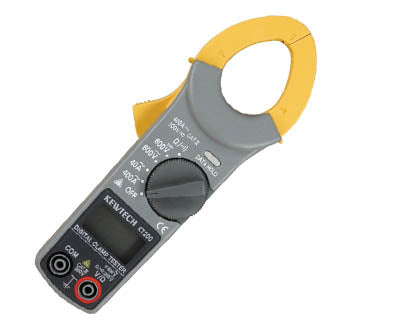

Kewtech KT203 CAT III 300V AC Clamp Meter

The Kewtech CAT III 300V KT203 AC Clamp Meter is an affordable, versatile tool designed for general-purpose use. As a subsidiary of Kyoritsu, Kewtech delivers reliable performance and a wide range of functions suitable for electrical contractors.

This clamp meter is an essential tool for electrical contractors requiring accurate current measurements.

• AC Current
• DC Current
• AC Voltage
• DC Voltage
• Resistance
• Continuity Buzzer

AC Current Measurements

• Range: 40A/400A (Auto-ranging)
• Accuracy:
  • ±3.0% ±8 digits at 50/60Hz (0-40.00A)
  • ±3.5% ±6 digits at 50/60Hz (15-299.99A)
  • ±4.0% ±6 digits at 50/60Hz (300.00-400.00A)

DC Current Measurements

• Range: 40A/400A (Auto-ranging)
• Accuracy:
  • ±3.0% ±8 digits at 50/60Hz (0-40.00A)
  • ±3.5% ±6 digits at 50/60Hz (15-299.99A)
  • ±4.0% ±6 digits at 50/60Hz (300.00-400.00A)

AC Voltage Measurement

• Range: 400/600V AC
• Accuracy: ±2.0% ±5 digits at 50/60Hz

DC Voltage Measurement

• Range: 400/600V DC
• Accuracy: ±1.5% ±5 digits

Resistance/Diode Check

• Range: 400/4000Ω
• Accuracy: ±2.0% ±5 digits

Continuity Buzzer

Buzzer sounds at below 50Ω ±35Ω

• Data Hold
• Sleep feature
• 4000 Counts display
• Maximum conductor size: Ø30mm
• Withstand Voltage: 3700V AC for 1 minute

• IEC61010-1 CAT III 300V (ACA), CAT II 600V
• Pollution Degree 2
• IEC 61010-2-032
• IEC 61326-1

• 7066 Test Leads
• Batteries (AAA) x 2
• Instruction Manual
• Certificate of conformity

1 Year
