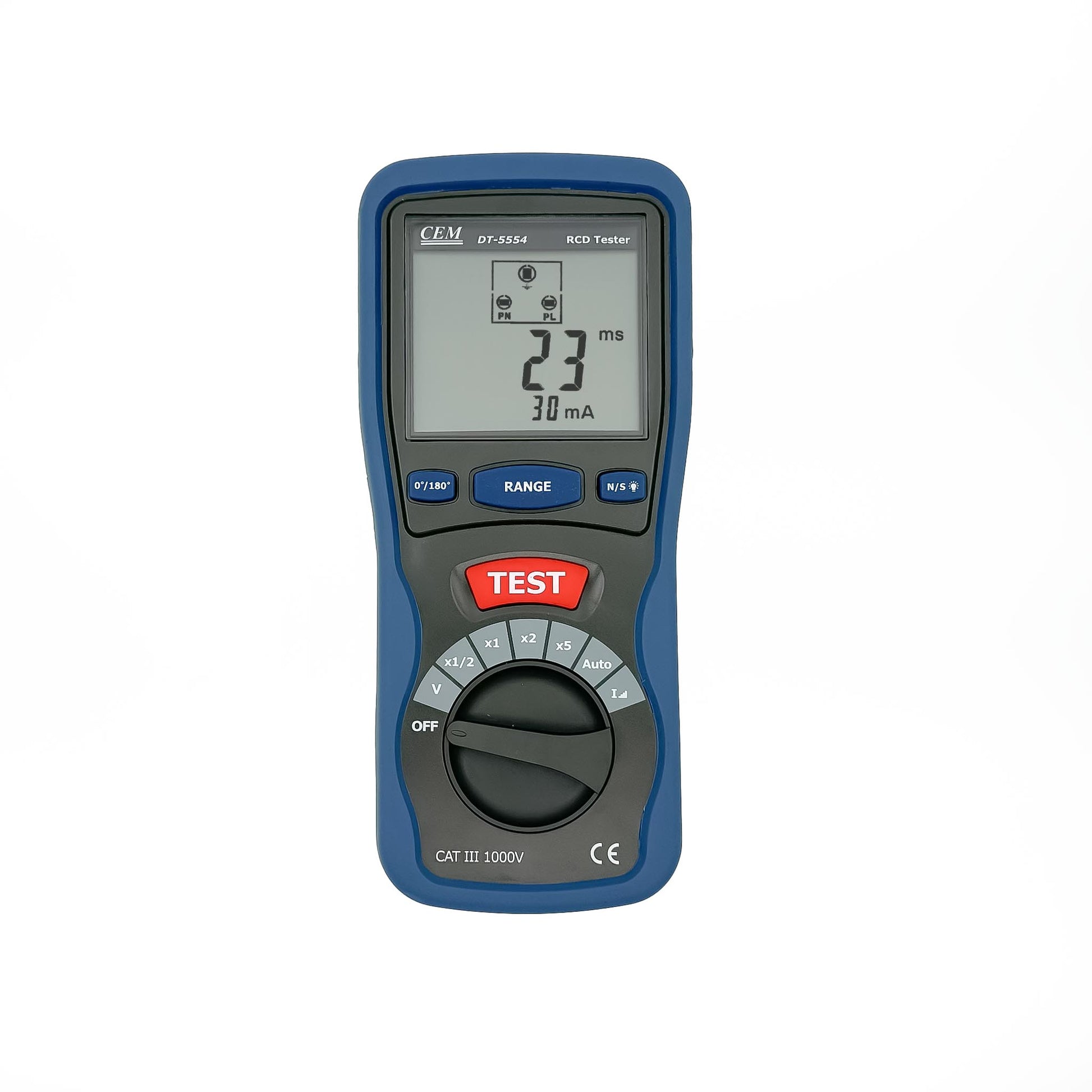

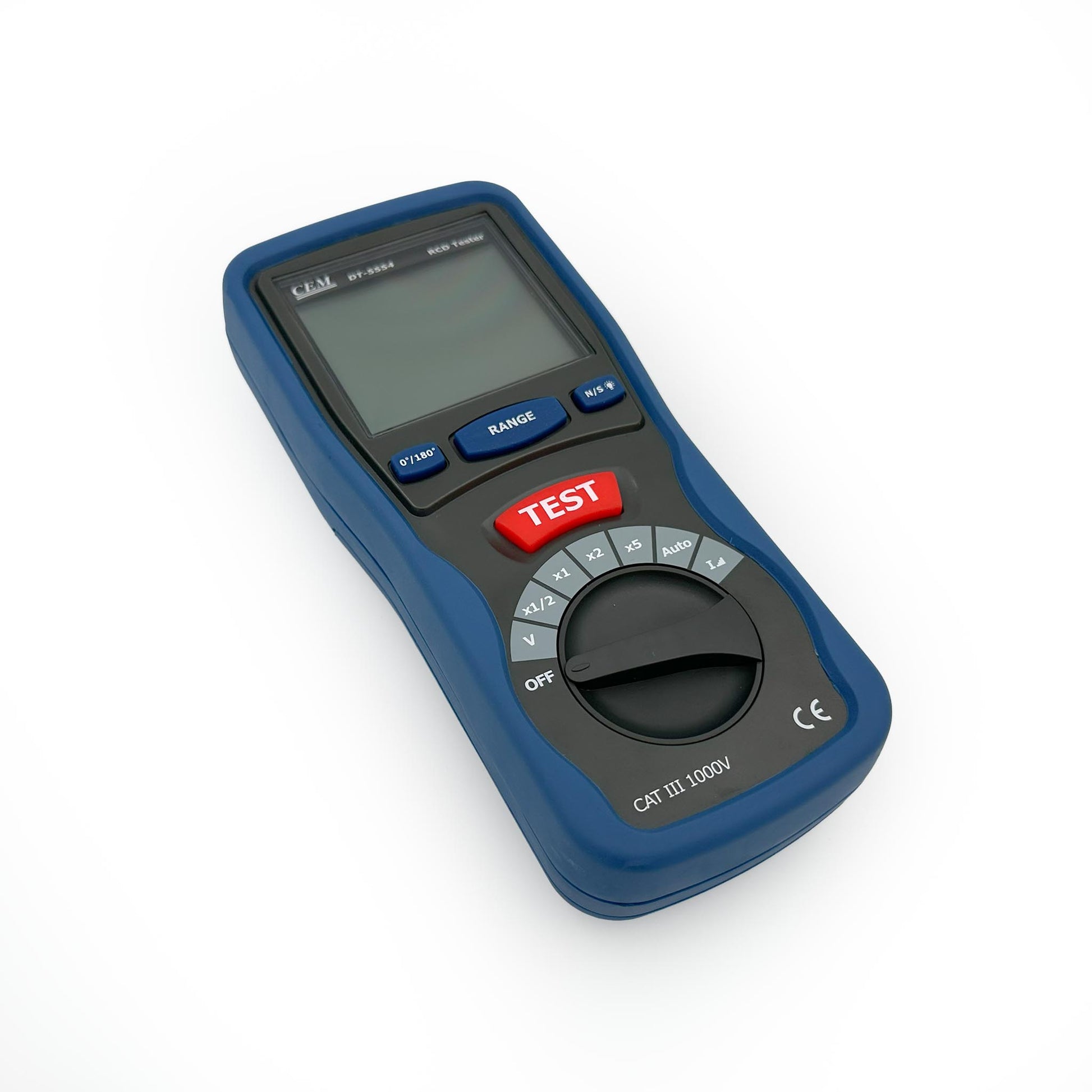

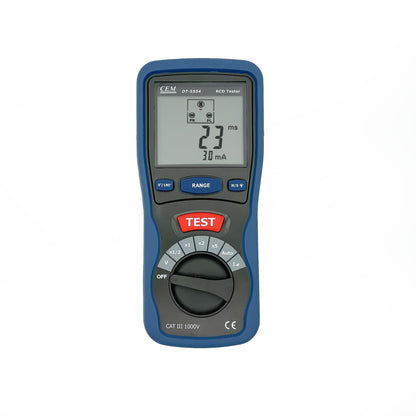

CEM DT-5554 Digital RCD Tester

A well-specified low-cost RCD tester featuring trip time and trip current testing.

Performing trip time tests on RCDs as required by electrical regulations and as detailed in AS/NZS3760:2010.

• RCD trip time
• Ramp current testing - incremental rising current measuring RCD trip current
• 0 and 180 test settings
• Line to Earth Voltage reading
• Wiring tester (Earth and phase polarity)

• Display: LCD

• Trip time display with 1ms time resolution

• Trip settings: 10mA, 30mA, 100mA, 500mA, 650mA
• Mains operated
• Trip current: -2% +10% of selected current at 230V AC
• Ramp test 0.4x to 1.4 times nominal rated current
• Operating voltage: 230V (Ph./N) +-10% 50 Hz
• Weight: 340g
• Dimensions: 582mm (W) x 200mm (L) x 50mm (H)
• CATIII 1000V

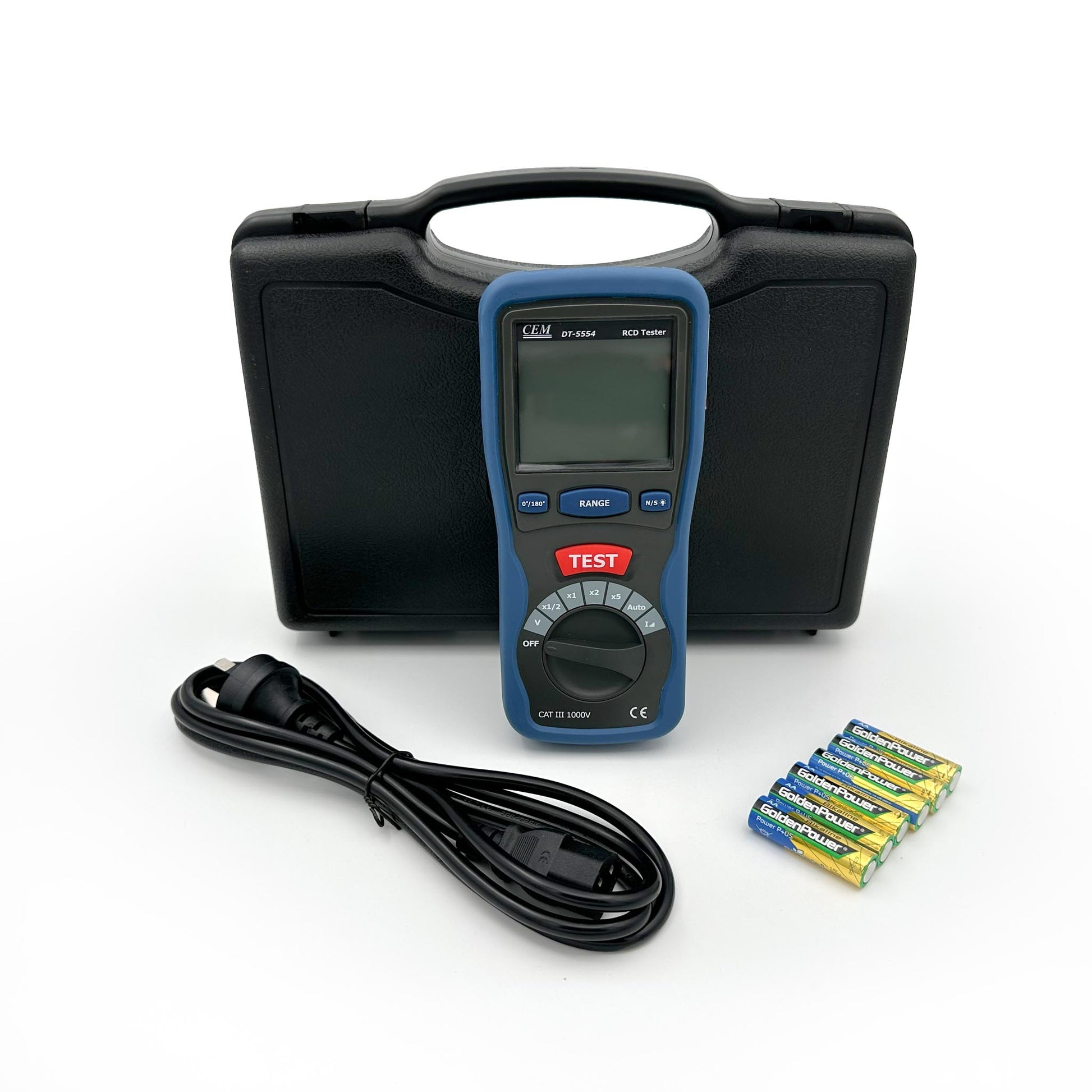

• Power lead
• Hard case
• RCD tester
• Batteries

1 Year.
