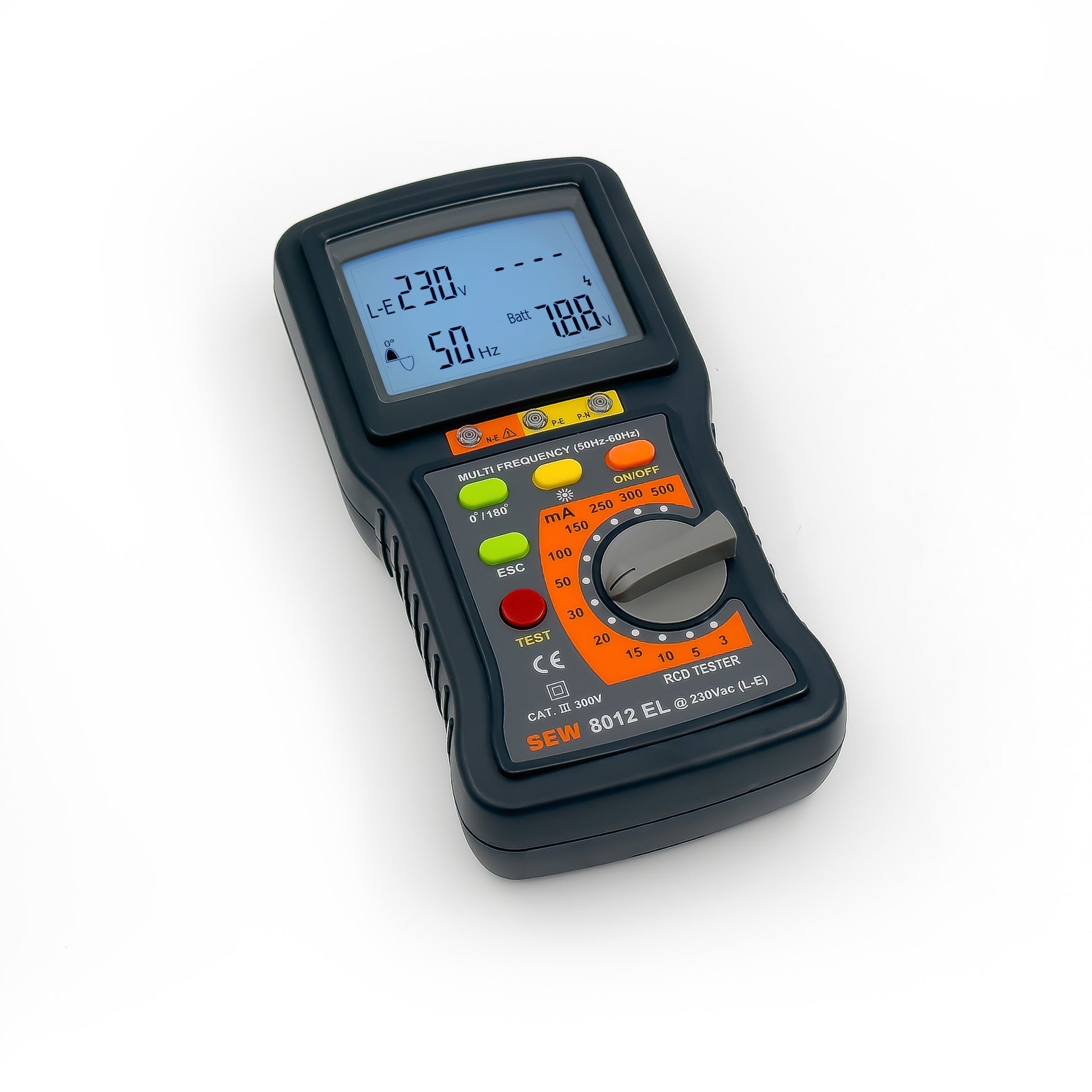

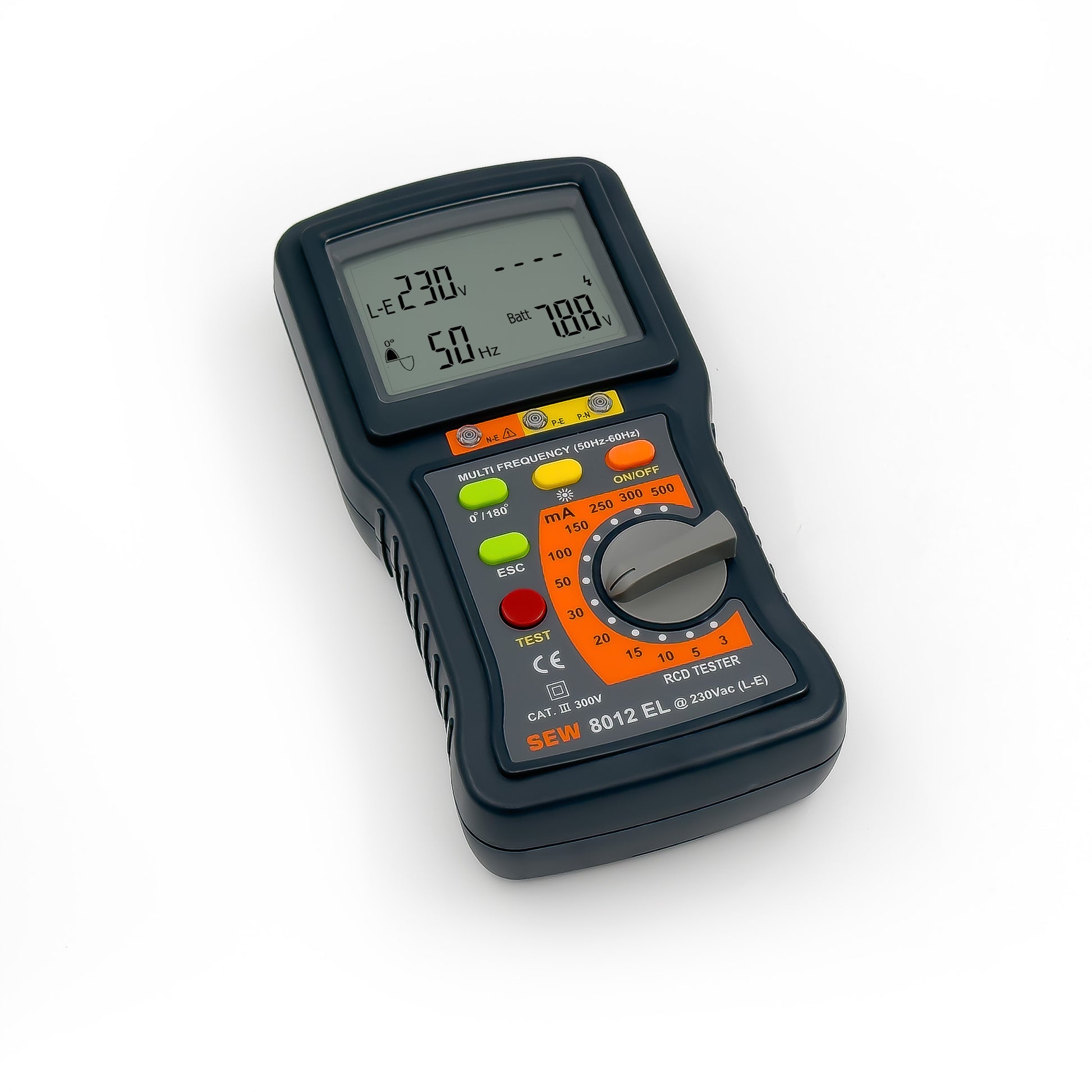

The SEW 8012 EL is a high-quality, low-cost RCD tester featuring a range of tripping currents and testing at both 0 and 180 degrees. The compact instrument display line voltage, battery voltage, frequency and wiring. A handy backlight ensures the instrument can be used in all lighting conditions.
Now Includes Single Phase Plug Lead Set for Outlet Testing.
Applications:
Ideal for performing trip time tests on RCDs as required by electrical regulations, including those detailed in AS/NZS3760:2022.
Tests:
- RCD trip time
- Current settings: 3/5/10/15/20/30/50/100/150/250/300/500
- 0° & 180° degree settings
- Wiring tester (Earth and phase polarity)
Features and Specifications:
-
Display: LCD
-
Test Settings: 12 settings
-
Trip Time Display: Yes
-
Time Resolution: 1ms
- Robust Self-Enclosing Case
-
Current Regulation: Non-regulated current
-
Safety Rating: CAT III 300V
-
Battery Check: Yes
-
Power Source: Mains operated

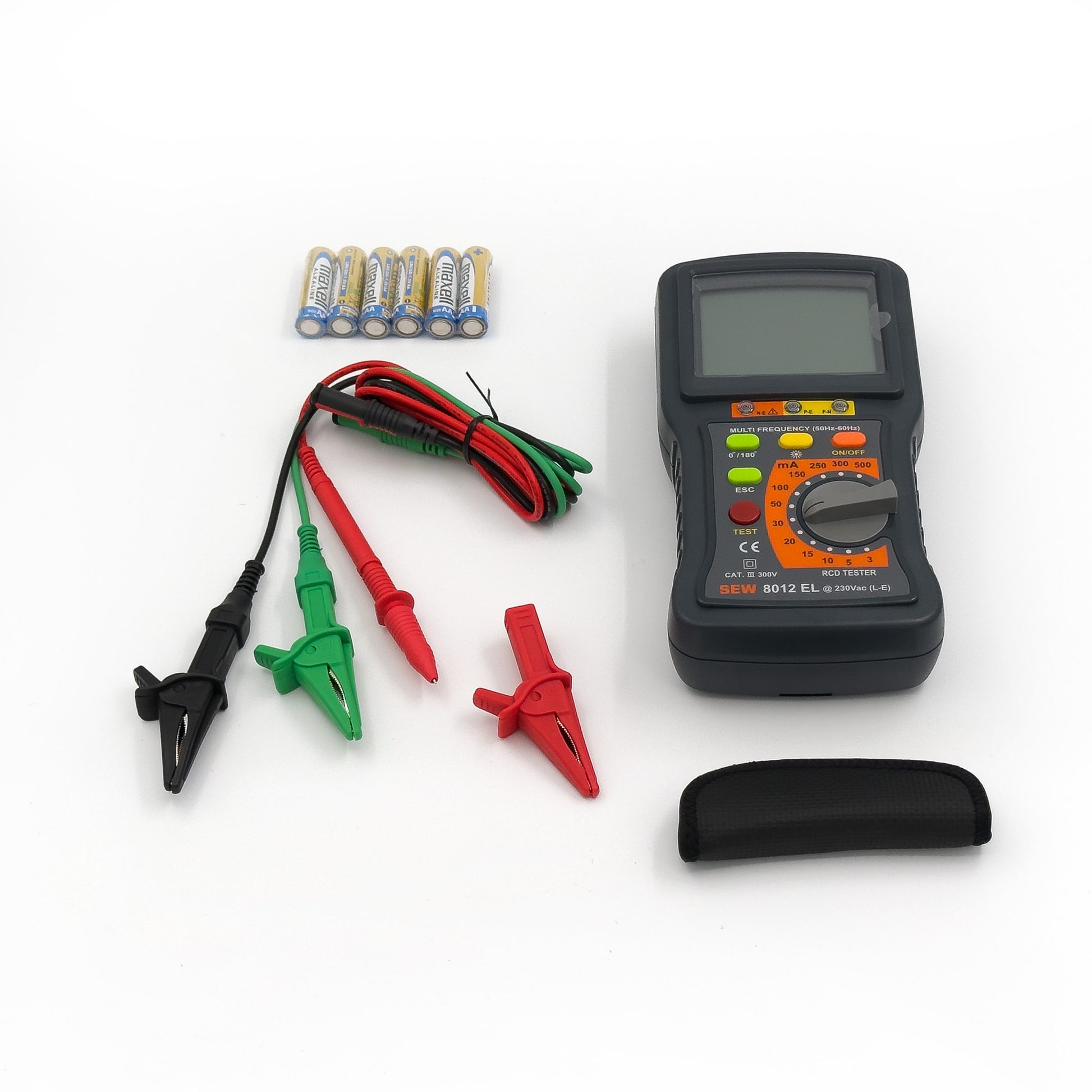

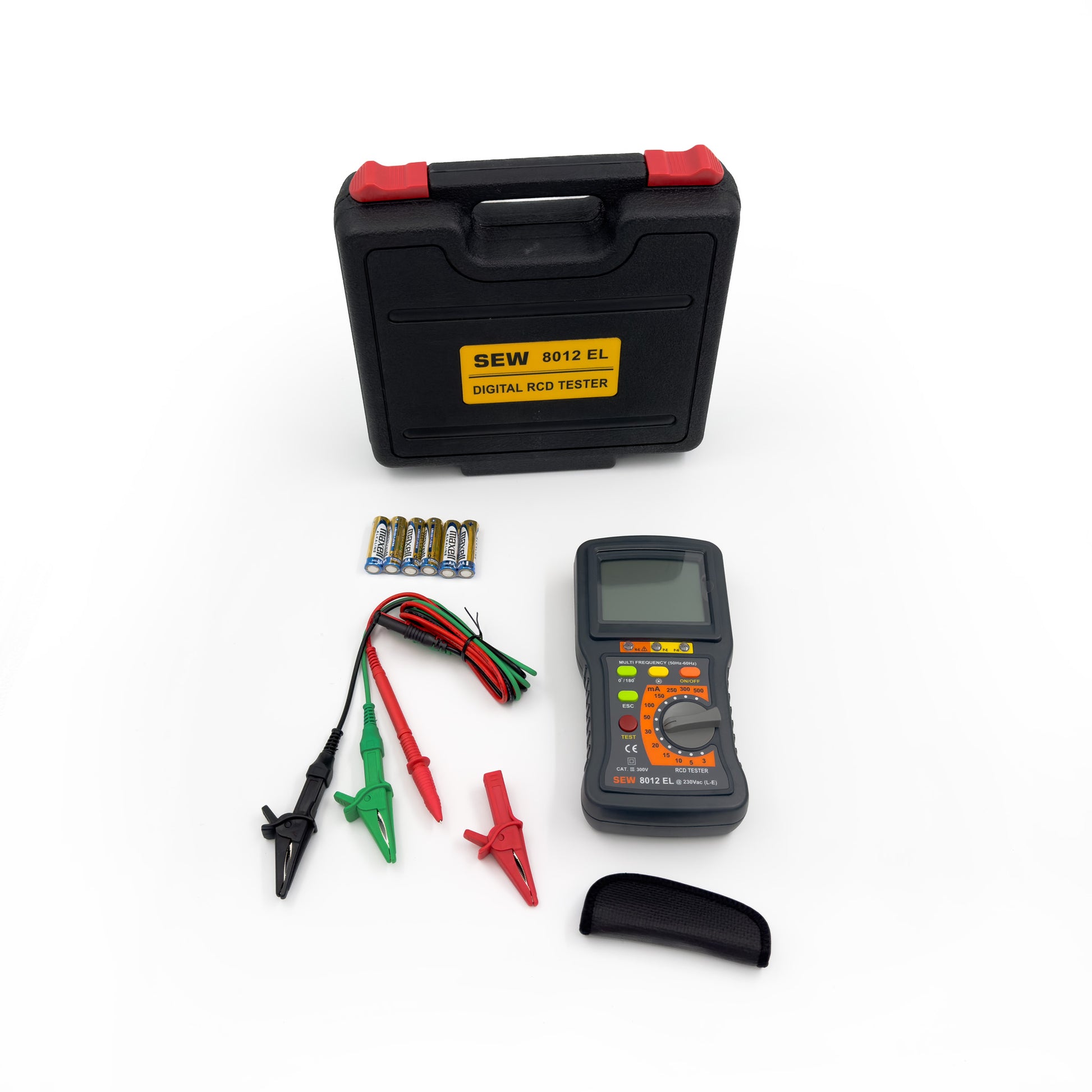

Included Accessories:
- Probe lead set
- Single Phase Plug Lead Set
- Hard Case
- 6 x AA Alkaline batteries
- Certificate of conformity
Standard Warranty: 1 Year
