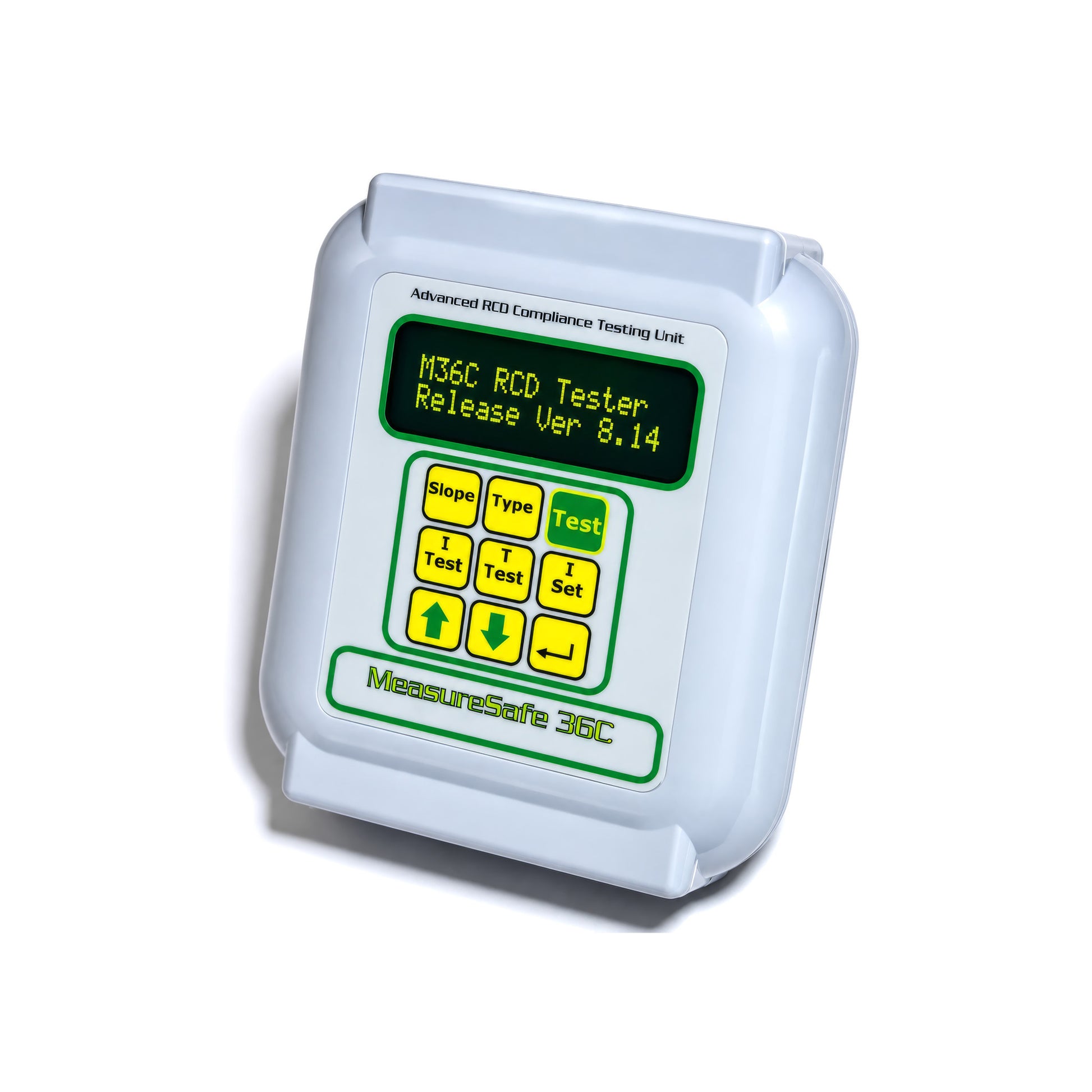

MeasureSafe 36C

The MeasureSafe 36C is an Australian-made RCD tester designed for electricians, test and tag professionals, healthcare facilities and maintenance teams who need fast, reliable safety switch testing. With simple push-button operation and automatic test sequences, it removes much of the complexity associated with RCD compliance testing.

Unlike many RCD testers, the MeasureSafe 36C includes a large internal memory capable of storing up to 120,000 test results, making it ideal for users who need to maintain detailed compliance records. Results can be easily downloaded to a PC via USB using the included reporting software.

The tester is suitable for a wide range of RCD devices, including standard residential and commercial safety switches, Type A RCDs, 10mA medical RCDs and AFCI devices.

Key Features

• Simple plug-in operation with automatic testing
• Tests standard, Type A, 10mA medical and AFCI RCDs
• Stores up to 120,000 test results for compliance records
• USB download to PC with free reporting software
• Checks outlet wiring and earth continuity before testing
• Displays trip time, trip current and supply voltage
• Australian designed and manufactured
• Medical RCD Testing Made Easier

For users working in healthcare environments, the MeasureSafe 36C includes dedicated testing routines for 10mA medical RCDs in accordance with AS3003 requirements. The tester automatically guides users through the required test sequence and performs timing tests from random points on the AC waveform, helping ensure compliance with the standard while reducing testing time.

Automatic or Advanced Testing

The MeasureSafe 36C can automatically alternate between trip current and trip time testing, minimising setup and simplifying routine inspections. For technicians who require greater control, individual current or timing tests can also be selected manually.

The MeasureSafe 36C allows users to choose the most appropriate test method for their application, helping avoid unnecessary testing while still meeting site or regulatory requirements.

Built for Professional Compliance Testing

From routine safety switch inspections through to specialised medical and AFCI testing, the MeasureSafe 36C provides a straightforwar

This RCD tester is used for performing trip time and ramp current tests on RCDs (Residual Current Devices) as required by electrical regulations and detailed in AS/NZS3760:2003.

• Stores up to 120,000 test records
• Download results via USB to PC
• Free reporting software included
• Large OLED display for easy viewing
• Powered directly from mains supply
• Operating voltage: 85-265V AC
• Leakage current test range: 2mA to 80mA
• Selectable test phase angles: 0°, 90°, 180° and 270°
• Built-in real-time clock for date and time stamped records
• Advanced 32-bit ARM processor
• Dimensions: 140 x 123 x 40mm
• Weight: 275g
• Operating temperature: 0°C to 60°C
• Lifetime manufacturer's warranty
• Australian designed and manufactured
• C-Tick and CE approved
• CAT II (Testing from power outlets only)

Note: This is a CATII rated device and is not suited to testing at the switchboard with probes.

Power lead, shoulder strap, test lead pouch, certificate of conformity, manual.

1 Year / Manufacturer Limited Lifetime (see conditions)
