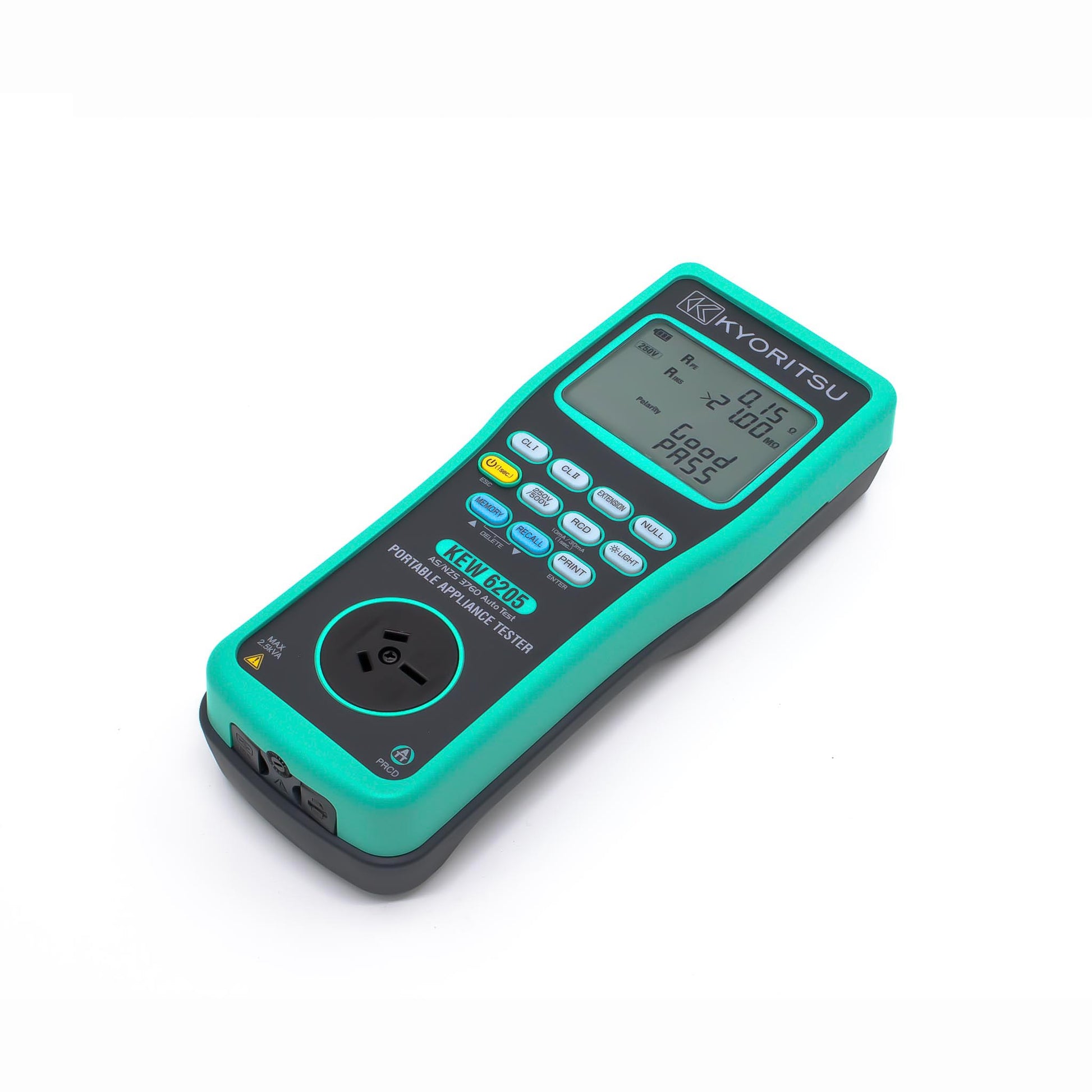

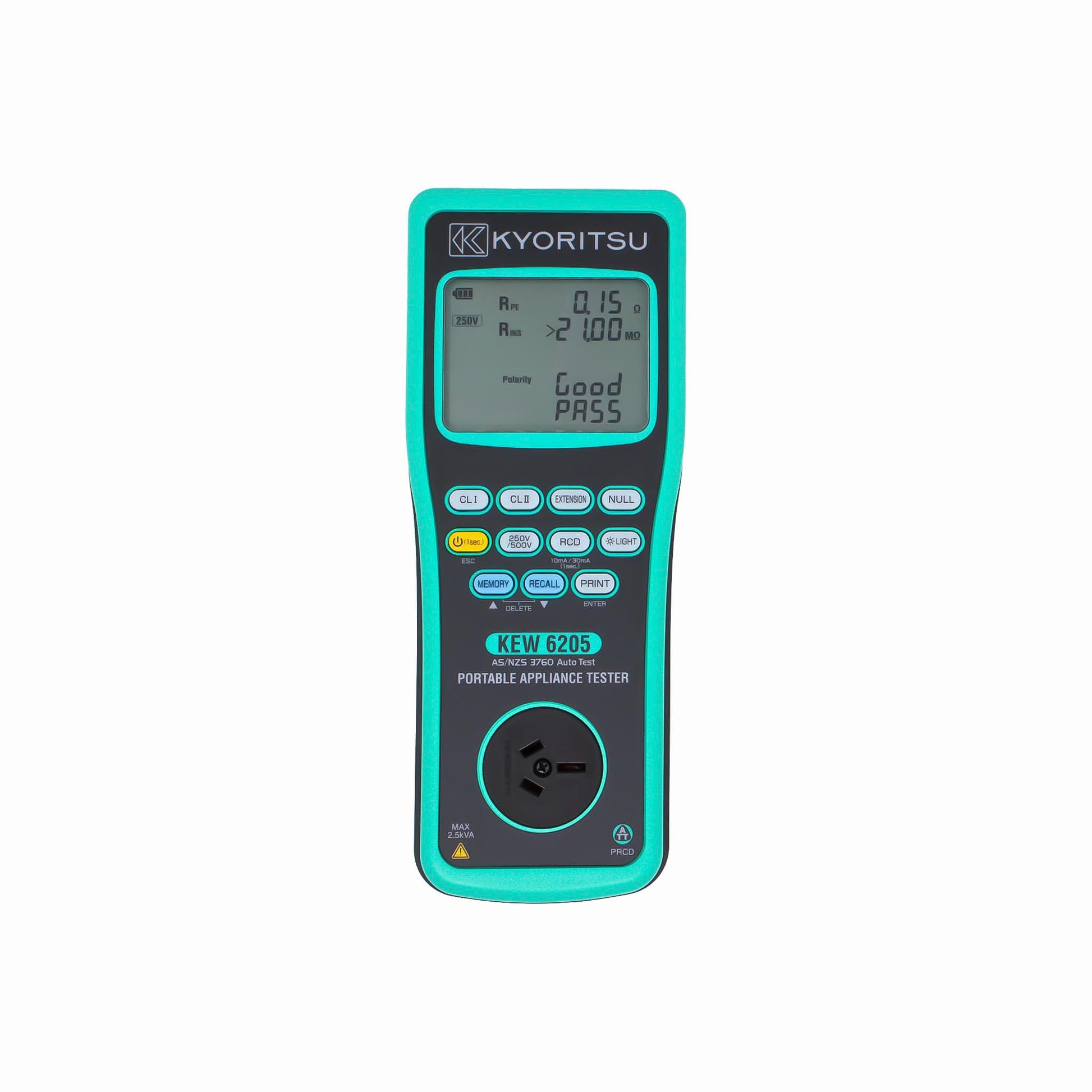

Kyoritsu 6205 Appliance Tester

The Kyoritsu 6205 is a lightweight, portable appliance tester specifically designed for testing single-phase appliances and extension leads. Its simple design features one-button operation, and a large screen clearly displays measurement values along with pass/fail indications. The intuitive red or green light system provides immediate feedback on test results, making it easy to interpret ambiguous outcomes.

Despite its compact size, the Kyoritsu 6205 offers an impressive range of features, including current leakage testing and RCD testing, including portable RCD options. The battery operation allows for testing on the go, while mains power can be used for current leakage testing. Additionally, this instrument includes basic results logging capabilities, enabling users to download test data to a PC via optional software.

• Earth Continuity - Yes (200mA)
• Insulation Resistance- Yes (250V/500V)
• Current Leakage - Yes
• Max current lkg – 10A
• Outlet Socket - 15A
• Polarity - Yes
• Portable RCD Testing - Yes
• Fixed RCD Testing (CATII*) - Yes
• Values Display - Yes
• Battery Type - Alkaline
• Rechargeable from mains – No
• Programmable Sequences - No
• Recording Capabilities - Yes
• Records descriptions - No
• Data entry - No
• Recall by ID# - No
• Printer Option - None
• 3 Phase Leakage Testing - Factory option
• Weight: 0.93 kg

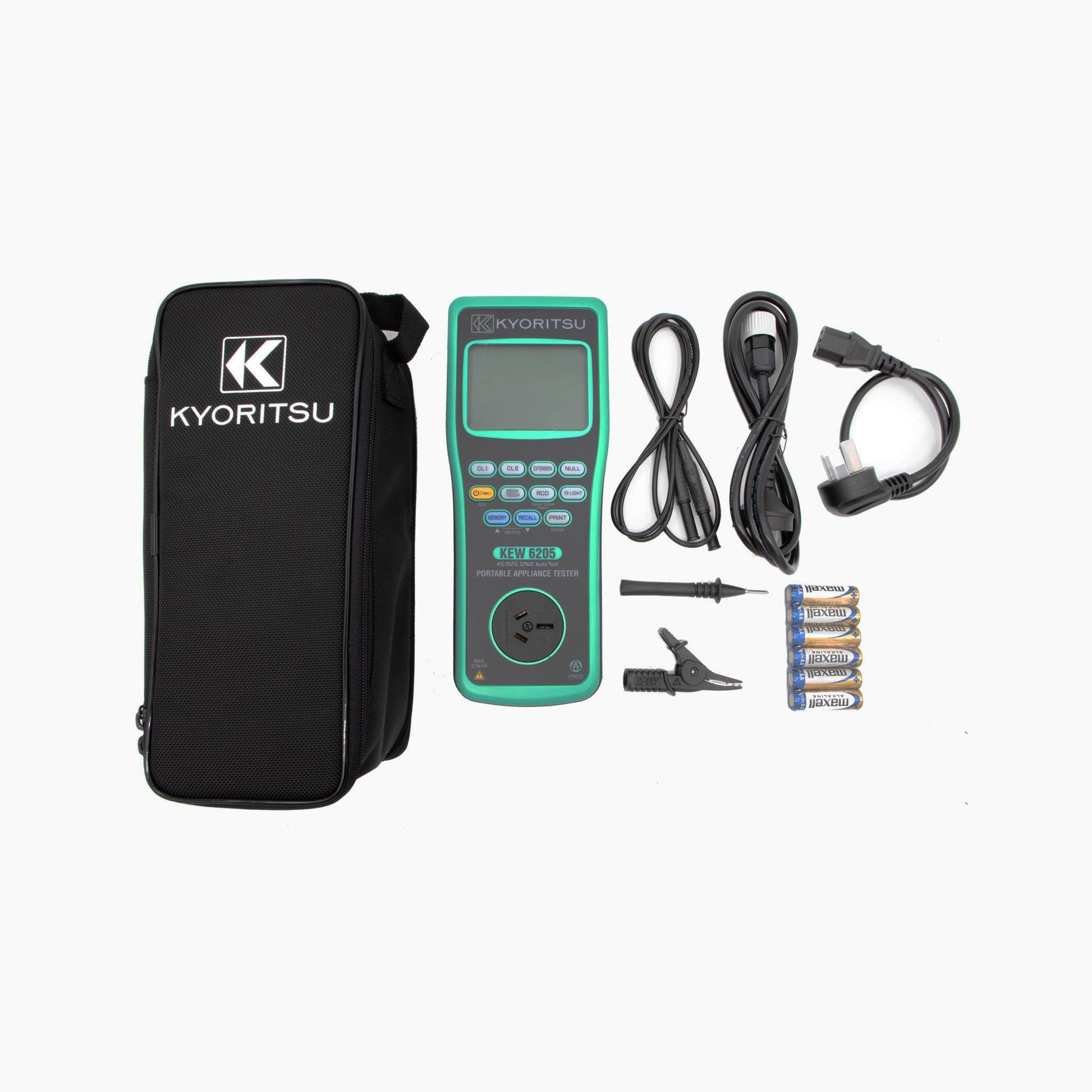

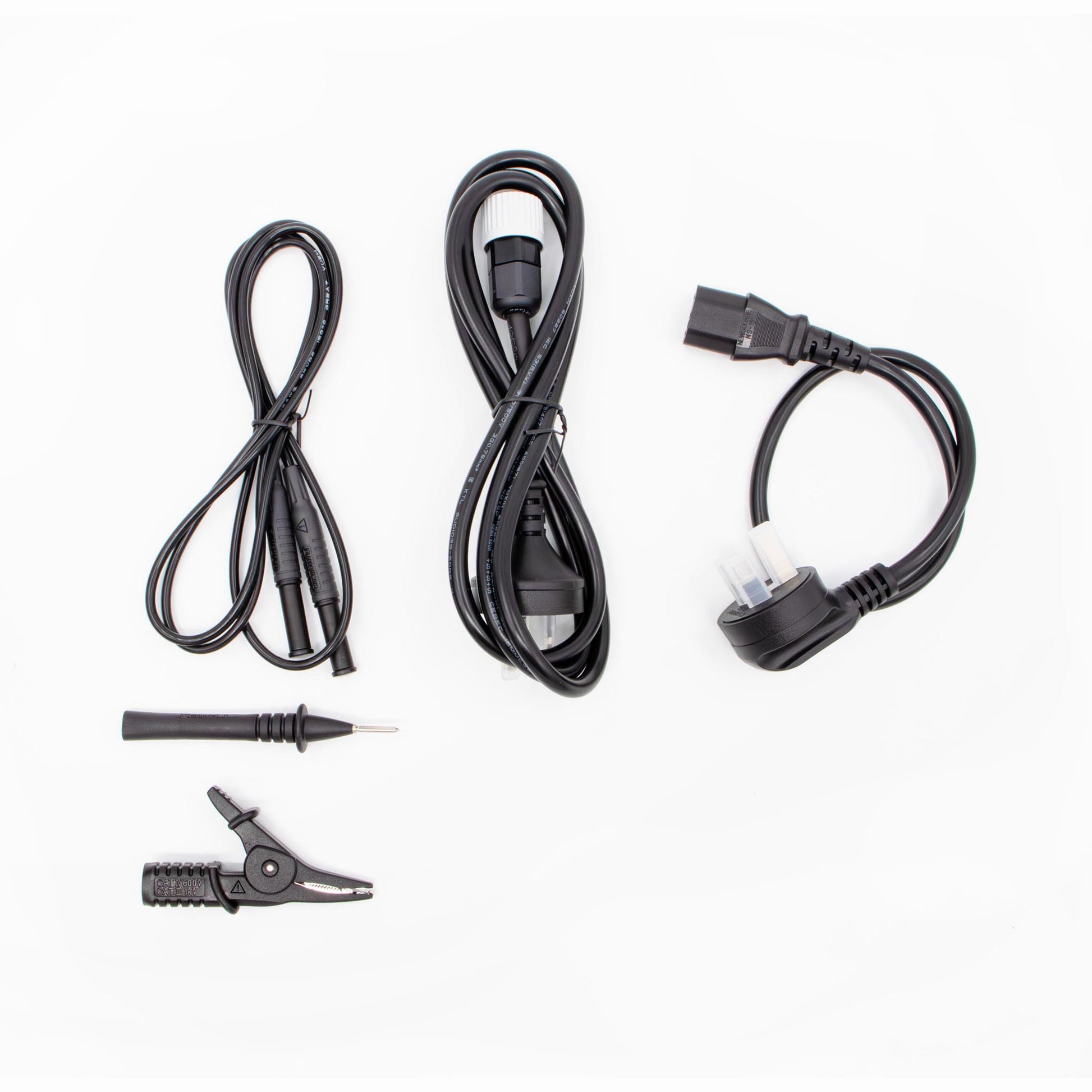

Included accessories:

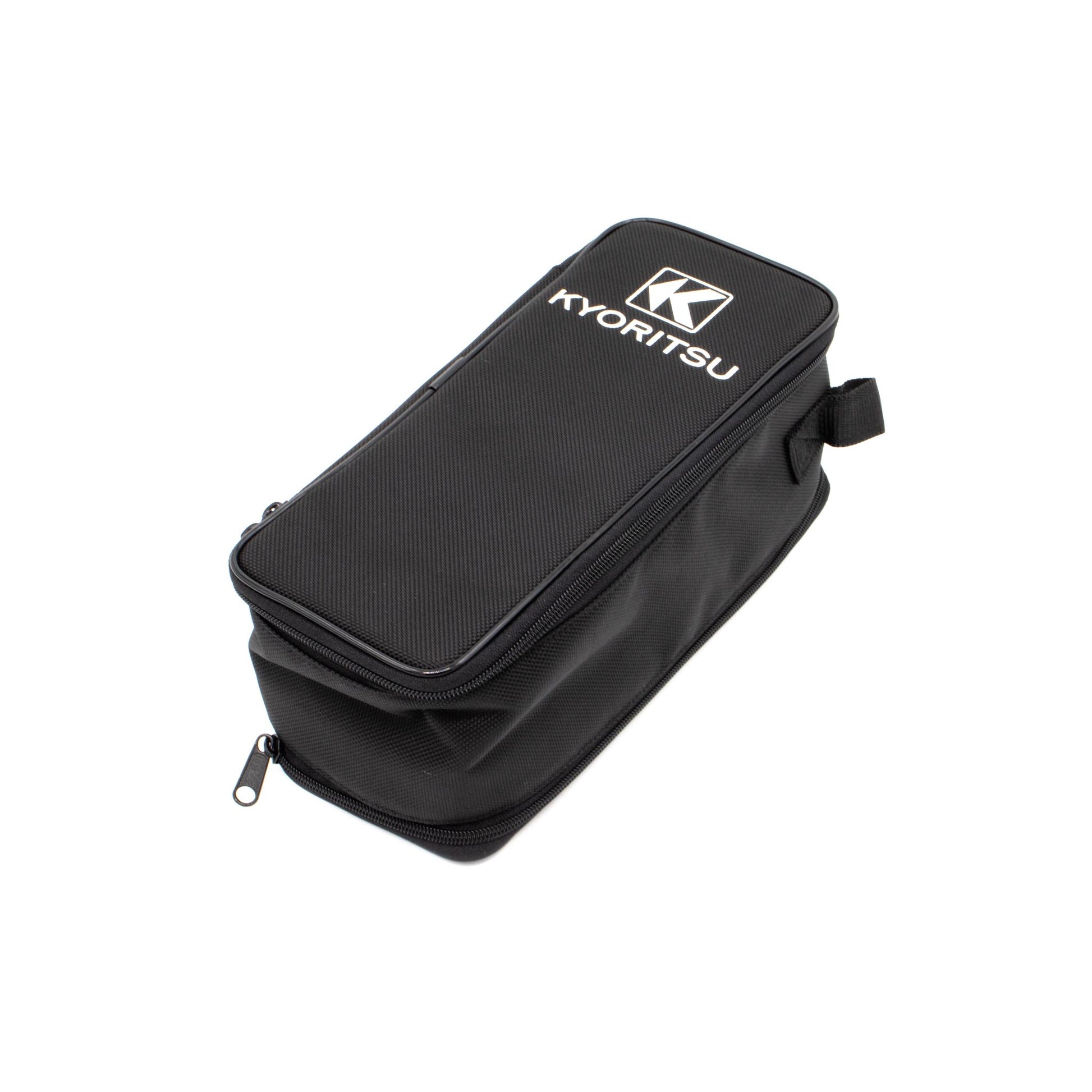

Retail box and packaging, 7277 (Mains Lead), 7129A (Test lead with Alligator clip), 7161A (Flat Test Bar), 7276 (IEC Lead - Adaptor for Extension Cord), 9193 (Carrying Case), 8928 (Fuse[10A/250V]), 9121 (Shoulder Strap), Buckle, LR6(AA) x 6, Instruction Manual, Certificate of calibration

Note: To reduce the risk of alkaline battery leakage, Test and Tag Supplies recommends using NiMH batteries in all test equipment. Damage from battery leakage is generally not covered under the manufacturer’s warranty.
