Single Phase Test Lead Adaptor - 15A-20A

Single Phase Test Lead Adaptor - 15A-20A

DEN1520A

$85.00 Ex GST
$0.00 Ex GST $85.00 Ex GST
Sale Sold out

Overview

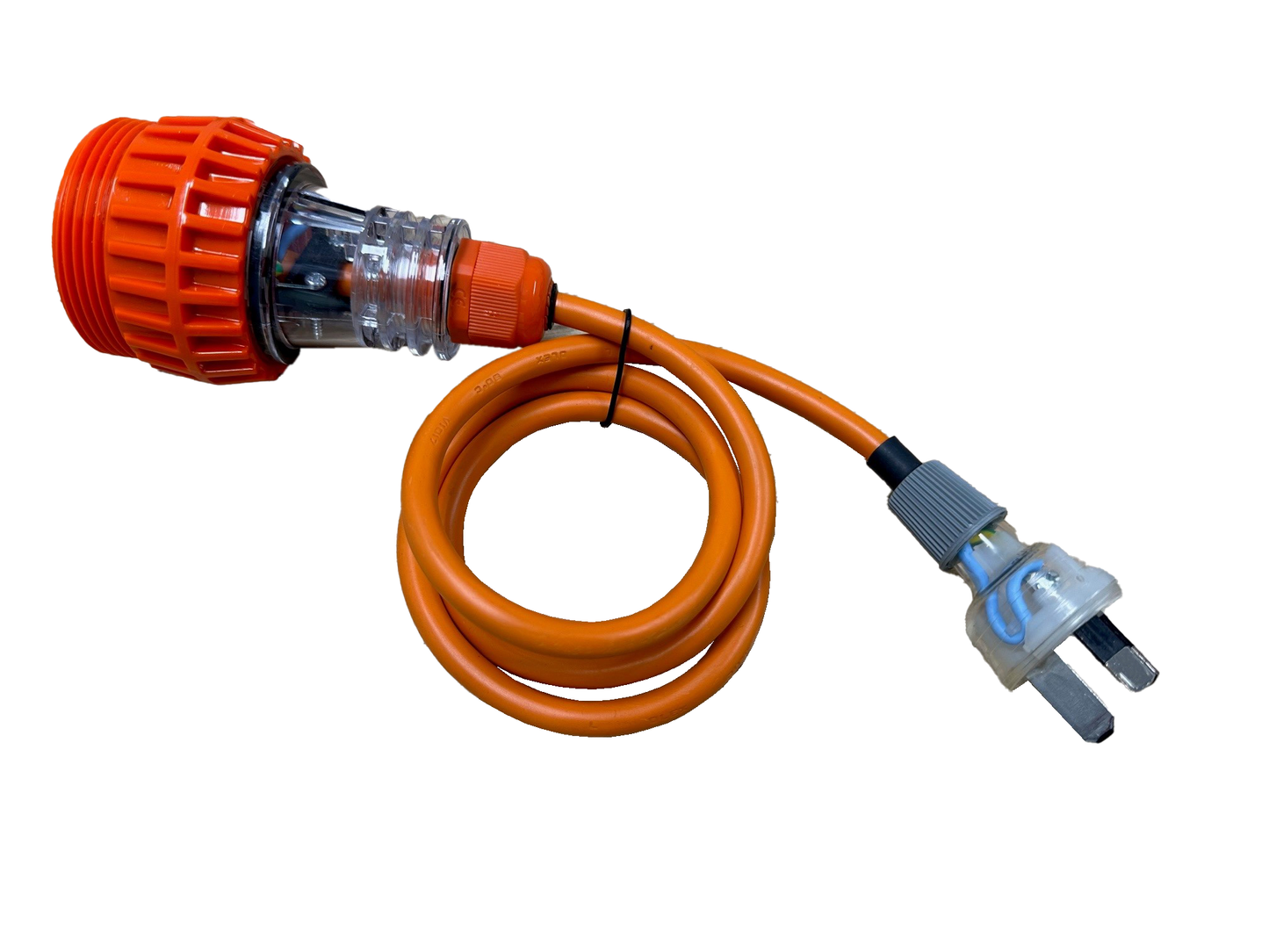

This test adaptor allows the testing of 20A appliances for earth continuity and insulation with a standard appliance tester. It is fitted with a 15A plug and a 20A single-phase flat earth pin outlet socket.

Capability Summary

The adaptor provides the following test capability*

  • Earth continuity - Yes
  • Insulation resistance - Yes
  • Extension lead current leakage - No
  • Appliance current leakage - No
  • Polarity - Yes (L123/N only) - No
  • RCD Trip Time/Trip Current - No
  • Loop/Line Impedance - No
  • Phase rotation/wiring - (L1-L1, L2-L2,L3-L3) - No

*Only conjunction with suitable test instruments that have the required test functionality (not included):

Applications
  • Testing of earth continuity and insulation of 20A appliances
  • Testing of earth continuity and insulation of 20A extension leads

Ideal for use with most appliance testers fitted with 15A outlet sockets.

Note

This product is not suitable for:

  • In-service use
  • Current leakage testing or any mains power uses
  • Polarity testing of 20A extension leads

This device cannot be used and is not capable of supplying mains voltage to any equipment.

Specifications
  • 15A AU Plug fitted with 20A flat pin outlet socket
  • Length: 800mm
