Metrel MI 3155 Instaltest XD Scan Pack

Metrel MI-3155 Instaltest XD – Kit with TTScan-2D Barcode Scanner

This enhanced Metrel MI-3155 kit expands the capability of the Instaltest XD by including a TTScan-2D CCD barcode scanner, 500 pre-printed sequential barcodes, and 100 switchboard inspection tags, delivering a complete solution for structured installation testing, circuit identification, and long-term retest management.

Enhanced Identification & Mapping Workflow

The supplied sequential barcodes can be applied directly to RCDs, circuits, or distribution components prior to testing. During testing, the TTScan-2D scans each barcode and the MI-3155 automatically records the asset reference into its extensive internal memory. This process allows you to build a fully mapped installation structure, ensuring traceability for every device, circuit, and switchboard within the installation.

For retesting, simply scan the existing barcode and the MI-3155 instantly recalls all stored information relating to that RCD or circuit—greatly improving retesting speed, accuracy, and compliance documentation.

The kit includes 100 switchboard inspection labels for documenting and recording switchboard-level inspection data. Additional sequential barcodes and switchboard labels are available separately.

All results—including the installation structure, asset references, circuit notes, and switchboard records—are downloaded to the included ES Manager PRO software. The MI-3155 also supports programming of the installation structure from the PC and allows full customisation of Auto-Sequence test routines.

The Metrel MI-3155 Instaltest XD Installation Tester builds on the revolutionary Instaltest XC platform and adds several advanced features, including:

• Full integration with the TTScan-2D barcode system for rapid asset tagging and retest recall
• Fully customisable test sequences
• User-defined inspections for visual and functional test recording
• Long-life lithium-ion battery
• Capability to perform 2.5 kV insulation testing
• Includes a licence for ES Manager PRO database management software
• Two-way PC communication for uploading and downloading installation structures and results

Multifunction installation testers have been available for years, but few have addressed the growing need for structured asset recording, barcode traceability, and advanced data recall for efficient retesting cycles.

Instaltest Series Features

• Download results to a computer and generate compliant reports
• Intuitive touchscreen display for fast, user-friendly operation
• Auto-Sequences combining up to six tests into a single push-button action
• Comprehensive RCD testing and logging, including push-button RCD tests
• Barcode-enhanced workflow using the included TTScan-2D scanner

Please note: The Instaltest is not a Portable Appliance Tester and is not suitable for appliance testing.

The Instaltest XD 3155 kit is ideal for:

• Multifunction testing of electrical installations
• Push-button and advanced RCD testing, including AS/NZS 3003 medical RCD testing
• Installation structure mapping using barcodes
• Rapid retesting using barcode recall
• Switchboard-level inspection documentation using supplied labels

Metrel's installation/multifunction testers are aligned to AS/NZS 3000 Wiring Rules. The MI-3155 also offers Bluetooth connectivity for quick field retesting and streamlined record-keeping to support owner/occupier and contractor compliance obligations.

• Visual Tests
• Push Button RCD test
• RCD trip time test (including random phase selection for AS3003)
• RCD trip current test
• RCD contact voltage
• RCD Auto test
• Voltage
• Frequency
• Phase sequence (rotation)
• Socket test (Basic - live or resistance)
• Insulation (50V, 100V, 250V, 500V, 1000V)
• Dielectric Absorption Ratio
• Varistor test
• Low resistance (earth bonding)
• Continuity test
• 2.5kV Test
• Z Loop impedance and prospective fault current test
• Z Loop impedance and prospective fault current test with RCD (low current test - no trip)
• Z Loop impedance and prospective fault current test - high precision test (milliohm)
• Z Line impedance and prospective short circuit current test
• Z Line impedance and prospective short circuit current test - high precision test (milliohm)
• Voltage drop test
• Earth resistance (3-wire) test
• Contactless earth resistance test (requires clamps sold separately)
• Specific earth resistance test (requires A1199 sold separately)
• Power (requires clamps A1018, A1019, A1391 sold separately)
• Harmonics (requires clamps A1018, A1019, A1391 sold separately)
• Illumination (requires A1172, A1173 sold separately)
• RCD PASS/FAIL thresholds configured to AS3000 & AS3760 requirements
• Loop impedance PASS/FAIL thresholds according to AS3000 table requirements

• TTScan-2D barcode scanner with Li-Ion battery
• Charging cable
• 500 pre-printed asset barcodes
• 100 pre-printed switchboard labels

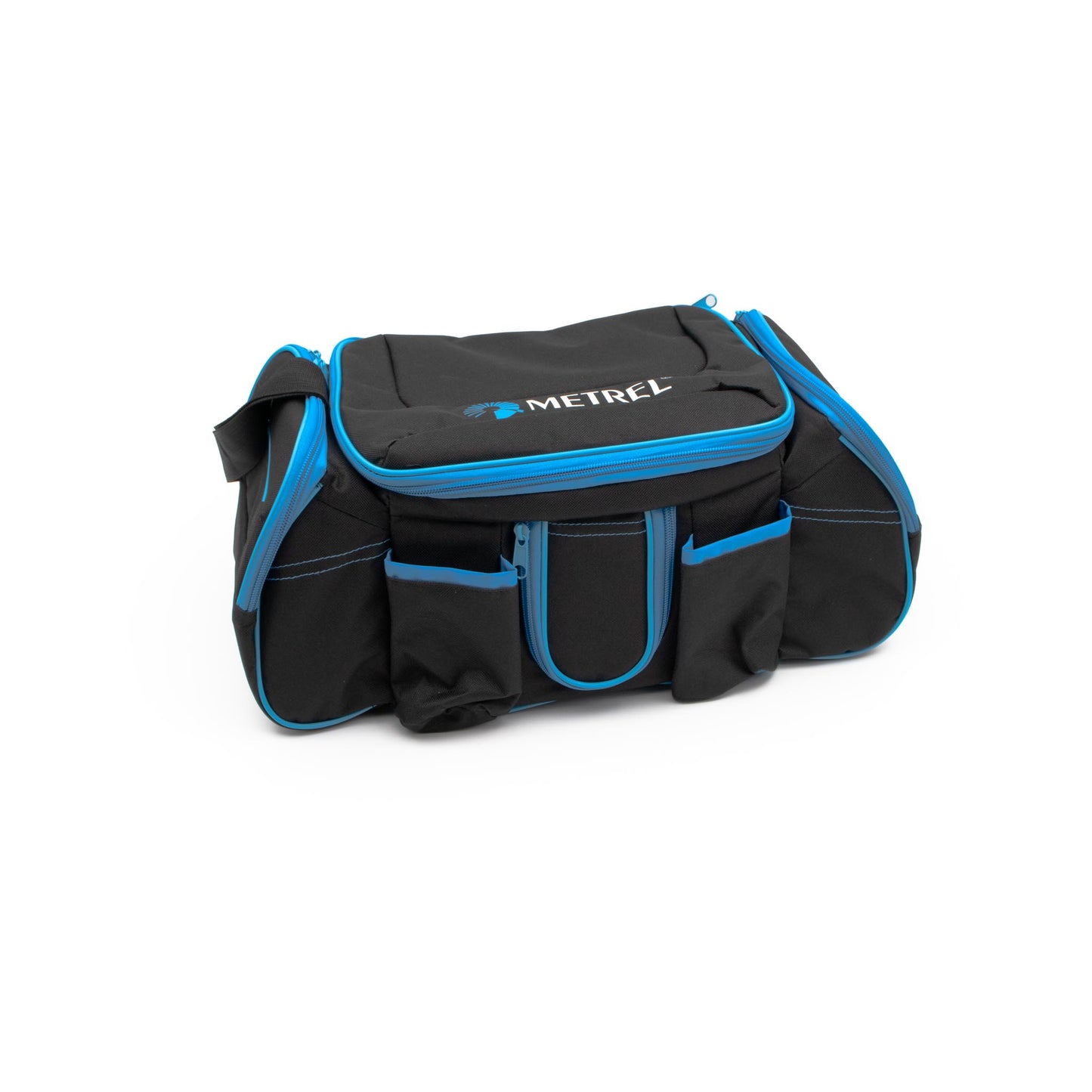

• Soft carry bag
• Neck carrying belt
• Short instruction manual
• Instruction manual
• Calibration certificate
• Mains measuring cable (1.5m)
• Universal test cable
• 2.5KV test cable
• 4 wire measurement test cable
• 5 x Crocodile clips

• 5 x Test Probes
• ES Pro Manager Software
• USB interface cable
• 6 x Rechargeable batteries
• Power supply adaptor

Contact us for details.

1-year warranty.
