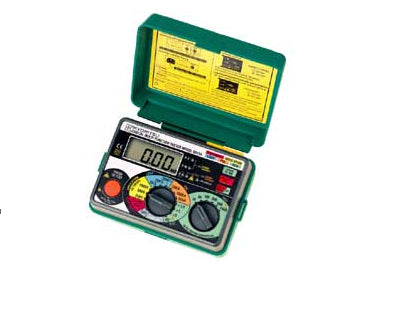

Kyoritsu 6011A Multifunction Tester

The Kyoritsu 6011A Multifunction Tester is a lightweight and compact device designed for versatile testing applications in appliances and installations.

Ideal for multifunction testing, including:

• Continuity
• Loop Impedance
• Insulation
• RCD Testing (with Auto Ramp)
• PSC Testing

Continuity Measurements

• Measuring Range: 20/200/2000Ω (Autoranging)
• Open Circuit Voltage: > 6V
• Short Circuit Current: > 200mA
• Accuracy: ±(1.5%rdg + 3dgt)

Loop Impedance Measurements

• Rated Voltage: 230V ± 10% - 15% (50Hz)
• Voltage Measuring Range: 100~250V AC [50Hz]
• Impedance Range: 20/200/2000Ω
• Nominal Test Current:
• 25A (20Ω range)
• 15mA (200Ω range)
• 15mA (2000Ω range)
• Accuracy:
• 20Ω range: ±(3%rdg + 4dgt)
• 200Ω range: ±(3%rdg + 4dgt)
• 2000Ω range: ±(3%rdg + 4dgt)

Insulation Measurements

• Measuring Ranges: 20/200MΩ (Auto-Ranging)
• Test Voltage: 500/1000V
• Output Voltage on Open Circuit:
• 250V ± 40%-0%
• 500V ± 30%-0%
• 1000V ± 20%-0%
• Rated Current: > 1mA
• Accuracy: ±(1.5%rdg + 3dgt)

RCD Testing

• Rated Voltage: 230V AC ± 10%-15% [50Hz]
• Trip Current Settings:
• RCD × 1/2: 10, 30, 100, 300, 500, 1000mA
• RCD × 1: 10, 30, 100, 300, 500, 1000mA
• RCD × 5: 10, 30, 100, 300mA (max current 1A)
• Trip Current Duration:
• RCD × 1/2 × 1: 2000ms
• RCD Fast: 50ms
• Accuracy: Trip current ± 10%-0% of test current at 230V
• Trip time: ±(1%rdg + 3dgt)

PSC Testing

• Rated Voltage: 230V ± 10% - 15% (50Hz)
• PSC Ranges:
• 200A (15mA Test Current)
• 2000A (25A Test Current)
• 20kA (25A Test Current)
• Accuracy: PSC accuracy derived from measured loop impedance specification and measured voltage specification

• Withstand Voltage: 3700V AC for 1 minute
• Power Source: LR6 - (1.5V) × 8
• Dimensions: 130(L) × 183(W) × 100(D) mm
• Weight: Approximately 1100g
