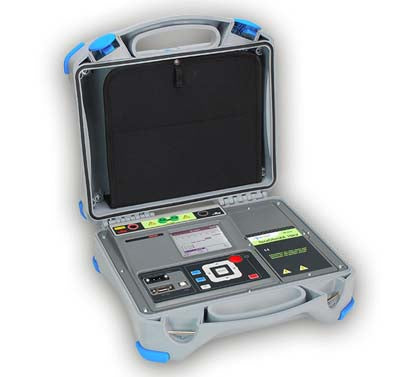

Metrel MI 3205 EU Set TeraOhm 5kV Insulation Tester

The Metrel MI3205 TeraOhm XA 5kV is a portable insulation tester powered by either batteries or mains electricity. Designed for diagnosing insulation resistance with high DC test voltages of up to 5kV, this device features excellent IP protection (IP65) and is built for robustness, making it ideal for industrial environments. With CAT IV protection and high immunity to radiated RF fields, it is well-suited for demanding applications.

High DC Voltage Insulation Testing

• Insulation resistance (5kV)

• Insulation Resistance: Up to 15 TΩ
• Adjustable Test Voltage: 50 V to 5 kV with 50 V and 100 V steps
• Programmable Timer
• Capacitance Measurement
• Charging Rate: For capacitive load < 1.5 s/μF at 5 kV
• Automatic Discharge: After completion of measurement
• Guard Terminal
• High Voltage Breakdown Detection
• Custom Defined Tests
• Auto Adjustment Function
• Measurement Results: Available in numerical and graphical form
• PC Software: HVLink PRO for downloading, analysing test results, and printing reports
• Communication Ports: Isolated RS232 and USB, BT interface
• Included Accessories: High-quality shielded test leads
• EM Interference Protection: Input AC current noise rejection (1 mA∞300 V) with additional averaging of results (5, 10, 30, 60)
• Safety Rating: CAT IV / 600 V
• Increased Working Altitude: Up to 3000m
• Power Supply: High power Li-ion battery pack (14.8V, 4.4Ah), mains and rechargeable
• Set Options: The EU Set is slightly more expensive than the Standard Set but comes with application-suitable clamps (wide jaw, heavy duty). The Standard Set is available for approximately $370.00 + GST less but has a lead time of around 4-6 weeks.

• Large HV Crocodile with cable, red, 2.5m
• Large HV Crocodile with shielded cable, black, 2.5m
• Guard test lead, green, 2.5m
• Crocodile clip, green
• Mains cable
• PC Software: HVLink PRO with USB and RS232 cable
• Handbook: "Guide to Modern Insulation Testing" on CD
• Instruction Manual on CD
• Calibration Certificate

• 1 Year
