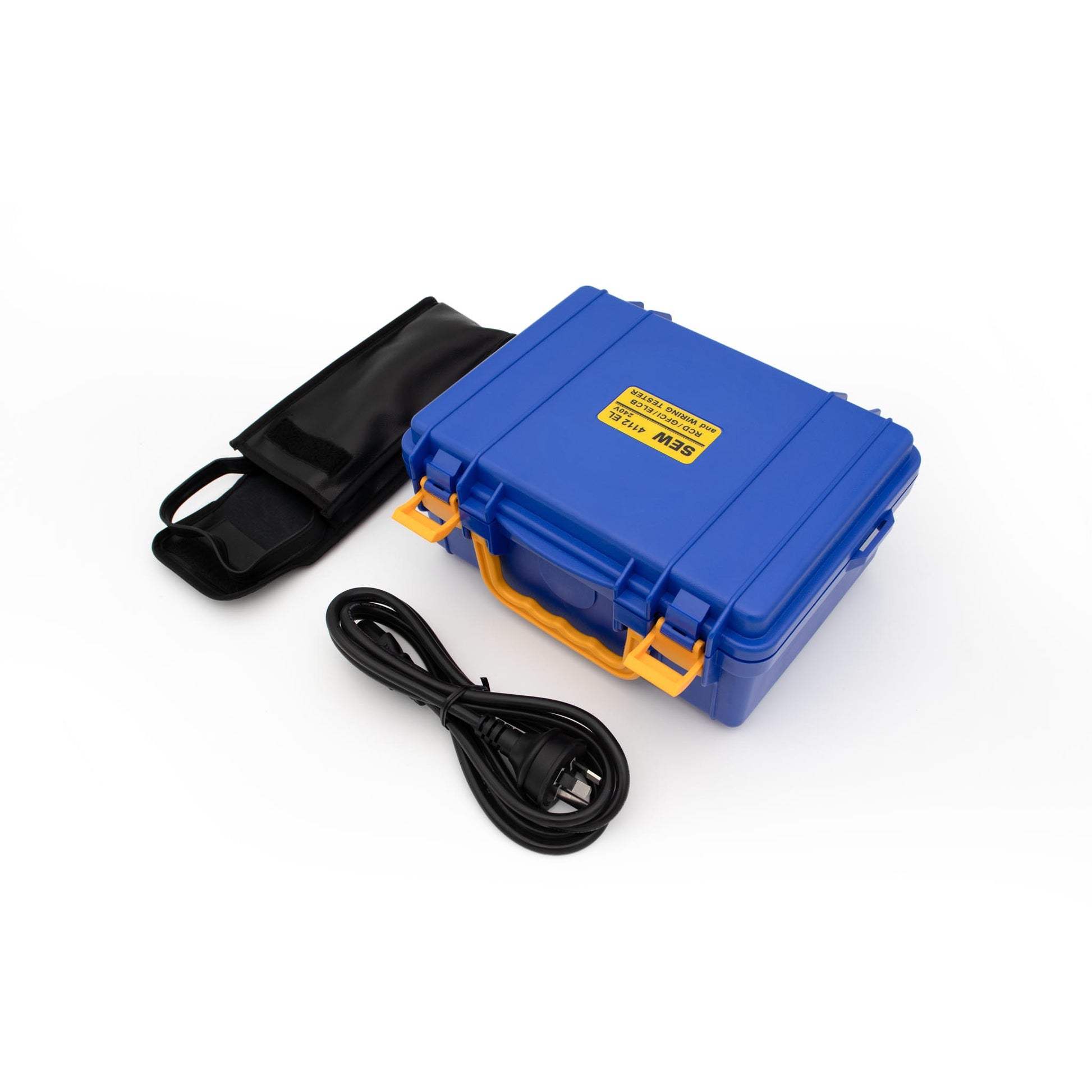

The SEW Insulation and Continuity Tester is housed in a robust plastic case that seals shut to protect the unit during storage or transit. Offering exceptional value for money, this tester is ideal for insulation and continuity testing, including test and tag applications.
Applications:
Suitable for insulation and continuity testing, including testing and tagging.
Tests:
- Insulation resistance
- Continuity
Features and Specifications:
Insulation Measurements:
-
Measuring Range: 400MΩ (250V/500V/1000V ± 10%)
-
Mirror Scale: 100MΩ, 200MΩ, 400MΩ
-
Mid Scale: 1MΩ, 2MΩ, 4MΩ
-
Scale Multiplier: x1/2, x1, x2
-
Accuracy: ± 5%
-
Short Circuit Current: 1.3mA approx.
Continuity Measurements:
-
Ranges: 2
-
Measuring Range: 0-3Ω, 0-500Ω
- Zero Adjustment
-
Output Short Circuit Current: 205mA approx.
AC Voltage:
-
AC Voltage Range: 600V ACV
-
Accuracy: (± 3%)
General Features:
- Large, clear 100mm x 70mm display
- Taut band mechanism
- Voltage warning light (live circuit lit from 90V DC/70V AC)
- Battery check
- Auto discharge
-
Safety Rating: CAT III 600V
- Fuse protection
Included Accessories:
- Insulation and continuity meter
- Manufacturer certificate of conformity
- Manual
- 2 x test leads
- 2 x crocodile clips
Standards:
IEC1010
Standard Warranty:
1 Year
