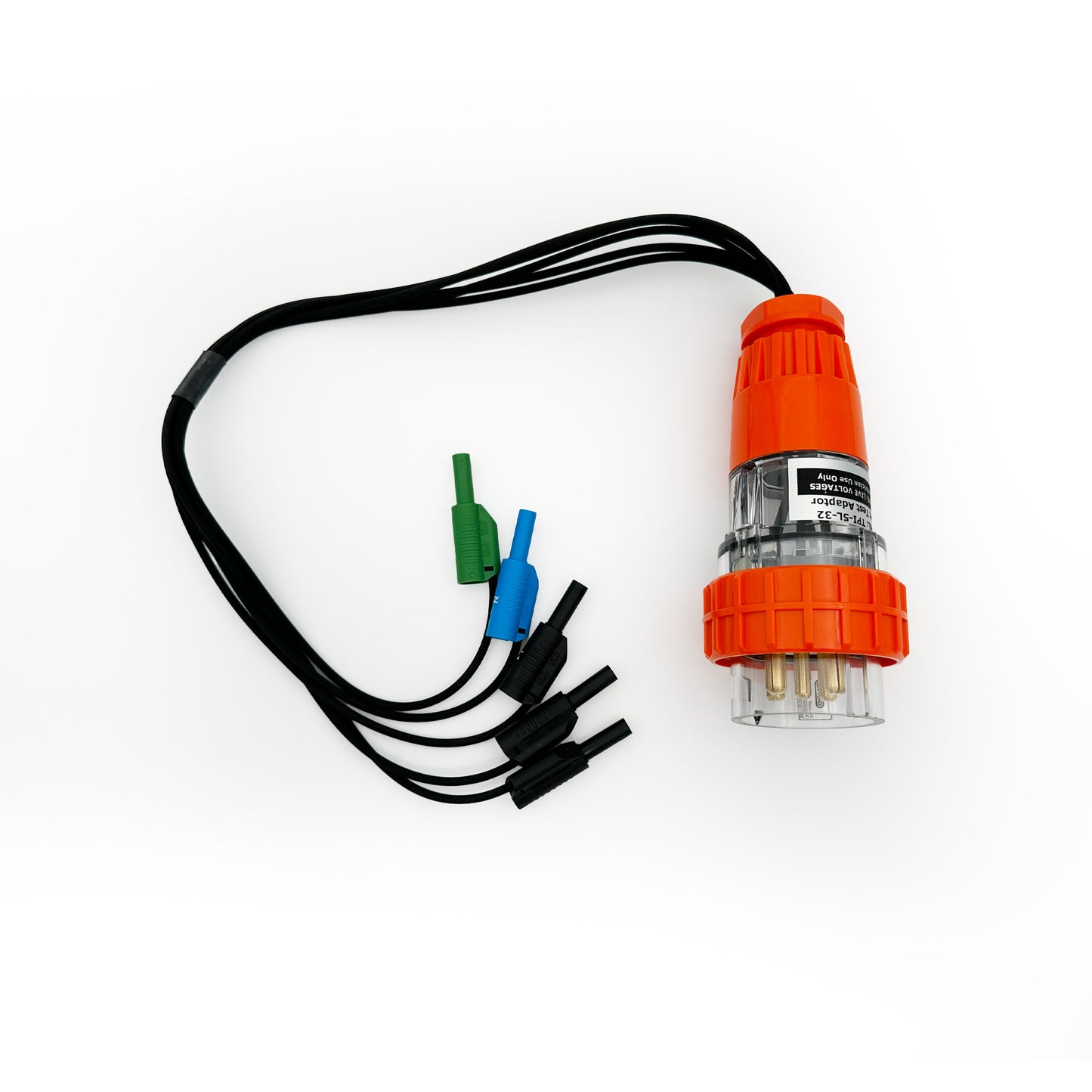

32A 3-Phase Plug to 4mm Banana Plug Test Lead Adaptor
32A 3-Phase Plug to 4mm Banana Plug Test Lead Adaptor
SKU:TPI5L32A
Couldn't load pickup availability
Overview
The TPI-5L 3-Phase Test Plug Interface is a purpose-built adaptor designed to make three-phase installation verification safer, faster, and more reliable. By allowing direct connection to a three-phase socket outlet, it eliminates the need for exposed probing during testing. Five integrated test leads provide immediate access to all phases, neutral, and earth, enabling straightforward connection to RCD testers and multifunction installation testers via standard 4 mm banana plugs.
- Three-phase installation verification directly from the socket outlet without probing live conductors
- RCD and loop testing on three-phase circuits using multifunction installation testers
- Phase presence, phase rotation, and polarity checks
- Commissioning and maintenance of three-phase outlets in industrial, commercial, and construction environments
- Safer testing workflows where probe access is restricted or risk assessments discourage probe use
Key Features & Benefits
- Eliminates the need for test probes, reducing exposure to live conductors
- Piggyback 4 mm test leads allow easy connection to a wide range of instruments
- Fast, repeatable connections improve efficiency on site
- Compatible with common multifunction and RCD testers
- deal for use with three-phase active switchboxes for advanced testing configurations
Specifications
- Connection Type: 3-Phase 5-pin plug
- Current Rating: 32 A
- Test Leads: 5 × integrated leads with piggyback 4 mm banana plugs
- Tester Compatibility:
Powertest 200
Instaltest Combo (MI3125)
IT-XC (MI3152)
IT-XD (MI3155)
SEW 8012 RCD tester
Accessories: Compatible with A1507 3-Phase Active Switchbox
Use Case: Verification and testing of three-phase installations from socket outlet
