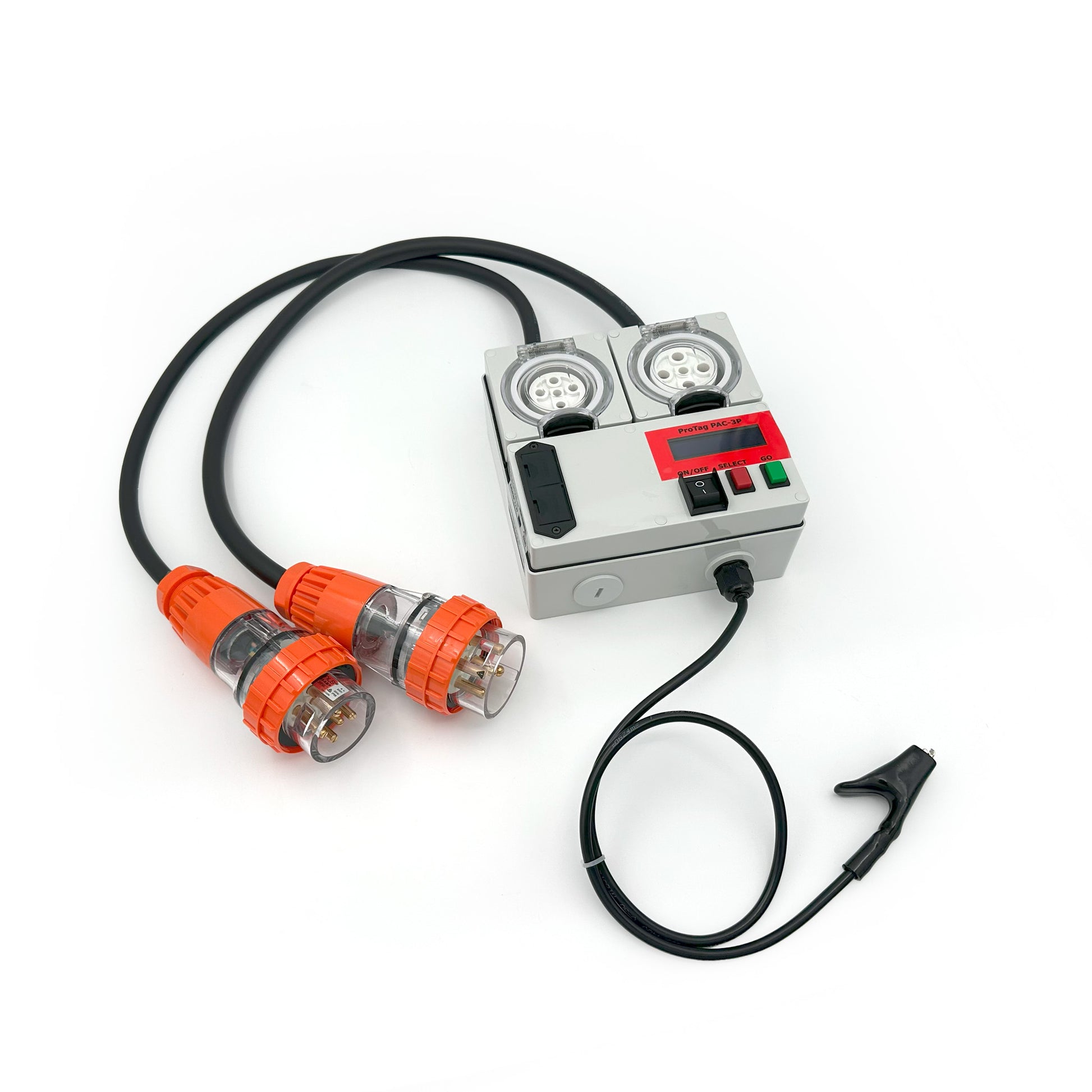

ProTag 3 Phase Appliance and Lead Tester

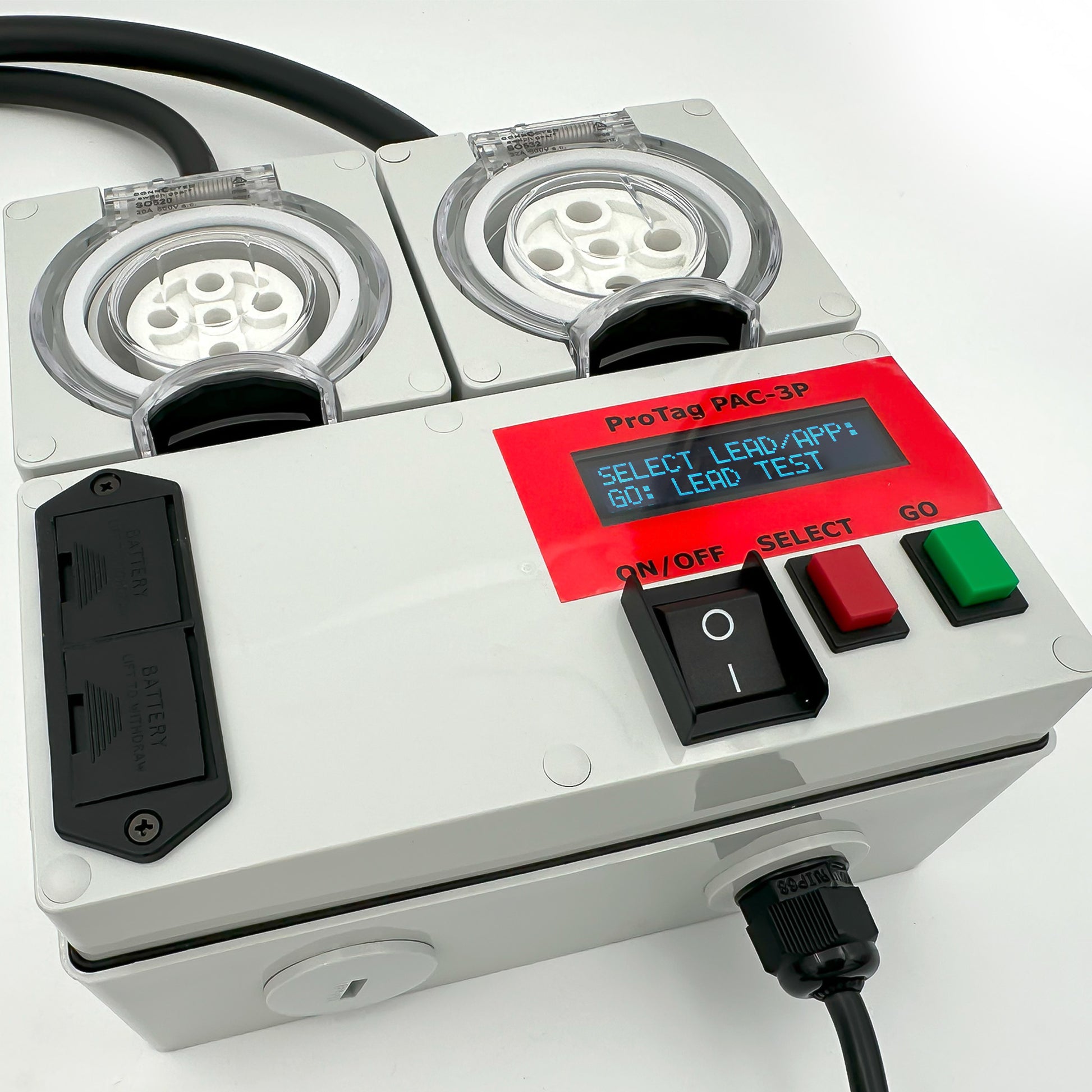

A 5-pin, 20 Amp and 32 Amp, 3 Phase Appliance and Lead Tester with an in-built LCD display.

• Performs an earth bond test on appliances and leads, displaying the result on the in-built LCD display.
• Measures leakage current on appliances and leads, displaying the result in milliamperes (mA) on the in-built LCD display.

Most three-phase equipment incorporates electronic circuitry such as temperature controls and PLCs that control relays or motors requiring starter circuits like contactors. All of these controls, contactors, and relays must be powered on to latch. Performing an insulation resistance test on such devices will only test up to the on/off switch and will not show any faults inside the actual appliance. The Protag PAC-3P replaces insulation testing by powering up the three-phase appliance and measuring the leakage current. The PAC-3P provides a safe way of testing three-phase appliances at all speeds and settings while taking a quick and easy measurement on the LCD display.

Earth Continuity Test

• Display Range: 0.1 ohm to 20 ohm
• Test Current: 200 mA
• Pass/Fail Limit: 1 ohm
• Accuracy: Better than 5% at 1 ohm

Current Leakage Test

• Display Range: 0.15 mA to 9.99 mA
• Pass/Fail Limit: 5 mA
• Accuracy: Better than 5% at 5 mA

Power Source

2 x 9V Batteries

Accessories

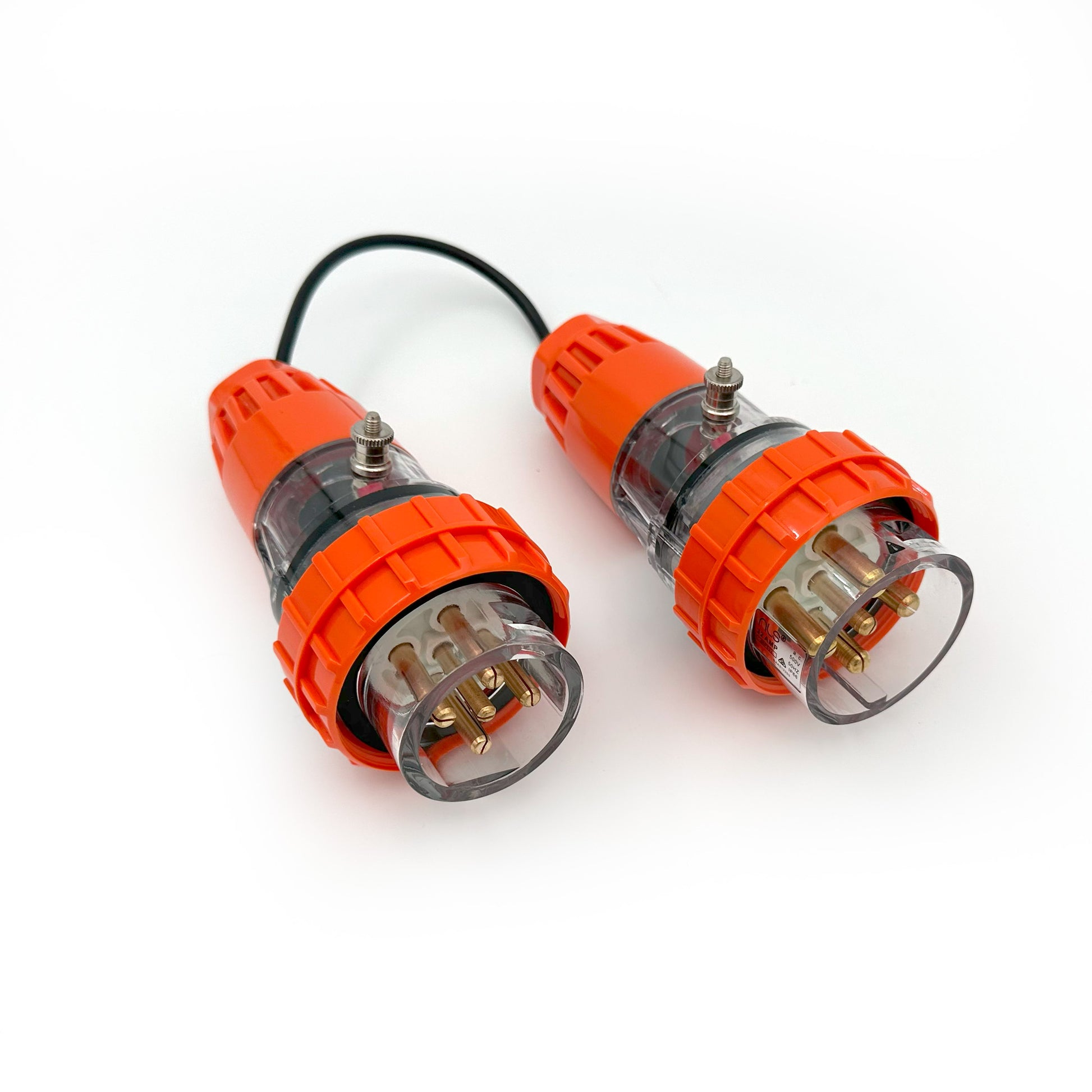

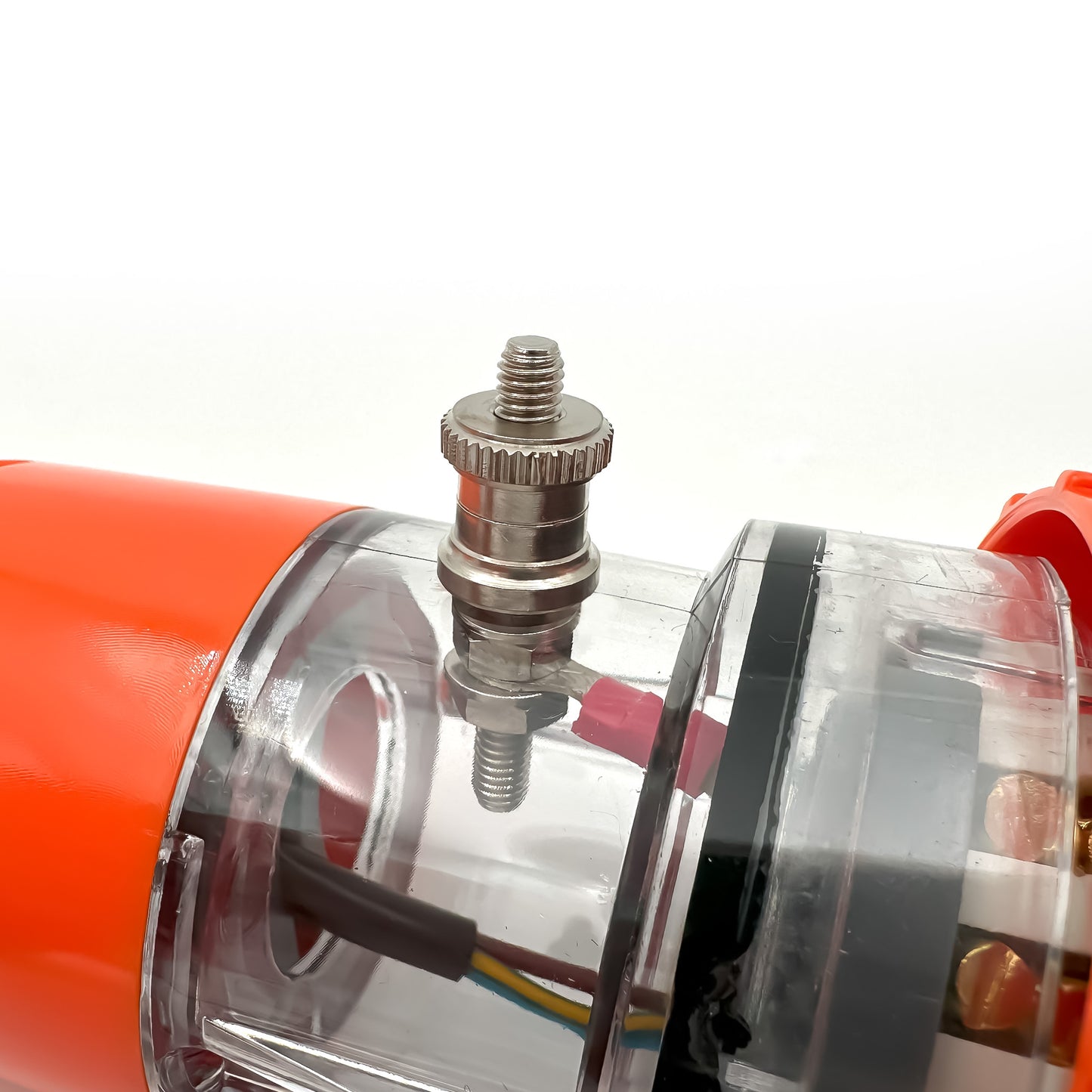

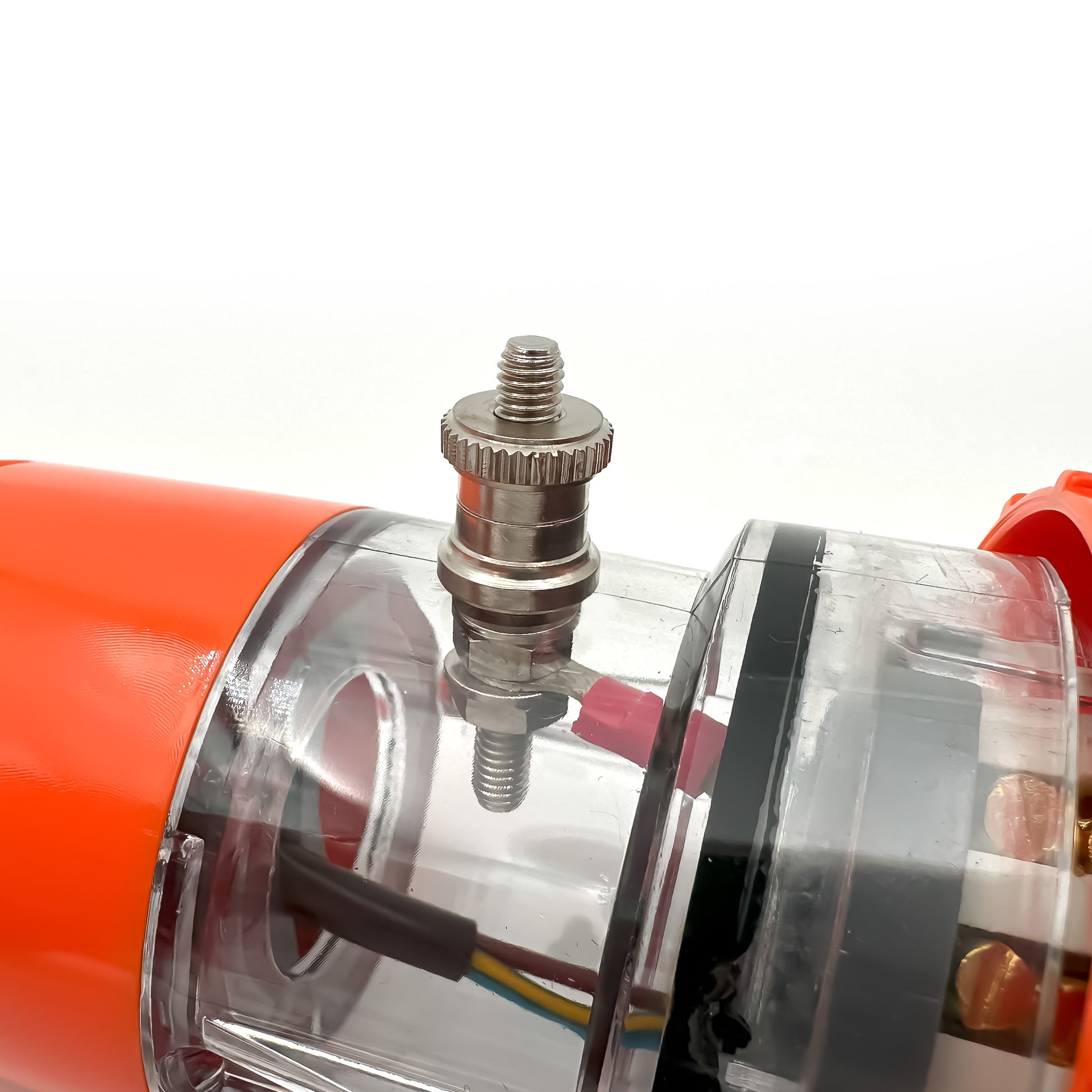

20A and 32A extension lead test adaptor with earth test pin.

12 Months

This instrument is intended for use by adequately trained personnel who are AS3760 competent.
