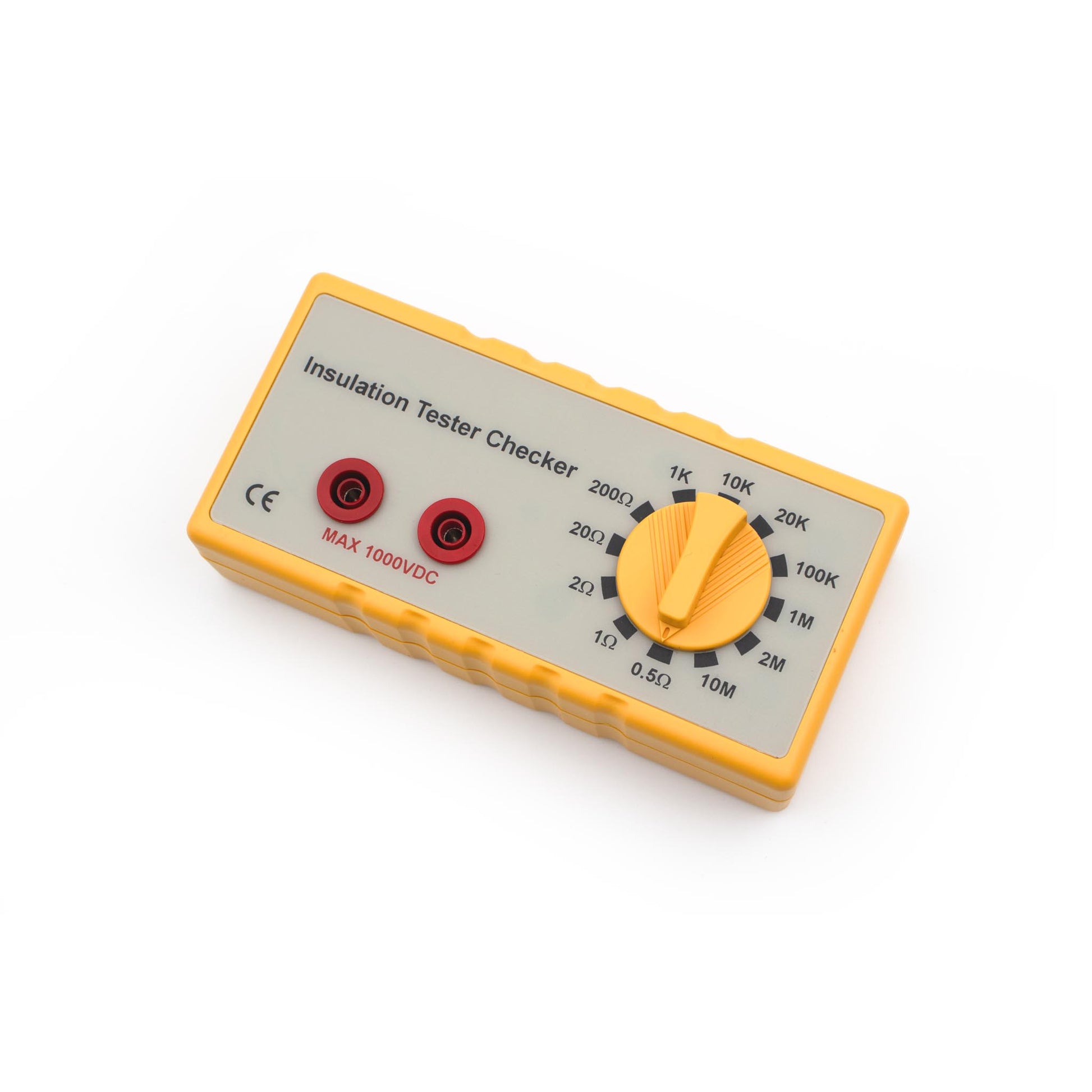

ITC8 Insulation Tester Checker

The ITC8 Insulation Tester Checker is designed to quickly verify the accuracy of the readings from insulation testers and multimeters. It ensures that the instrument you are using is calibrated correctly and providing accurate measurements.

This checker allows users to regularly verify that their insulation tester or multimeter measurements are accurate, within the instrument's tolerance and the checker's specifications. It features 12 resistance settings, ranging from 0.5 Ohms to 10 MOhms, to test against.

• Resistance Settings: 0.5Ω, 1Ω, 2Ω, 20Ω, 200Ω, 1kΩ, 10kΩ, 20kΩ, 100kΩ, 1MΩ, 2MΩ, 10MΩ
• Accuracy:
• 0.5Ω - 2Ω: ± 0.05Ω
• 20Ω - 10MΩ: ± 2%
• Maximum Voltage Input: 1000V DC
• Case: Impact Resistant ABS

1 Year
