Seaward PAC3760DL Print Package

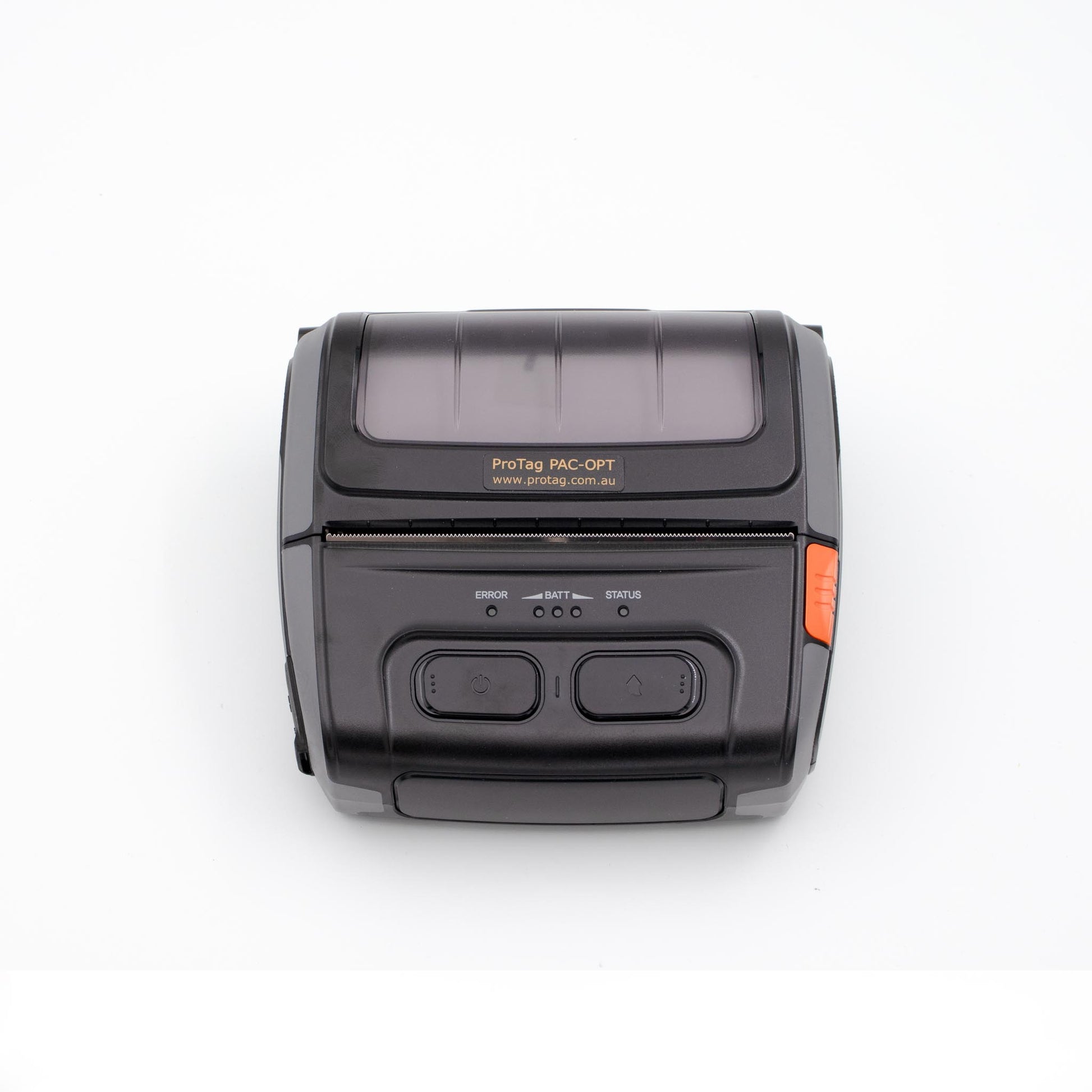

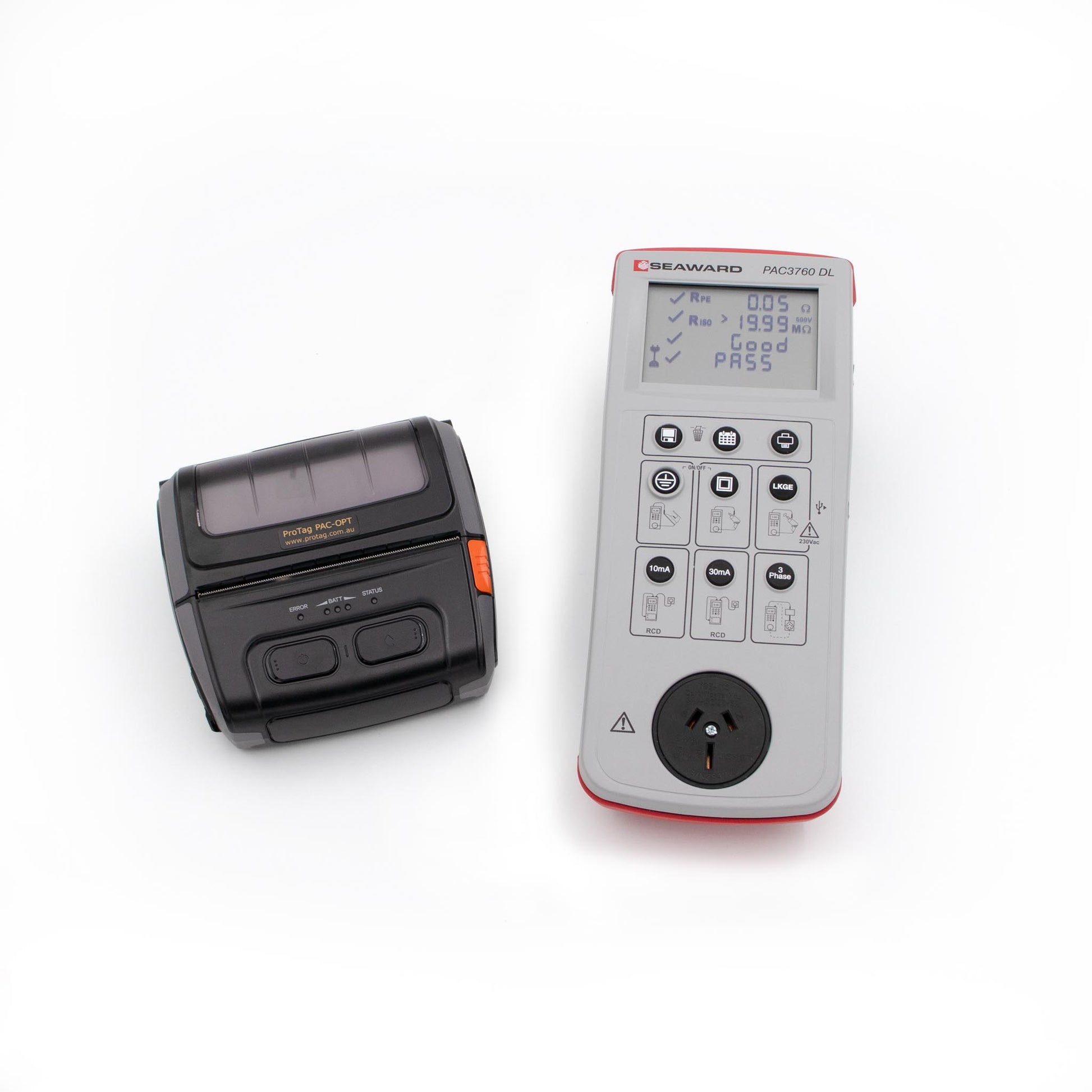

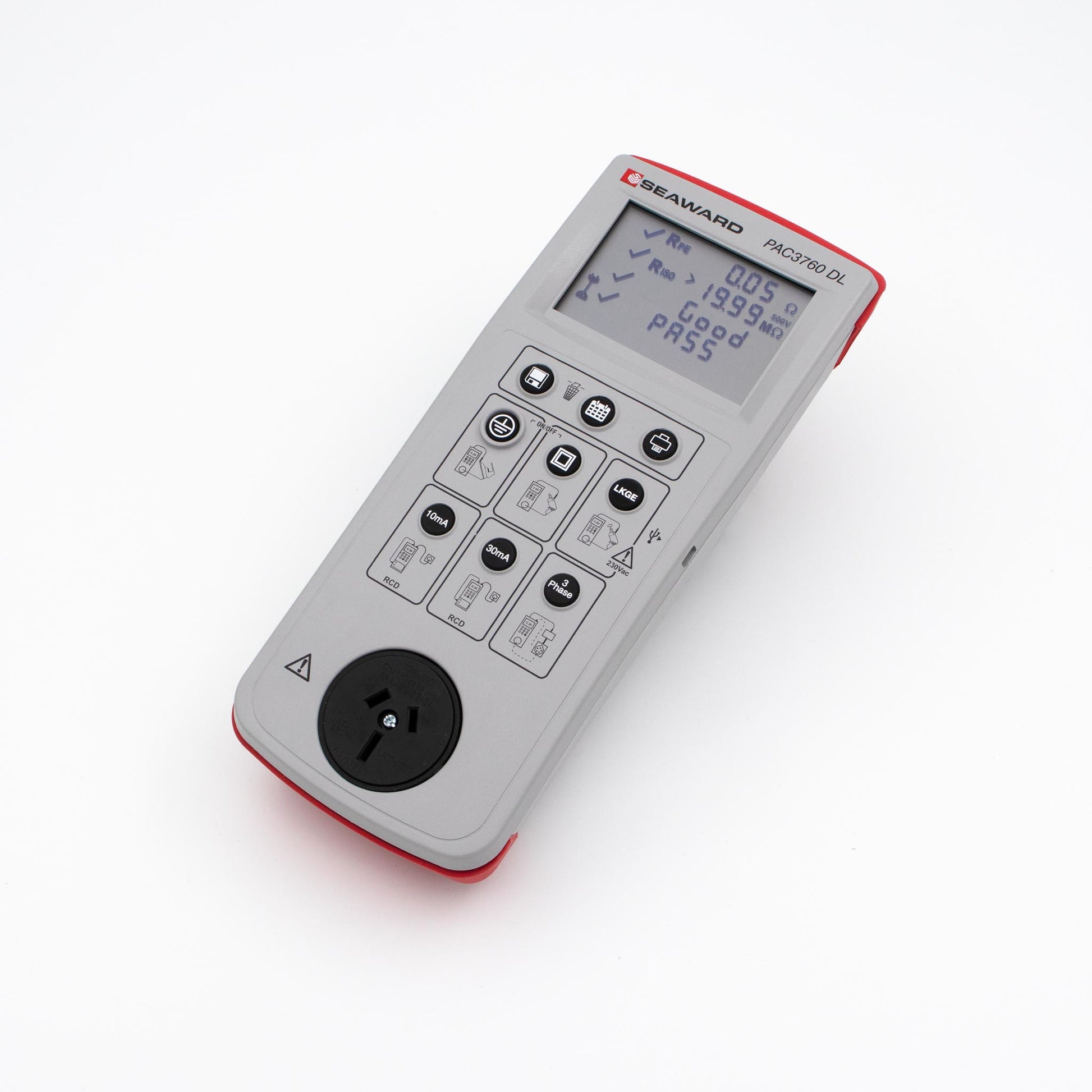

The Seaward PAC3760DL is a high-quality, durable portable appliance tester designed for ease of use and functionality. In this pack, the PAC3760DL is combined with the PAC-OPT printer, a small, lightweight direct thermal printer that offers basic test tag printing output. The PAC3760DL boasts a range of features, including auto-test sequences and basic data recording. Despite its compact and simple appearance, the PAC3760DL provides extended functionality such as RCD testing at both 10mA and 30mA, real-time displayed values alongside PASS and FAIL indicators, and the convenience of battery operation.

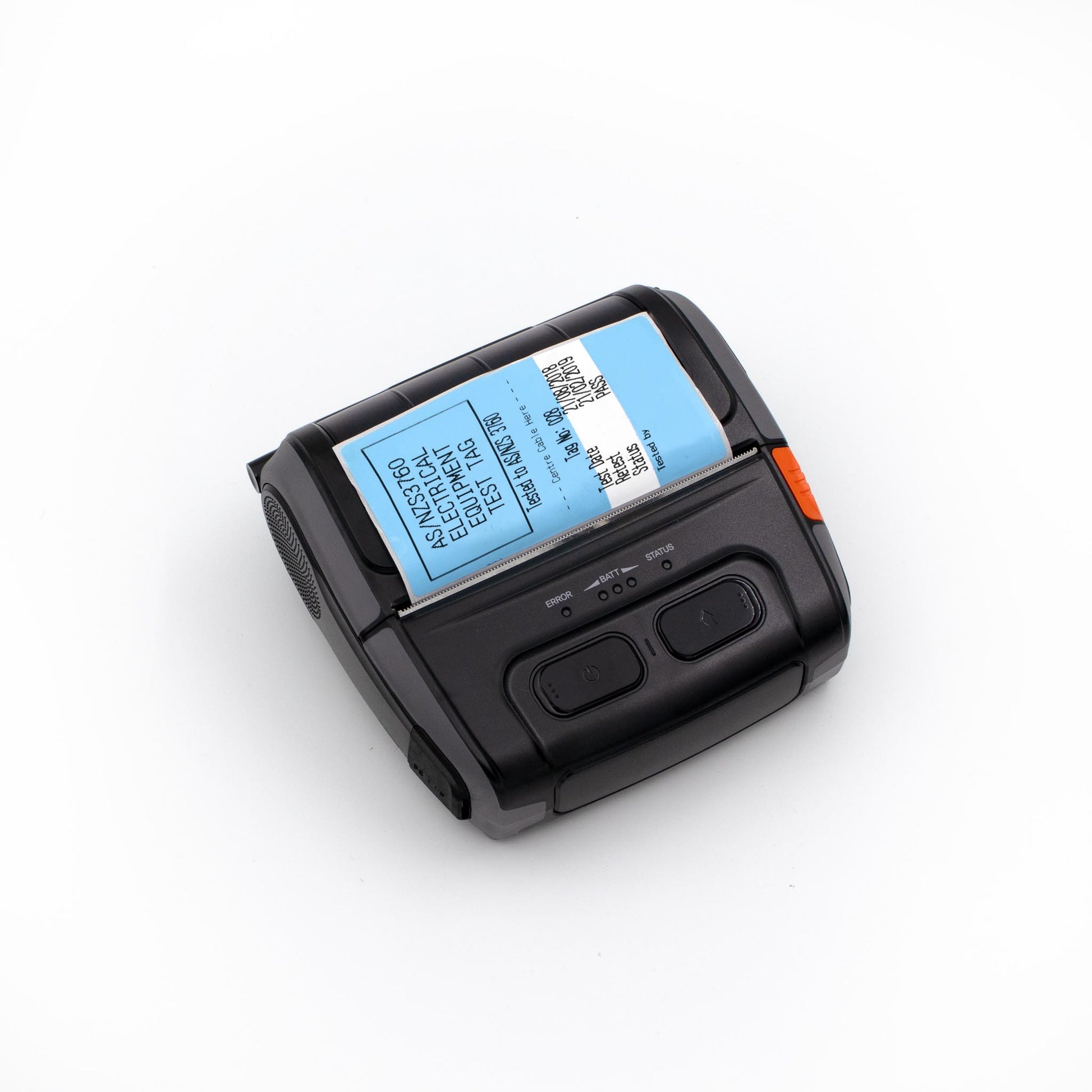

The basic recording and printing capability means test tags can be printed after saving each result. As no data entry is possible, tags are output almost instantly following each test. Additional information can be added to the downloaded CSV file later if required. Downloading is performed by connecting the instrument to a PC via a USB cable.

As the PAC3760DL is not designed to record or print descriptions, or print your organisation's logo on test tags, this printing system is best suited for basic applications or lower-volume, in-house testing scenarios. For more advanced recording and printing facilities including Bluetooth communications consider the Seaward Primetest Pro or Elite printing systems.

• Earth Continuity - Yes (200mA)
• Insulation Resistance - Yes (500V)
• Current Leakage - Yes, up to 10A
• Outlet Socket - 15A
• Polarity Testing - Yes
• Portable RCD Testing: Yes
• Fixed RCD Testing (CATII*) - Yes
• Values Display - Yes
• Battery Type - Alkaline
• Programmable Sequences - No
• Recording - Yes (result logging only)
• Records descriptions - No
• Data entry - No
• Recall by ID# - No
• Printer option - Yes
• Coms – USB, RS232
• 3 Phase Lkg Option - Yes
• Weight - 0.8kg

Includes printer – Yes

Printer Power – Battery

Records descriptions - No

Non-electrical Test Recording – No

Barcode scanning – No

Recalls by ID#/Scan - No

Custom logo – No

Printer – Direct Thermal

Printer Comms – Wired

Case – None

Subscription for tester use – No

Subscription required for reporting – No

System weight - –1.9kg

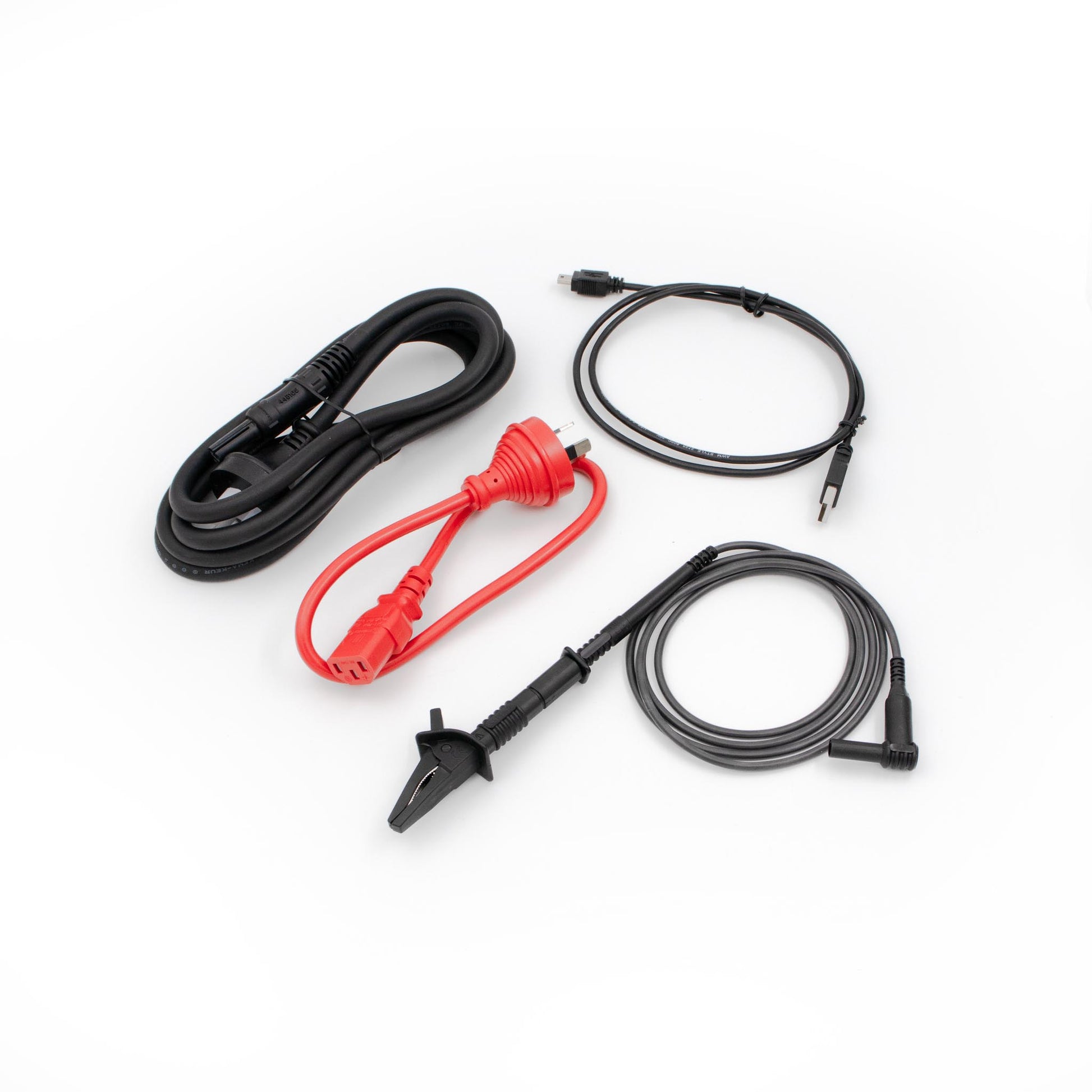

• Included Accessories: Retail Box and Packaging, Earth Lead with Clip, IEC lead, Heavy Duty Earth Lead with Clip, 6 x AA alkaline batteries*, Manual, and Certificate of Conformity, 1 x PAC-OPT Printer, USB Printer cable, Printer charger, 250 white test tags.
• Note: To reduce the risk of alkaline battery leakage, Test and Tag Supplies recommends using NiMH batteries in all test equipment. Damage from battery leakage is generally not covered under the manufacturer’s warranty.

Standard Warranty: 1 Year
