Metrel Delta 3309BT Godex Printing System

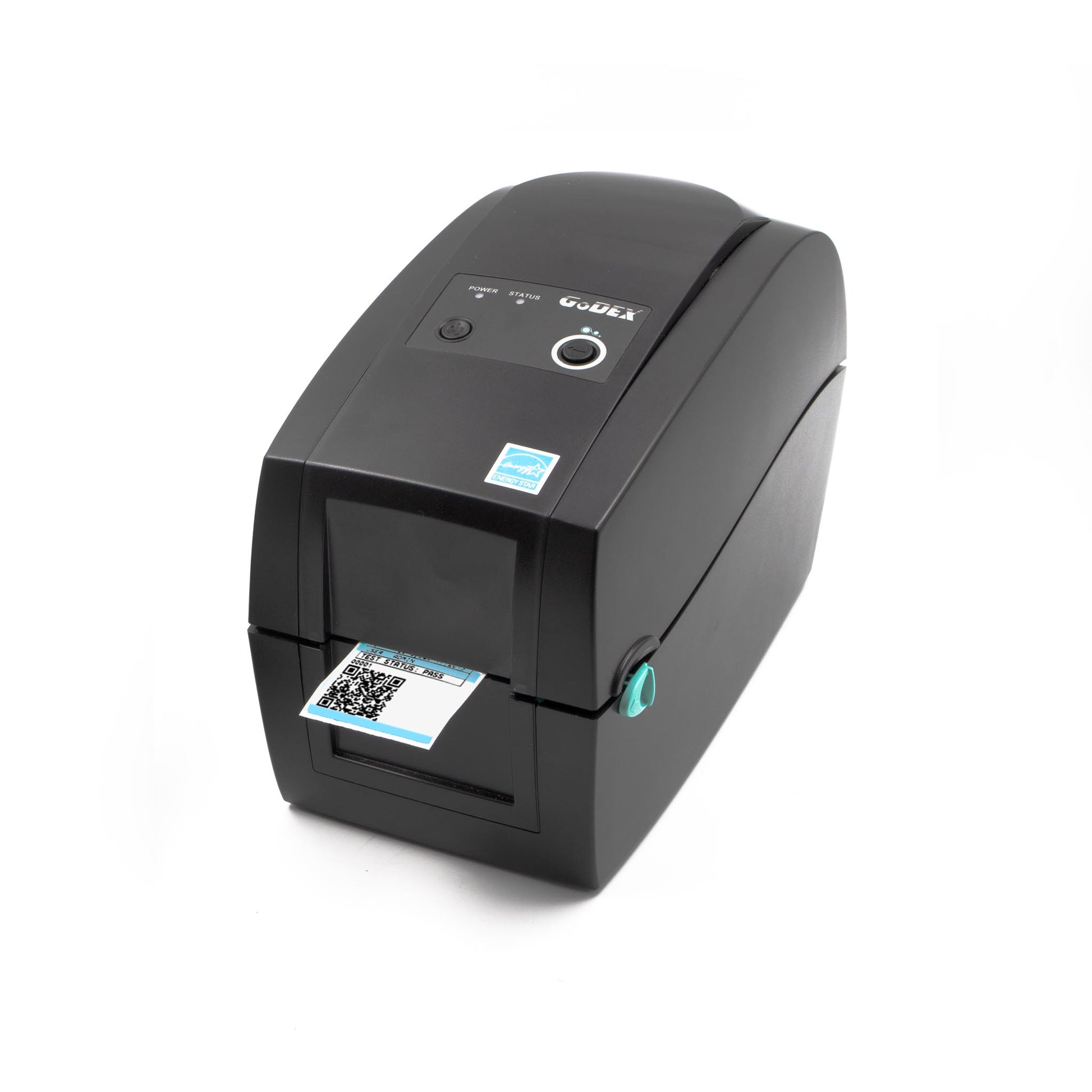

The Metrel 3309BT Godex System provides a robust and feature-rich solution for professional appliance testing needs. At the heart of this setup is the Godex RT200 thermal transfer printer, which produces UV-stable tags available in both standard and heavy-duty options—perfect for durable, long-lasting labeling in demanding environments. This high-quality thermal transfer printing ensures that tags remain clear and readable over time, withstanding sunlight and frequent handling.

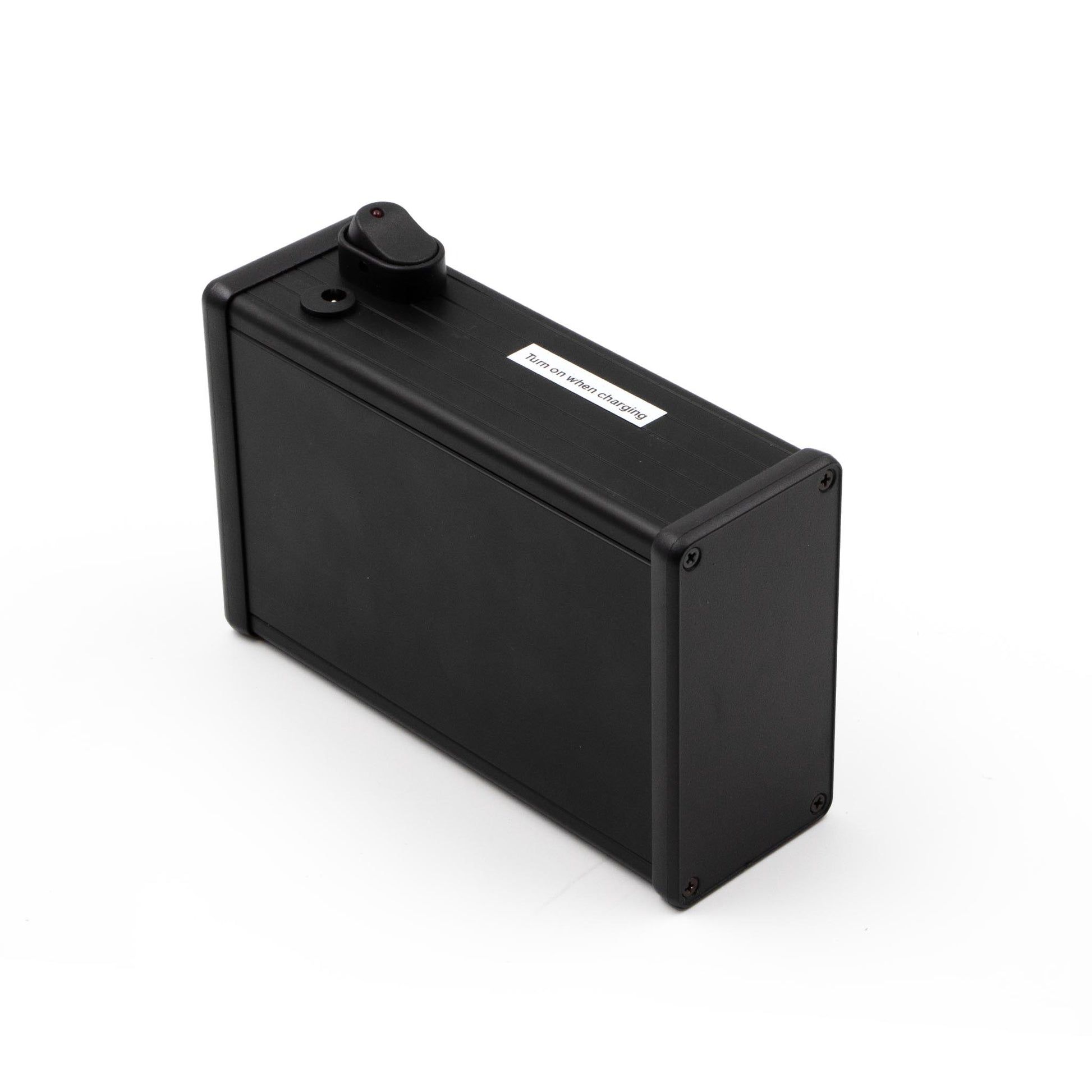

For versatility, the printer is powered by an included NiMH battery pack for use in the field, but it can also run on mains power. Bluetooth connectivity links the Metrel 3309BT tester with both the printer and Android-compatible devices*, while either one of two Android App (PATLink or APAT) options streamline data entry. This setup allows users to scan QR codes from previous test tags, instantly recalling past test data and saving time on re-entry. Essential details like Location, Description, Asset ID, Retest period, and test results are stored efficiently, making record-keeping straightforward.

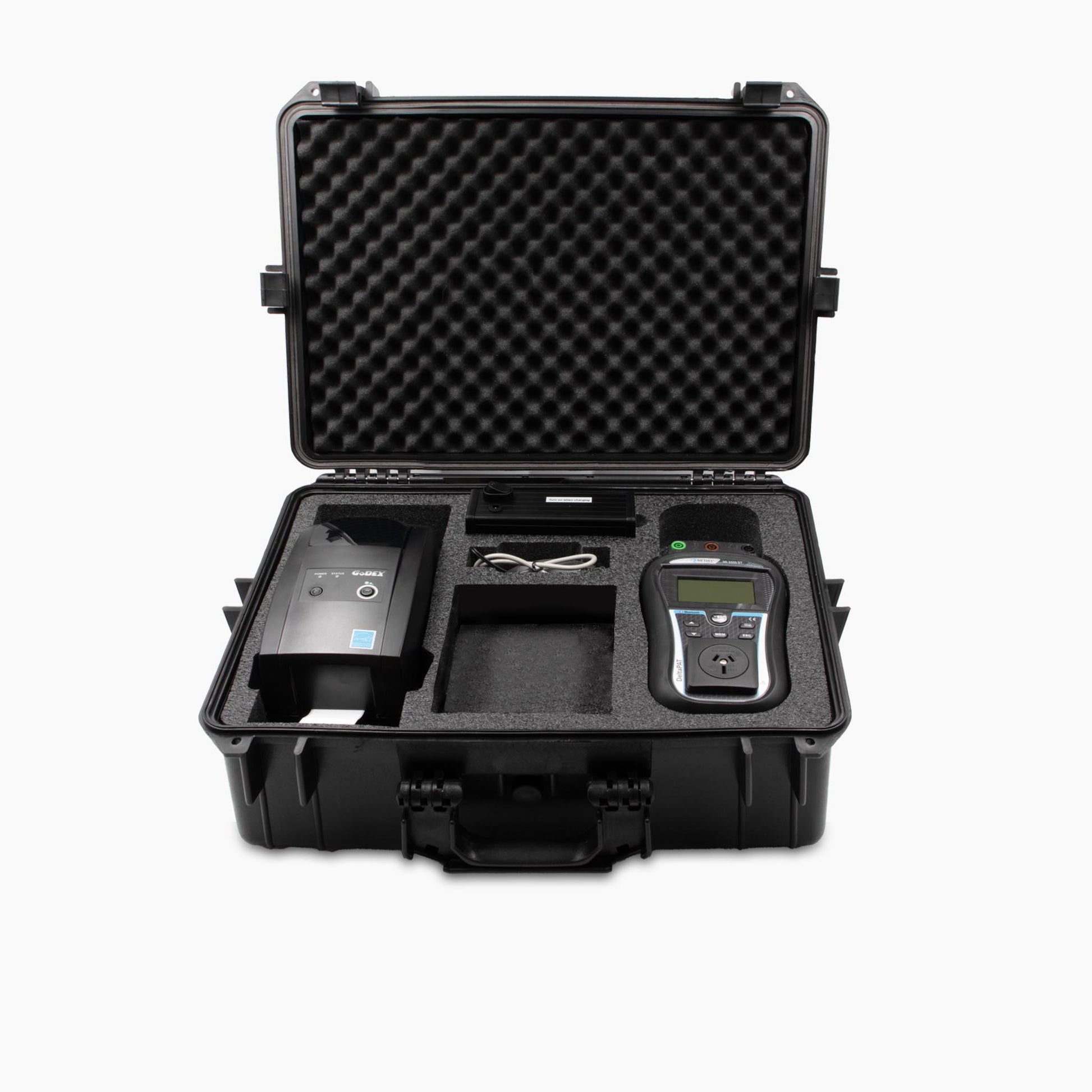

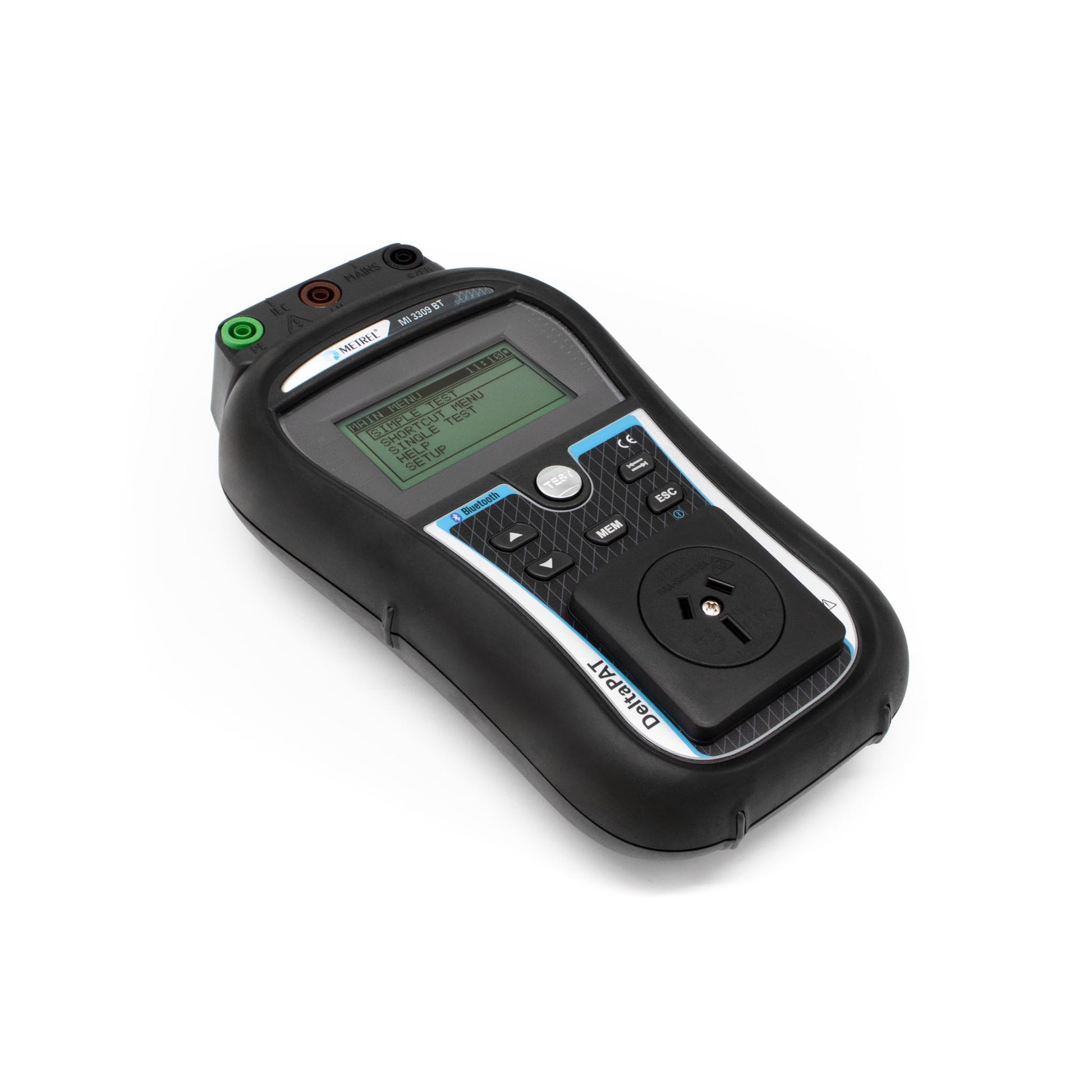

Protected in a durable soft case, the Metrel 3309BT package is designed for professionals who need both reliability and flexibility. The tester includes battery operation, leakage and RCD testing, and works seamlessly with Android devices to facilitate barcode scanning and direct data input. Combining robust thermal transfer printing with adaptable power options, this Metrel system is an excellent choice for professionals needing dependable appliance testing capabilities in varied work settings.

*Android device required and purchased separately.

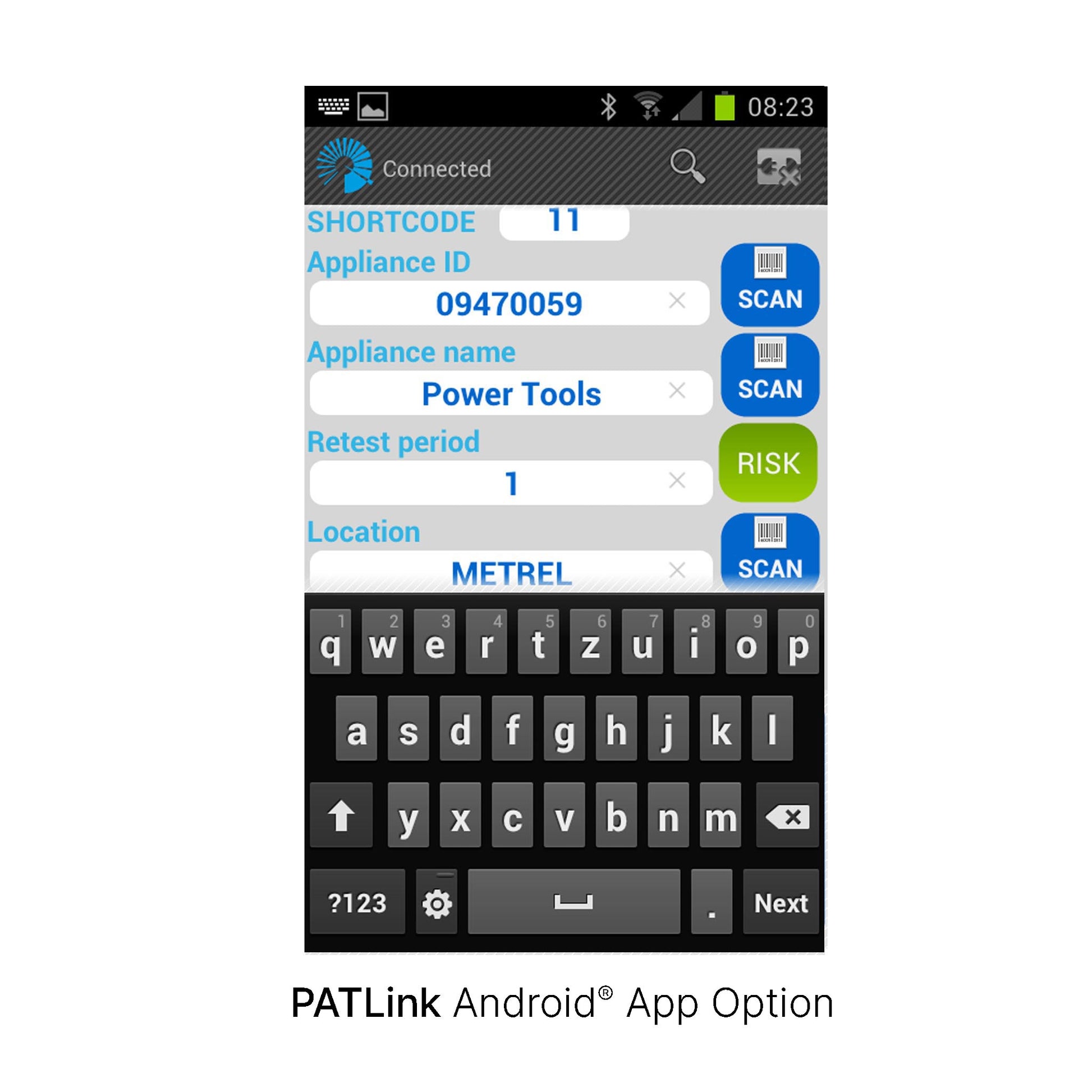

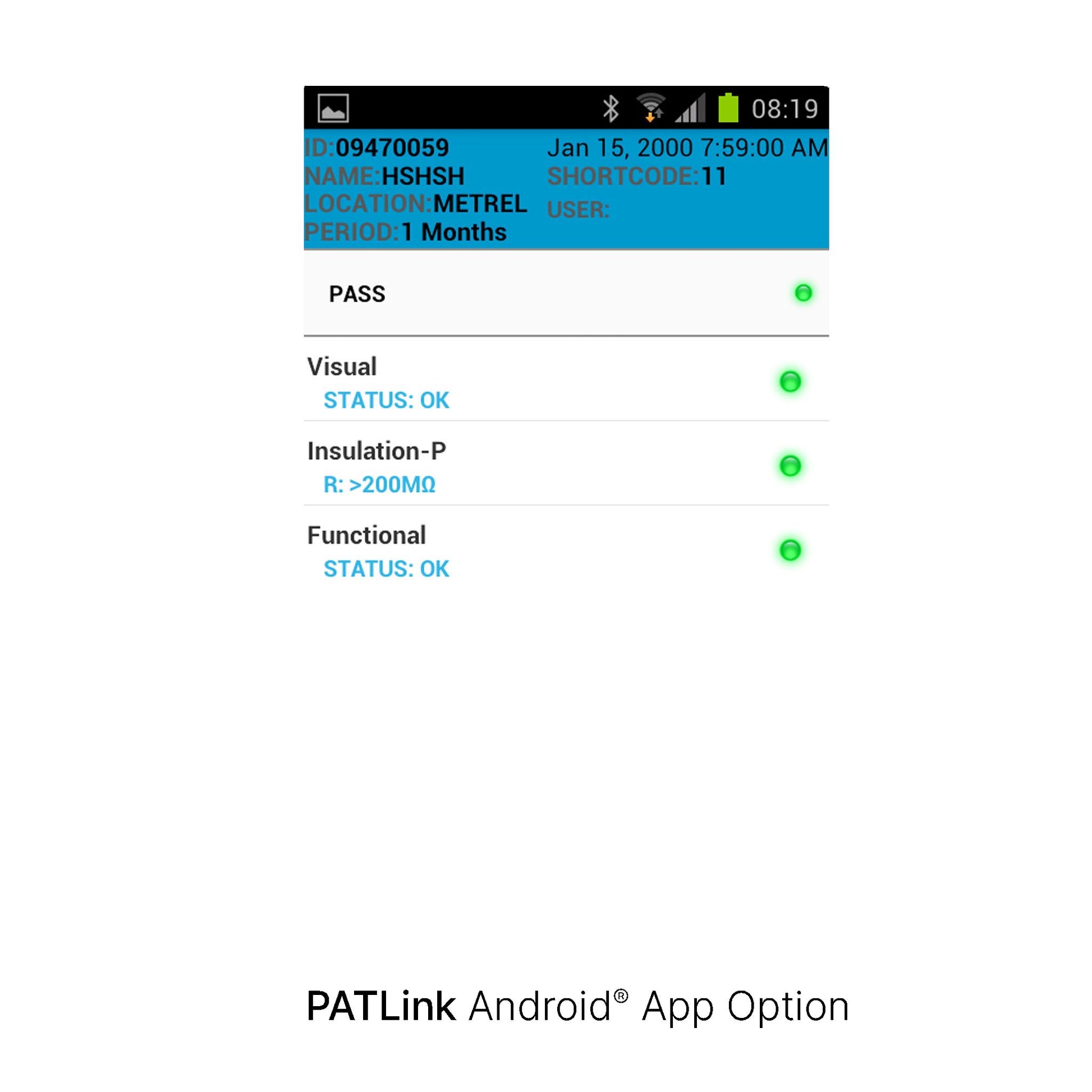

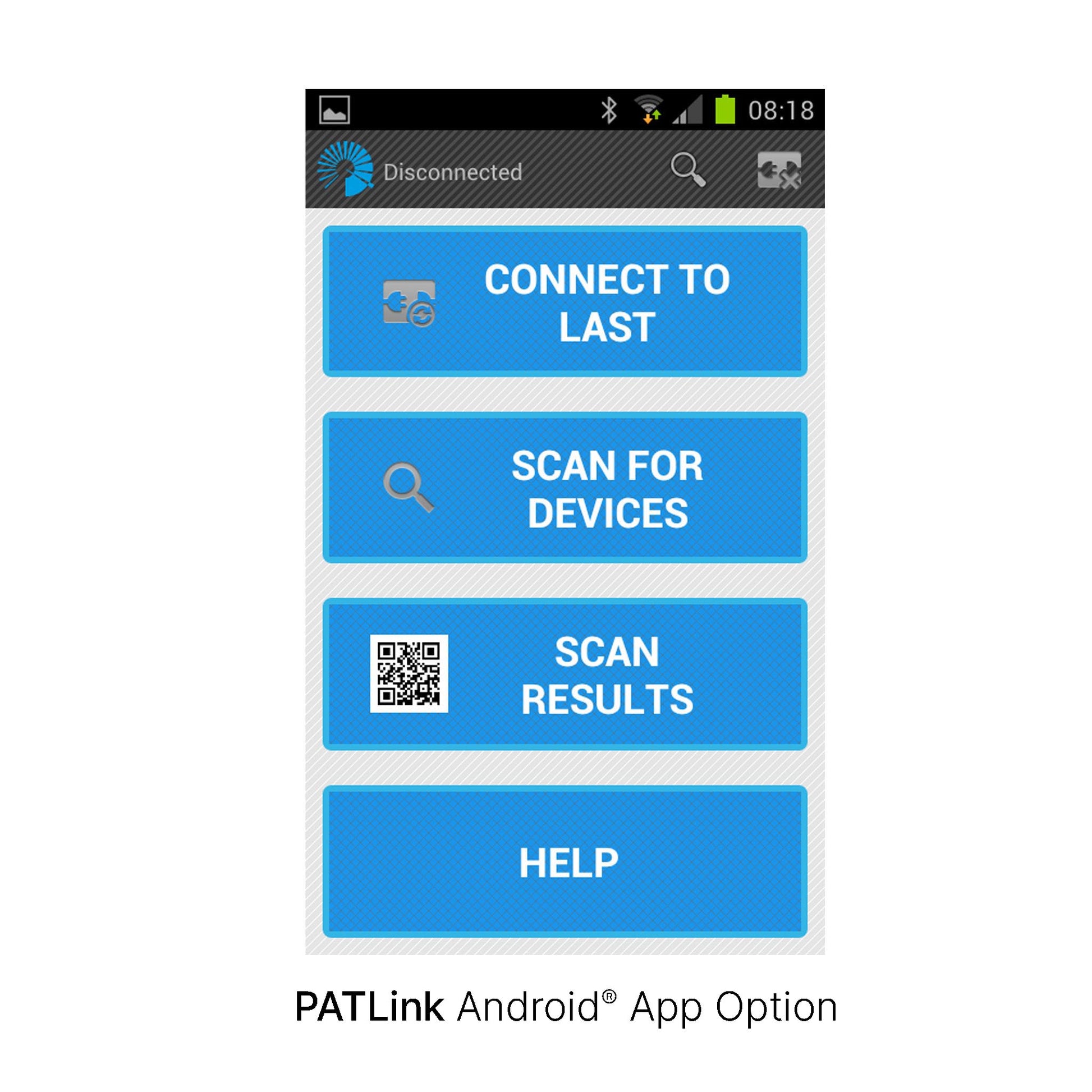

• Operates via Bluetooth with the Godex RT200 printer.
• Controls the PAT tester directly from an Android Device*.
• Scans previously printed tags using QR codes.
• Allows users to view previous tests when scanning an old tag.
• Supports the use of short-code tests.
• Stores test results in the tester's memory.

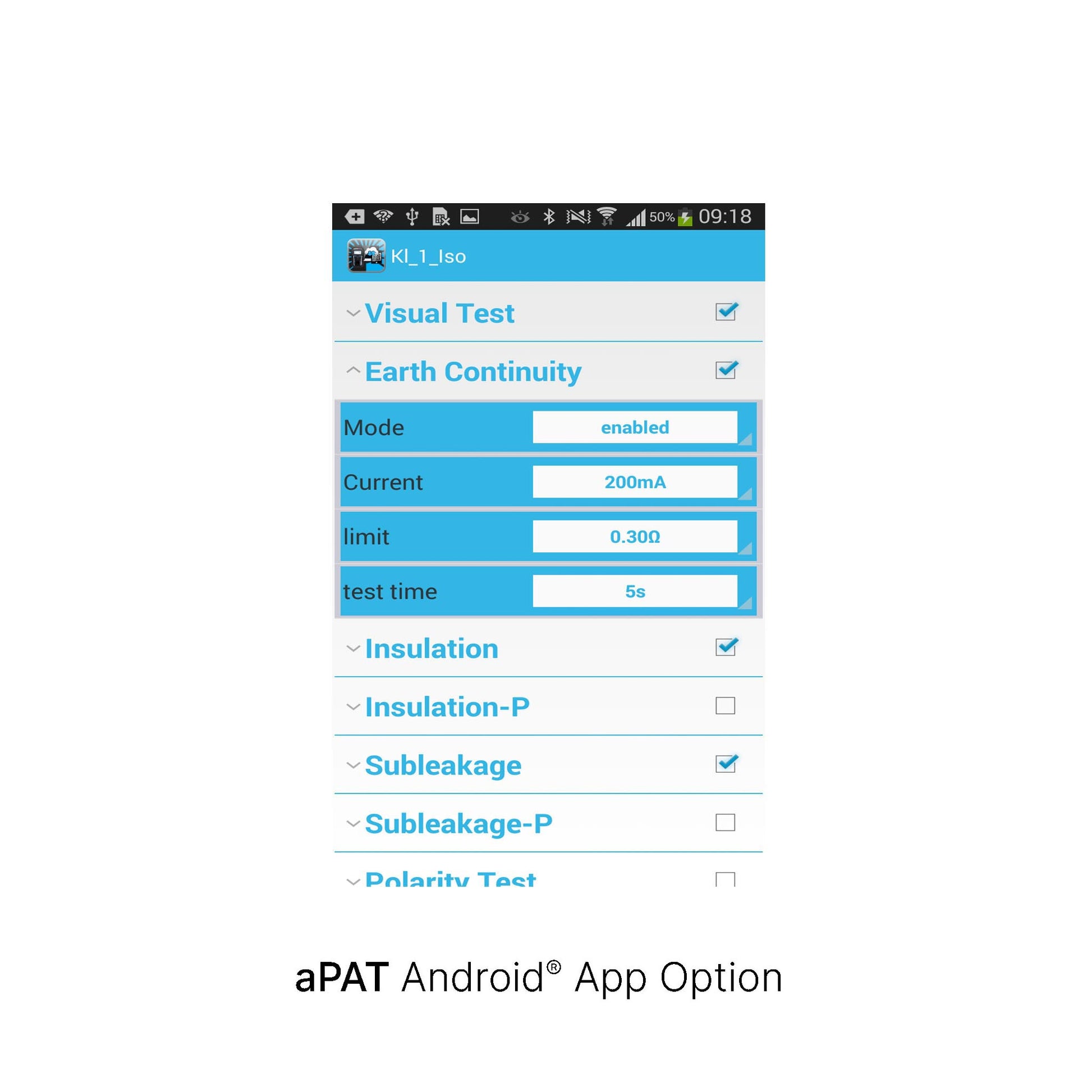

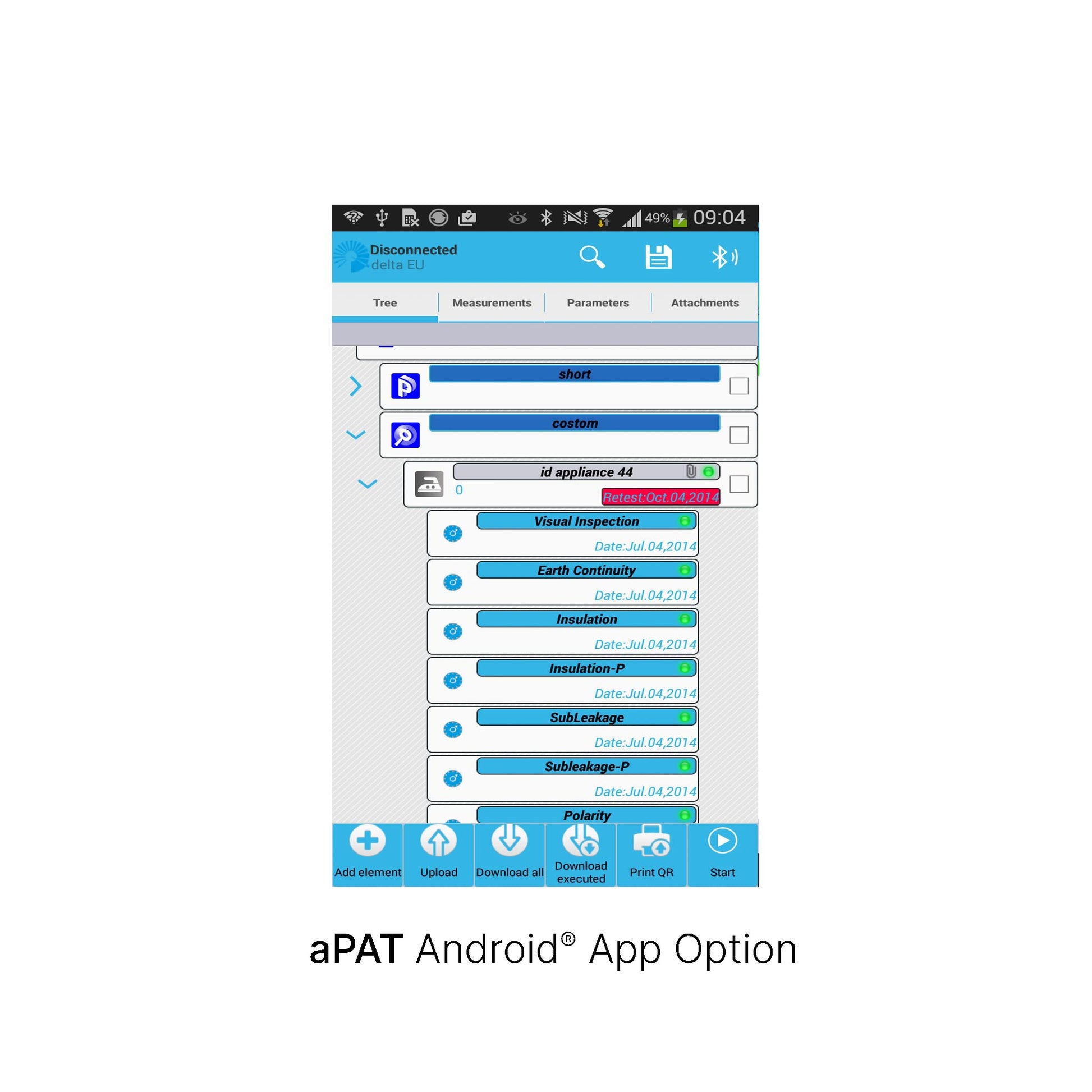

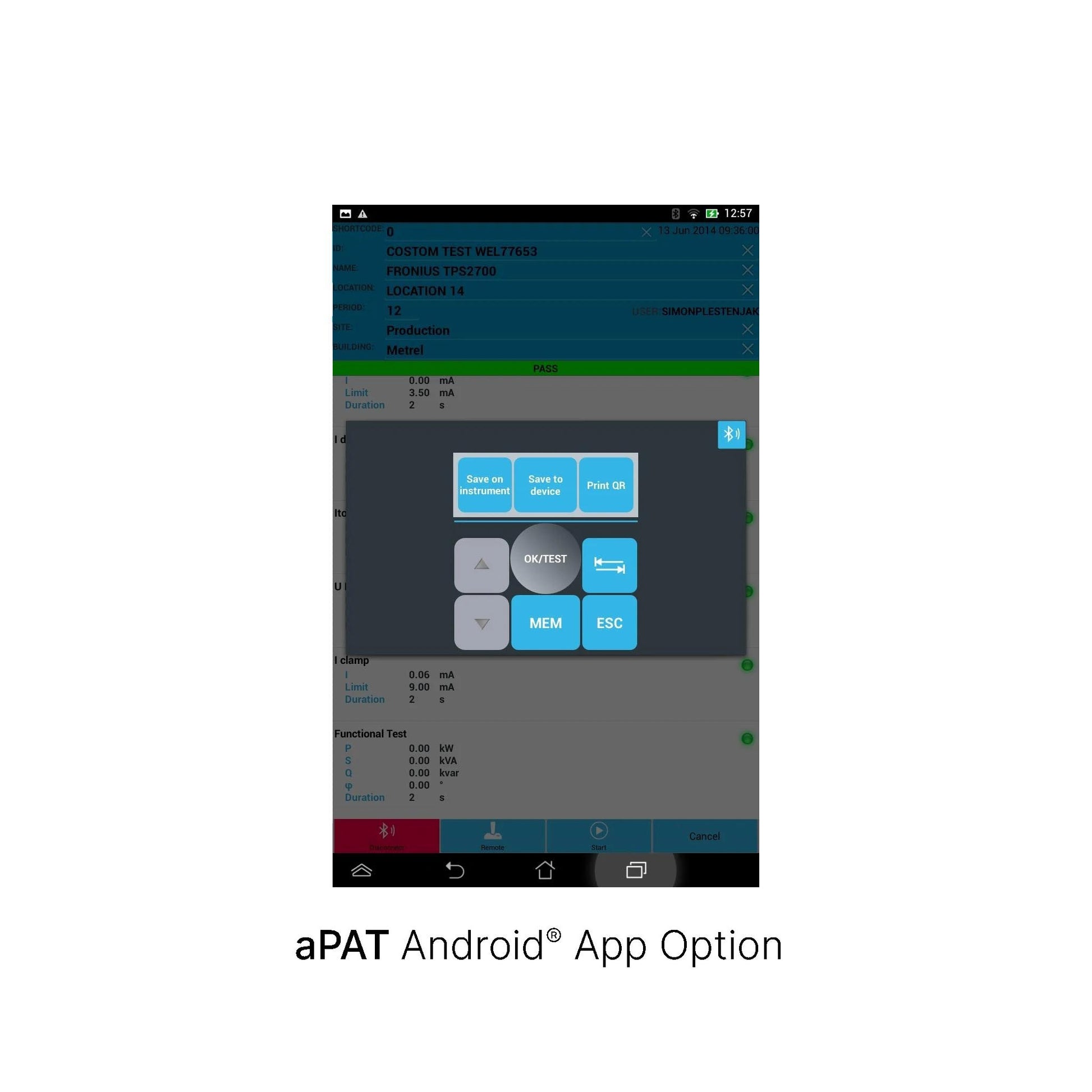

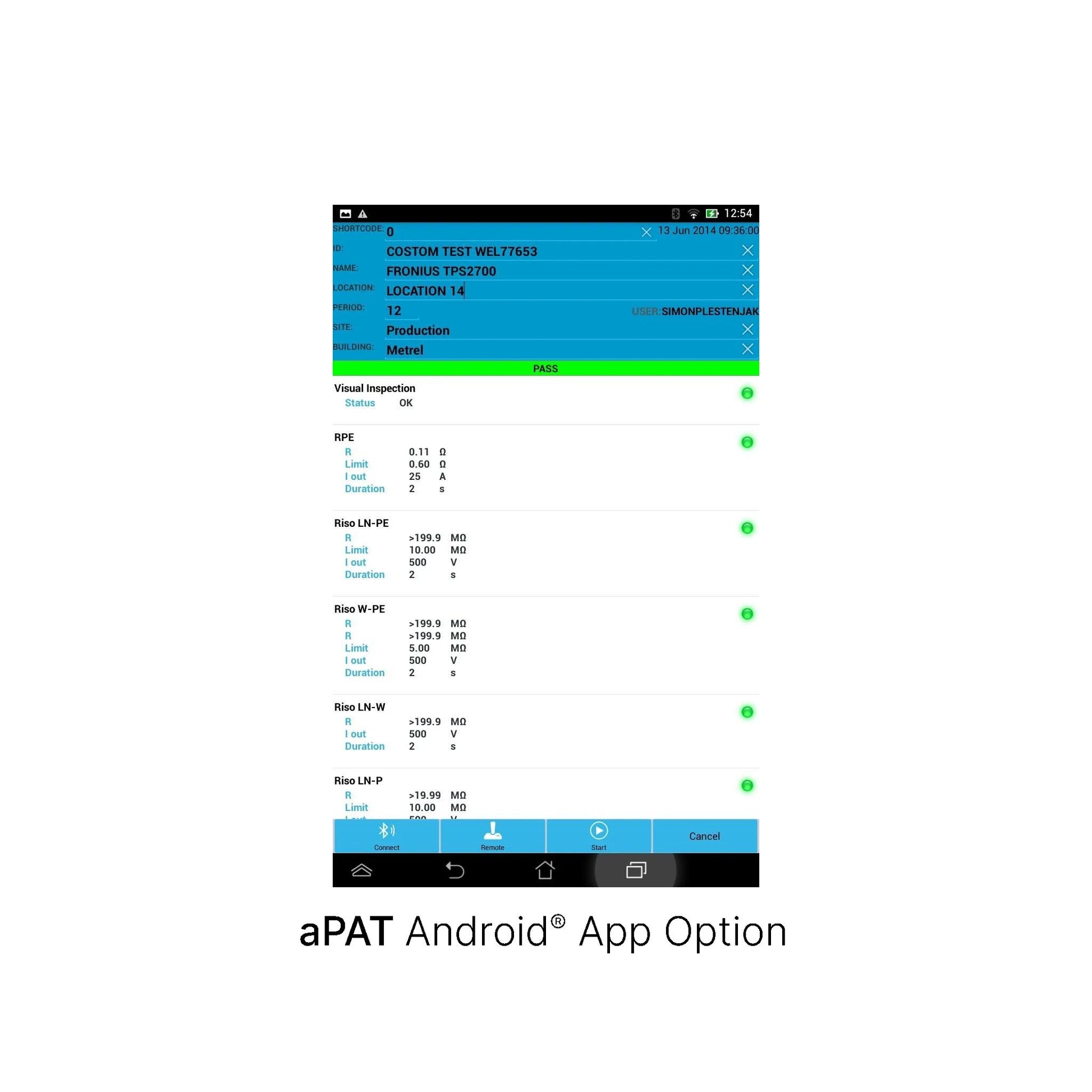

• A simple and versatile solution with easier data entry. For more advanced database features consider APAT

• Operates via Bluetooth with the Godex RT200 printer.
• Controls the PAT tester from an Android device*
• Acts as a scanner of previously printed tags using the QR code
• Allows the previous tests to be viewed when scanning an old tag
• Allows choice of short-code tests
• Allows choice of ‘Simple tests’ or user programmed tests from the tablet
• Allows pictures or other attachments to be stored against a given asset
• Provides user programmable logo to appear on test tag
• Allows users to search through test results and easily see what has and has not yet been retested
• Allows users to create several ‘blank’ appliances ready for testing complete with incremental ID numbers
• Allows for tests to be permanently stored on the tablet – providing much greater memory storage
• Stores tests on the tester, or on the Android device*
• Includes access to our exclusive system training video

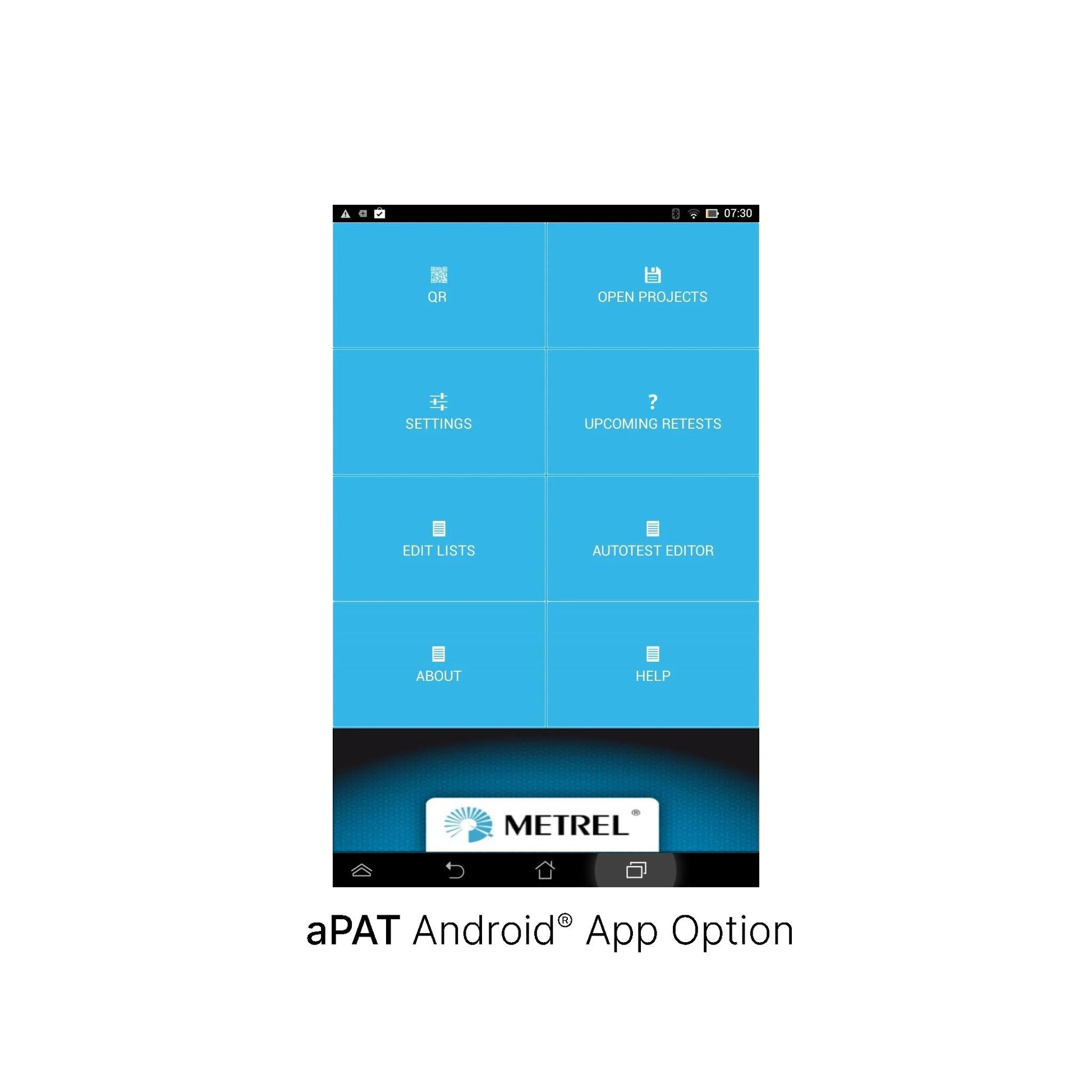

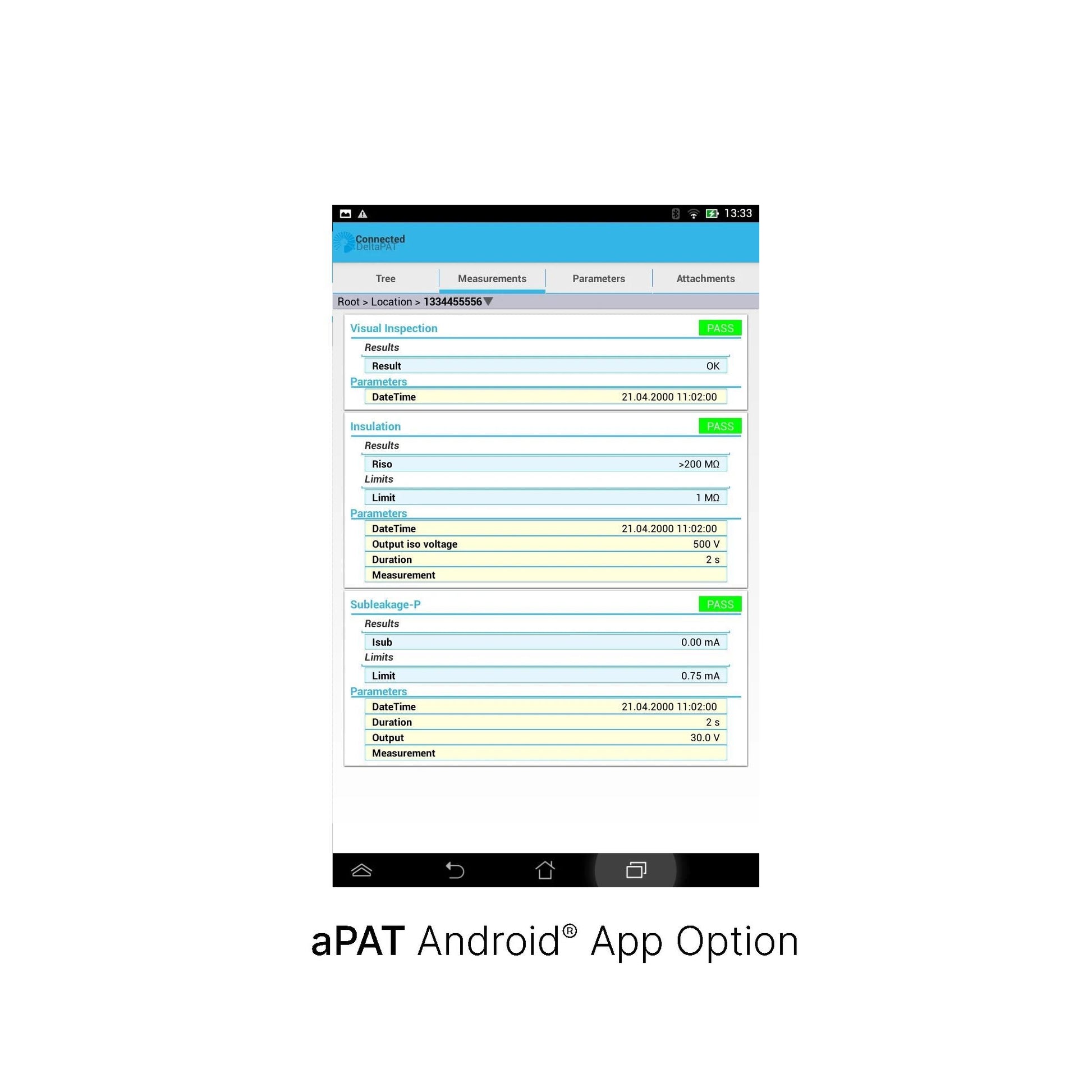

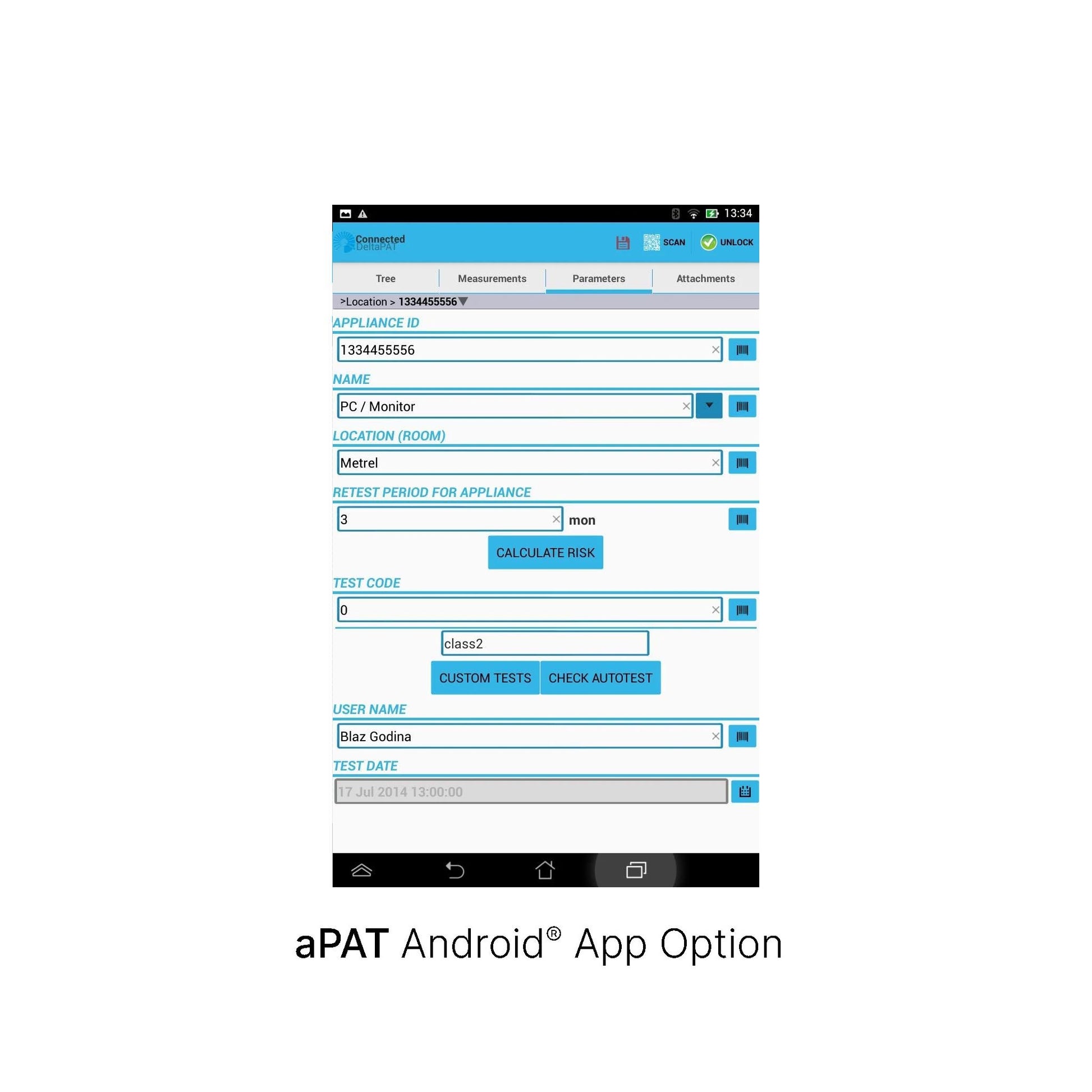

• An advanced data recording solution with complete item management, retesting, export and report creation

• Earth Continuity – Yes (200mA)
• Insulation Resistance – Yes (250V/500V)
• Current Leakage – Yes
• Max Current Leakage – 16A
• Outlet Socket – 15A
• Polarity – Yes
• Portable RCD – Yes
• Fixed RCD (CATII*) – Yes
• Values Display – Yes
• Battery Type – NiMh
• Rechargeable – Yes
• Programmable Sequences – Yes
• Recording – Yes
• Records Descriptions – Yes
• Data Entry - Keyboard/Via App**
• Recall by ID# - Via App**
• Printer Option – Mains/Battery**
• Communications – USB/BT/RS232
• 3 Phase Leakage Option** – Yes
• Weight – 1.2 kg

• Includes printer – Yes
• Printer Power – NiMh Battery
• Records descriptions - Yes
• Non-electrical Test Recording – No
• Barcode scanning – Yes
• Recalls by ID#/Scan - Yes
• Custom logo – Yes
• Printer – Thermal transfer
• Printer Comms – Wired (Bluetooth if used in conjunction with PATLink or APAT Apps and Android device*)
• Case – Hard with custom foam
• Subscription for tester use – No
• Subscription required for reporting – No
• System weight - 10kg

*Android device required and purchased separately. **3_phase testing adaptors purchased separately.

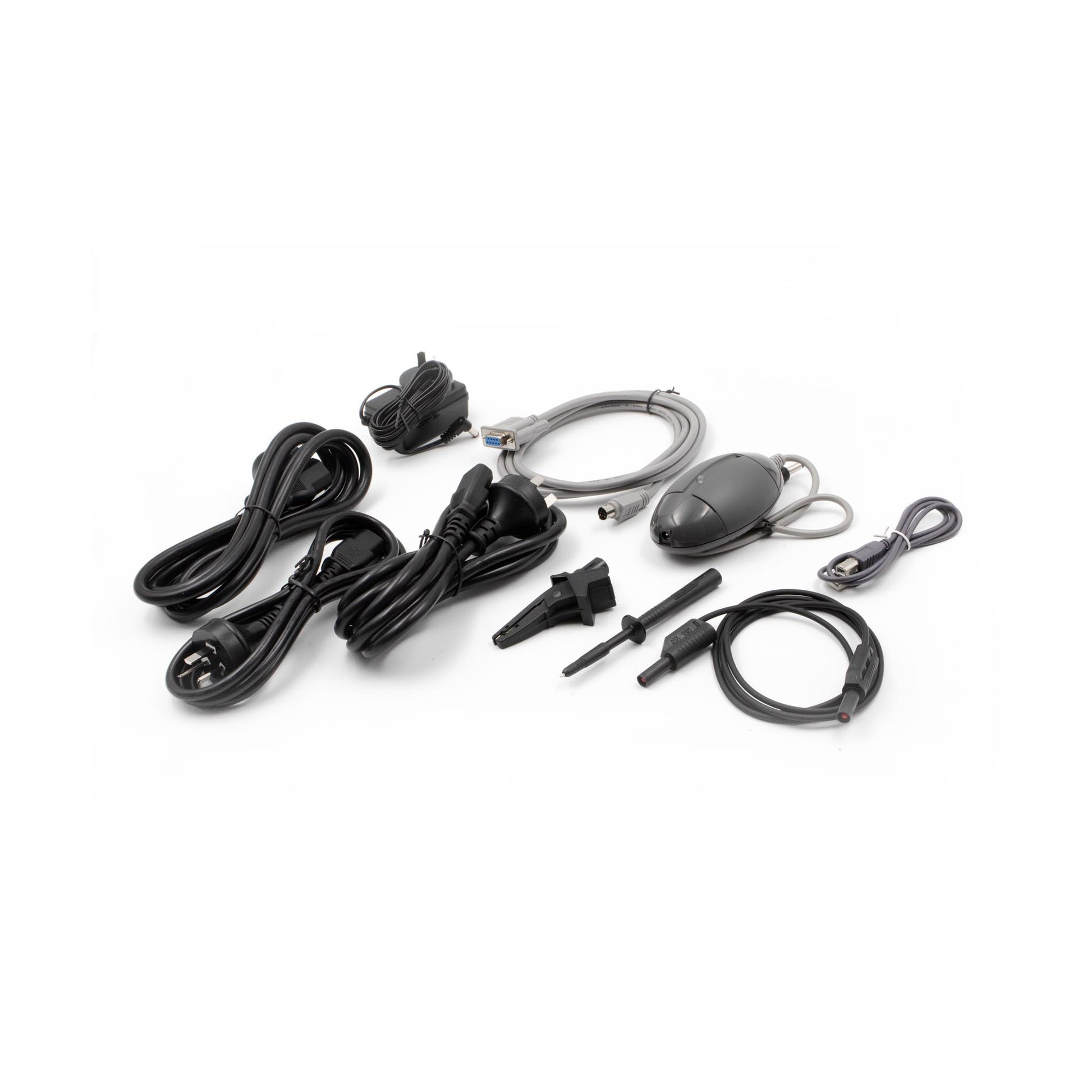

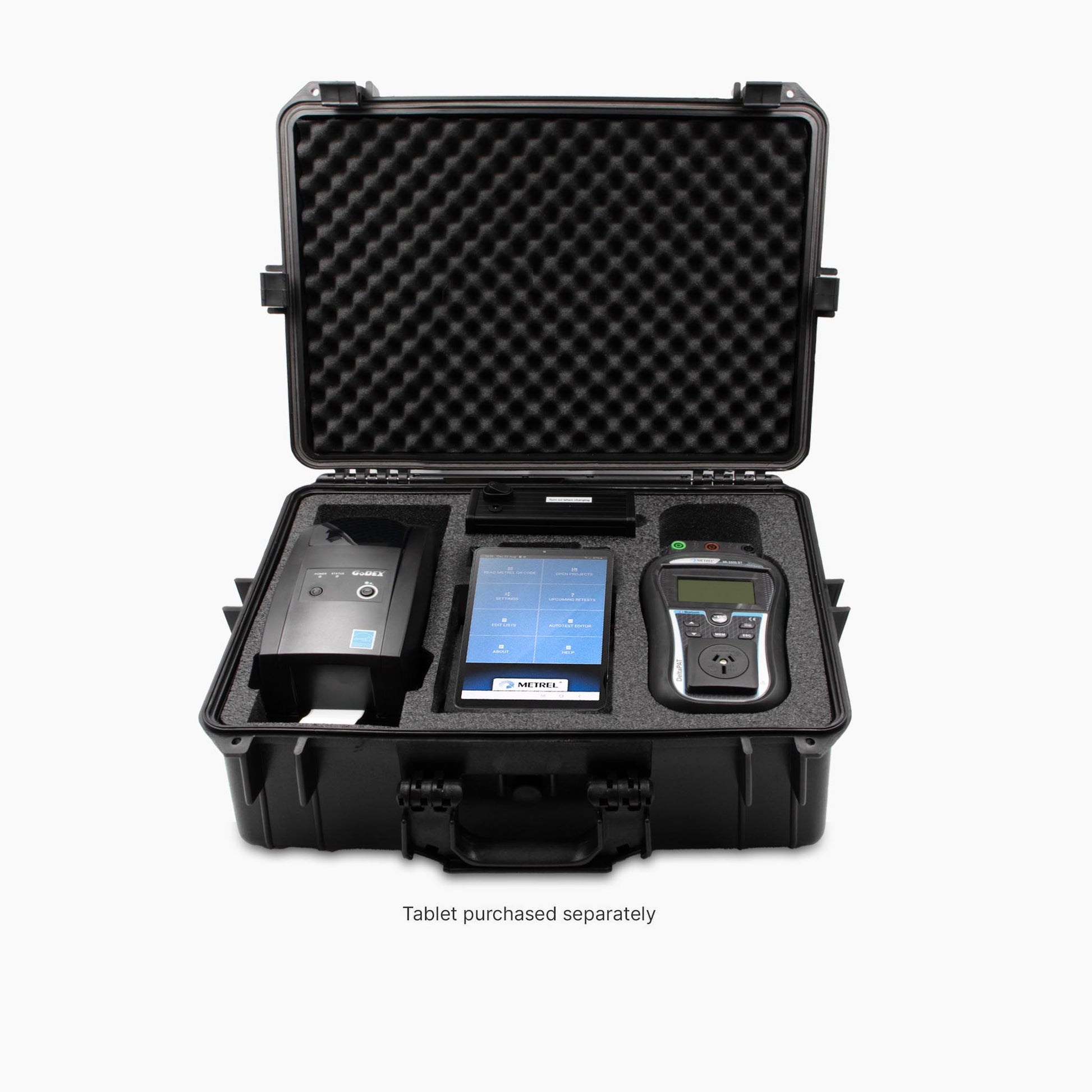

Godex RT200, Power Supply, NiMh Printer Battery, Charger, Earth Test Lead, Military Case, Custom Foam, Probe, Crocodile Clip, 6 x AA NimH batteries, 2 x IEC lead, Charger, Manual, USB cable, RS232 Cable, Certificate of Calibration, USB Cable, Android Application Unlock code, 500 Standard Duty White Test Tags.

Standard Warranty: 1 Year
