Metrel Delta 3309BT APAT Pro Print Pack Ultra-lite (Incl Starter Tablet)
Metrel Delta 3309BT APAT Pro Print Pack Ultra-lite (Incl Starter Tablet)
SKU:PKGULITU
Couldn't load pickup availability













Overview

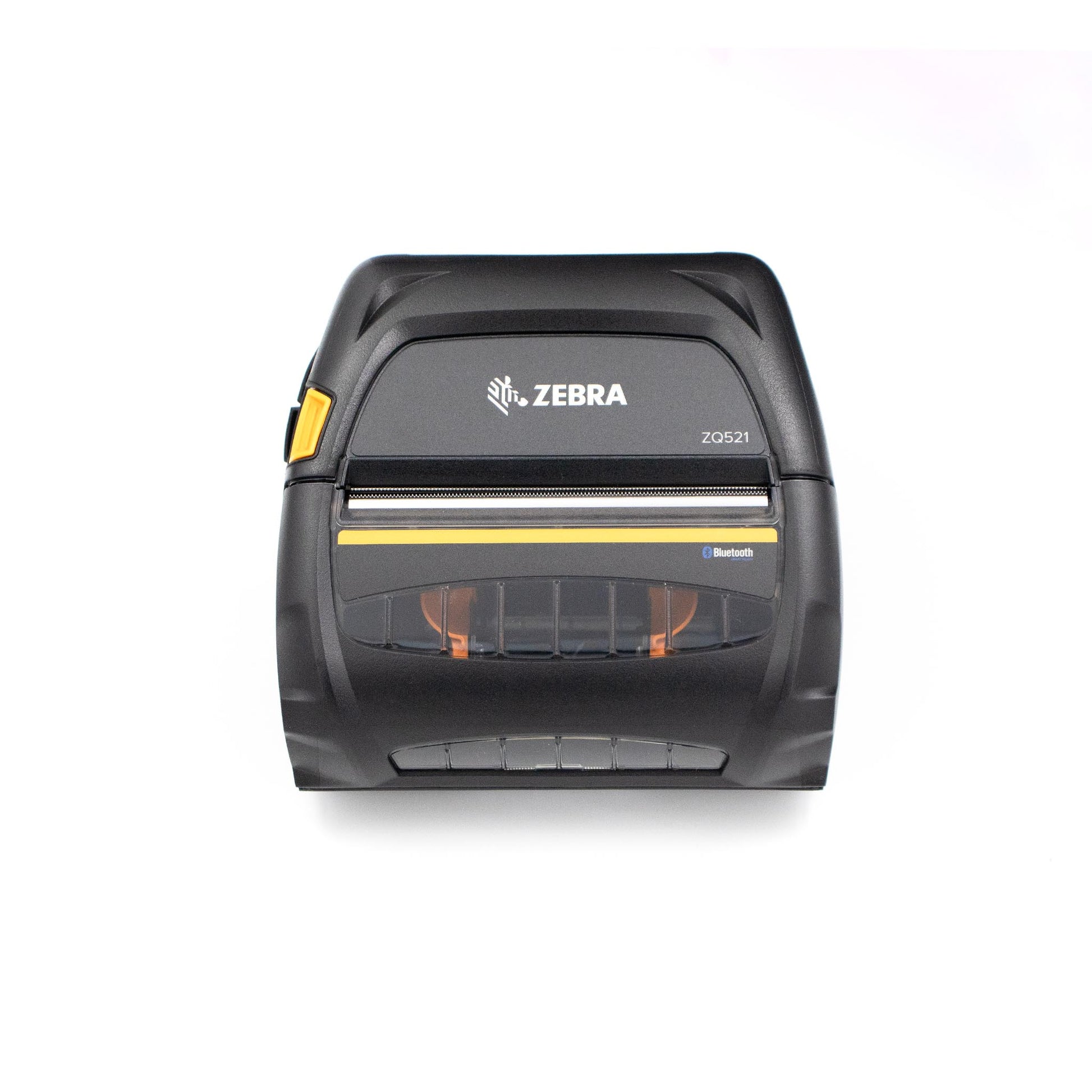

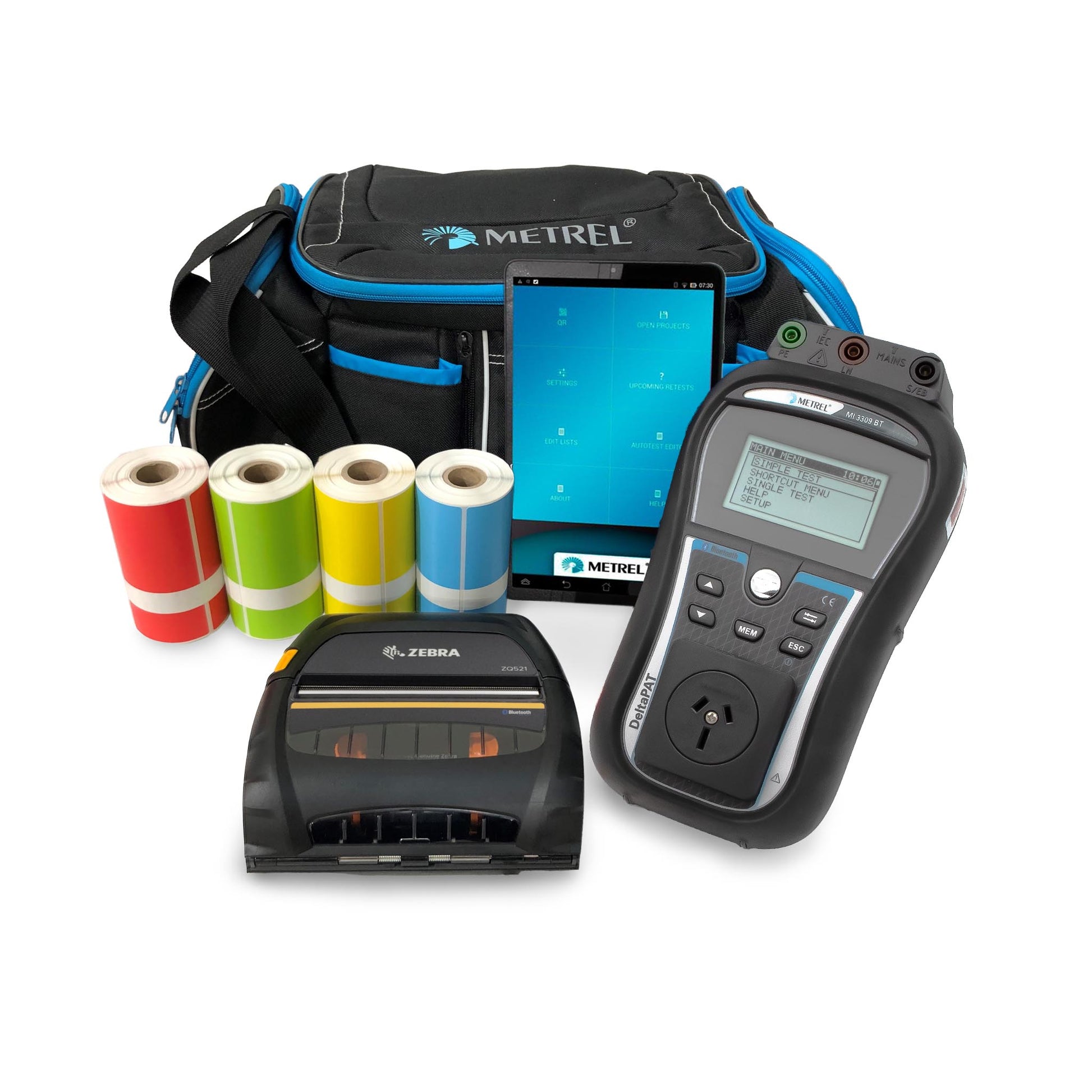

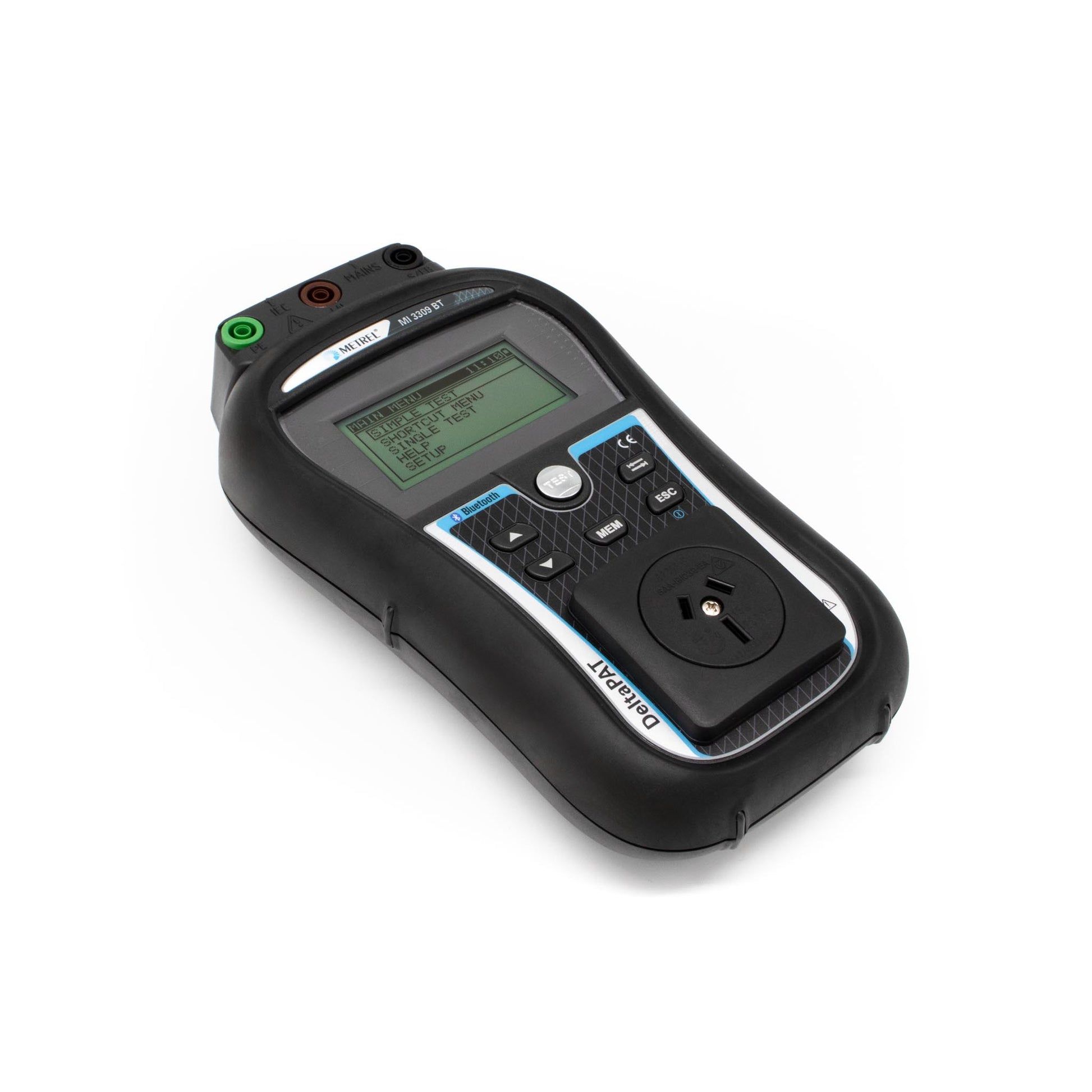

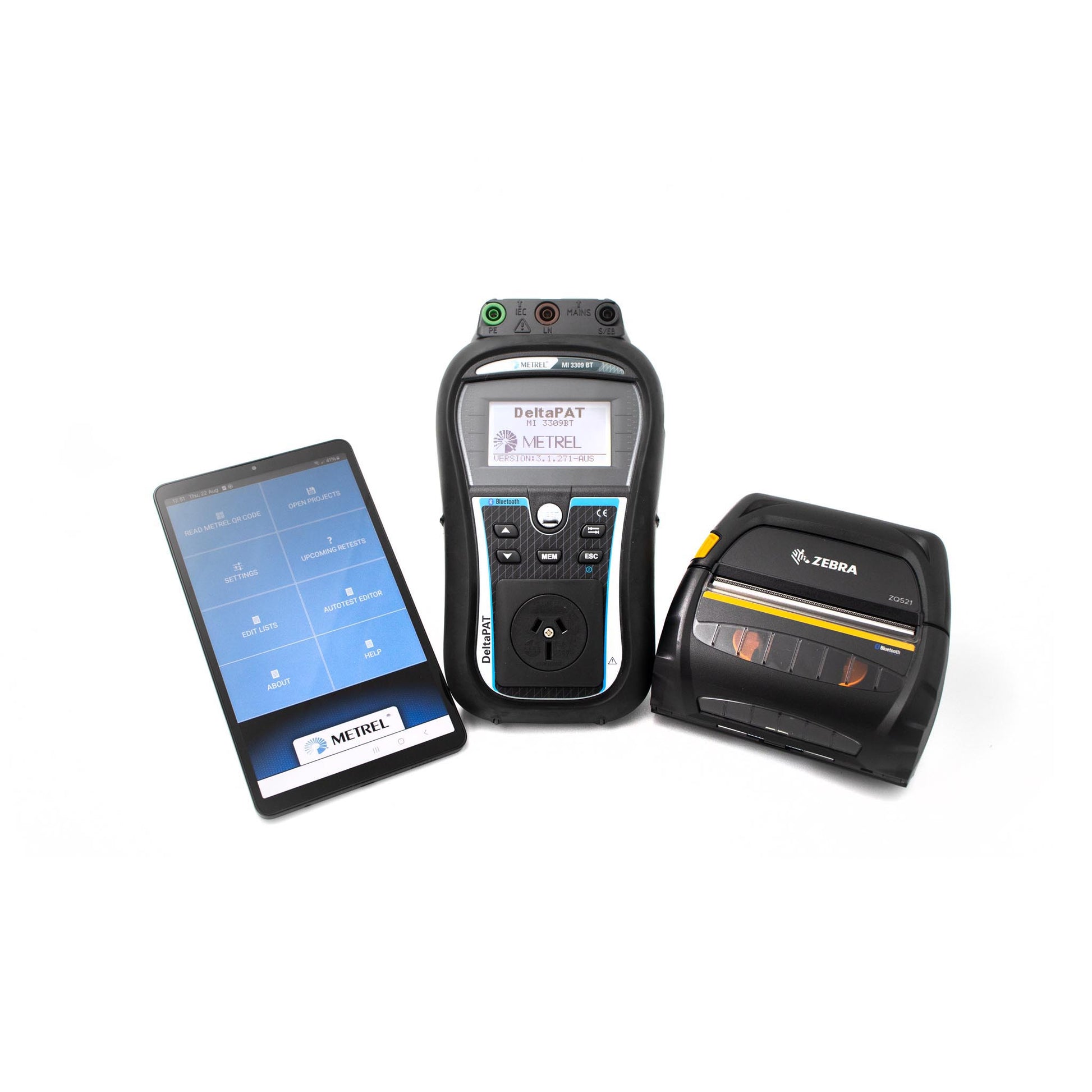

This Metrel Delta 3309BT APAT Ultra-Lite appliance testing package offers an ideal blend of portability, affordability, and functionality, making it an outstanding choice for streamlined appliance testing. Equipped with the Metrel Delta 3309BT appliance tester, a lightweight Metrel/Zebra Li-Ion belt clip printer, and the Android APAT application, this package delivers high-quality performance in a compact form factor.
Adding to its convenience, the system includes a soft case and tablet, enhancing value for money while also making it significantly lighter and easier to carry compared to traditional hard-case systems. This setup enables efficient, on-the-go testing with everything needed in one easy-to-transport package.

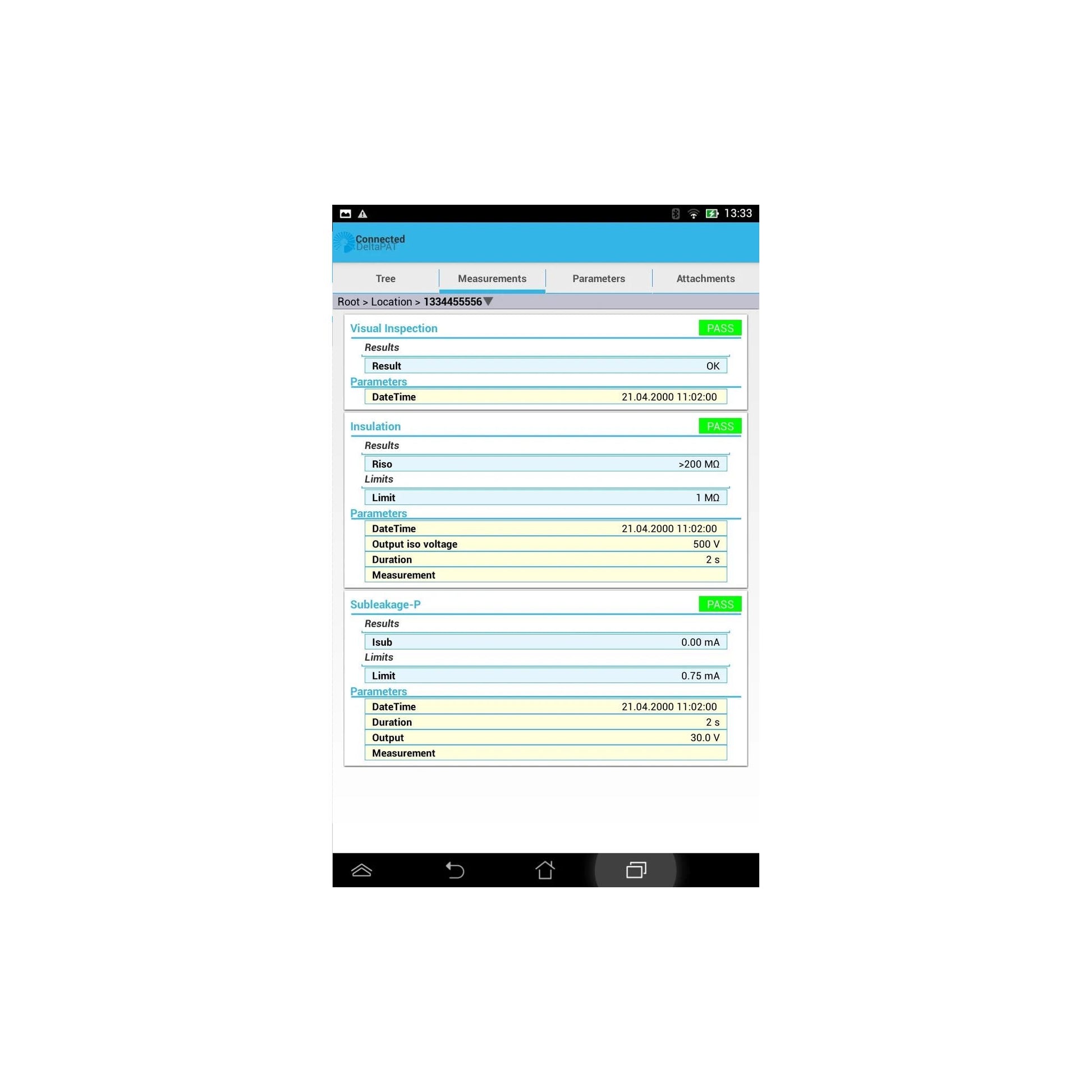

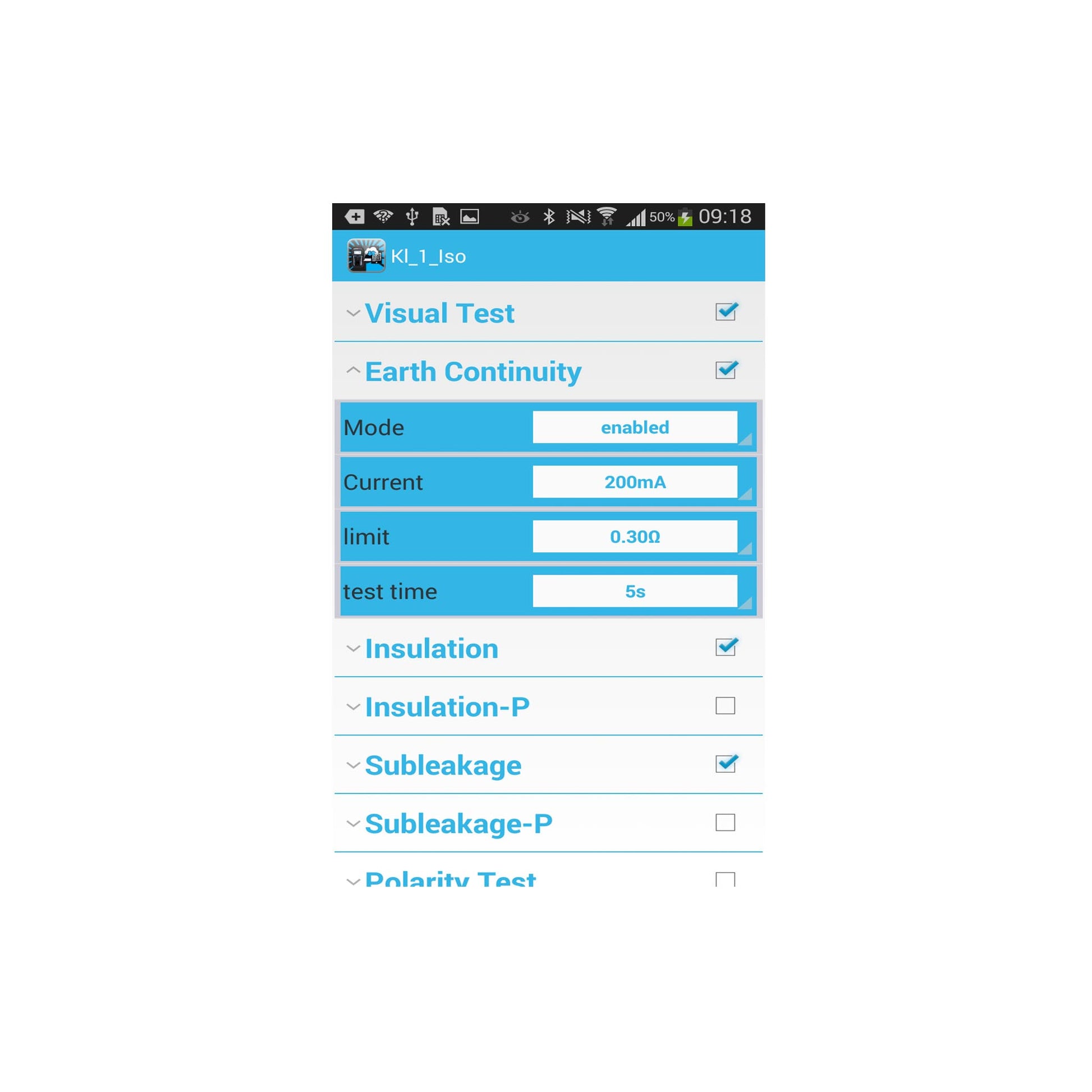

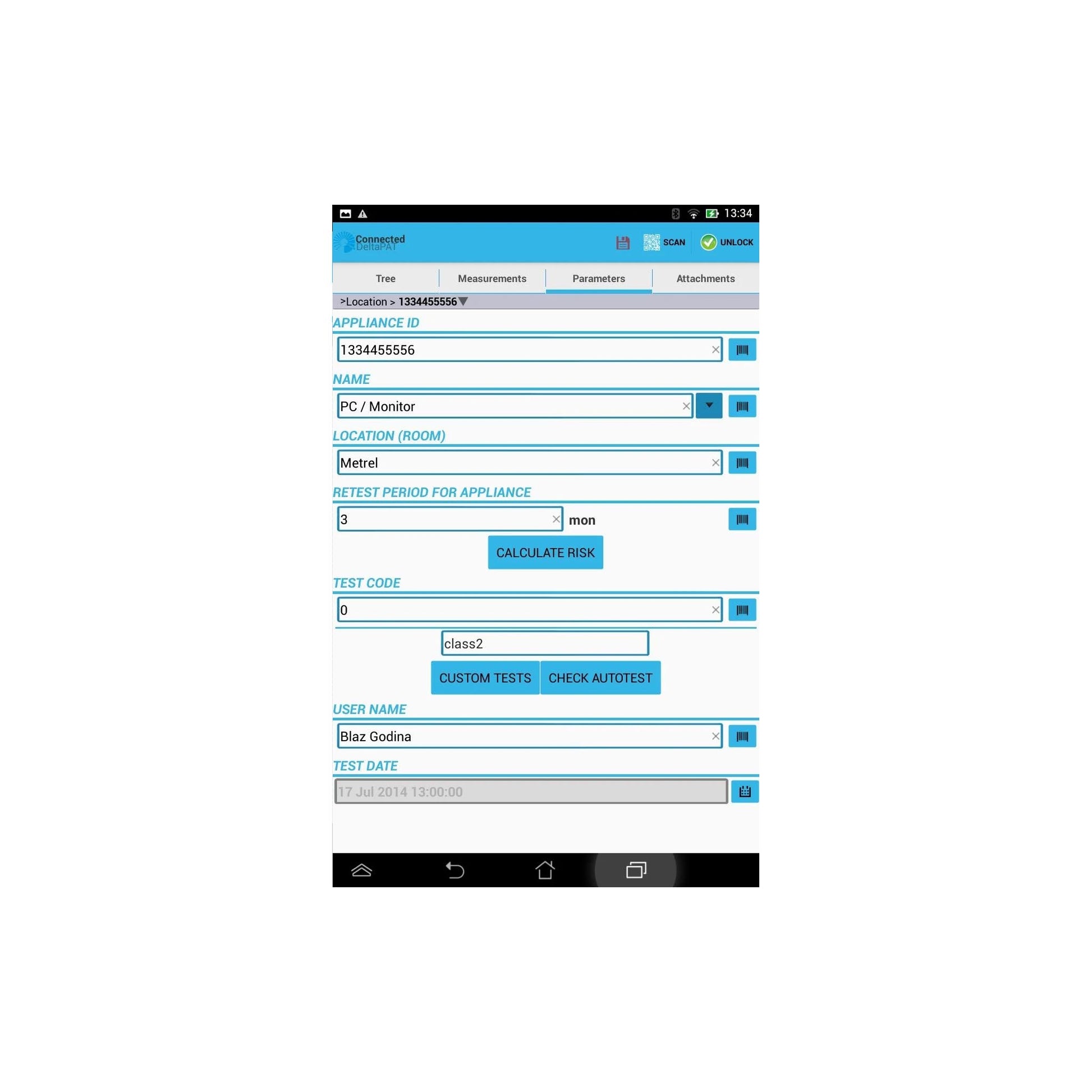

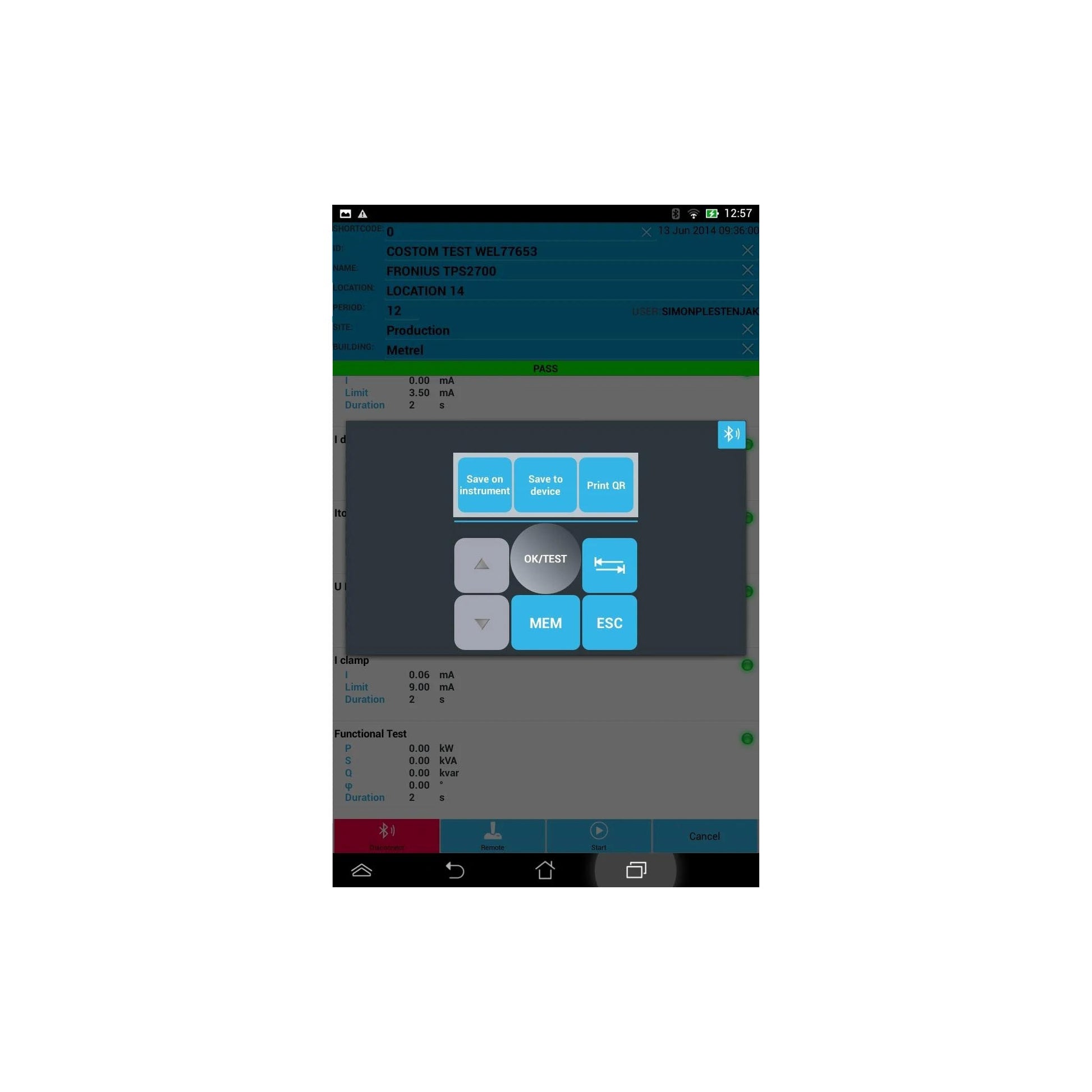

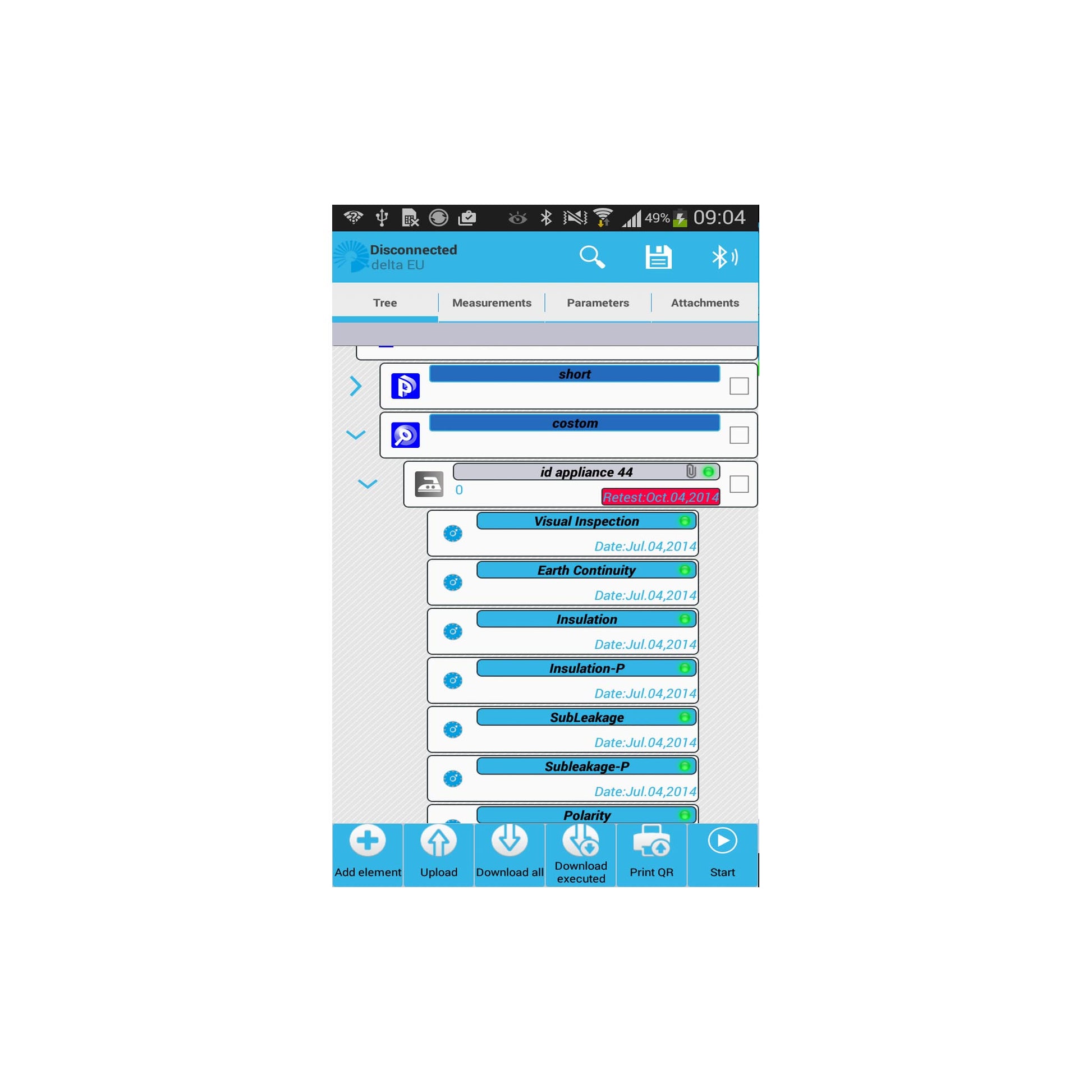

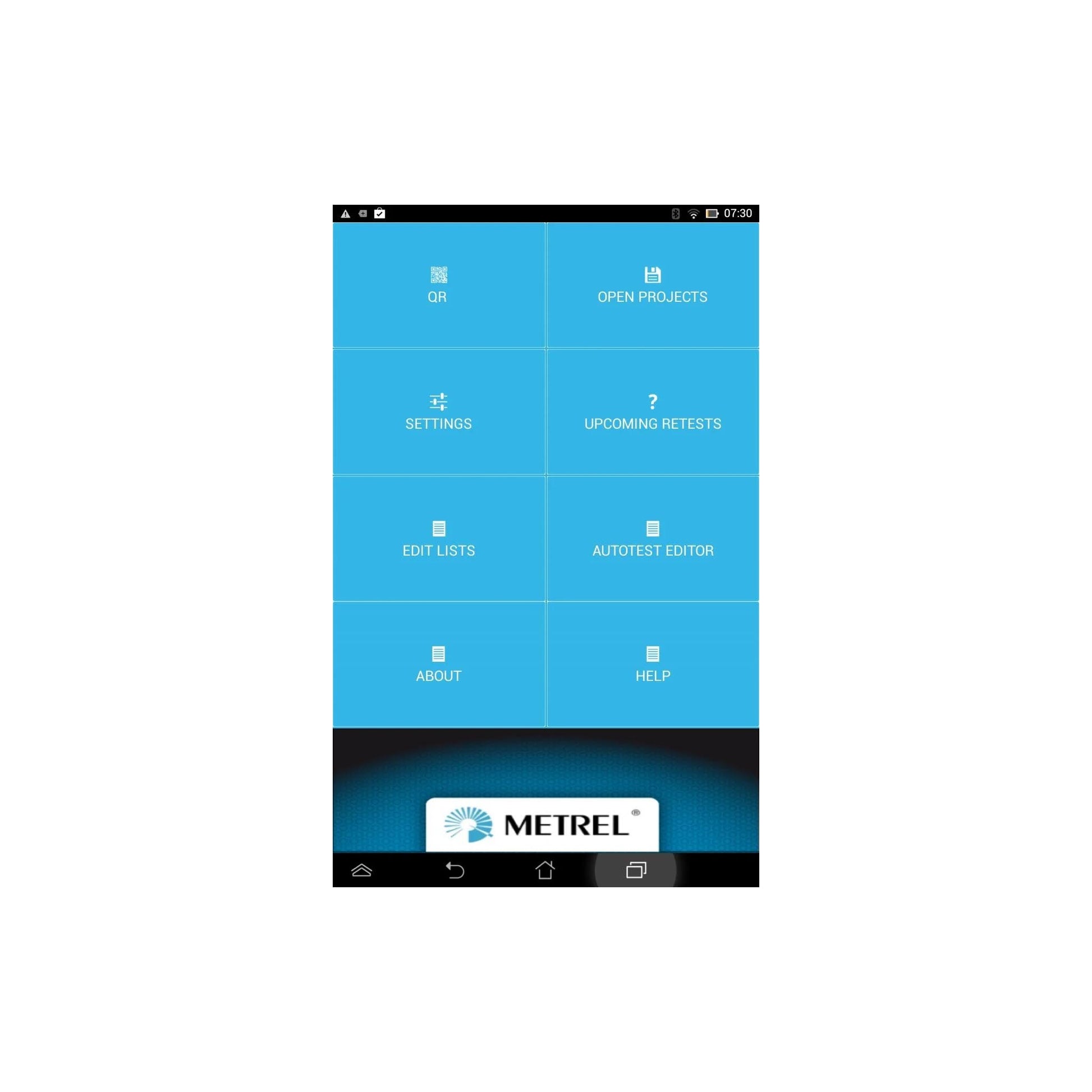

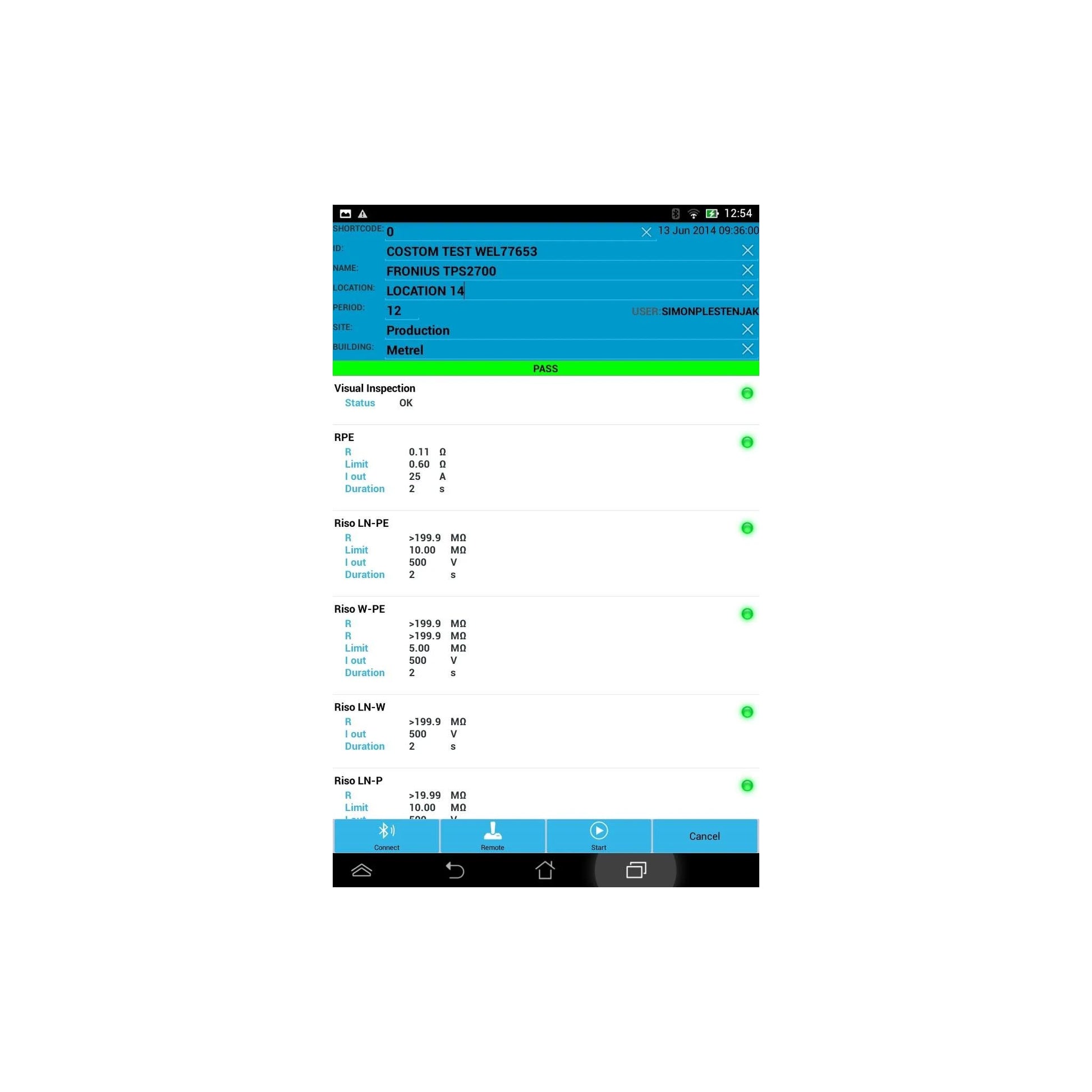

The Android APAT application transforms the testing experience by allowing users to control the PAT tester from an Android-compatible device (sold separately). This app simplifies test management with features like scanning QR codes to retrieve past test results and appliance data, selecting from short-code or user-defined tests, and linking images or attachments to specific assets. Users can easily search through stored test results, check testing statuses, and add pre-configured 'blank' appliances with incremental IDs ready for immediate testing.
Additionally, the system offers extensive storage flexibility; users can save tests directly on an Android device, then export them for reporting or archiving via PC software or popular file-sharing options. With user-programmable logos and advanced search capabilities, the Metrel package is a comprehensive solution that balances ease of use with professional-grade features, all in a lightweight, soft-cased system designed for seamless portability.
Applications
Testing appliances and leads in accordance with AS/NZS 3760.
Tester Specification Summary
- Earth Continuity – Yes (200mA)
- Insulation Resistance – Yes (250V/500V)
- Current Leakage – Yes
- Max Current Leakage – 16A
- Outlet Socket – 15A
- Polarity – Yes
- Portable RCD – Yes
- Fixed RCD (CATII*) – Yes
- Values Display – Yes
- Battery Type – NiMh
- Rechargeable – Yes
- Programmable Sequences – Yes
- Recording – Yes
- Records Descriptions – Yes
- Data Entry - Via App**
- Recall by ID# - Via App**
- Printer Option – Mains/Battery**
- Communications – USB/BT/RS232
- 3 Phase Leakage Option** – Yes
- Weight – 1.2 kg
*CATII - RCD testing from outlet sockets only
**Accessories purchased separately
Package Specification Summary
- Includes printer – Yes
- Printer Power – Battery
- Records descriptions - Yes
- Non-electrical Test Recording – No (Visual only possible)
- Barcode scanning – QR/2D
- Recalls by ID#/Scan - Yes Via App*
- Custom logo – Yes
- Printer – Direct Thermal
- Printer Comms – BT
- Case – Soft
- Subscription for tester use – No
- Subscription required for reporting – No
- System weight - –5.5kg
Included Accessories

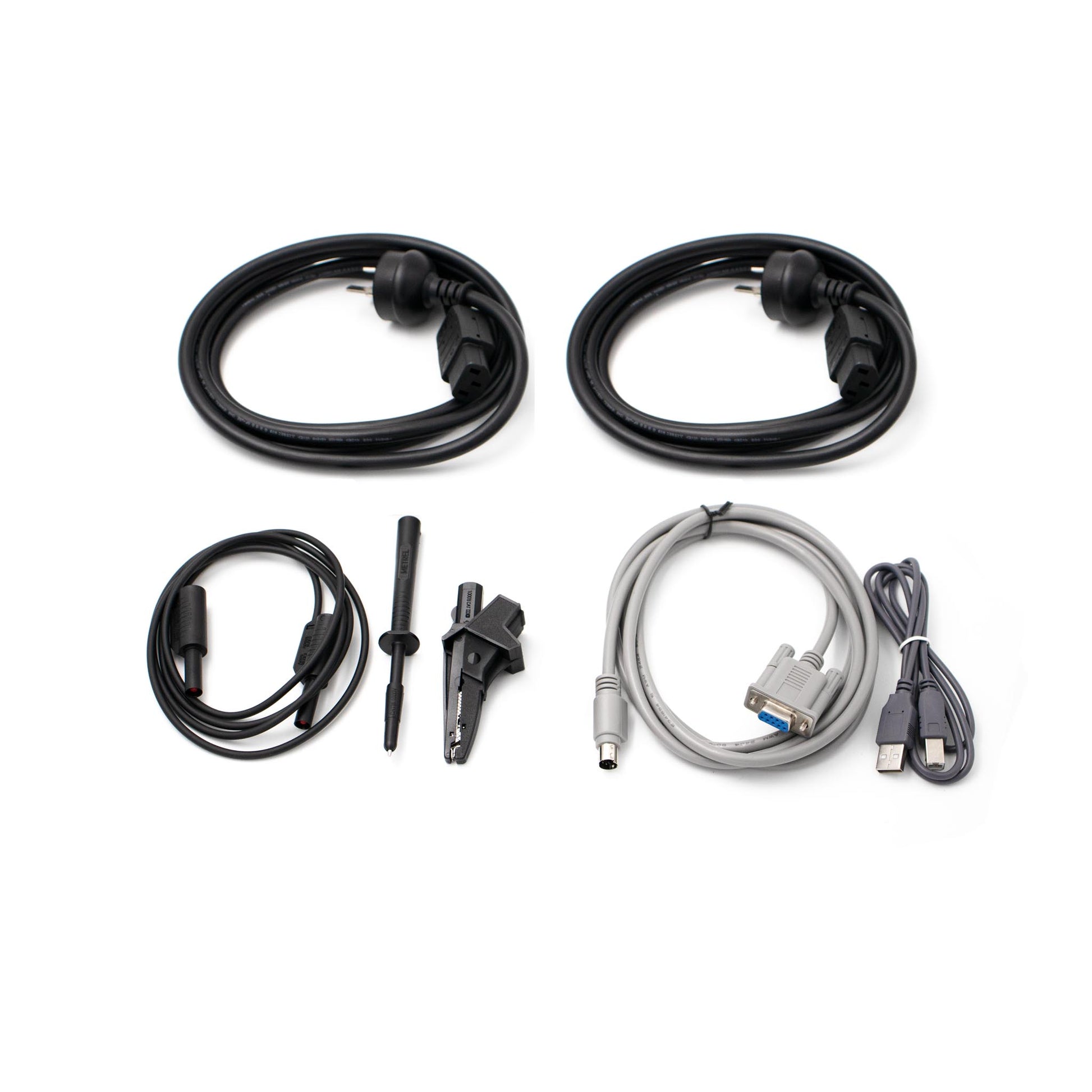

Li-Ion Tag Printer, Earth Test Lead, Military Case, Custom Foam, Probe, Crocodile Clip, 6 x AA NiMh batteries, 2 x IEC lead, Charger, Manual, USB cable, RS232 Cable, Certificate of Calibration, USB Cable, Android Application Unlock code, 250 White Test Tags.
Warranty
Standard Warranty: 1 Year
