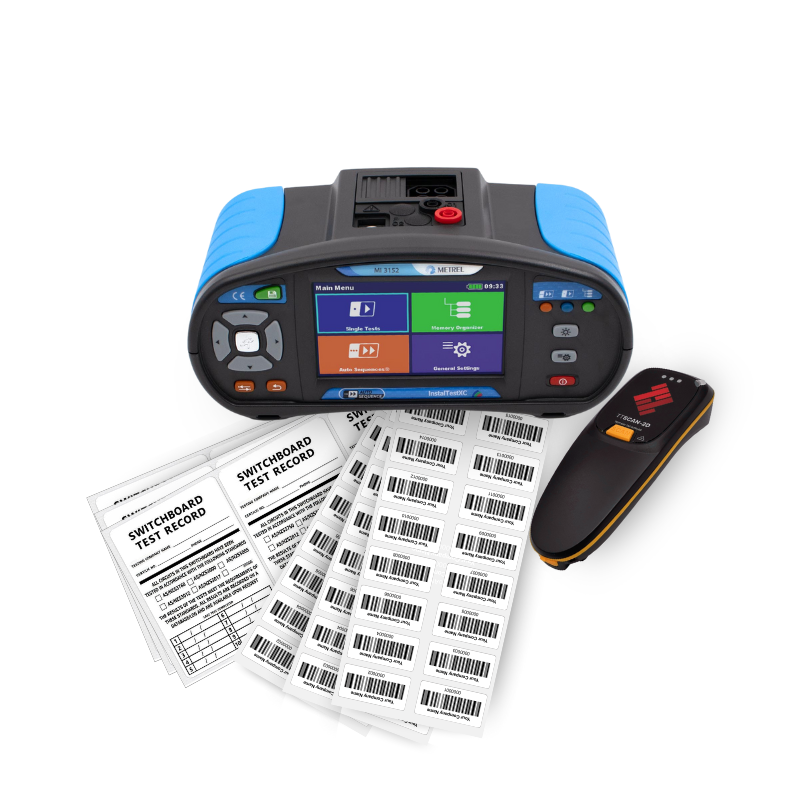

Metrel MI 3152 InstalTest XC Scan Pack

This package offers the ultimate solution for technicians testing RCDs for push-button or trip time on a periodic basis. The revolutionary Metrel InstalTest XC provides quick data entry for installation structures, which can be recorded directly on the InstalTest XC or configured on a PC (or Android device via ES Manager Android - sold separately) and uploaded to the memory of the InstalTest. This tester allows for recording with site hierarchies such as building/site names, switchboard references, and individual RCD ID numbers. The kit includes a Bluetooth barcode scanner, 500 custom 35mm x 17mm RCD ID labels with your company name, and 100 switchboard inspection test labels with removable adhesive, also customized with your company details.

Please note: The InstalTest is not a portable appliance tester and is not suited for testing appliances.

The Metrel InstalTest XC is a cutting-edge installation tester with advanced recording facilities. Multifunction installation testers have been available for some time, but none have addressed the need for advanced recording capabilities that allow detailed data entry and recall for retesting. This installation tester is designed for compliance with AS/NZ3000 standards by the manufacturer, Metrel.

Suitable for multifunction testing of appliances and installations, push-button RCD testing, and medical RCD testing to AS3003. The InstalTest XC is Australia's first installation and multifunction tester with Pass/Fail limits set to AS/NZ3000 Wiring Rules, Bluetooth compatibility for rapid retesting, and results recording to meet owner/occupier reporting and contractor record-keeping obligations.

• Visual Tests
• Push Button RCD Test
• RCD Trip Time Test (including random phase selection for AS3003)
• RCD Trip Current Test
• RCD Contact Voltage
• RCD Auto Test
• Voltage
• Frequency
• Phase Sequence (Rotation)
• Socket Test (Basic - Live, or Resistance)
• Insulation (50V, 100V, 250V, 500V, 1000V)
• Dielectric Absorption Ratio
• Varistor Test
• Low Resistance (Earth Bonding)
• Continuity Test
• Z Loop Impedance and Prospective Fault Current Test
• Z Loop Impedance and Prospective Fault Current Test with RCD (Low Current Test - No Trip)
• Z Loop Impedance and Prospective Fault Current Test - High Precision Test (Milliohm)
• Z Line Impedance and Prospective Short Circuit Current Test
• Z Line Impedance and Prospective Short Circuit Current Test - High Precision Test (Milliohm)
• Voltage Drop Test
• Earth Resistance (3-Wire) Test
• Contactless Earth Resistance Test (requires clamps sold separately)
• Specific Earth Resistance Test (requires A1199 sold separately)
• Power (requires clamps A1018, A1019, A1391 sold separately)
• Harmonics (requires clamps A1018, A1019, A1391 sold separately)
• Illumination (requires A1172, A1173 sold separately)
• RCD Pass/Fail Thresholds Configured to AS3000 & AS3760 Requirements
• Loop Impedance Pass/Fail Thresholds According to AS3000 Table Requirements

Included Accessories:

• Soft Carry Bag
• Neck Carrying Belt
• Short Instruction Manual
• Instruction Manual
• Calibration Certificate
• Mains Measuring Cable (1.5m)
• Universal Test Cable (Black, Red, and Green Test Clips)
• 20m Earth Resistance Cable Reel
• 3 x Alligator Clips
• ES Manager Software
• USB Interface Cable
• 6 x Rechargeable Batteries
• Power Supply Adaptor
• Bluetooth Barcode Scanner
• 500 x 35mm x 17mm RCD Labels
• 100 x Switchboard Tags with Removable Adhesive

Optional Accessories:

ES Manager Pro Edition upgrade sold separately

1 Year
