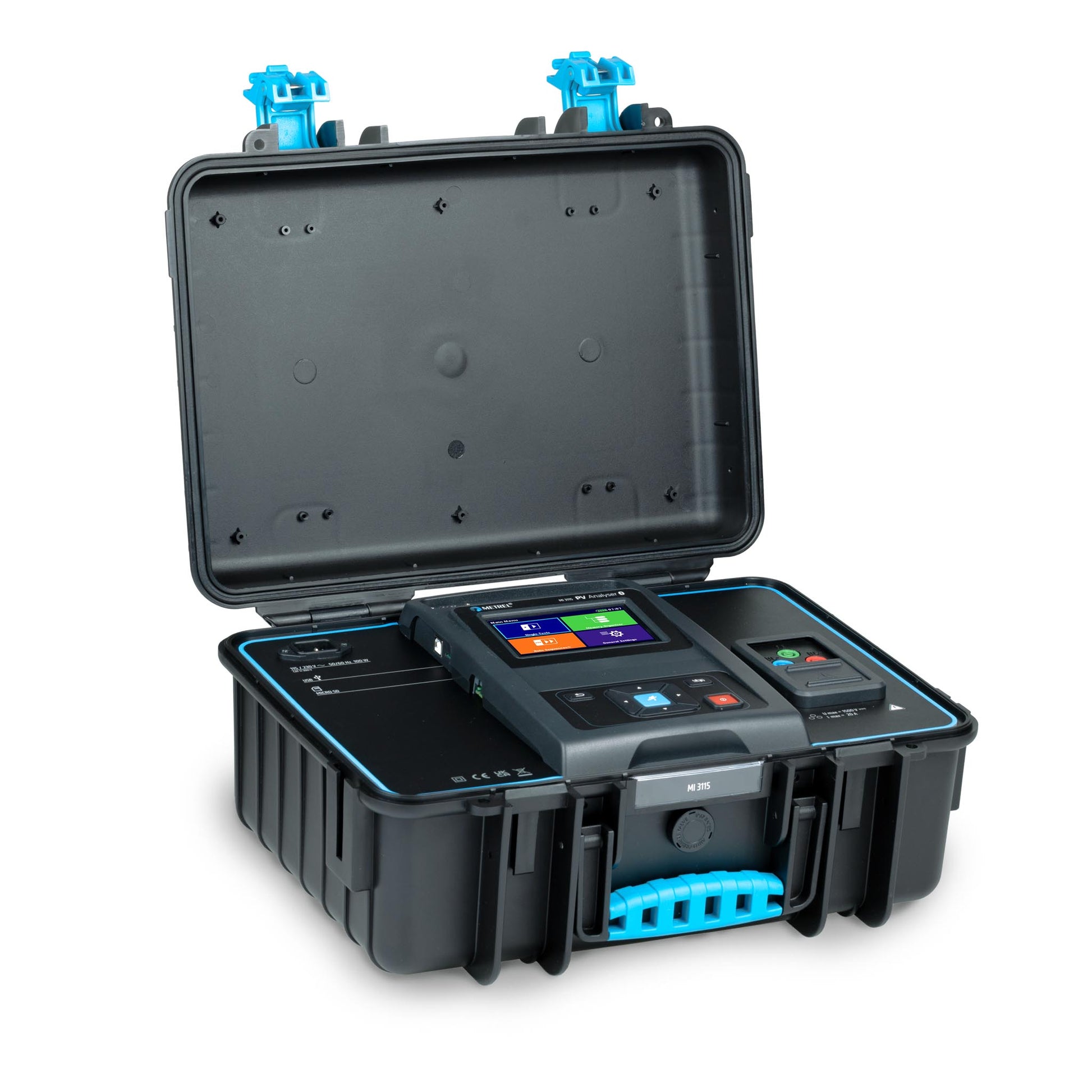

Metrel MI 3115 PV Analyser 20A 1500V

The MI 3115 PV Analyser is Metrel’s professional-grade photovoltaic (PV) and electrical installation tester, designed for testing 1500 V photovoltaic systems with precision and efficiency. It supports all Category 1 and Category 2 tests and measurements in accordance with IEC/EN 62446-1 and EN 62446-2 standards, making it ideal for solar installers, maintenance engineers, and commissioning technicians.

The MI 3115 performs a wide range of PV measurements — including insulation resistance of PV strings, continuity of PE conductors, Isc and Uoc tests, and complete I/U characteristic measurements. Using its wireless remote unit, the analyser simultaneously records real-time irradiation and cell temperature, ensuring accurate conversion of measured values to STC (Standard Test Conditions) and direct comparison with manufacturer data.

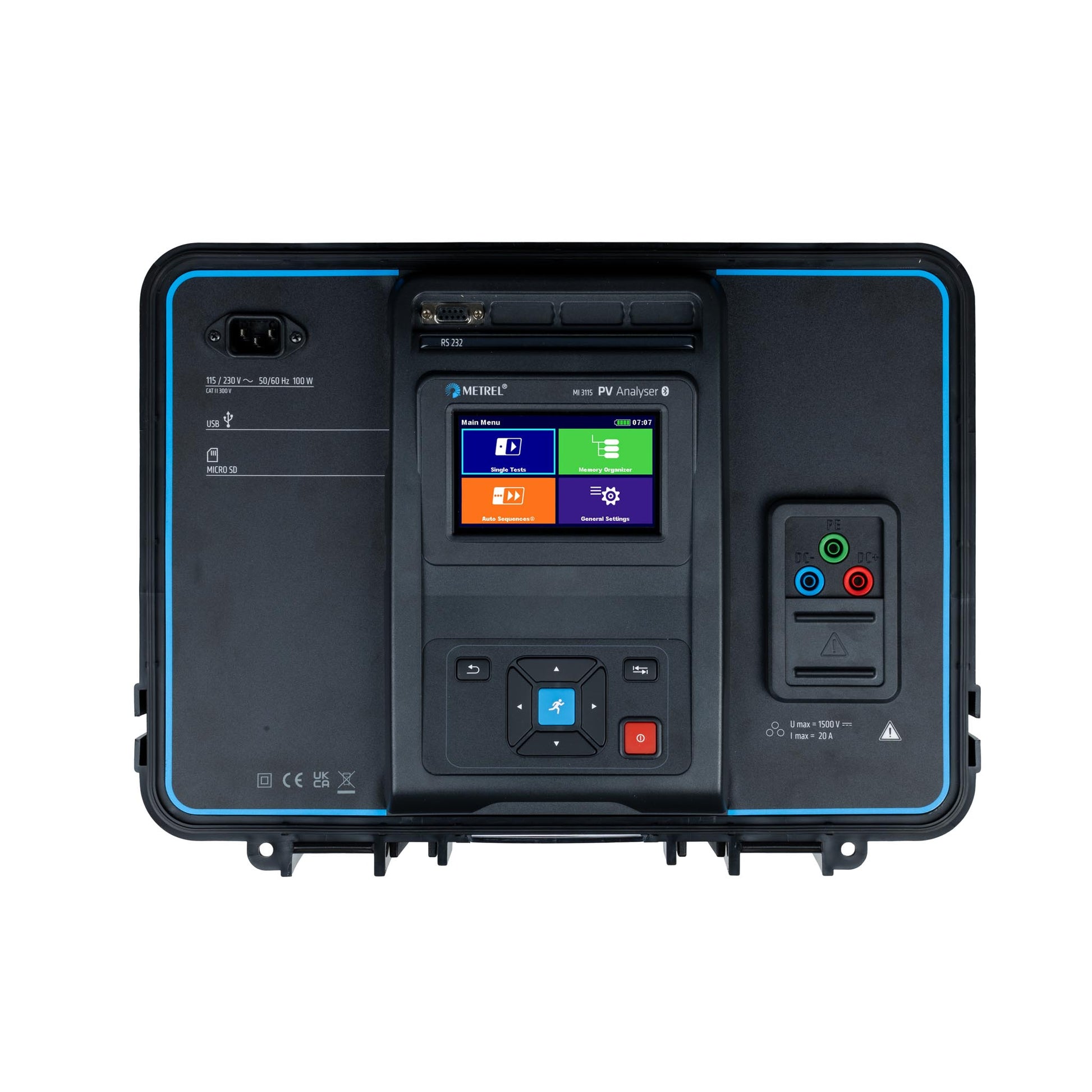

An intuitive 4.3” colour touch screen provides full control of all test parameters, results review, and data management. With AUTOSEQUENCE® capability, users can execute multiple Category 1 tests at once — automating test workflows and reducing setup time for large PV installations.

• 1500 V PV system testing – Complete insulation and I/U characteristic testing for modern high-voltage PV installations.
• Capacitive measurement method – Enhances precision and stability during voltage and current readings.
• Wireless remote unit (Wi-Fi) – Measures and logs solar irradiation and module temperature for accurate performance analysis.
• Auto test functionality – Consolidates Category 1 tests into a single operation for faster, more efficient testing.
• STC value calculation – Automatically converts measured data to standard test conditions and compares with nominal module data.
• Post-measurement correction – Edit previously entered parameters even after the measurement is complete.
• Advanced user interface – Operate via a large colour touchscreen, store results, and view graphical I/U curves.
• Data organisation tools – Includes a memory organiser, PV module database handler, and powerful search functionality.
• PC software integration – Fully compatible with Metrel ES Manager for pre-preparation of test sequences, I/U curve analysis, and professional reporting.

• Insulation resistance of PV strings (up to 1500 V)
• Continuity of protective conductors
• Polarity testing
• Short-circuit current (Isc) and open-circuit voltage (Uoc) testing
• I/U curve plotting (up to 1500 V / 20 A / 24 kW)
• Wireless acquisition of irradiation and temperature via remote sensor

• Voltage: 20.0–1699 VDC (±1% accuracy)
• Current: 0.10–19.99 ADC (±1% accuracy)
• Power: 0.2 W–29.9 kW (±2% accuracy)
• Irradiation (A1834): 300–1750 W/m² (±4% accuracy)
• Temperature (A1833): –10.0°C to +85.0°C (±5 digits)
• Insulation resistance: up to 999 MΩ @ 250V–1500V DC (±5–10%)
• Continuity (200 mA): 0.00–1999 Ω (±3–10%)
• Display: 4.3” colour TFT (480×272 px)
• Power supply: Li-Ion 14.4V (main unit), 9VDC (remote unit)
• Memory: MicroSD up to 512 GB (>3000 results)
• Connectivity: RS232, USB, Bluetooth, Wi-Fi (for PV Remote WL)
• Protection: IP54 (closed), IP40 (open)
• Weight: 6.8 kg (main unit), 1 kg (remote unit)

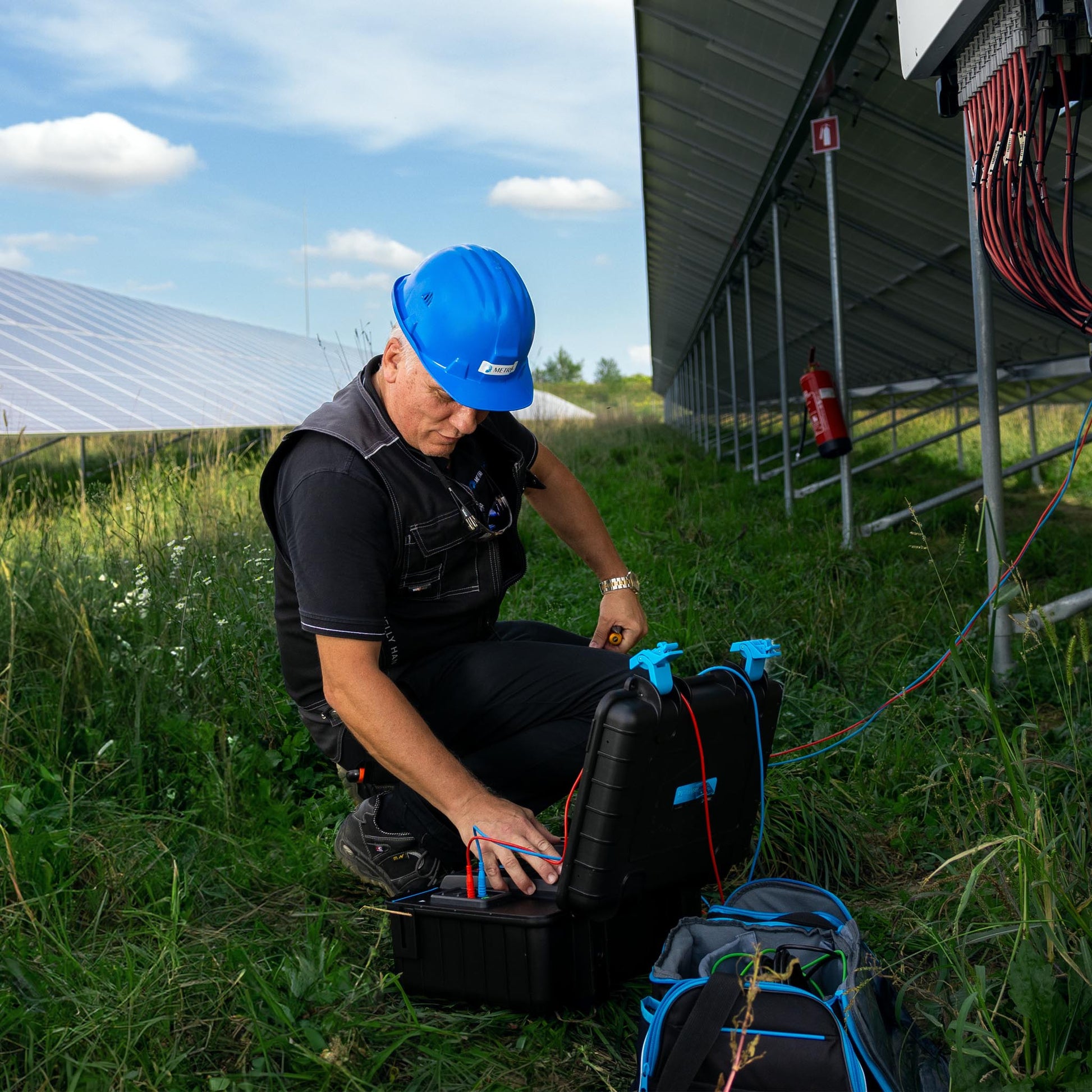

• Testing and commissioning of large-scale 1500 V PV plants
• First inspection and verification of new installations
• Periodic and maintenance testing for ongoing compliance
• Performance evaluation and fault diagnostics
• Generation of detailed, standards-compliant test reports via Metrel ES Manager

• EN 62446-1 / EN 62446-2 – Testing and documentation of PV system performance
• EN 61557 – Electrical safety testing of low-voltage installations
• EN 61326-1 – Electromagnetic compatibility
• EN 61010-1 / EN 61010-2-30 / EN 61010-031 – Electrical safety standards

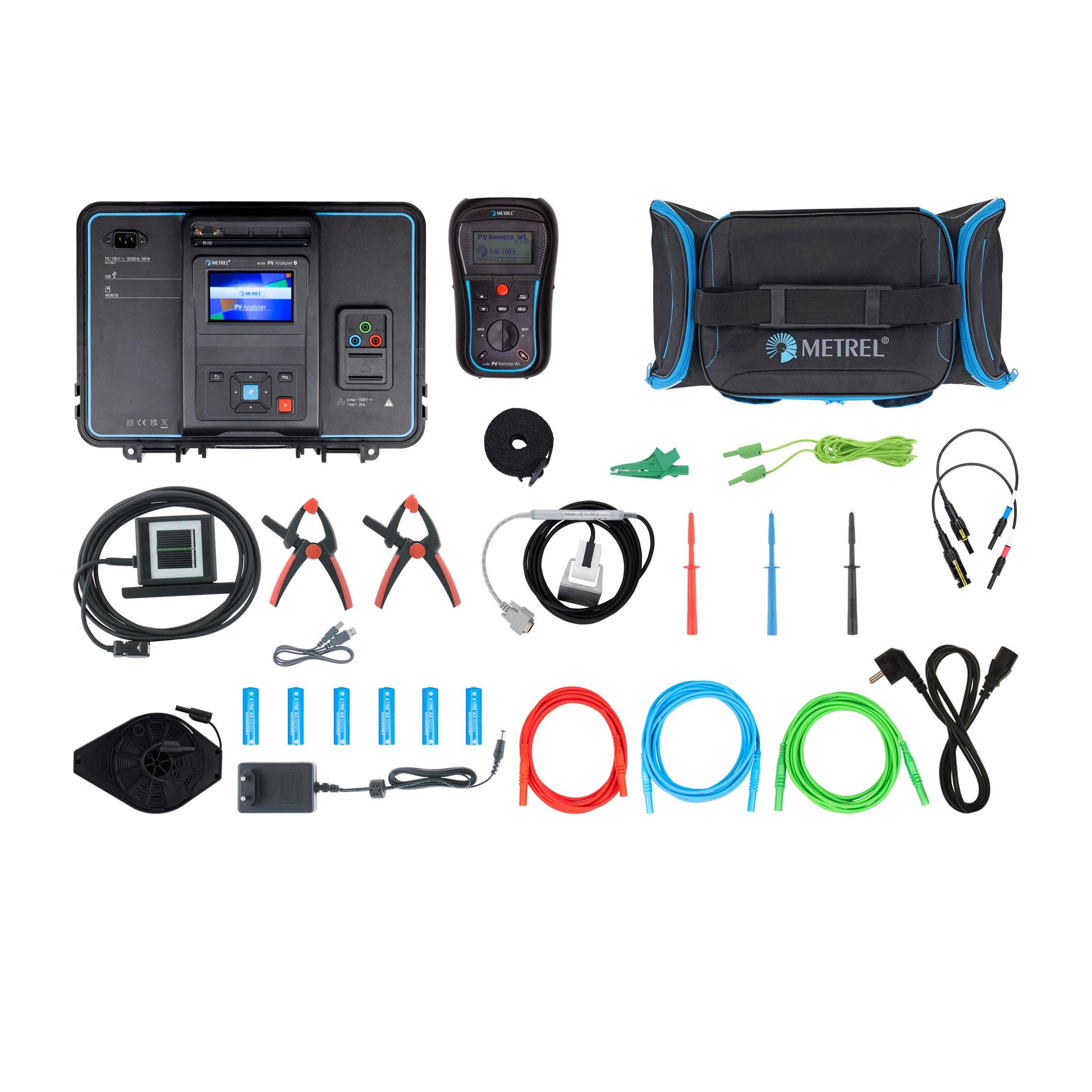

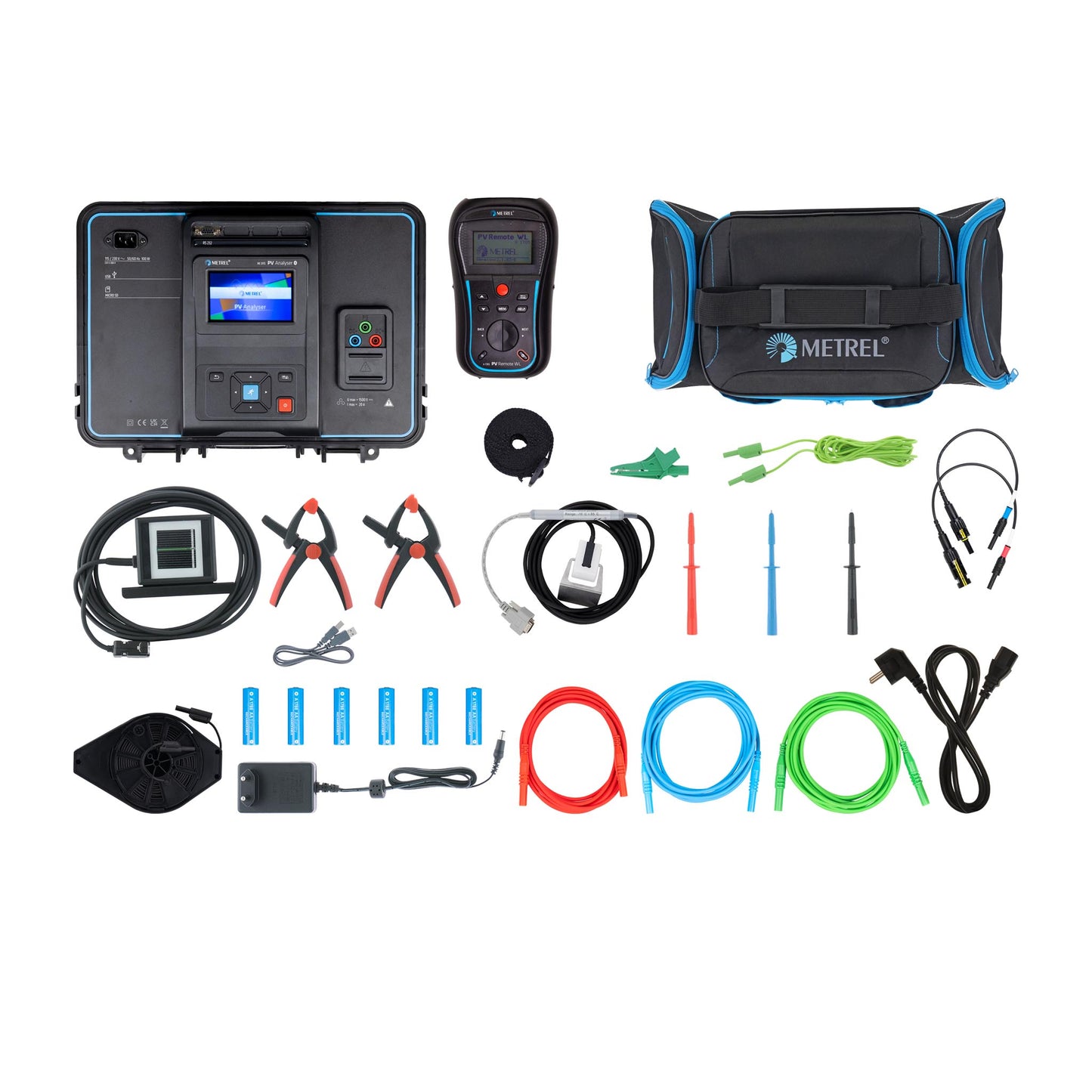

Standard Set MI 3115 ST

• MI 3115 PV Analyser

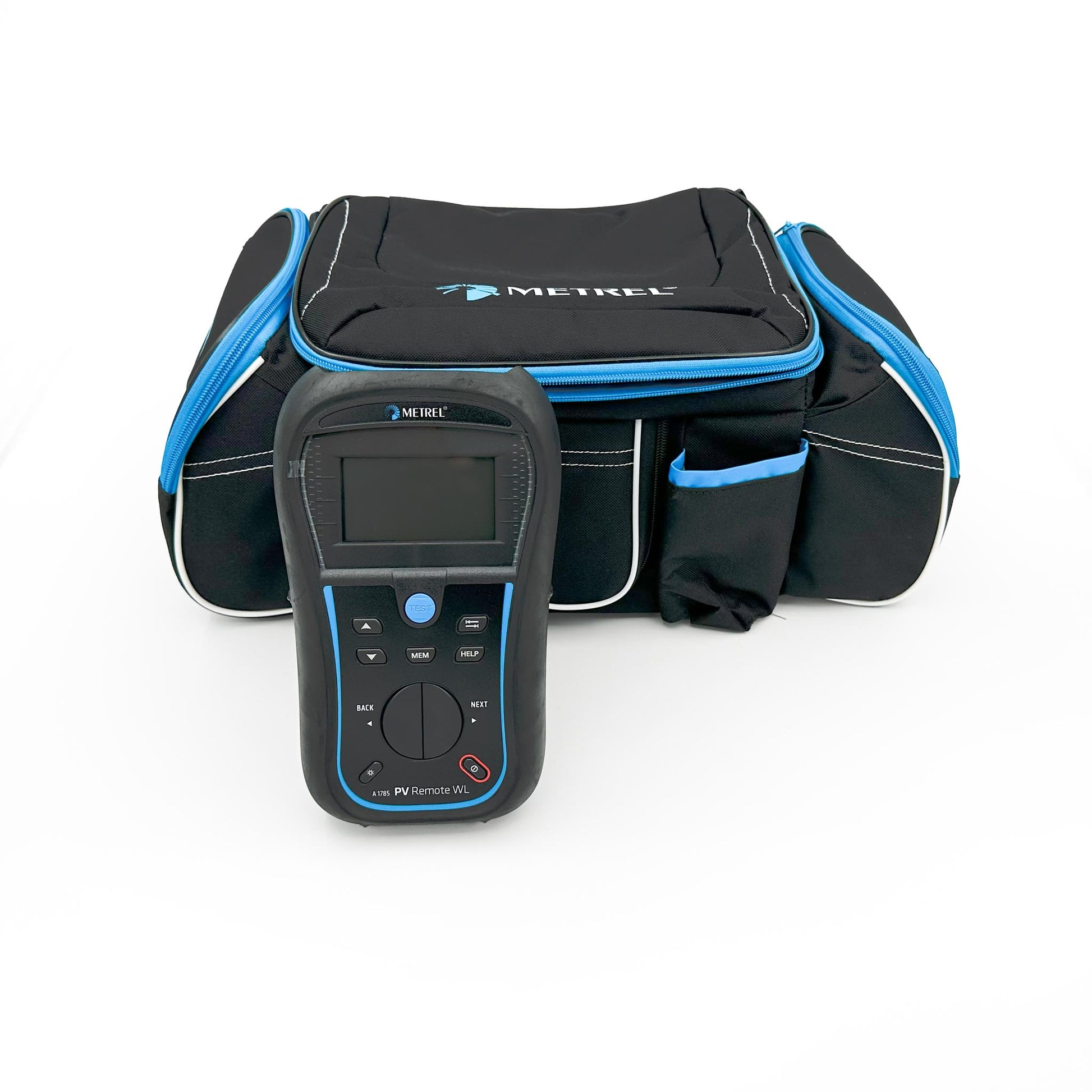

• A1785 PV Remote WL
• A1833 PV temperature sensor
• A1834 PV reference cell
• 2 × A1835 Clamps for accessories
• S2145 Set of MC4 to banana adapters
• A1790, A1792, A1509, A1012 test leads (various sizes and colours)
• A1309 Crocodile clip, A1014–A1016 test probes
• A1727 USB cable, A1728 power cable

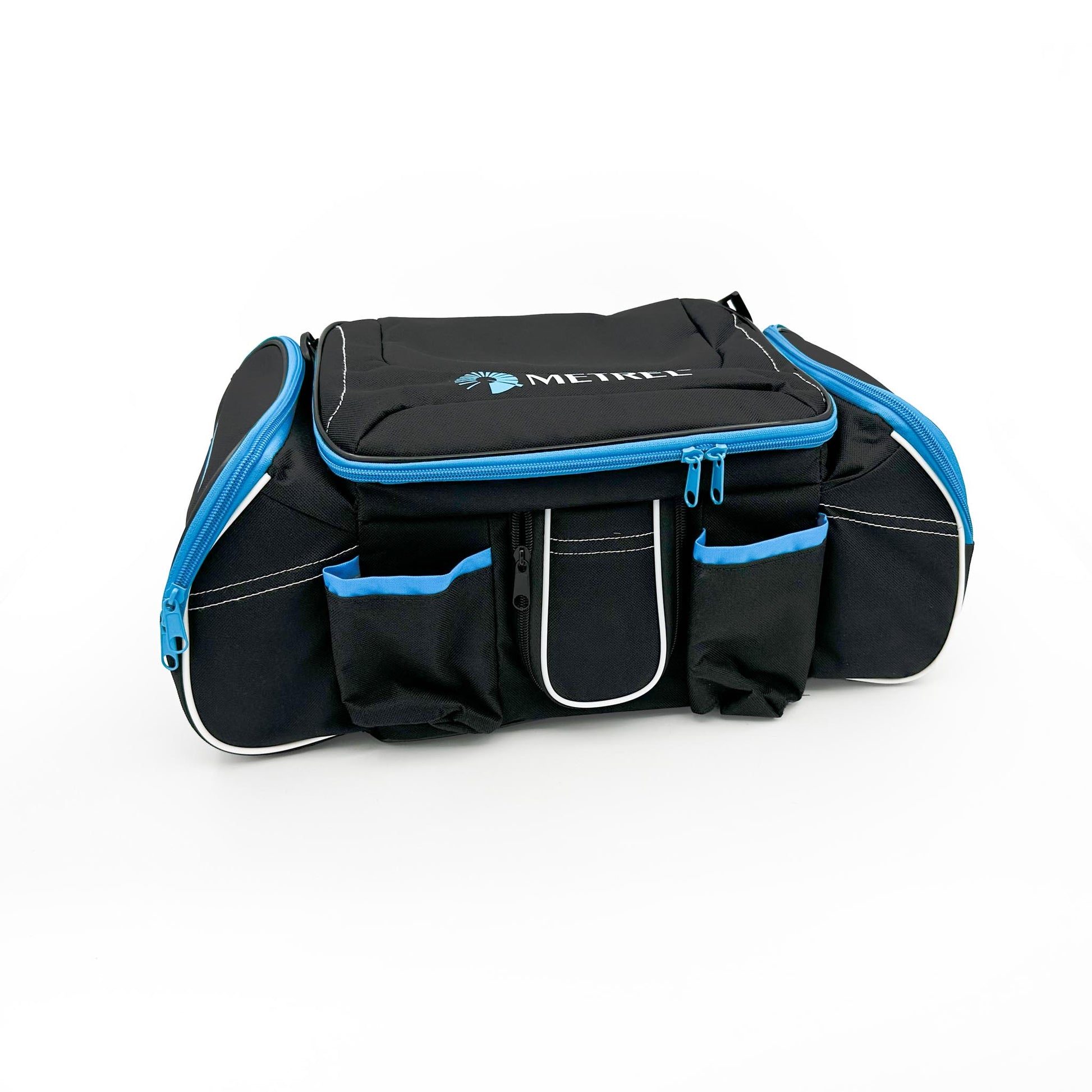

• A1551 Soft padded carrying bag (Size L)
• A1548 Power supply 0.5A / 12V
• A1791 Carrying strap
• S2080 Rechargeable batteries (AA, 1.2V 2100 mAh, 6 pcs)
• Calibration certificates (MI 3115 and A1785)
• User manual
• PC software: Metrel ES Manager (downloadable)

• A1569 – Power supply 3A / 12V
• A1530 – G clamp Ø27 mm
• A1552 – XL padded carrying bag
• P1403 – 3-year Metrel Smart Cloud PRO subscription (includes Cloud Reports and 24 GB Cloud Storage)

Standard Warranty: 2 Years
