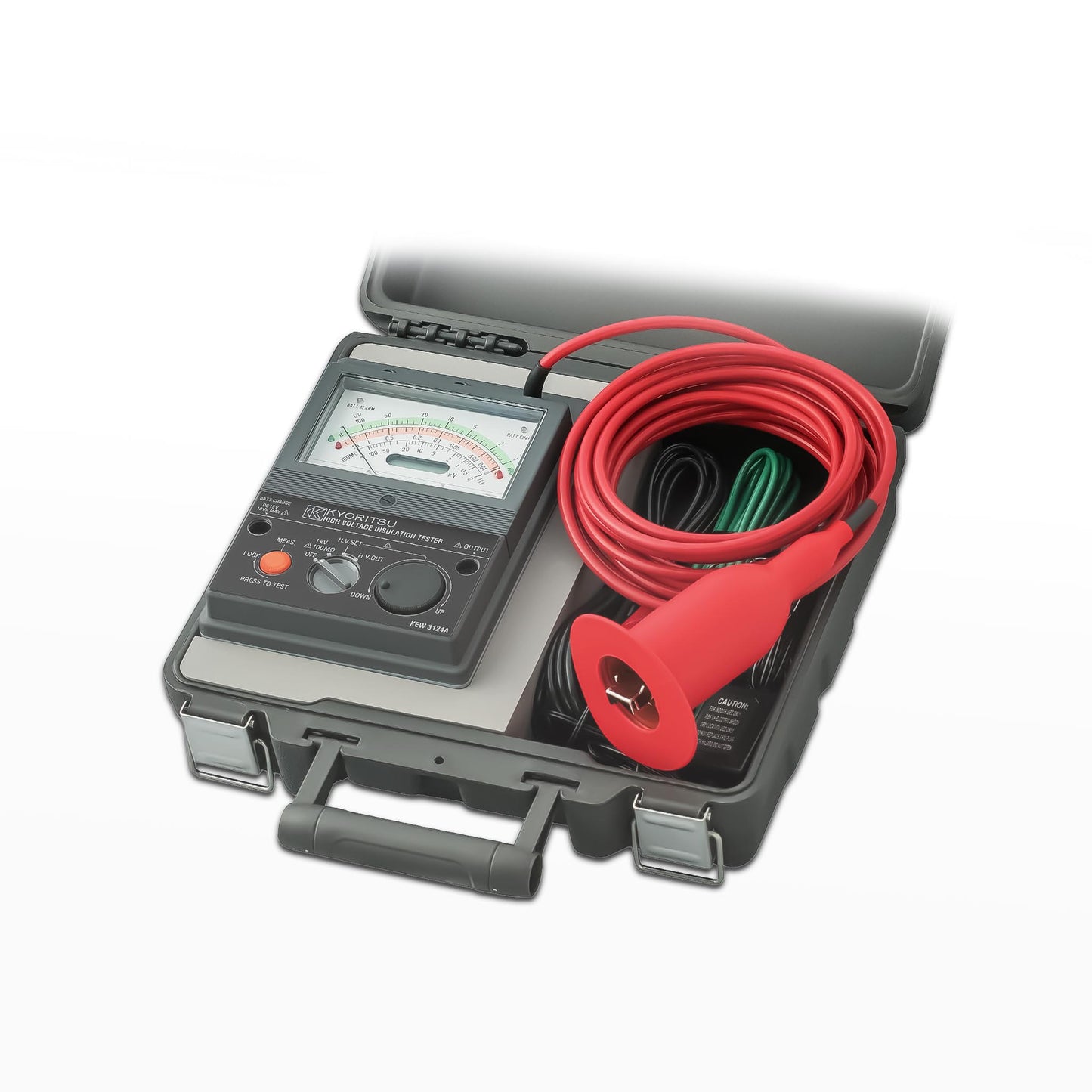

Kyoritsu 3124A 1kV - 10kV Variable Insulation Tester

A variable range insulation tester from the world-class manufacturer, Kyoritsu. This tester supports a wide range of insulation testing up to 100GΩ with variable test voltage settings from 1kV to 10kV. It provides DC voltage output for recorders, displays output voltage on a digital screen, and includes automatic discharge of charges stored in the circuit under test. The device operates on Ni-MH rechargeable batteries.

• Suitable for insulation testing up to 10kV

• Insulation resistance (variable 1kV to 10kV)

Insulation Measurements

• Measuring Range: 1.6GΩ/100GΩ with autoranging
• First Effective Measuring Range: 0.05~50GΩ
• Accuracy: ±10% of reading
• Other Ranges Accuracy: ±1% of scale length
• Output Voltage and Set Voltage Indication: DC 0~10kV, ±2% of reading ±2 digits

General

• Withstand Voltage: 500V AC for 1 minute
• Power Source: Ni-MH (1.2V) × 8 or External DC Supply 15V
• Dimensions: 200(L) × 140(W) × 80(D) mm
• Weight: Approximately 1.6 kg

Included Accessories

• 7082 Recorder Leads
• 7083 Battery Charging Leads
• 7084 Earth and Guard Leads
• 8266 Battery Charger (120V) / 8267 Battery Charger (220V) / 8264A Battery Charger (AU)
• 9176 Hard Carrying Case
• Ni-MH Rechargeable Batteries × 8
• Instruction Manual

1 year
