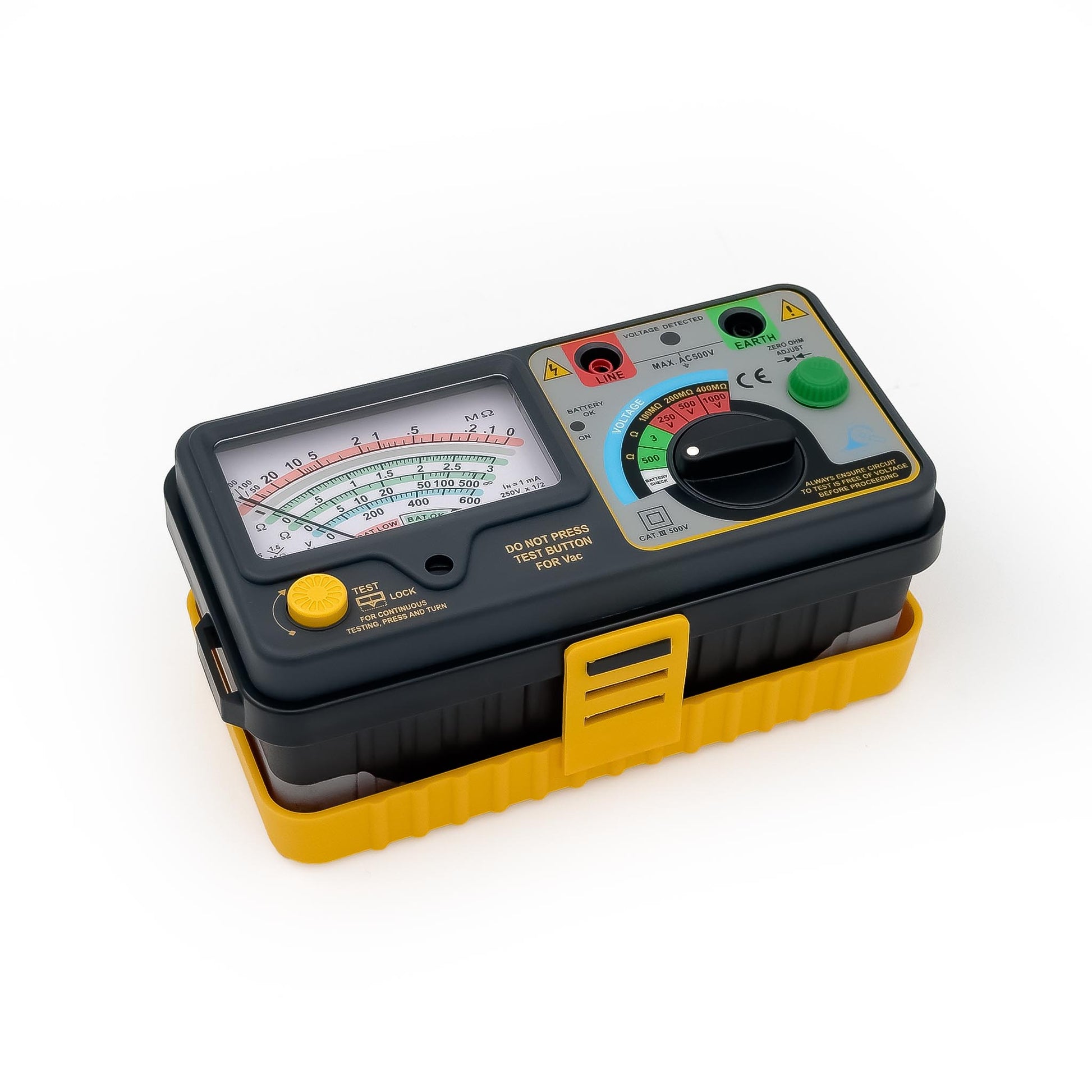

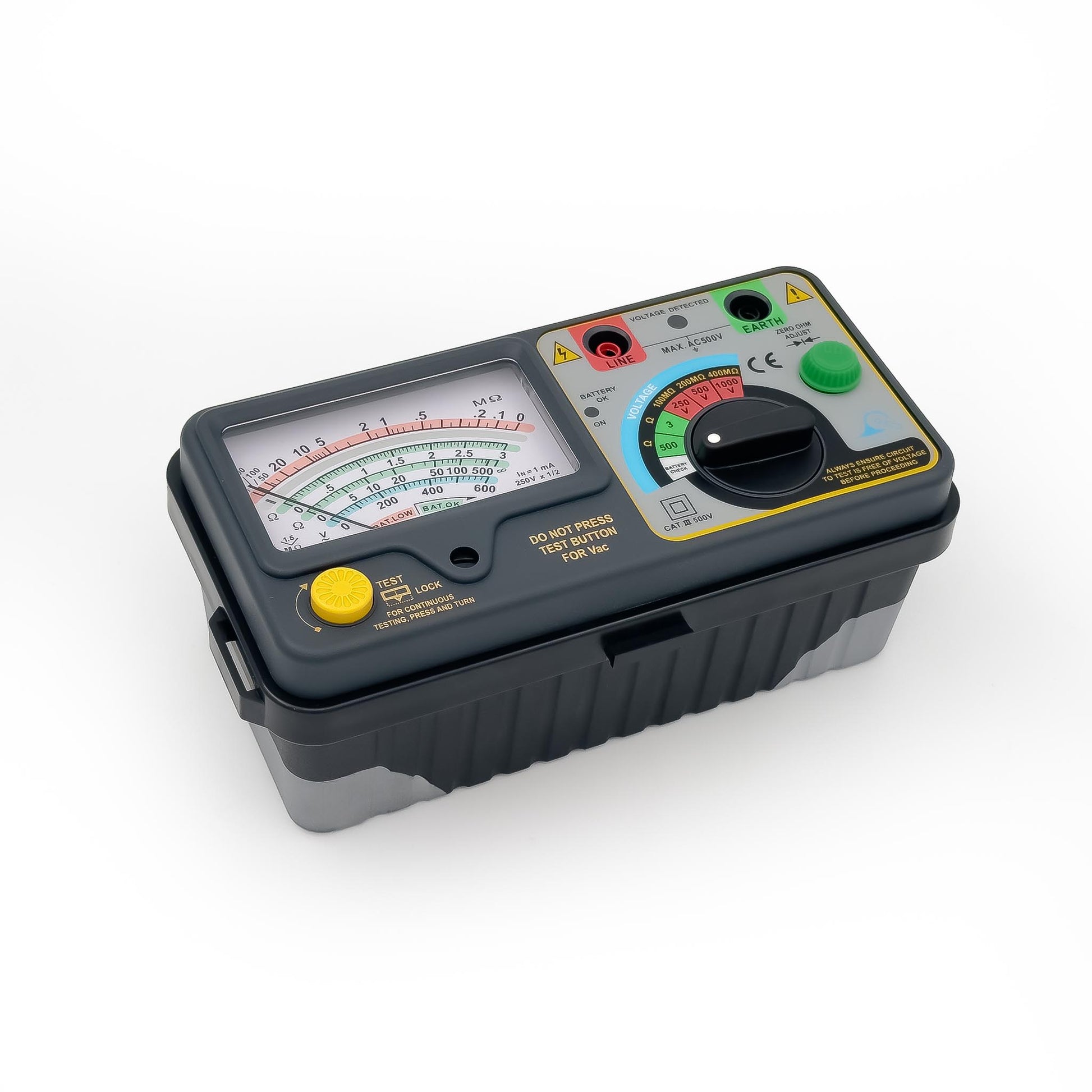

Wavecom WCM-ET-809 Analogue Insulation and Continuity Tester

The Wavecom ET-809 is a robust analogue insulation and continuity tester designed for reliable, everyday use. It combines simple dial selection with a clear moving-coil (taut band) display, making it a favourite for techs who want fast, no-nonsense results on site.

This battery-powered tester provides straightforward selection and clearly marked scales for:

• Insulation Resistance Testing at 250V, 500V, and 1000V ranges
• Continuity Testing with low-ohms 3Ω and 500Ω ranges
• AC Voltage presence indication to warn of live circuits

The ET-809 delivers quick, accurate readings and practical safety touches including automatic safety discharge after tests, a live-circuit warning LED, and an audible buzzer. A push-and-turn locking switch supports hands-free measurements, and the onboard battery check keeps you confident in the field.

A dependable choice for electricians and service technicians needing consistent, no-fuss insulation and continuity testing at a very reasonable price.

Suitable for insulation and continuity testing on installations or equipment.

Tests:

• Insulation resistance
• Continuity
• AC voltage presence / live-circuit warning

Insulation Measurements:

• Test Voltages: 250V, 500V, 1000V DC (rated test voltage +10% on open circuit)
• Measuring Ranges: 0–100MΩ (250V), 0–200MΩ (500V), 0–400MΩ (1000V)
• Mid-Scale Values: 1MΩ (250V), 2MΩ (500V), 4MΩ (1000V)
• Scale Multiplier: ×1/2, ×1, ×2
• Accuracy: ±3% of indicated value
• Short-Circuit Test Current: approx. 1.3mA DC
• Automatic Safety Discharge: Enabled at the end of test

Continuity Measurements:

• Ranges: 3Ω, 500Ω
• Measuring Range: 0–3Ω, 0–500Ω
• Output Short-Circuit Current: approx. 205mA
• Accuracy: ±1.5% of scale length

AC Voltage / Live-Circuit Warning:

• Visual Warning (LED): activates at ≥90V DC or ≥70V AC
• Audible Warning (buzzer): beeps at ≥24V AC/DC
• Function: Displays AC mains presence for safety before testing

General Features:

• Taut band movement analogue meter
• Push & turn locking switch for hands-free testing
• Battery check (indicates good batteries 8–13V during 240mA load test)
• Fuse protection (0.5A, 250V)

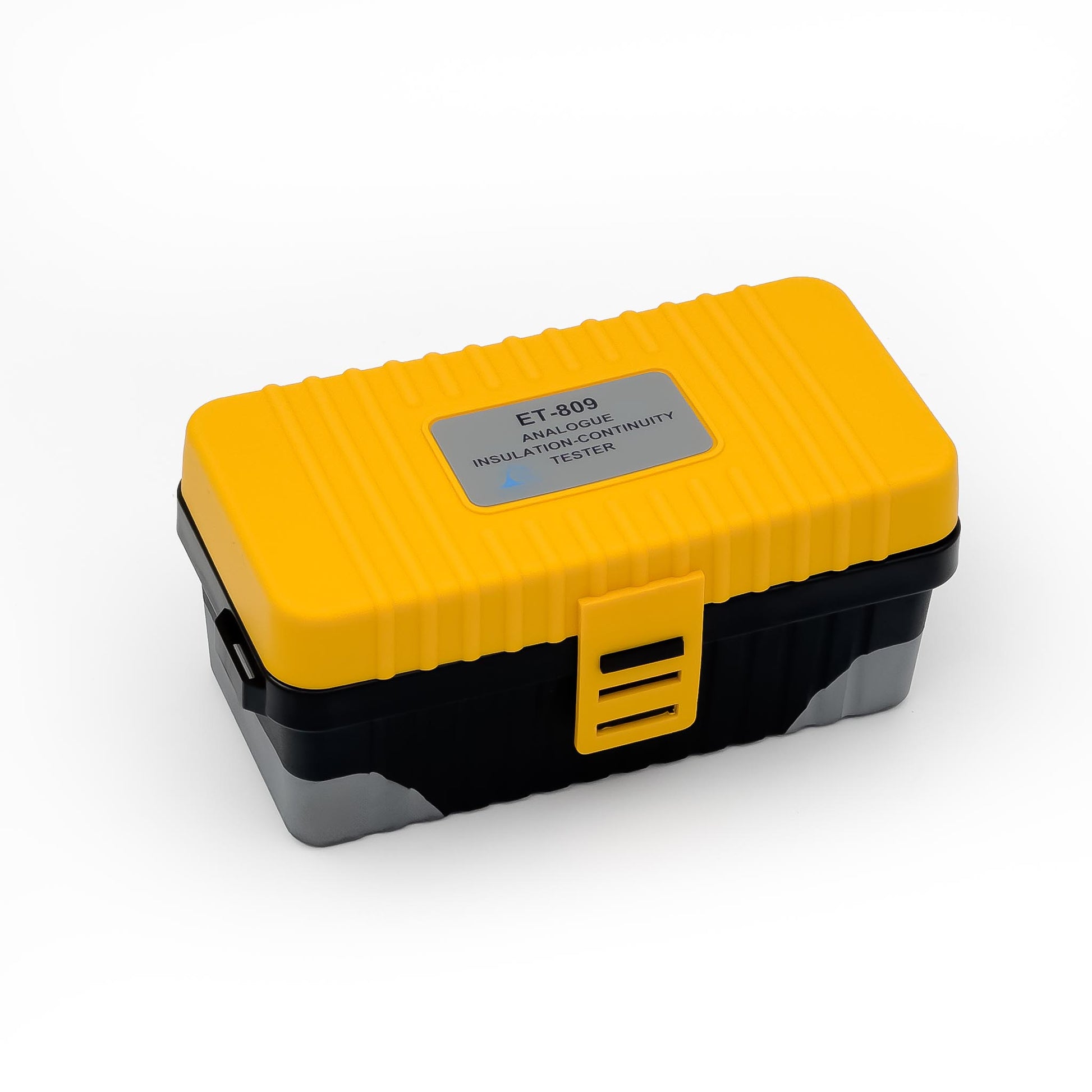

• Durable carry case

Power & Physical:

• Power Source: 1.5V AA (SUM-3) × 8
• Dimensions: 175mm (L) × 85mm (W) × 75mm (D)
• Weight: ~650g

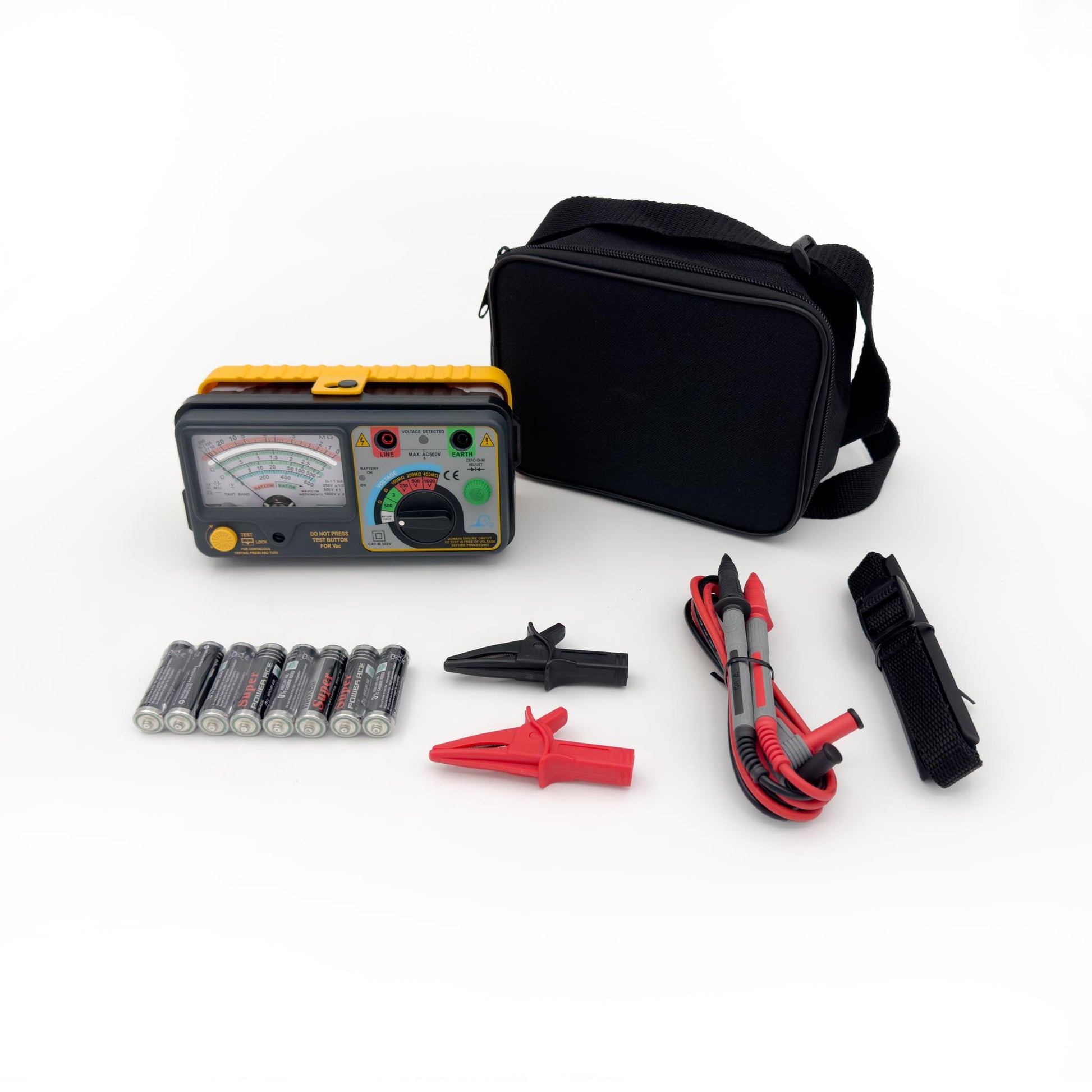

• ET-809 insulation & continuity tester
• Test leads
• Crocodile clip(s)
• Fuse (0.5A, 250V)
• Carry case
• Instruction manual
• Batteries

Standards & Calibration:

Supplied with a 12-month calibration certificate to Australian Standards.

12 months
