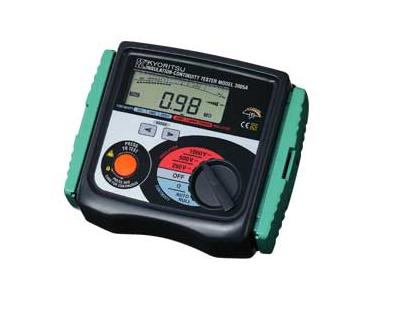

Kyoritsu 3005A Digital Insulation and Continuity Tester

A lightweight and compact insulation and continuity tester from Kyoritsu, housed in a self-enclosing case.

Suitable for both insulation and continuity testing.

• Insulation resistance (250V / 500V / 1000V)
• Continuity (20Ω / 200Ω / 2000Ω)

• Measuring range: 20MΩ / 200MΩ / 2000MΩ
• Output voltage on open circuit: Rated test voltage +20%, -0%
• Nominal current: 1mA DC min.
• Output short circuit current: 1.5mA DC approx.
• Accuracy: ±1.5%rdg±5dgt (20MΩ/200MΩ), ±10%rdg±3dgt (2000MΩ)

• Measuring range: 20Ω / 200Ω / 2000Ω
• Output voltage on open circuit: 7~12V DC
• Measuring current: 200mA DC min.
• Accuracy: ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200Ω/2000Ω)

• AC Voltage: 0~600V AC
• Accuracy: ±5%rdg±3dgt

• Bargraph to display insulation resistance
• Displays the value of external AC voltage with flashing symbol
• Auto null function to subtract test lead resistance before displaying actual continuity resistance
• Live circuit warning beeper
• Automatic discharge of stored charges when test button is released
• 200mA continuity measuring current to IEC 61557
• Minimum 1mA current on insulation tests to IEC 61557
• Withstand voltage: 2200V AC for 1 minute
• Power Source: R6P(AA)(1.5V) × 8
• Dimensions: 185(L) × 167(W) × 89(D)mm
• Weight: 970g approx.

• IEC61010-1 CAT.III 300V Pollution Degree 2
• IEC61010-2-031
• IEC61557-1/2/4

• 7122 (Test leads) Pouch for test leads
• 8923 (F500mA/600V fuse) × 2
• R6P (AA) × 8
• Shoulder strap
• Instruction manual

1 Year
