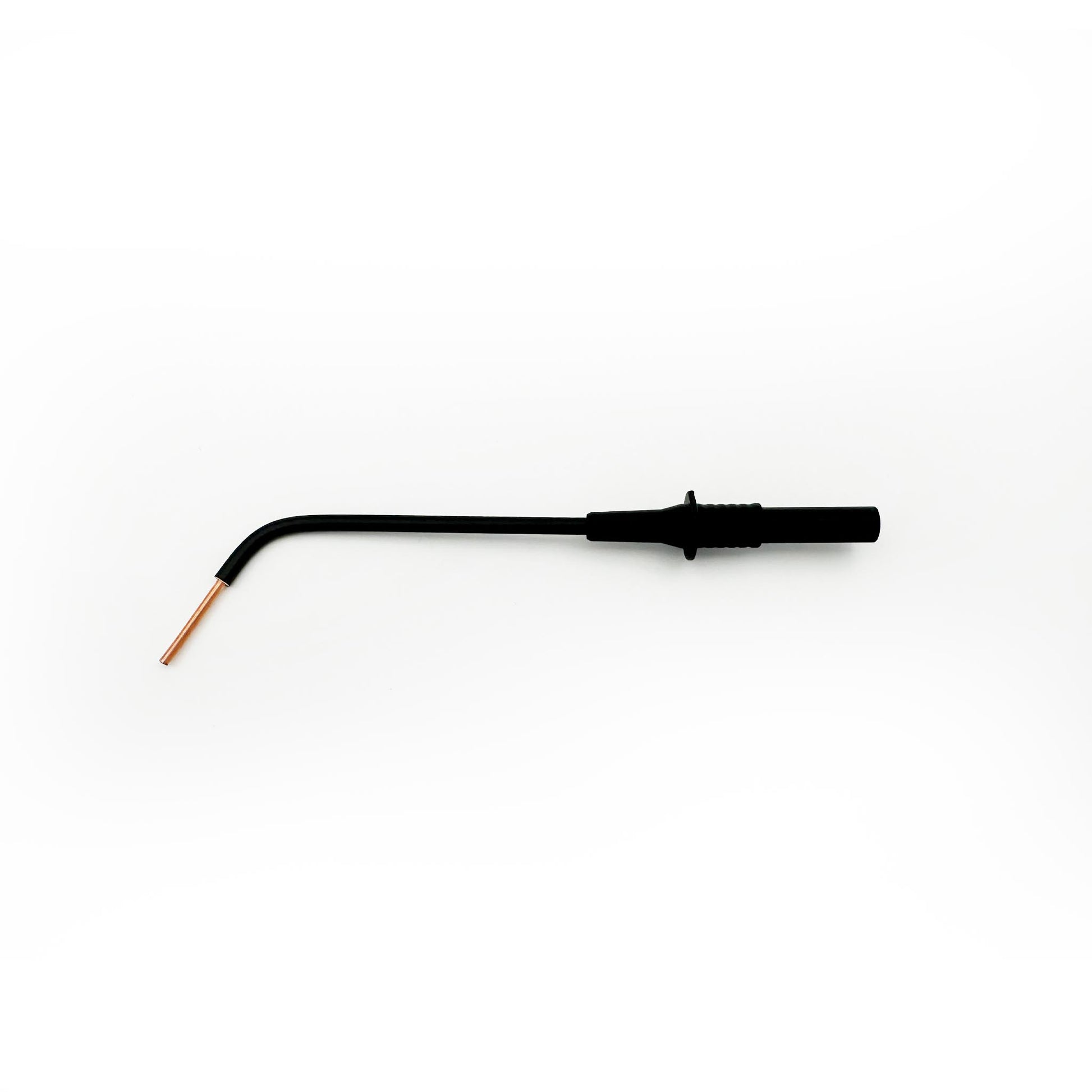

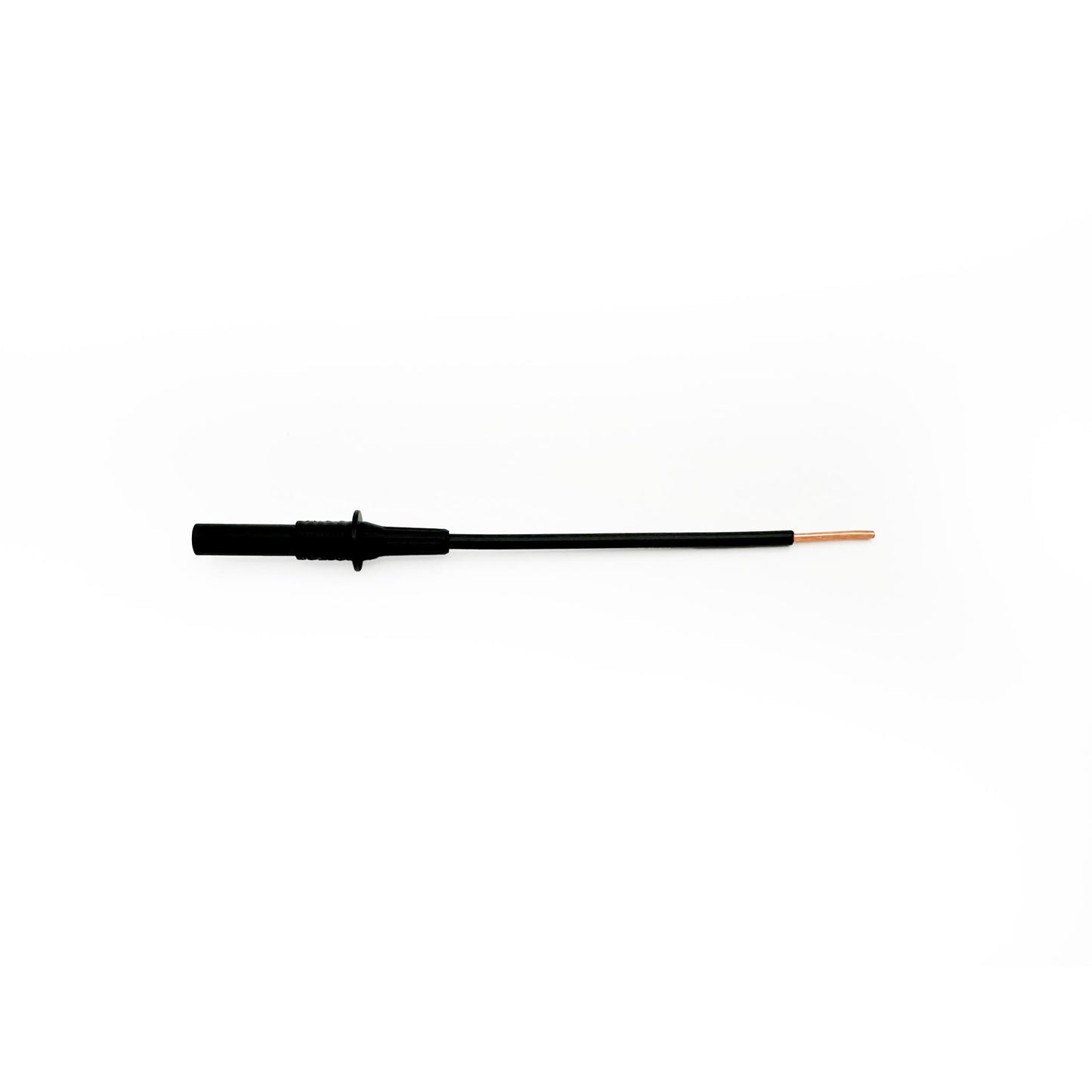

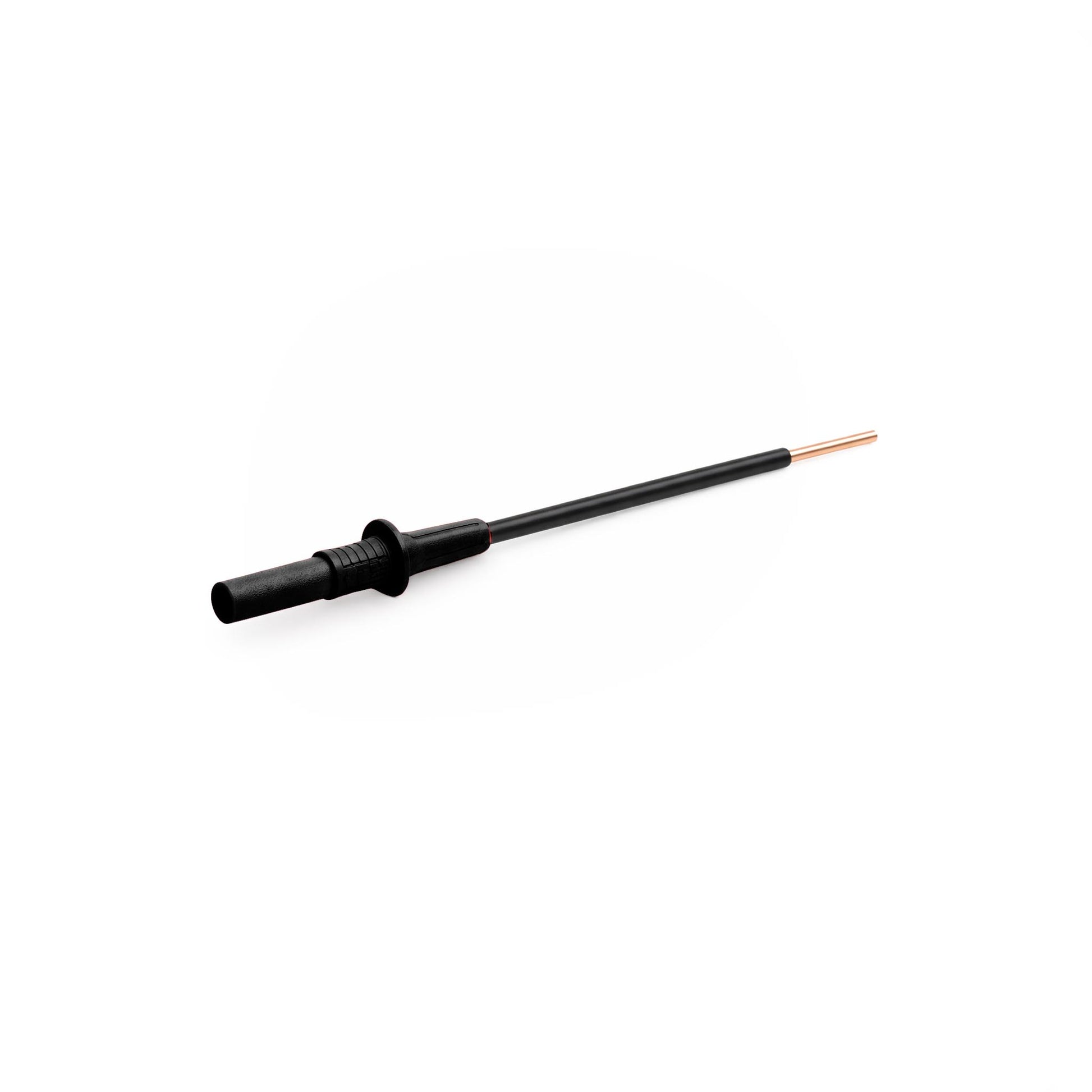

Black Flexible Probe Electro PJP AdaBV140 Adapter for Screw Terminal Blocks

The AdaBV140 is a 1000 V CAT III adaptor designed to safely connect measuring instruments to screw terminal blocks in electrical boards. Manufactured by Electro-PJP (France), it converts a standard screw terminal into a secure 4 mm banana female connection, enabling reliable measurements without modifying the installation.

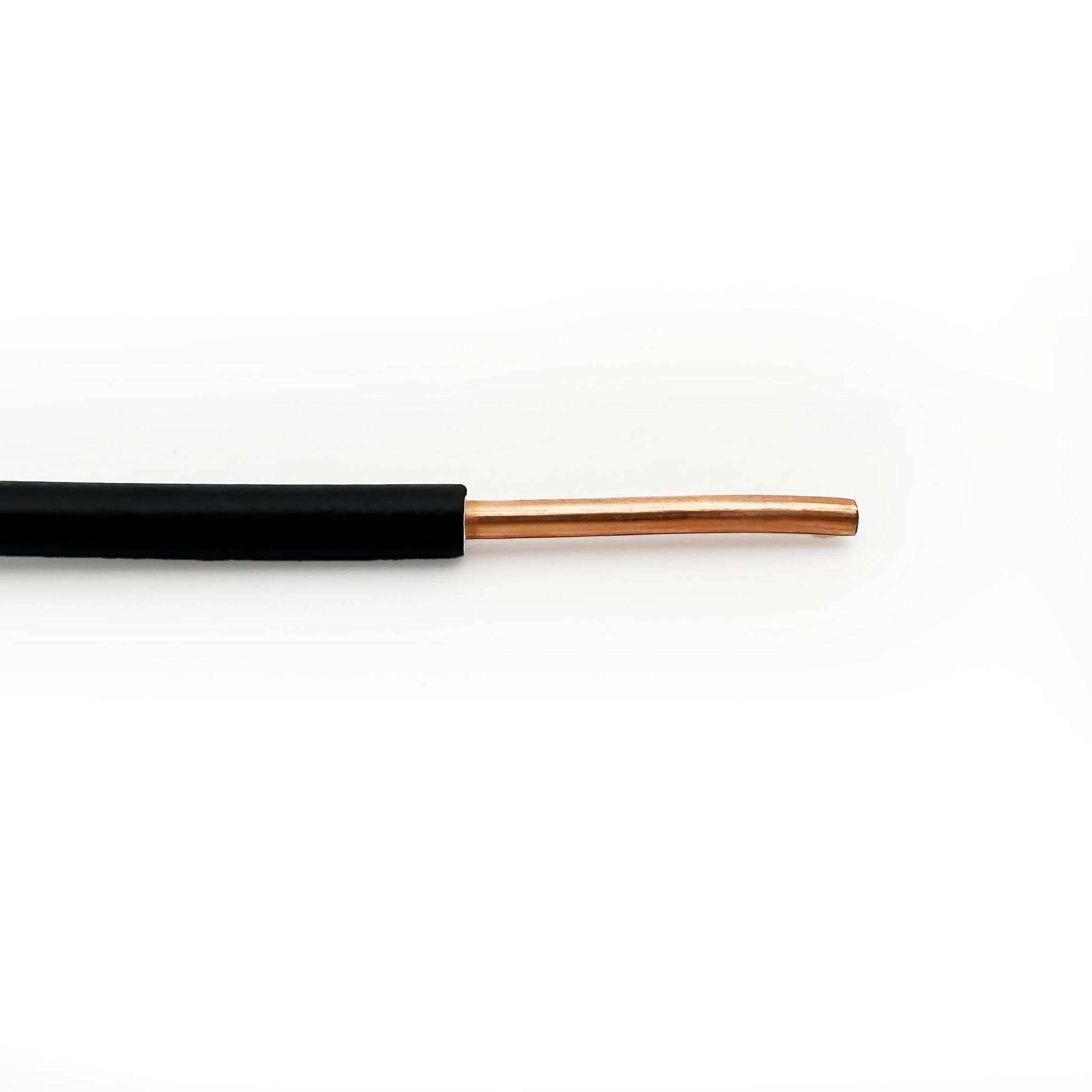

The adaptor mimics a stripped 2.5 mm² rigid copper conductor, allowing it to be clamped directly into screw terminal blocks, while the opposite end accepts standard 4 mm banana test leads. Its flexible, insulated shaft allows easy routing in confined or complex electrical cabinets.

• Connection of measuring devices to electrical board screw terminal blocks
• Industrial electrical cabinet maintenance and commissioning
• Troubleshooting and diagnostics on industrial equipment
• Voltage, harmonic, and power quality analysis
• Verification and testing of industrial machines after manufacture
• Use with multimeters, power quality analysers, oscilloscopes, and test benches

• Product designation: 1000 V CAT III adaptor for screw terminal blocks
• Part number: AdaBV140

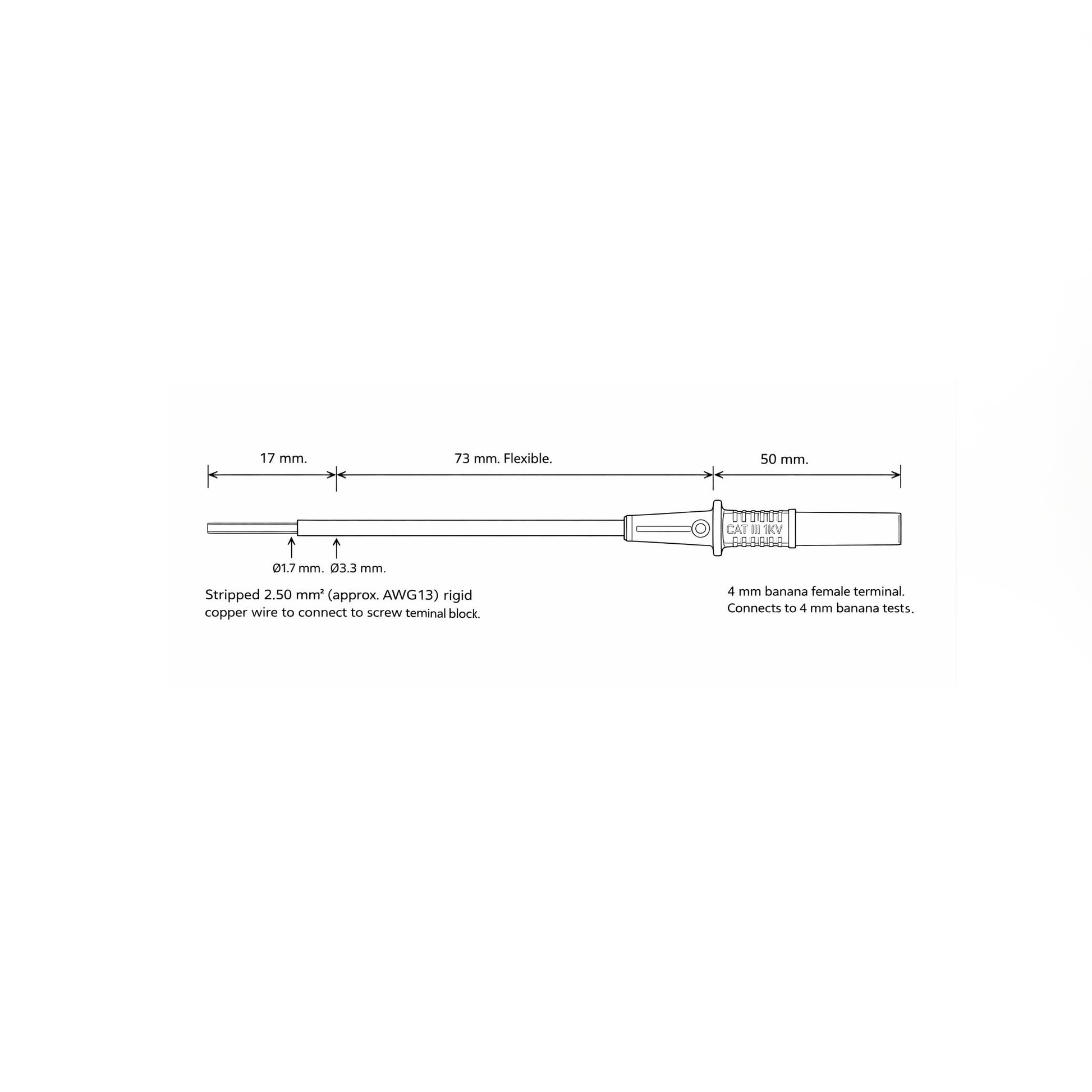

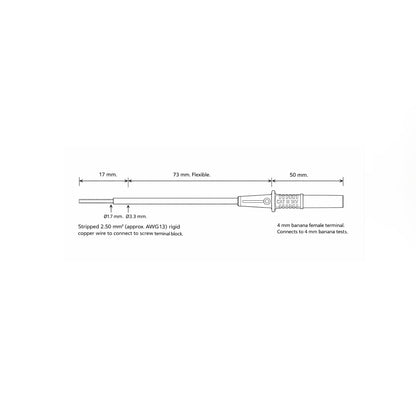

• Connection type (terminal block end): Simulated stripped 2.5 mm² rigid copper wire (≈ AWG 13)
• Connection type (instrument end): 4 mm banana female socket
• Shaft: Flexible, reinforced insulated shaft
• Connection durability: Suitable for temporary, semi-permanent, or long-term installations
• Current rating: Up to 36 A at 60 °C ambient temperature
• Weight: Approx. 0.007 kg
• Colours available: Black, Red, Yellow, Green, Blue, White, Brown, Grey
• Packaging: Bag of 10 adaptors (same colour)
• Origin: Designed and manufactured in France

• 1000 V CAT III
• 600 V CAT IV
• Insulation: Reinforced insulation
• Standards compliance: EN / IEC 61010-031
• CE and UKCA marked
• Low Voltage Directive 2014/35/EU
• RoHS (2011/65/EU & 2015/863/EU)
• REACH (EC No. 1907/2006)
• Conflict Minerals Regulation (EU 2017/821)
• UK Electrical Equipment (Safety) Regulations
• US TSCA
