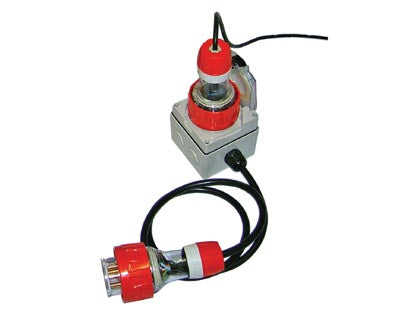

TR3PHAD1 - Trio ProLogger 3-Phase Option 20A / 32A

A 5-pin, 20A and 32A, 3-phase leakage adaptor designed for use with the Trio Prologger II Appliance Tester.

Application:

• Measures and records leakage current, displaying the result on the Trio Prologger.
• Performs an earth bond test in conjunction with your appliance tester.
• Logs mA readings on your appliance tester for accurate tracking.

Features:

Many three-phase appliances incorporate electronic components such as temperature controls, PLCs, or motors that require powered starter circuits like contactors. These devices must be powered on for full testing, as insulation resistance tests will only reach the on/off switch, missing potential faults inside the appliance. The Trio Prologger 3-phase adaptor powers the appliance during testing, allowing the measurement of leakage current.

Specifications:

• Model: TR3PHAD1 (20A and 32A, 50Hz)
• Designed for use with the Trio Smartcal Prologger Appliance Tester
• Suitable for all new purchases of the Trio Smartcal Prologger Appliance Testers (requires notice before ordering)
• Existing SafeTcheck Prologger (versions 7 & 8) can be upgraded for compatibility with the TR3PHAD1 at a cost of $250.00 + GST
• Connection: Three-phase socket outlet & plug
